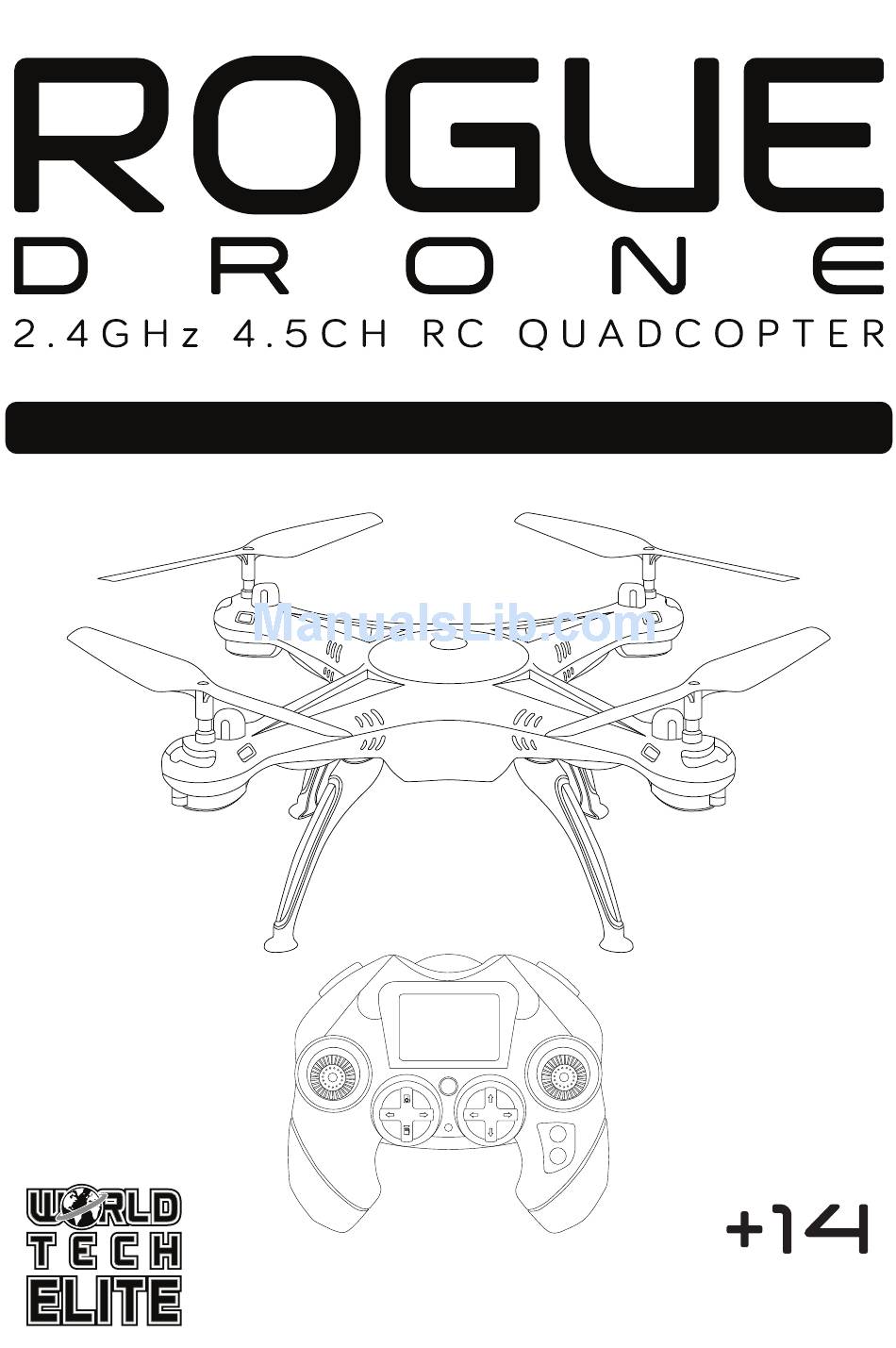

- Page 1 I N S T R U C T I O N M A N U A L ITEM NO. 33777...
- Page 2 TA B L E O F C O NT ENTS INTRO DU CTI ON SAFET Y & PRE CAU T IO NS D RONE D I A GR AM T R ANSM I T T E R DIA GRA M INS TAL L ING T HE T RA NSMI T TE R BAT TERY INS TAL L ING T HE D RO NE BATT ER Y CHAR GI N G T HE D RONE B AT T E RY...
-
Page 3: Introduction
INTRODUCTION Thank you for purchasing this amazing World Tech Toys product. This drone is suitable for indoor and outdoor flight. Please carefully read the entire manual before operating this drone and keep it for reference in the future. SAFETY & PRECAUTIONS 1. -
Page 4: Drone Diagram
DRONE DIAGRAM BOTTOM OF DRONE Rotor Power Button Lights Landing Skids Rotor Guard Slots Battery Compartment Landing Skids TRANSMITTER DIAGRAM Power Button Speed Modes Flip Stunt Mode Forward / Backward (Left / Right Sideways Flight) Ascend/Descend [Left/Right Turning] Forward / Backward Trim Left/Right Turning Trim Left / Right Sideways Trim Power Light... -
Page 5: Charging The Drone Battery
INSTALLING THE TRANSMITTER BATTERIES Battery Cover First remove the screw on CAUTION: the battery cover and then 1. Make sure the polarity of the remove the battery cover batteries are correctly installed. itself. Next install 4 AA 2. Do not mix old and new batteries with the correct batteries. -
Page 6: Preflight Prep / Syncing The Drone To The Remote
INSTALLING THE LANDING SKIDS NOTE: The landing skids are all identical and can be installed in any of the landing skid slots on the drone. Turn off the drone and turn over to install the landing skids. Line up the landing skid with the three slots on any of the drones landing skid slots and push into place. -
Page 7: Flying The Drone
FLYING THE DRONE Before flying the drone for the first time please read the instructions carefully and make sure you fully understand how to control your drone. BASIC FLYING CONTROLS Throttle Move Forward/Backward Front Back Move Right/Move Left Move Right Move Left Left Spin/Right Spin Left Spin... -
Page 8: Flying The Drone - Special Function
FLYING THE DRONE - SPECIAL FUNCTIONS SPEED CONTROL The drone has 3 speed settings. Low, medium and high speed. The drone will always default to low speed when you first turn it on. Press the SPEED CONTROL button once and you will hear 2 beeps, meaning it is now on medium speed. -
Page 9: Adjusting The Trim
ADJUSTING THE TRIM When the drone moves without transmitter input, adjust the trim controls until hovering is stable. Drone is turning Push the RIGHT to the left. TRIM button until the drone stops turning. Turn Right Trim Push the LEFT TRIM Drone is turning to the right. -
Page 10: Post Flight
POST FLIGHT After you are done flying the drone make sure the battery pack is disconnected and the transmitter power is turned off. If you are not going to use the drone for a long period of time, please remove the AA batteries from the transmitter to prevent them from draining or leaking. -
Page 11: Troubleshooting
TROUBLESHOOTING PROBLEM CAUSE SOLUTION Transmitter is not syncing with Drone is unresponsive. The Repeat the power up process. drone. Transmitter light keeps flashing. Drone is unresponsive. Transmitter and or drone Turn both transmitter and drone ON. is not powered ON. Transmitter batteries are Install the batteries with the installed incorrectly. - Page 12 NOTES: Website: www.worldtechtoys.com Email: customerserv@worldtechtoys.com SPECIFICATIONS, Phone: (877) 498-8697 COLORS AND CONTENT Monday - Friday / 8:00AM - 5:00PM / Pacific Time MAY VARY FROM ILLUSTRATIONS MADE IN CHINA WWW.WORLDTECHTOYS.COM...
