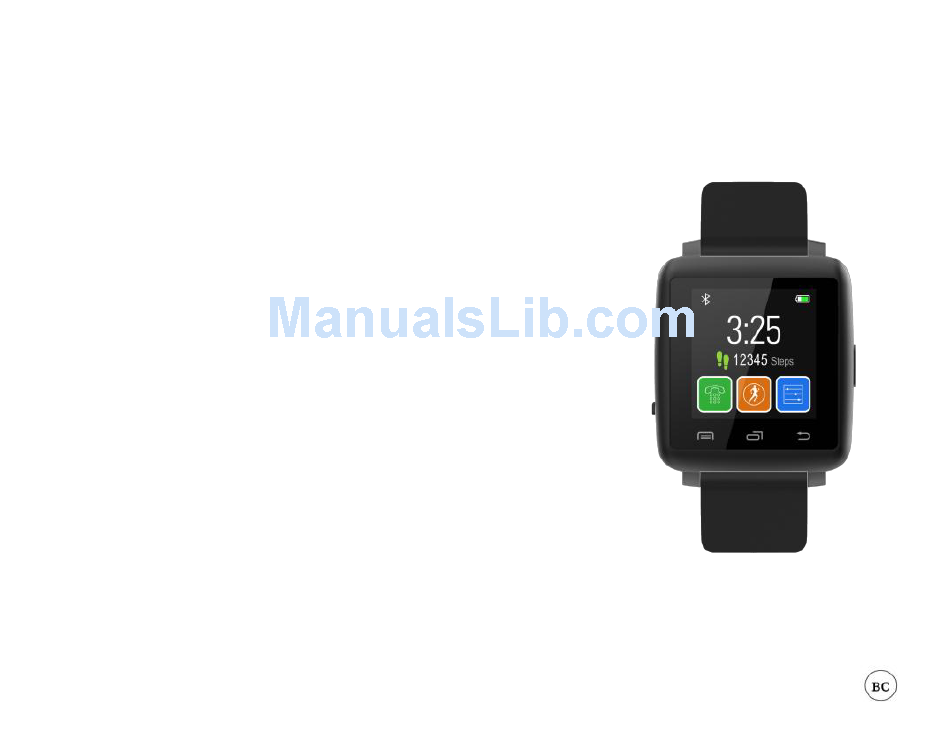

SMART WATCH
Smart Watch For iOS and Android
SW1402
Instruction Manual
Model No.:
TYL-7201-BLK

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the TYL-7201-BLK and is the answer not in the manual?

Questions and answers

Related Manuals for Vivitar TYL-7201-BLK

Summary of Contents for Vivitar TYL-7201-BLK

  • Page 1 SMART WATCH Smart Watch For iOS and Android SW1402 Instruction Manual Model No.: TYL-7201-BLK...

  • Page 2: Table Of Contents

    Table of Contents MOBILE APP QR CODE....................2 INTRODUCTION ......................3 PACKAGE CONTENTS ....................4 FEATURES ........................4 A QUICK LOOK AT YOUR DEVICE ................5 CHARGING YOUR DEVICE .................... 5 PAIRING YOUR WATCH ....................6 USING SMART WATCH APP ..................8 USING YOUR SMART WATCH ..................

  • Page 3: Mobile App Qr Code

    Mobile App QR Code Scan QR code to install the OWATCH app: Scan QR Code: Scan QR Code: Android app iOS app...

  • Page 4: Introduction

    Introduction The Smart Watch for iOS and Android allows you to you use your smartphone without having to take it out of your pocket. The watch synchronizes your phone book and lets you make and receive phone calls, receive text messages and notifications from your device. A built in pedometer and sleep monitor tracks your steps, distance, calories burned and quality of sleep.

  • Page 5: Package Contents

    Package Contents 1. Smart Watch SW1402 For iOS and Android 2. User manual with warranty information 3. USB charging cable Features  Bluetooth connectivity  Wirelessly syncs data to smartphones and portable devices  1.44" capacitive touch screen  Synchronize phone book, make and receive calls through your phone via Bluetooth ...

  • Page 6: A Quick Look At Your Device

    A Quick Look at Your Device 1. Speaker 5. Dialer / Next page 2. Micro USB port 6. Back / Delete / Hang Up 3. Microphone 7. Power On-Off / Home 4. Menu / Confirm Charging Your Device Connect the included USB cable to the USB port on your Smart Watch, then plug the other end into your computer or USB charging adapter (5V 500mA).

  • Page 7: Pairing Your Watch

    Pairing Your Watch Before attempting to pair, please ensure that Bluetooth is turned on and visible in your smartphone or tablet settings. Push the Power button to activate your Smart Watch. 1. On the Smart Watch „Home‟ screen, slide your finger up until the Bluetooth icon appears, and then tap the Bluetooth icon to select.
  • Page 8 Bluetooth Icon Color Indication  When the Bluetooth icon is BLUE: BT 3.0 is connected.  When the Bluetooth icon is GREEN: BT4.0 is connected.  When the Bluetooth icon is BLUE+GREEN: BT3.0 and BT4.0 are connected.  When the Bluetooth icon is WHITE: BT is on, but there is no BT connection.
  • Page 9 Using the SW1402 Smart Watch App The SW1402 Smart Watch app allows you to sync your activity and sleep data with your smartphone or tablet, and manage which notifications get sent to your watch. Please follow the steps below to begin using the app. Mobile Device Requirements The SW1402 Smart Watch is compatible with most iOS 7 or Android 4.3 and above smartphones and tablets that support Bluetooth.
  • Page 10 When you first open the SW1402 Smart Watch app, press “START”. When the OWATACH app prompts you to “Enable Notification”, tap „OK‟ to enter the device‟s settings and select „ON‟ to enable notifications. The personal data screen then appears. Enter your personal data such as “Name, Goals, Steps, Distance, Calories, Sleep”...
  • Page 11 To pair your devices, please connect the watch from the app „Settings‟. Tap the „Settings‟ icon to enter the „Settings‟ screen. Tap „Connect Smart Watch‟ then follow the steps shown on the screen (as seen above). Tap „+‟ to search for your Smart Watch. When the name of your Smart Watch appears in the list, tap to select and connect to it.
  • Page 12 „Sports‟ mode, pull to refresh (SYNC) - to save and synchronize your information.  Please launch the app after you have paired your device and Smart Watch via Bluetooth, to ensure all the communication functions work properly.  To check if your Smart Watch is connected to your Bluetooth device, press the "Find Me"...
  • Page 13 Activity Mode Tap the Sports button on the bottom to enter the display of your data as shown per the selected Activity or Sleep tab. The Activity section of the app displays all of your activity data. Tapping the center of the circle will change between Steps, Calories and Distance. Select Sleep from the top menu bar to see your Sleep data.
  • Page 14 History Mode Tap the Trends button on the bottom to enter the history section of the app. This displays any previously recorded data in weekly, monthly and yearly increments.
  • Page 15 Settings Mode Tap the Settings button on the bottom to enter the Settings screen. The following options appear:  Connect Smart Watch – Make sure your smartphone/tablet‟s Bluetooth and Smart Watch‟s Bluetooth is turned on. Follow the steps shown on the screen to pair your Smart Watch to your smartphone or tablet.
  • Page 16 Personal Data Mode Tap the Me button on the bottom to enter your Personal Data screen. Enter your personal information and goals.  Personal Information: Enter the following information about yourself: Name, Birthday, Height, Weight and Gender  Personal Goals: Enter your personal goals for the amount of daily Steps, daily Distance and daily Calories to burn that you would like to achieve.

  • Page 17: Using Your Smart Watch

    Using Your Smart Watch Your Smart Watch comes with four different themes. You can choose the theme you prefer by going into Settings > Clock. For the purposes of this instruction manual, we will be referencing the fourth theme. To scroll through the different sections of your Smart Watch, please select one of the 4 icons on the Main screen.
  • Page 18 Phone Menu Screen Dialer Icon You can make phone calls directly from your Smart Watch by pressing the Dialer/Next page key from the Home screen, or the Dialer icon in the Main Menu. When a phone call comes in, press the Green icon to accept the call, and the Red icon to decline the call.
  • Page 19 Notifications will also not show any social media, app, or operating system notifications you receive on your smartphone or tablet. Please delete the notifications after you view them to ensure you are receiving the most recent notifications. Activity Menu Screen Pedometer Icon ...
  • Page 20 the Smart Watch screen to view the Pedometer options. You can check your history, set your goals, gender, height and weight. Press Return to go back to the main Pedometer screen. Sleep Monitor Icon Your Smart Watch will monitor your sleep quality from 10 pm to 8 am every day.
  • Page 21 Settings, Media and Messaging Menu Screen Settings Icon  BT Settings – Turn Bluetooth on/off and visibility on/off  Clock – Change your clock type, time sync, date and time format  Sound – Set your alert type, ringtone and notification tone ...
  • Page 22 Music Icon Controls music tracks from your smartphone. Anti-Lost Icon Enter Anti-Lost mode and tap Start to assist you in finding your smartphone or tablet from your Smart Watch. Your smartphone or tablet will vibrate and beep when this feature is enabled. Tap Stop on your Smart Watch to stop the anti-lost function.
  • Page 23 Alarm, Calendar, Photo and Stopwatch Menu Screen Alarm Icon You can set up to 5 alarms on your Smart Watch by selecting the Alarm feature. Tap „+ Add New Alarm‟ to select one of the alarm slots and set the status (...
  • Page 24 Remote Capture Icon Easily switch on your smartphone or tablet camera (Android) and take a picture through your Smart Watch. The picture will be saved on your device. Stopwatch Icon The stopwatch allows you to count time right from your Smart Watch.

  • Page 25: Troubleshooting

    Troubleshooting Q. My Smart Watch will not turn on. A. Please make sure the device is fully charged. Press and hold the Power button for a few seconds. If the device still doesn‟t turn on, press and hold the Power button for at least 10 seconds. Q.
  • Page 26 Q. The Smart Watch speaker volume is low. A. the Smart Watch speaker volume can be controlled from the smartphone: on iPhone via the Phone volume, on Android via the Media or Bluetooth volume. If the volume on the phone is low, the volume from the speaker on the Smart Watch will be low as well.

  • Page 27: Important Safety Instructions

    Important Safety Instructions 1. Please keep this manual as a reference guide for the correct way to operate your Smart Watch. 2. Do not expose your Smart Watch to fire or excessive heat; it contains a battery. 3. Do not attempt to disassemble your Smart Watch. It does not contain serviceable components.
  • Page 28 This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
  • Page 29 The device has been evaluated to meet general RF exposure requirement. The device ca sed in portable exposure condition without restriction. n be u FCC ID: 2ALLD-TYL7201BLK...
