Summary of Contents for basic coatings Dust Dragon EB858-0812

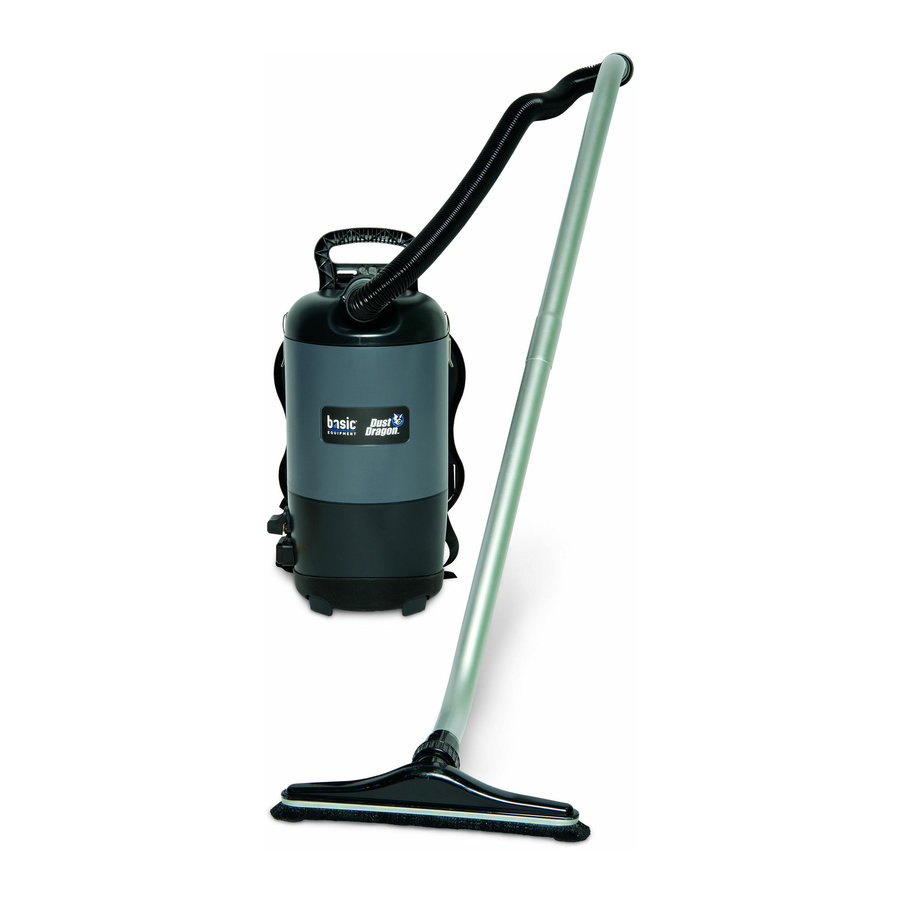

- Page 1 Light Weight Back Pack Vacuum EB858-0812 Operator’s Manual & Parts Schematic ©2006 Basic All Rights Reserved. 1001 Brown Avenue Toledo, Ohio 43607 515.288.0231 | Fax 515.288.0615 www.basiccoatings.com...
- Page 2 Dust Dragon Back Pack Vacuum Table of Contents Technical Information & Safety Page 3, 4 Preparation & Operation Page After Use & Maintenance Page Part Schematic Page 6, 7 Basic 1001 Brown Avenue Toledo, OH 43607 www.basiccoatings.com...
-
Page 3: Technical Information
Dust Dragon Back Pack Vacuum Technical Information Tank Size 5 - Liter Vacuum Motor 1.5 hp (1-stage direct) Noise Level 65 dB Filtration Triple (Paper Bag, Cloth Bag & Motor) Airflow 120 cfm Water Lift 100” Power Cord 50’ Length 9.5”... -
Page 4: General Safety Information
Dust Dragon Back Pack Vacuum General Safety Information When using an electrical appliance, basic precautions should always be followed, read all instructions before using. ! WARNING! To reduce risk of fire, electric shock, or injury: • Do not leave the machine when it is plugged in. Unplug the unit from the outlet when not in use &... - Page 5 Dust Dragon Back Pack Vacuum Preparation and Operation Unwrap the power cord completely & plug into a properly grounded outlet. Install paper filter bag. Attach swivel hose connector and hose to tank inlet. Attach appropriate cleaning tool. Turn switch to on position. You are now ready to begin your cleaning task.
- Page 6 10 12 13...
- Page 7 Veiw # SKU# DESCRIPTION Ref.# 82952 THERMAL PROTECTION SWITCH A328-1400 82953 LATCH A352-3300 82954 #10 .750 TYPE B PHILIPS PAN HEAD SCREW A352-8100 82955 #6 X .375 HI-LO PHILIPS PAN HEAD SCREW A352-8200 82956 #8-16 X 2.500 PHILIPS PAN HEAD SCREW A430-0205 82957 #8 X .625 HI-LO PHILIPS PAN HEAD SCREW...
