Summary of Contents for Air Liquide NERTAMATIC 450 AC/DC

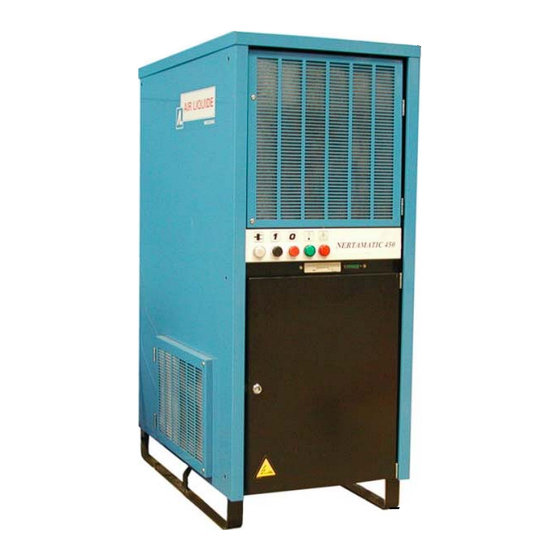

- Page 1 NERTAMATIC 450 AC/DC POWER SOURCE NO. W000315023 8695-5522 EDITION: Instructions for use REF.: REVISION: D DATE: 11-2008 NERTAMATIC 450 AC/DC...
- Page 2 1- DESCRIPTION NERTAMATIC 450 AC/DC...
- Page 3 1- DESCRIPTION REVISIONS REVISION B 07/05 DESIGNATION PAGE Change fuse values REVISION C 06/06 DESIGNATION PAGE To change logos REVISION D 11/08 DESIGNATION PAGE Complete update + spareparts newoffer NERTAMATIC 450 AC/DC...
- Page 4 1- DESCRIPTION 1- DESCRIPTION NERTAMATIC 450 AC/DC...
- Page 5 AVC, the wire feeding funcion, the BRT, some movements etc. It offers an internal visualisation of its operating status and a galvanised insulated interface for dialogue with the “outside”. NERTAMATIC 450 AC/DC...
- Page 6 - with a fork lift truck or a pallet truck, (cardboard). Disunite the power supply from the pallet (8 mm - or using the 2 slinging rings intended for that nuts). purpose with a crane or a lifting bridge. NERTAMATIC 450 AC/DC...
- Page 7 Leave clearance of 500 mm around the sides and rear of the unit. Make sure that the fan openings are not blocked. Air enters into the machine through the front and the sides. NERTAMATIC 450 AC/DC...
- Page 8 PAB1, PAB2 and PAB3, depending on the local supply voltage. The unit is supplied wired for 440V. DO NOT FORGET THE AUXILIARY WIRING (PAB3). Connect the power supply cable to the terminal plate (right-hand side of the contactor). NERTAMATIC 450 AC/DC...
- Page 9 3 – OPERATOR'S MANUAL 3 – OPERATOR'S MANUAL FRONT PANEL CONTROLS WHITE indicator POWER ON BLACK button RED button GREEN indicator IN SERVICE RED indicator FAULT NERTAMATIC 450 AC/DC...
- Page 10 Your maintenance department may photocopy these pages so that it can follow up maintenance dates and operations (tick as appropriate) every 40 hours - Check if the air filters are dirty, clean them or change them. NOTE: use a vacuum nozzle to clean the power source NERTAMATIC 450 AC/DC...
- Page 11 4 - MAINTENANCE B - TROUBLESHOOTING 2- CHOPPER CONTROL BOARD NERTAMATIC 450 AC/DC...
- Page 12 Chopper control board failed If off: board power supply Call the After Sales Service dept. Chopper control board failed Chopper control board If off: board power supply Check fuse F1. failed Call the After Sales Service dept. NERTAMATIC 450 AC/DC...
- Page 13 4 - MAINTENANCE 3- AUXILIARY SOURCE BOARD NERTAMATIC 450 AC/DC...
- Page 14 +/-15V If off: board power supply Check fuses F1 and F2. failed Call the After Sales Service dept. Auxiliary source board +15V_A If off: board power supply Check fuse F3. failed Call the After Sales Service dept. NERTAMATIC 450 AC/DC...
- Page 15 4 - MAINTENANCE 4- AC MODULE CONTROL BOARD (OPTIONAL) NERTAMATIC 450 AC/DC...
- Page 16 Safety If LED on: board. Ventilation fault. Check the air intake filters and check the operating of the ventilation pallet. Ventilation off if the Normal behaviour. installation is idle. Fan failed. Call the After Sales Service dept. NERTAMATIC 450 AC/DC...
- Page 17 4 - MAINTENANCE C - SPARE PARTS NERTAMATIC 450 AC/DC...
- Page 18 2A 10*38 fuse F6, F7 AM 6A 10*38 fuse F10, F11 4A 10*38 fuse For parts order, give the quantity required and put the number of your machine in the box below. TYPE : TYPE:............ Matricule : Number: ..........NERTAMATIC 450 AC/DC...
- Page 19 For parts order, give the quantity required and put the number of your machine in the box below. TYPE : TYPE:............ Matricule : Number: ..........Note : the items in reference are those of the power source diagram. The diagram is on the door of the power source NERTAMATIC 450 AC/DC...
- Page 20 PERSONAL NOTES PERSONAL NOTES NERTAMATIC 450 AC/DC...
