USER MANUAL / OKA-206W

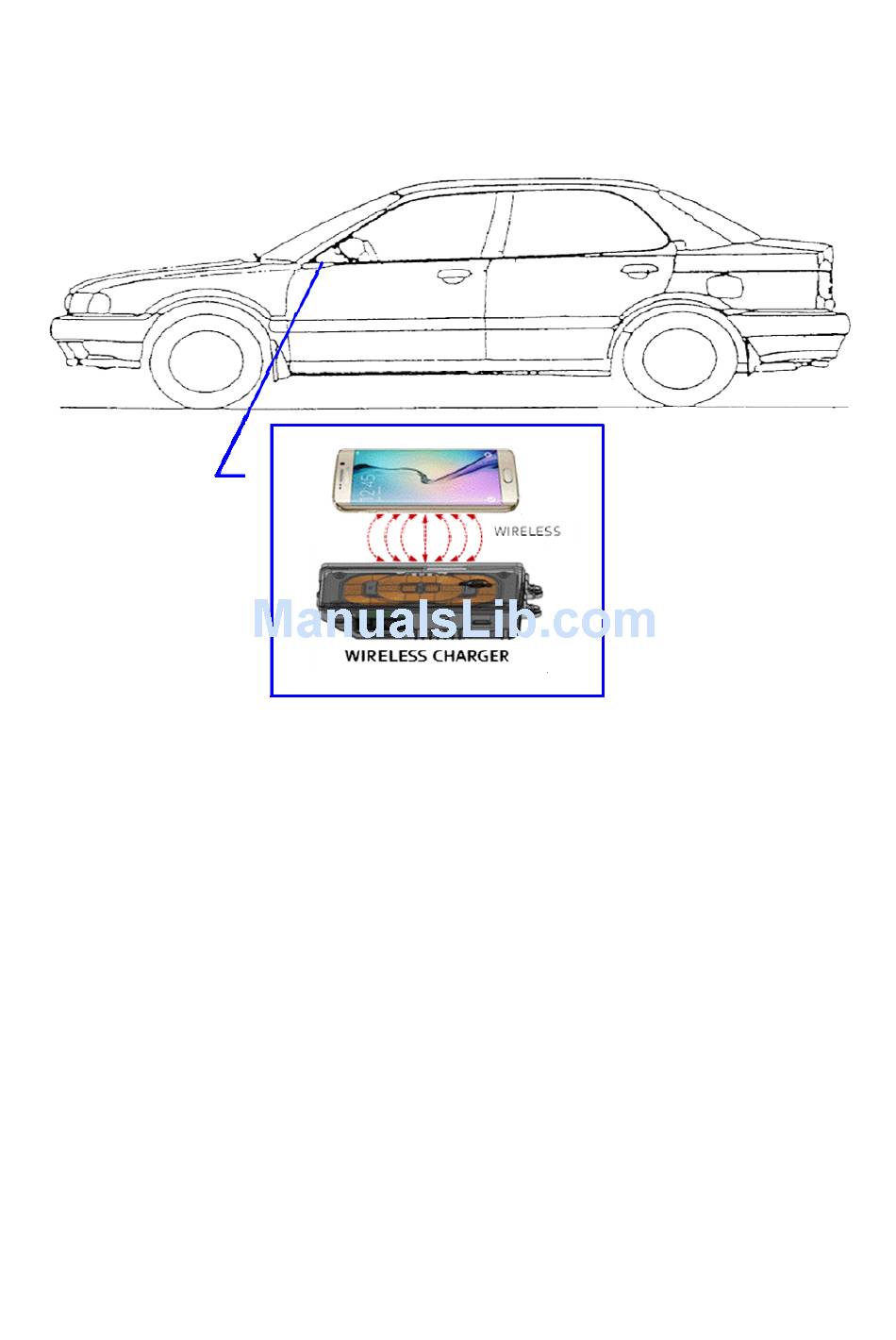

You can charger a mobile phone or the battery pack and the like to Qi-compliant Wireless
Charger Unit. ※ Wireless Charger Unit is abbreviated as WPC.
Once a receiver is placed on the product, it transmits the power wirelessly.
WPC possesses the charge function of 3 coils type based upon WPC Ver 1.1.2.
It controls the resonance voltage according to the request from the receiver.
It doesn't change the frequency of the resonance voltage.
It judges whether there is a thing on the charge surface by the different amount of the
resonance voltage and detects the reciever.
Advertisement
Table of Contents
Summary of Contents for Omron Automotive Electronics Korea Co. OKA-206W
- Page 1 USER MANUAL / OKA-206W You can charger a mobile phone or the battery pack and the like to Qi-compliant Wireless Charger Unit. ※ Wireless Charger Unit is abbreviated as WPC. Once a receiver is placed on the product, it transmits the power wirelessly.
- Page 2 2. User's manual (provisionally) ◎ Unit Assy - Wireless Charging ( OMRON KOREA : OKA-206W ) You can charger a mobile phone or the battery pack and the like to Qi-compliant Wireless Charger Unit. ※ Wireless Charger Unit is abbreviated as WPC.
- Page 3 5.Features 5.1 Charging Function WPC possesses the charge function of 3 coils type based upon WPC Ver 1.2.2. It controls the resonance voltage according to the request from the receiver. It doesn’t change the frequency of the resonance voltage. It judges whether there is a thing on the charge surface by the different amount of the resonance voltage and detects the receiver.
- Page 4 FCC Part 15.19 This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
