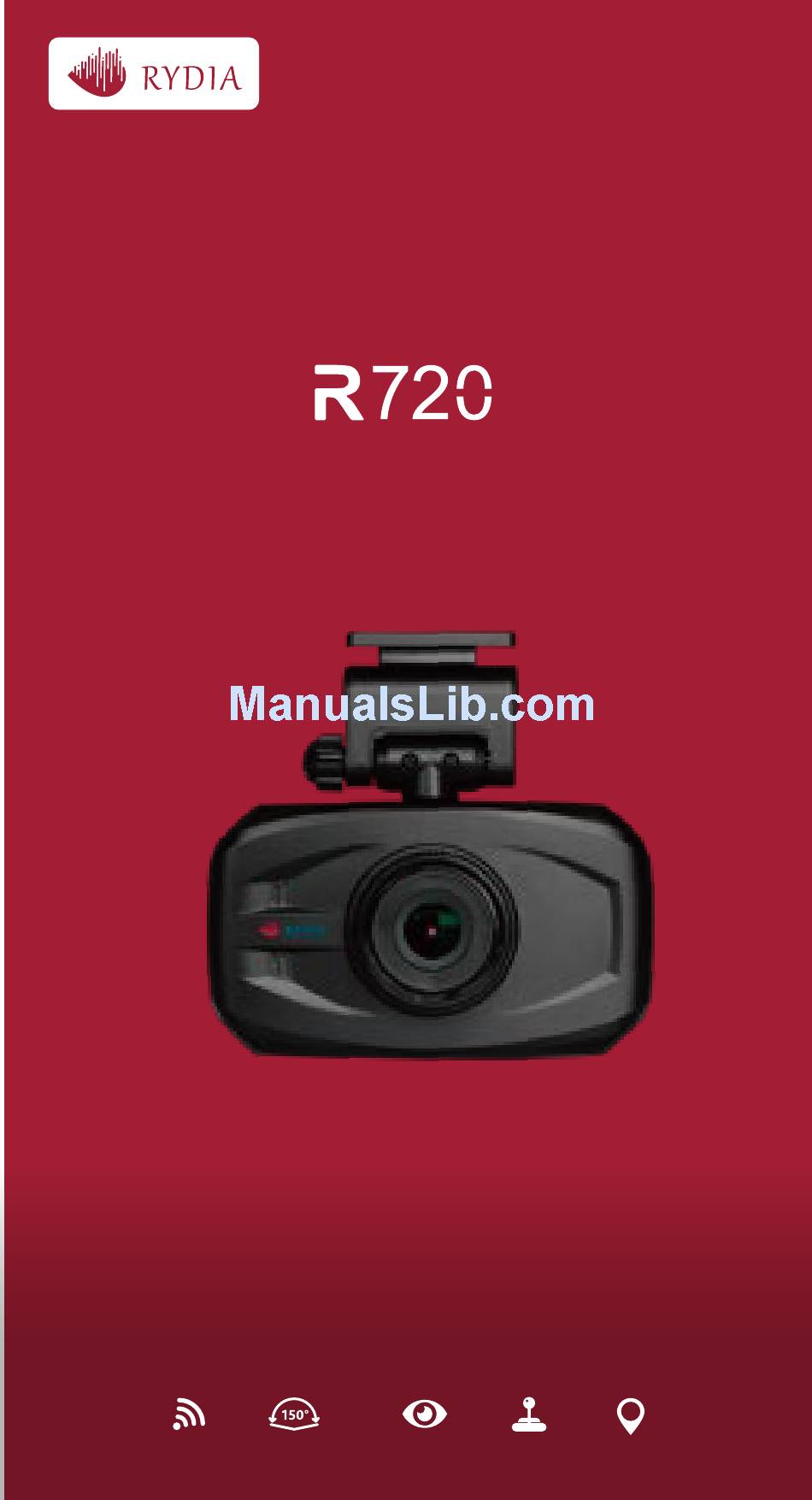

- Page 1 QUICK START GUIDE ASDS AMBARELLA WI-FI 150°WIDE ANGEL HDR Night Vision G-Sensor...
- Page 2 Rydia Vision Camera Specifica�ons Cau�on Installing The Rydia Vision Camera 10 Easy Install Steps Inser�ng The MicroSD Memory Card Video Playback (Computer) How The System Works How To Use The Rydia Vision App Explana�on Of The Se�ngs Menu Troubleshoo�ng/Faqs Limited Warranty Statement...
- Page 3 PRIOR TO USE * Install the device near the rear-view mirror to obtain the best open-field view. Do NOT install the camcorder in a loca�on that will obstruct your required driving view. * Make sure that the lens is within the wiping range of the windscreen wiper to ensure a clear view even when it rains.
-
Page 4: Package Contents
1 Introduc�on Thank you for purchasing this camcorder. This camcorder is specifically designed for real �me video and audio recording when driving. 1.1 Features * High Dynamic Range Imaging (HDR) * HD Image 2304*1296 * Up to 150 Degree Wide Angle Glass Lens * Built-in G-sensor * Collision Detec�on * Emergency Recording File... - Page 5 Bu�on Illustra�on Bu�on Number Bu�on Illustra�on Name 1. Long press to enable/disable Microphone while recording OK/MIC ① 2. Press to stop/start recording; take a bu�on picture; start/stop playback Press to bring up the Record/Pic- Menu bu�on ② ture/Preview/ System menu 1.Press to go upward in the menu Up/EV bu�on 2.
- Page 6 * Same rules apply (stop recording first) if you want to change the camera from Recording Mode to Picture Mode or Playback Mode. 1.4 Screen Interface Illustra�on Number Icon Name Icon Illustra�on Movie Indica�ng the camcorder is in Recording ① Camera Icon Mode Indica�ng the remaining power for the...
- Page 7 When the GPS dongle is not inserted, this icon is red; When the GPS dongle inserted and is duly recognized by the camcorder, this icon will turn green and the camcorder ⑧ will record route of your journey as well as the speed with the footage.
-
Page 8: Installing In Vehicles
To remove the memory card Push to eject the memory card out of the slot. Note: 1. Do not remove or insert the memory card when the camcorder is turned on. This may damage the memory card. 2. It is recommended to use a 32GB, Class 10 or above micro SD card. - Page 9 1. Connect one end of the car charger to the USB connector of the camcorder. USB port input: DC 5V / 1A. 2. Plug the other end of the car charger to the cigare�e lighter socket of your vehicle. Once the vehicle engine is started, the camcorder will automa�cally turn on.
-
Page 10: Record Videos While Driving
bu�on to select <Time Zone>, press OK to enter �me zone se�ng, press▲/▼ to set the �me zone to <+0> for UK, Press OK bu�on to confirm. 2.5.3 From Standby Mode, press Menu bu�on twice to enter system se�ng, press ▼ bu�on to select <Time Setup>, press OK bu�on to enter �me se�ng. -
Page 11: Emergency Recording
3.3 Emergency Recording You can enable the emergency recording by pressing the Menu bu�on while recording. Note: If G-sensor is enabled and a collision is detected, the device will automatically lock the current recording and this recording will not be overwritten. 3.4 Menu se�ng opera�ons (1)Press OK bu�on to stop recording. - Page 12 [On / Off] ADAS stands for Advanced Driver Assistance Systems, which includes: A: Lane-Departure-Warning-System: if lane-changing occurs, warning picture will appear to warn the driver; B: Low-Light-Warning-System: it will remind ADAS Detect you to turn on the headlight if you drive in low-light condi�on;...
- Page 13 [Auto Record/Manual Record] When set to Auto Record, the camcorder will Record Mode automa�cally start recording when the car starts up; when set to Manual Record, you will Se�ng need to press the power bu�on to turn on the camcorder. [NTSC/PAL] System Mode Please set to PAL when you are in UK.
- Page 14 blinking on top left corner and the recording indicator is blinking blue), press OK button to stop the recording first, and then press Mode button to go to Picture Mode. 4.2 Take Pictures Under Picture Mode, you can press OK bu�on to take pictures. 4.3 Enter Menu for Picture Mode To access the menus for Picture Mode, press the Menu bu�on once when you are in Picture Mode.
- Page 15 5.3 Preview Recordings/Pictures 5.3.1 When you are in Preview Mode, please press Up bu�on to select Normal File Category (Recordings saved in file named NORMAL) or Emergency File Category (Recordings saved in file named EVENT). 5.3.2 Press OK bu�on to choose the category you want to view. Then the last footage/picture will be enlarged which means it is selected and the footage/picture name will be displayed.
- Page 16 5.5 How to Access the Files on Computer? Please connect the Camcorder to a computer via a USB cable, the USB cable should be connected to the USB port on the right side of the camcorder, not DC IN port. Please press the power bu�on to turn on the camera and the device will show up as a Removable Disk on your computer.
- Page 17 6 Specifica�ons Items Technical specifica�on Image Sensor Maximum Display 2304×1296 30P Resolu�on Support Micro SDHC, up to 32GB Storage Media class 10 or above LCD Display 3.0” LCD color TFT Lens 170-Degree Fixed Focus lens Focus Range 0.5m~Infinity AE Bias -2.0~2.0EV Resolu�on: [2560x1080@30P 21:9, 2304x1296@30P 16:9,...
