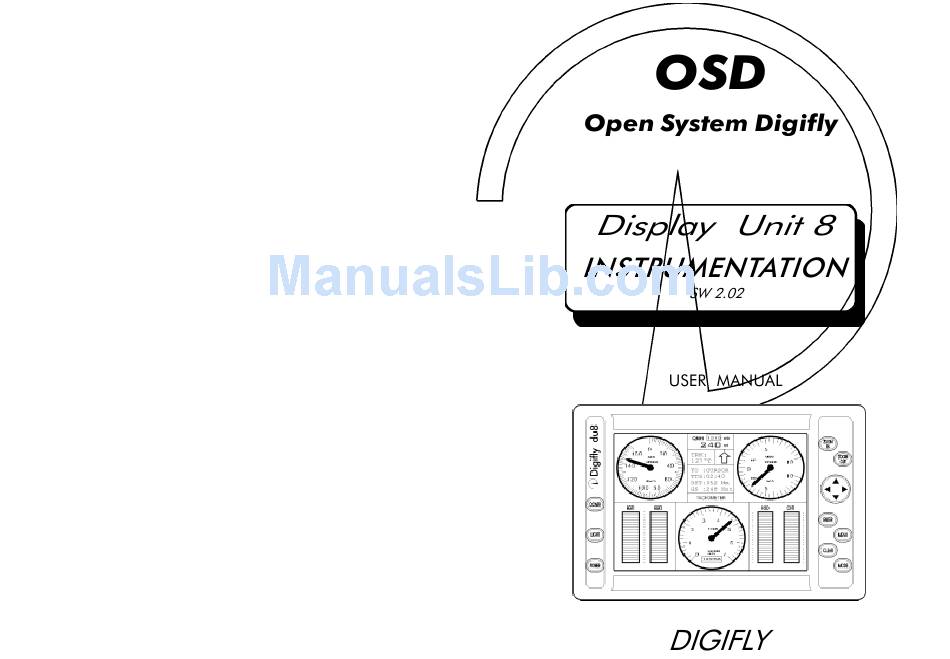

Digifly DU8 User Manual

Display unit 8 instrumentation

Advertisement

Quick Links

Advertisement

loading
Need help?

Need help?

Do you have a question about the DU8 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Digifly DU8

  • Page 2 Antiscratch protection; Contrast and brightness regolation; Lighted keyboard; Chapter 1 - Introduction Digifly OSD interface; External GPS interface; Chapter 2 - Getting started Power source: 10-28 V DC ( 0.4 Amp ); - Front panel ............. par. Weight 850 gr.;...
  • Page 3 The Digifly viewing units were designed also to co-operate with each other in the same system. This is known as “multiscreen” system and it is made up of different Display Units (DU7-DU8) linked to the flight recorder. Among all the connected units, only one must be set up in MASTER mode, whereas all the others must be set up in SLA- VE mode.
  • Page 4 chapter 2 chapter 5 GETTING STARTED INSTALLATION 2.1 - Front panel. 5.1 - General warnings. 2.2 - The display. User Manual User Manual...
  • Page 5 2.3 - The keyboard. chapter 4 The following figure show the keyboard's main functions. SYSTEM TEST To enter in the System Test Page press and keep pressed the key POWER together with any other key. As soon as the key is released, the following menu will appear on the screen: SYSTEM TEST (software version)
  • Page 6 2.3.3 - Brightness. To regulate backlighting press the LIGHT button. Each time the button 3.5.2 - Measure units. is pressed, light will be increased. There are four presettable measure units: 2.3.4 - Page toggle. Temperature (temp. unit) : °C or °F To toggle pages between Instrumentation and Moving Map pages, press Altitude (unit 1) : mt.
  • Page 7 chapter 3 Flight data area in this area it is possible to set up: INSTRUMENTATION - measure unit of variometer and altimeter (mt/ft) - measure unit of anemometer (Km/h or MPH or Knots) 3.1- Main functions. - measure unit of altimeter's reference pressure (mb or iHg) - delay of variometer arrow - delay of anemometer arrow - sampling rate (recording frequency from 1 to 50 secs.)
  • Page 8 2. altimeter. 1013 mb 278 mt 1010 mb 1010 mb 240 mt 240 mt 1005 mb 216 mt Common data area in this area it is possible to set up: It is a digital instrument that indicates a quote related to a reference - type of DAU10 (it can not be modified by the user) pressure.
  • Page 9 - name of the next waypoint - flight time to the next waypoint (TTG) - distance to the next waypoint (DST) 3.4 - Agenda. - ground speed (GS) Use UP-DOWN ARROW to select a letter. Secondary instruments are: Use LEFT-RIGHT ARROW to move the cursor. - outside air temperature -in °C or °F- (OAT) Press MENU to exit.
  • Page 10 Entering this functions allows to see the latest recording. The recorded data are those of the flight: minimum and maximum values are displayed as shown in the drawing below. 6. cilinders temperature (CHT 1-2-3-4). Are represented in the right part of the bar graphics. Measure unit (°C or °F) and alarms are presettable.Scale: 0÷700 °F.
  • Page 11 3.1.1 - Altimeters. 3.1.3 - Switching the central window. This function allows the commutation of the displayed altimeter (QNE or By pressing the ZOOM OUT key the central window switches from GPS QNH or QFE): it is activated by pressing ZOOM IN. data to secondary instruments and viceversa.
