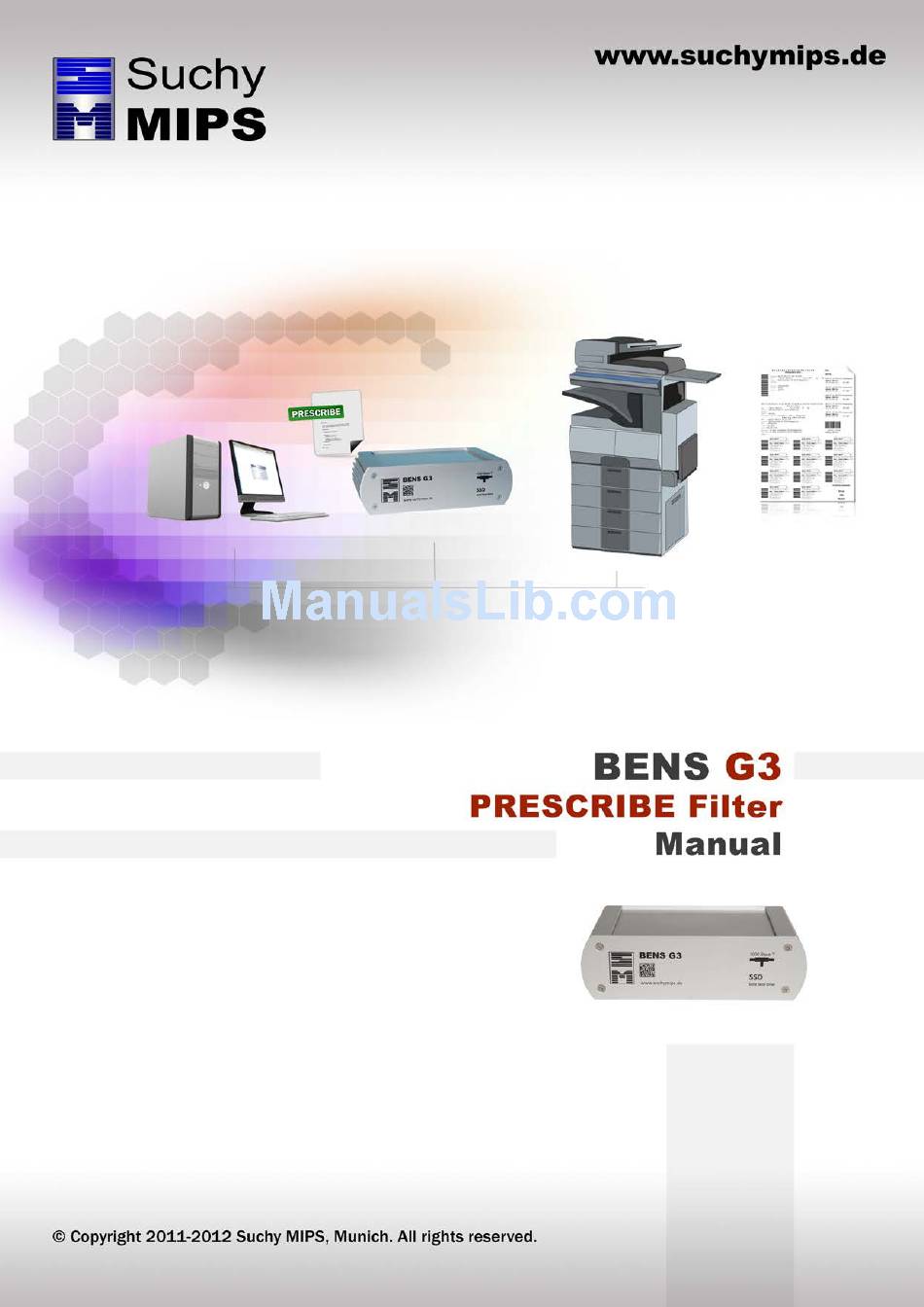

  • Page 1 BENS G3 PRESCRIBE Filter Manual Suchy MIPS...
  • Page 2 Suchy MIPS assumes no liability for damages incurred directly or indirectly from errors, omissions or discrepancies between the product and this manual. This booklet is copyrighted by Suchy MIPS with all rights reserved. No part of it may be reproduced, stored in a retrieval system or transmitted in any form or by any means, electronic, mechanical, photocopying, microfilming, recording or otherwise without written permission from Suchy MIPS.
  • Page 3 BENS G3 PRESCRIBE Filter Content Functional Specifications ....................... 4 Installation of the Filter ......................4 Implementation of the Filter ...................... 5 Example of a Configuration File for the Filter ................6 Explanation of the Configuration File: ..................7 5.1. Default Printer Settings ......................7 5.1.1.

  • Page 4: Functional Specifications

    BENS G3 PRESCRIBE Filter 1. Functional Specifications The Prescribe2PCL filter converts prescribe print data into PCL print data, thus enabling the output on standard PCL printing systems. In addition, the filter offers the possibility to carry out some separate control operations via a configuration file.

  • Page 5: Implementation Of The Filter

    BENS G3 PRESCRIBE Filter 3. Implementation of the Filter BENS will only employ the uploaded filter when it is activated for a virtual printer. In order to activate a filter for a virtual printer, please proceed as follows: • Select Configuration  Virtual Printers from the menu.

  • Page 6: Example Of A Configuration File For The Filter

    ' the line beginning with this will be deleted from the file when we are outside prescribe <Delete-Line>MAP 2.0, 0.0;</Delete-Line> ' the line beginning with this will be deleted from the file when we are outside prescribe '** DON'T MAKE CHANGES IN THE FOLLOWING PART WITHOUT AUTHORISATION FROM SUCHY MIPS' <PMX>1.2</PMX> <PMY>.85</PMY> <PTM>120</PTM>...

  • Page 7: Explanation Of The Configuration File

    BENS G3 PRESCRIBE Filter 5. Explanation of the Configuration File: For a better legibility, single paragraphs of the configuration file were highlighted in colour. Only the values marked in bold/green may be altered. Default Printer Settings 5.1. '** DEFAULT PRINTER SETTINGS **' <DefaultFont>?(0N?(sspb10h4099T</DefaultFont>...

  • Page 8: Pagebm

    BENS G3 PRESCRIBE Filter 5.1.8. PageBM Using PageBM, the vertical printable area in cm can be determined (from a portrait-viewpoint). Horizontal and Vertical Offset Settings in mm 5.2. '** HORIZONTAL AND VERTICAL OFFSET SETTINGS IN MM **' <XOffset>0</XOffset> <YOffset>0</YOffset> In this area, values for the horizontal and vertical offset of the entire print image can be predefined.

  • Page 9: Error Correction For Prescribe Commands Being Printed Instead Of Executed

    BENS G3 PRESCRIBE Filter Error Correction for Prescribe Commands being printed instead of executed 5.4. <Delete-Line>MAP 0.0, 0.0;</Delete-Line> Using this section, some programming errors in Prescribe files can be corrected. 5.4.1. Delete Line Delete Line determines whether or not printable lines beginning with a certain Prescribe command...
