Summary of Contents for Lees SUPER-HERO 440

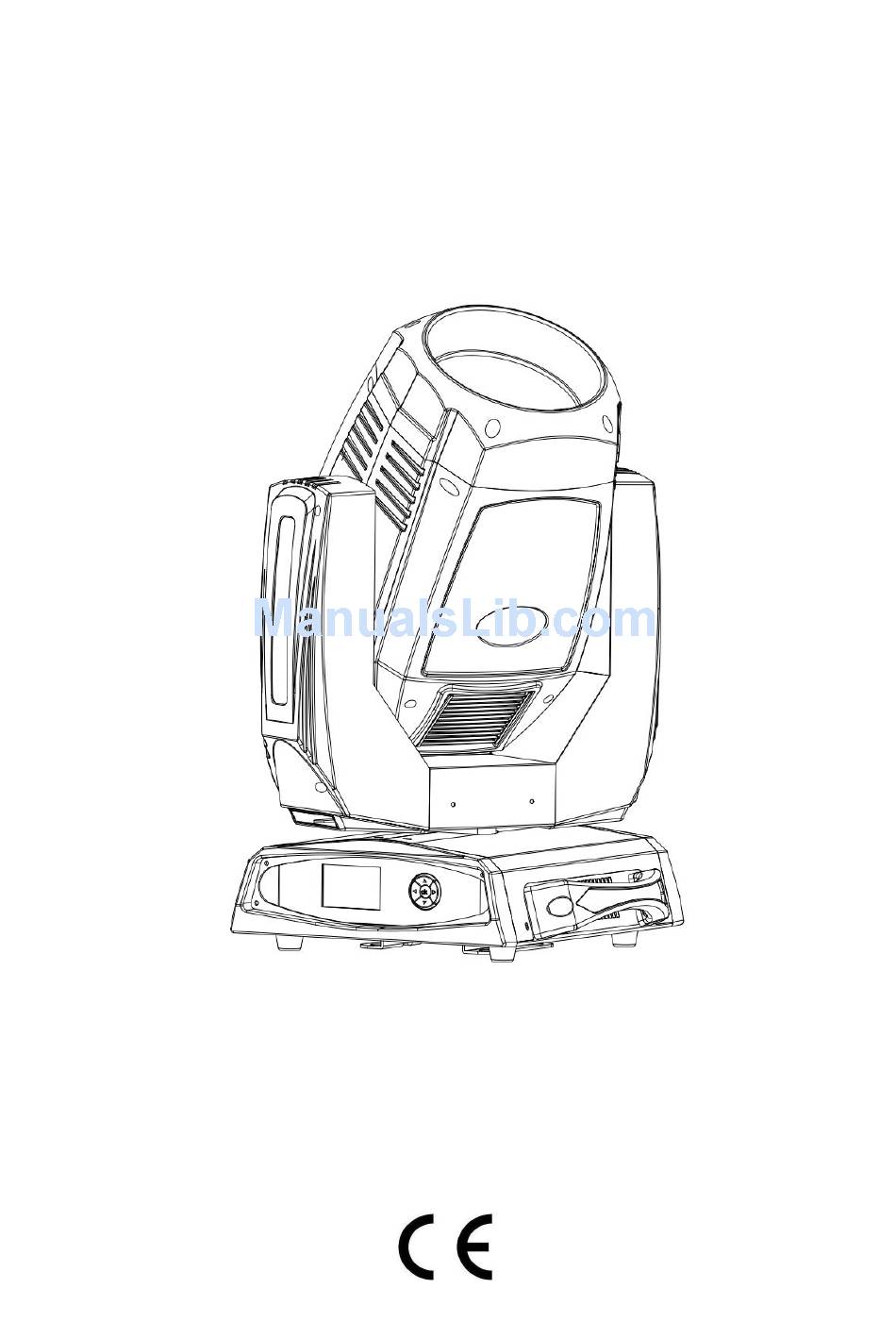

- Page 1 SUPER-HERO 440 KEEP THIS MANUAL FOR FUTURE NEEDS...
- Page 2 Contents 1. Introduction…………………………..……………………………………………………………..….03 2. General Guidelines…………….………………………………………………………………….…03 3. Safety Instructions………………………………………………………..………………………04 4. Cleaning and Maintenance………………………………………………...……………………05 5. Technical Parameters…………………..…………………………………..………………………06 6. Fixture Size…………………..…………………………………...…………………………………….07 7. Color Wheel………………………………………………………………..…………………………...07 8. Gobo Wheel………………………………………………………………..……………………………07 9. Function of Buttons………………………………………………………………..…………………08 10. Menu Function………………………………………………………………..………………………..09 11. DMX Channels………………………………………………………………..…………………………10...
-
Page 3: Introduction
Thank you for your patronage! We are confident that our excellent products and service can satisfy you. For your own safety, please read this user manual carefully before installing the device. In order to install, operate, and maintain the lighting safety correctly. We suggest that the installation and operation should be done by the verified technician and follow the instruction strictly. -
Page 4: Safety Instructions
to extreme heat, moisture or dust. Please don’t project the beam onto combustible substances. The minimum distance between light-output from the projector and the illuminated surface must be more than 0,5 meter. If you use the quick lock cam in hanging up the fixture, please make sure the quick lock fasteners turned in the quick lock holes correctly. -
Page 5: Cleaning And Maintenance
Always disconnect from the mains, when the device is not in use or before cleaning it. Only handle the power cord by the plug. Never pull out the plug by tugging the power cord. During initial start-up some smoke or smell may arise. This is a normal process and does not necessarily mean that the device is defective, it should decrease gradually. -
Page 6: Technical Parameters
In order to make the lights in good condition and extend the life time, we suggest a regular cleaning to the lights. 1) Clean the inside and outside lens each week to avoid the weakness of the lights due to accumulation of dust. 2) Clean the fan each week. -
Page 7: Gobo Wheel
FIXED GOBO WHEEL AMIMATION DISC ： ROTATING GOBO WHEEL ： 25.9mm*25mm... -
Page 8: Function Of Buttons
FUNCTIONS OF BUTTONS... - Page 9 Reversal of the display To activate this function, press UP and DOWN keys simultaneously while the display is in the rest mode.This status will be memorised and maintained even for the next time it will be switched on. To return to the initial state, repeat the operation all over again.
-
Page 12: Dmx Channels
DMX CHANNELS CHANNEL ST 30 CHANNEL ， EXTENDED 34 CHANNEL. CYAN COLOUR WHEEL 2 MAGENTA COLOUR WHEEL 3 YELLOW COLOUR WHEEL 4 COLOUR 1 5 COLOUR 2 6 COLOUR 3 7 STOPPER / STROBE 8 DIMMER 9 DIMMER FINE 10 STATIC GOBO CHANGE 11 ANIMATION DISK INSERTION 12 ANIMATION DISK ROTATION 13 ROTATING GOBO SELECT... - Page 13 CYAN COLOUR WHEEL Linear Cyan movement 0-255 MAGENTA COLOUR WHEEL Linear Magenta movement 0-255 YELLOW COLOUR WHEEL Linear Yellow movement 0-255 COLOUR 1 Empty position Empty + Soft Filter Soft Filter Soft Filter + Lavender Lavender Lavender + CTO 3200K CTO 3200K CTO 3200K + CTO 2500K CTO 2500K...
- Page 14 STOPPER / STROBE Light OFF Strobe at linearly variable frequency 4-103 from low (1 flash/sec) to high (12 flashes/sec) 104-107 Light ON Pulsation at linearly variable speed 108-207 from slow (0.5 flash/sec) to fast (12 flashes/sec) 208-212 Light ON 213-225 Random Strobe at low frequency 226-238 Random Strobe at medium frequency...
- Page 15 fast (600 bpm) Gobo 2 shakes at variable speed from slow (24 bpm) to 166 - 170 fast (600 bpm) Gobo 3 shakes at variable speed from slow (24 bpm) to 171 - 175 fast (600 bpm) 176 - 181 Gobo 4 shakes …...
- Page 16 93 - 111 Gobo 5 112 - 129 Gobo 6 130 - 150 Gobo 1 shakes at variable speed from slow to fast 151 - 171 Gobo 2 shakes at variable speed from slow to fast 172 - 192 Gobo 3 shakes … 193 - 213 Gobo 4 shakes …...
- Page 17 diffusion in 0.02 seconds at maximum speed. ZOOM 0-225 Zoom linearly moves from narrow to wide beam Frost 0-255 Focus moves linearly from far to near position. Focus lenses move from farthest to nearest position in 1.11 seconds at maximum speed. FOCUS FINE 0-255 Fine Focus positioning...
- Page 18 levels range and staying in this range for 5 seconds. 128-255 Complete Reset All-effects Reset sequence passing through the unused levels range and staying in this range for 5 seconds. LAMP CONTROL 0 - 25 Unused range 26-100 Lamp OFF Lamp switch-off passing through the unused levels range and staying in this range for 5 seconds.
- Page 19 VECTOR MORE TIME TABLE REMARK The product has perfect performance and integrity packaging. All users should be strictly comply with the warning and operating instructions as stated. Or we aren’t in charge of any result by misusing. Any damage resulting by misuse is not within the Company’s warranty. Any fault or problem caused by neglecting the manual is also not in the charge of dealers.
