SuperMax 821200 Owner's Manual

1-1/2 hp dust collector
Hide thumbs

Advertisement

Quick Links

Download this manual
Owner's Manual
1-1/2 HP Dust Collector
Model 821200

Advertisement

loading
Need help?

Need help?

Do you have a question about the 821200 and is the answer not in the manual?

Questions and answers

Summary of Contents for SuperMax 821200

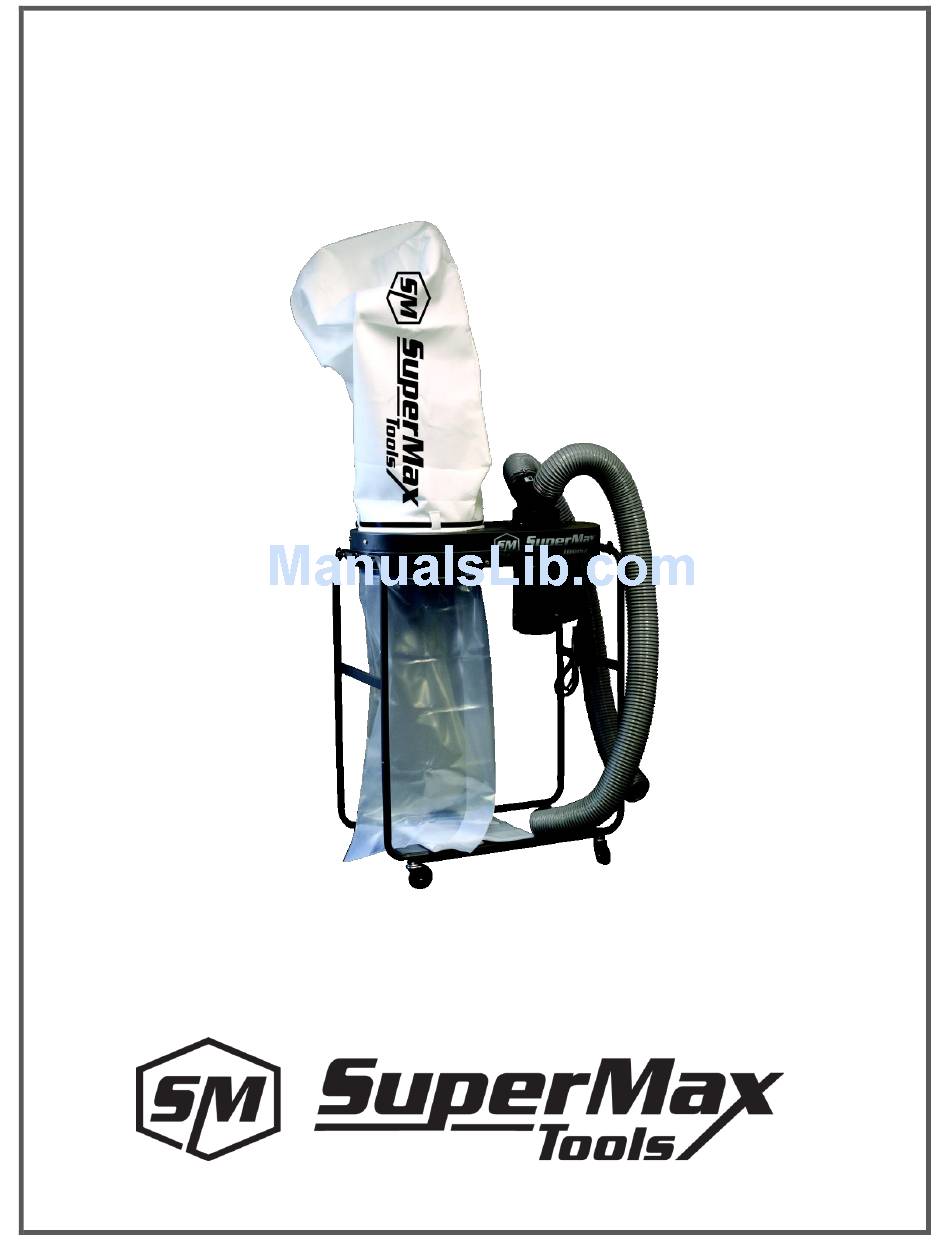

  • Page 1 Owner’s Manual 1-1/2 HP Dust Collector Model 821200...
  • Page 2 1-1/2 HP Dust Collector To the new SuperMax owner: Write your model and machine number in SuperMax takes pride in our products and this manual for any questions or ordering stands behind them with continuing service information: and support for our customers. Your...
  • Page 3 TABLE OF CONTENTS IMPORTANT SAFETY INSTRUCTIONS ....3 ASSEMBLY ............13 SAFETY GUIDELINES - DEFINITIONS ....3 OPERATION ..........17 GENERAL SAFETY RULES ....... 5 TROUBLESHOOTING ........18 ADDITIONAL SPECIFIC SAFETY RULES ....7 MAINTENANCE..........18 FUNCTIONAL DESCRIPTION ......11 SERVICE ............19 CARTON CONTENTS ........12 WARRANTY…..........19 IMPORTANT SAFETY INSTRUCTIONS Read and understand all warnings and operation instructions before using any tool or equipment.
  • Page 4 CALIFORNIA PROPOSITION 65 Some dust created by power sanding, sawing, and grinding, drilling, and other construction activities contains chemicals known to the state of California to cause cancer, birth defects or other reproductive harm. Some examples of these chemicals are: •...
  • Page 5 A guard or any other part that is damaged INSTRUCTION MANUAL BEFORE OPERATING should be properly repaired or replaced with THE MACHINE. Learning the machine’s SuperMax Tools or factory authorized application, limitations, and specific hazards replacement parts. Damaged parts can cause will greatly minimize the possibility of further damage to the machine and/or injury.
  • Page 6 power and overheating. See the Extension AIRBORNE PARTICLES, INCLUDING WOOD Cord Chart for the correct size depending on DUST, CRYSTALLINE SILICA DUST AND the cord length and nameplate ampere rating. ASBESTOS DUST. Direct particles away from If in doubt, use the next heavier gauge. The face and body.
  • Page 7 ADDITIONAL SPECIFIC SAFETY RULES Failure to follow these rules may result in serious personal injury. DO NOT USE THIS UNIT TO IN A PORTABLE APPLICATION to eliminate FILTER METAL DUST. Combining wood and potential injury and/or damage from falling. metal dust can create an explosion or fire 6.
  • Page 8 14. STORE THIS UNIT IN A LOCATION that installing or removing accessories, before eliminates the potential for damage to the adjusting or changing set-ups, or when power cord. A damaged power cord can making repairs. An accidental start- up can cause shock or electrocution.
  • Page 9 POWER CONNECTIONS A separate electrical circuit should be used for your machines. This circuit should not be less than #12 wire and should be protected with a 20 Amp time lag fuse. If an extension cord is used, use only 3-wire extension cords which have 3-prong grounding type plugs and matching receptacle which will accept the machine’s plug.
  • Page 10 connect this plug to a matching 2-conductor receptacle as shown in Fig. B if a properly grounded outlet is not available. The temporary adapter should be used only until a properly grounded outlet can be installed by a qualified electrician. The green-colored rigid ear, lug, and the like, extending from the adapter is used, it must be held in a place with a metal screw.

  • Page 11: Extension Cords

    EXTENSION CORDS Use proper extension cords. Make sure your extension cord is in good condition and is a 3-wire extension cord which has a 3-prong grounding type plug and matching receptacle which will accept the machine’s plug. When using an extension cord, be sure to use one heavy enough to carry the current of the machine.
  • Page 12 NOTICE: The photo on the manual cover illustrates the current production model. All other illustrations contained in the manual are representative only and may not depict the actual labeling or accessories included. These are intended to illustrate technique only. CARTON CONTENTS 1) Motor and blower assembly 2) The stand 3) 4”x 6 hose...
  • Page 13 UNPACKING AND CLEANING Carefully unpack the machine and all loose items from the shipping container(s). Remove the rust-preventative oil from unpainted surfaces using a soft cloth moistened with mineral spirits, paint thinner or denatured alcohol. Do not use highly volatile solvents such as gasoline, naphtha, acetone or lacquer thinner for cleaning your machine.
  • Page 14 NOTE: Give thought to where your dust ports on your machines are located. High machine ports should follow the steps accordingly. Low machine ports should follow the alternate setup of motor/blower assembly. ATTACHING THE LEGS TO MOTOR/BLOWER ASSEMBLY [High Machine Ports – ex. sanders] Fig.
  • Page 15 ATTACHING THE STAND TO THE MOTOR/BLOWER ASSEMBLY NOTE: Two (2) people may be needed for this step. Place all four stand posts (A) Fig. 4 into the four legs (B) on the motor/blower assembly. Make sure that the metal base plate (D) is over the large dust collection hole (C).
  • Page 16 ATTACHING THE TOP FILTER BAG Disconnect the machine from the power source! 1) Place a large 5/16” flat washer on a 5/16” hex head screw 2) Position the bracket (A) on the dust collector (fig. 9). 3) Insert 5/16” hex head screw through the hold in the bracket, then thread it into the hole in the dust collector.
  • Page 17 OPERATION OPERATIONAL CONTROLS AND ADJUSTMENTS For operator safety, do not operate the machine with any dust intake holes uncovered. The rotating fan, located inside the blower housing, is accessible through the dust intake port and can be hazardous. Always wear proper apparel. Do not wear jewelry.
  • Page 18 Do not use this unit to vacuum combustible explosive materials (coal, grain, or other finely- divided combustible material). Do not use this unit to vacuum hazardous, toxic, or carcinogenic materials (asbestos, pesticide, or lead-based paint debris). TROUBLESHOOTING For assistance with your machine, call us at (888) 454-3401. MAINTENANCE To reduce the risk of injury, turn unit off and disconnect it from power source before installing and removing accessories, before adjusting or when making...
  • Page 19 To order parts, call your retailer’s office or call ours at (888) 454-3401. Replacement Parts List P-200510230100001 1 MICRON TOP FILTER BAG P-61804 PLASTIC COLLECTION BAG P-60401040000660 4" FLEXIBLE HOSE 2M (L) P-605210420 BAG CLAMP Ø420MM P-20011110108001336123 MOTOR CF-410-H CASINTER FILTER Ø410MM P-2SF-F-CCB 11.5"...
