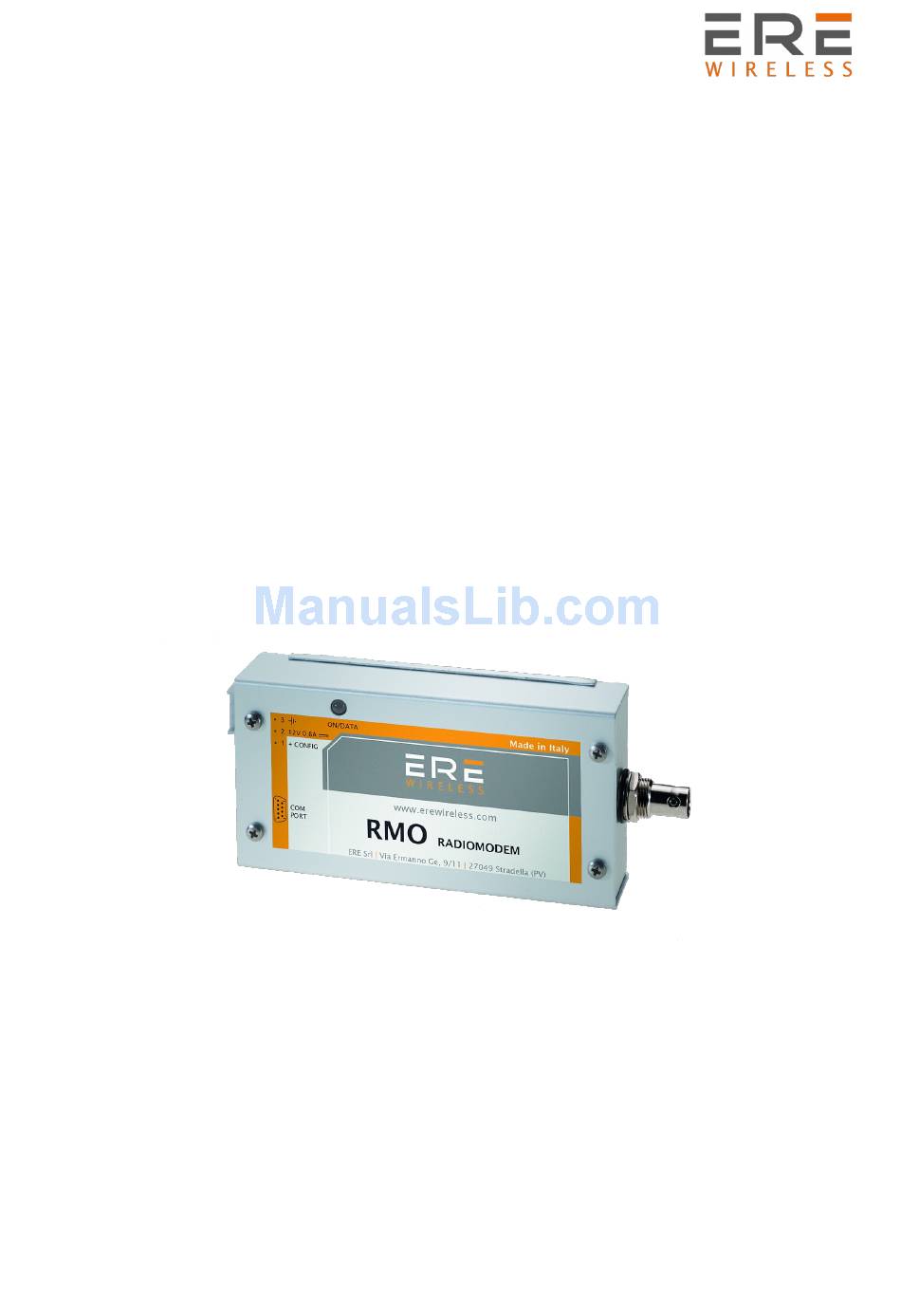

- Page 1 D1 Series User Guide, Rev. 03 (September 2016) RADIOMODEM D1 Series SOLEXY SRL divisione ERE WIRELESS Via Enrico Fermi, 2 | I - 25015 Desenzano del Garda (BS) Telefono +39 0385 48139 | Fax +39 0385 40288 e-mail:l info@erewireless.com sito web: www.erewireless.com...
- Page 2 D1 Series User Guide, Rev. 03 (September 2016) Table of contents Table of contents..............................2 Disclaimer................................3 Technical support..............................3 Restrictions on use.............................. 3 Technical specification............................5 Warranty - Liability of the Product........................6 Warnings and safety instructions........................7 Disposal of waste by users in private households within the European Union.........7 General description.............................
-
Page 3: Disclaimer
User Guide, Rev. 03 (September 2016) Disclaimer All rights to this manual are owned solely by SOLEXY Srl (referred to in this user guide as ERE WIRELESS). All rights reserved. The copying of this manual (without the written permission from the owner) by printing,... - Page 4 D1 Series User Guide, Rev. 03 (September 2016) Country allowed ALB-AND-AUT-BEL-BIH-BLR-BUL-CYP-CZE-D-DNK-E-EST-F-FIN-G-GRC-HNG-HOL-HRV-I-IRL-ISL- LIE-LTU-LUX-LVA-MDA-MKD-MLT-MNE-NOR-POL-POR-ROU-RUS-S-SRB-SUI-SVK-SVN-TUR-UKR Allowed use according to ERC Recommendation 70-03 Country with Model Frequency (MHz) Annex E.R.P Duty Cycle restriction of use 169,400 – 169,475 ≤ 500 mW ≤ 1 % BLR-RUS-UKR 169,400 –...
-
Page 5: Technical Specification
D1 Series User Guide, Rev. 03 (September 2016) Technical specification Operating data Value Label Description D110 D160 D161 D162 D163 D164 Power supply 12 Vdc S (EXT) Max power 4,2W 8,4W 4,2W 8,4W 8,4W 8,4W S (EXT) Max RF transmission power Receiver sensitivity ≤... -
Page 6: Warranty - Liability Of The Product
D1 Series User Guide, Rev. 03 (September 2016) Warranty - Liability of the Product Supplier represents and warrants that products are manufactured in accordance with the applicable specifications and are free from defects in materials and workmanship. The warranty, valid for a period of 12 months of use, maximum 18 months from the date of delivery, shall not cover defects caused by accident, Buyer’s negligence, improper use or maintenance or by any other reason beyond Supplier’s control. -
Page 7: Warnings And Safety Instructions
-The radio modem is only to be operated at frequencies allocated by local authorities, and without exceeding the given maximum allowed output power ratings and duty cycle. ERE WIRELESS and its distributors are not responsible, if any products manufactured by it are used in unlawful ways. -
Page 8: General Description
Radio modem Radio Channel spacing RF channel Yes by DIP switch Frequency Agility Listen Before Talk RF power D110, D160, D162, D163 and D164 Porta Seriale RS485 or RS232 Configurable by DIP switch Bit Rate Parity bit DTX Time Data... -
Page 9: Installation
D1 Series User Guide, Rev. 03 (September 2016) Installation Mechanical The device must be installed in a location that is sufficiently ventilated so that there is no risk of internal heating. Place the device against a flat, firm and stable surface. It is not recommendable to install the radio modem on a strongly vibrating surface. -
Page 10: Antenna
D1 Series User Guide, Rev. 03 (September 2016) JP3 Connector Label Description + CONFIG Enable software configuration 12V 0,7A Power supply (12 VDC, 0.7A) Ground (GND) Antenna The device’s antenna must be free and at least 10 cm away from any conducting material. When the antenna is installed outside, it is essential to connect the cable screen to the building’s earth. -
Page 11: Configuration
S2 Dip 4 must be always on ON positon Can be switch on OFF positon only in case of using DTR (consult ERE for more details) 2 – Channel Selection by DTE An alternative technique to change/select the operative channel is the software setting by the DTE. In this case the Addr from DTE mode must be selected for all operative modes including Broadcasting mode. -
Page 12: Serial Port And Reset Timer Setting
S1 Dip 4 RS232 RS485 Software configuration Download from ERE WIRELESS web site (www.erewireless.com) the latest version of configuration software (confSW_D1). The configuration must be done through a RS232 interface System Requirements Operative System: Windows 98 SE, Windows ME, Windows2000, Windows XP, Windows Vista, Windows 7, Windows 8, Windows 10. -
Page 13: Basic Configuration
D1 Series User Guide, Rev. 03 (September 2016) Basic configuration Fields explanation: The values into [ ] bracket indicate the permissible range or the ON/OFF condition to be setted into the selected field. The value into ( ) bracket is the measure unit of the field parameter. System Code [0..63]: Define the identification code of a group of radiomodems. -
Page 14: Advanced Configuration
D1 Series User Guide, Rev. 03 (September 2016) TimeDtx [0..255] (msec): Define the waiting time between the stop of data flow on the communication port and the sending of packet by radio. If the data to be send presents one or more long pauses may be useful increase this time to masks this pause. - Page 15 D1 Series User Guide, Rev. 03 (September 2016) Its Addr [1..255]: Define own address. In a point-multipoint network the master's address must be 1. Target [1..255]: Define the address of remote unit destination of the message. Digip. [0..255]: Define the digipeater's address. Default value, 0, shows the absence of any digipeaters. ACK [ON/OFF]: Available only if Echo and Broadcasting functions are inactive.
-
Page 16: Remote Configuration
D1 Series User Guide, Rev. 03 (September 2016) One System Code Byte [0...63] in which the two MSB bit 7 and bit 6 are the Broadcasting and Echo switches. One Unit Number Byte [1...9] which contains both target and all the digipeaters if present. A maximum of 8 Digipeaters Addresses Bytes in the correct sequence of use. - Page 17 D1 Series User Guide, Rev. 03 (September 2016) In the Options Menu of the configuration software choose Remote. Push the Read button to show all the parameters of the remote unit. A new dialog box must be shown on the screen and into this box the following remote unit parameters must be inserted: - System Code - Digipeaters Addresses in the exact sequence of use (if one or more digipeaters are presents)
