- Page 1 Lanx HD only for heavy duty work User Guide User Guide User Guide User Guide Convenient on-board weighing during loading Productivity control Automatic weighing Protection against early wear of the vehicle Reusable system...
- Page 3 5.10 Sensors filter settings Safety Rules Warranty Declaration of Conformity ® Load Weighing System for internal use: any commercial transaction is forbidden. Outset considers itself free of every responsibility in case of eventual errors of the display weight, also caused by manufacturing defects.
-
Page 4: Features

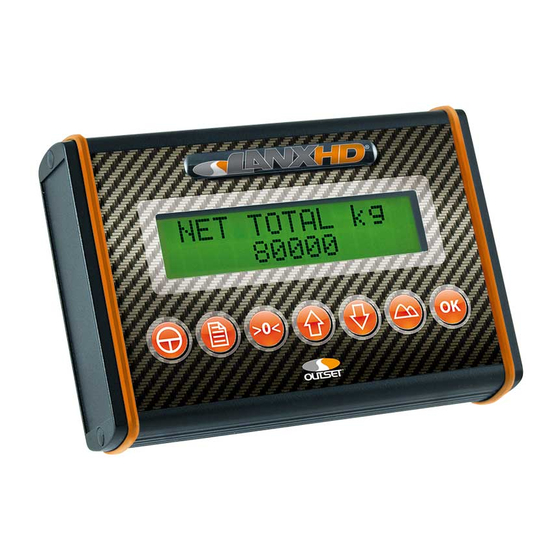

: direction Up : direction Down ® ON/OFF BUTTON: Button for switching the LANX HD display on or off. F BUTTON: Button for selecting the main functions: operator sel., print loads, de- lete load (PIN CODE unlock), loads Database, diagnostic, edit materials, edit opera- tors and setup (PIN CODE unlock). -
Page 5: Pin Code
PIN CODE ® LANX HD is protected with a pin code that unlock other different features and setup menu available only for the person in charge of the vehicles. To unlock the setup menu with the PIN CODE see the “Calibration manual”. -
Page 6: Delete Load (Pin Code Unlock)
Delete Load (PIN CODE unlock) This function allows the user to delete the last weight measured. It will be available after the PIN CODE imput. Press the Functions button and the buttons until the following appears on the display: General General General General... - Page 7 It is necessary to enter a protective PIN CODE to unlock the following functions. These functions allows the user to print, display or delete the weights measured during the previous days, weeks or months. Press the Functions button and the buttons until the following appears on the display: DAILY PRT (SNG) allows the user to print specifically (date and time) every...
-
Page 8: Diagnostic
Diagnostic This function allows the user to analyze the elements making up the Lanx HD sys- tem. It also allows the user to display the pressure values of the sensors installed in the system and the coefficients of calibration. The user is able to control the operat- ing pressures of the vehicle after calibration. -
Page 9: Edit Materials
SENSOR 1 SENSOR 1 SENSOR 1 SENSOR 1 • Press the OK button to check the coefficient of K = 3.550 K = 3.550 K = 3.550 K = 3.550 the calibration for each sensor • Press the buttons to scroll the sensors •... -
Page 10: Tare
Tare This function allows the user to acquire the tare of the vehicle. This operation must be carried out with the vehicle completely empty and on a flat surface (with the handbrake released). It’s recommended that the tare be acquired with half a tank of fuel in the vehicle. -
Page 11: Sensitivity
Sensitivity This function allows the weight to be displayed in increments of 1-10-20-50-100-150 -200kg. Enter the Setup menu as described at the beginning of section 5 and press until the following appears on the display: Setup Setup Setup Setup SENSITIVITY SENSITIVITY SENSITIVITY SENSITIVITY... -
Page 12: Sec Tx System Ext
K Adjustment This function is used to set a percentage correction for an error in the Net weight displayed, without requiring any intervention by an Outset authorized centre. The maximum correction allowed is +/- 10%. Enter the Setup menu as described at the beginning of section 5 and press until the following appears on the display : •... -
Page 13: Time Settings
Time Settings This function is used for setting the time which is printed on the ticket. Enter the Setup menu as described at the beginning of section 5 and press until the following appears on the display: Setup Setup Setup Setup TIME TIME... -
Page 14: Sensors Filter Settings
Flashing alarm Flashing alarm Flashing alarm Flashing alarm Press OK to disable the flashing alarm To set a value, press OK and hold down Flashing alarm Flashing alarm Flashing alarm Flashing alarm until the desired value is displayed, then LIMIT LIMIT LIMIT LIMIT... -
Page 15: Safety Rules
In particular, when performing maintenance, changing air spring lev- ® elling valves or leaf spring suspensions, calibrating the Lanx HD system is required. Welding, battery replacement, battery charging or external motors could seriously damage the system. -
Page 16: Warranty
Breakdown due to repair maintenance by a non- authorized repair service ♦ Feeding the instrument a different voltage from what is declared on the apparatus ♦ ® The connection of other external equipment not authorized from Outset ® LANX HD Display mod……….Serial N..……………. Printer mod………... Serial N. …………... -
Page 17: Declaration Of Conformity
Declaration of Conformity ® Outset S.r.l. Via Chizzalunga, 14/2 36066 Sandrigo (VI) Italy Declares on his own responsibility that ® OUTSET ’s products with the “CE” mark Are manufactured according with the Community Directives (including the last modification) and the related National Legislation on conception...
