Summary of Contents for Camon SC45E

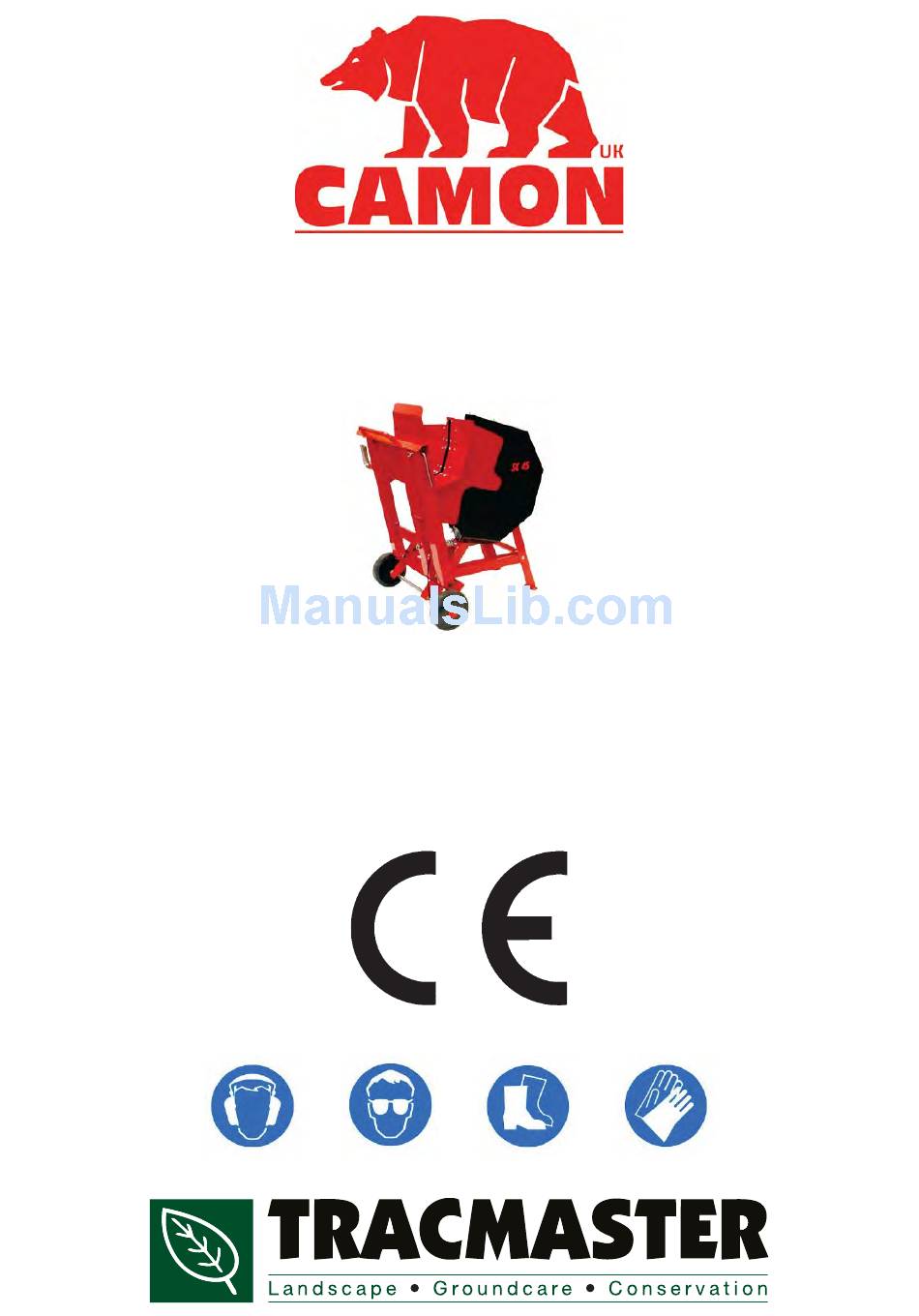

- Page 1 SC45E Circular Saw Operating Instructions Before commissioning the machine, read operating instructions and observe warning and safety instructions.
- Page 2 SC45E Circular Saw Contents Page 3 Description of Machine Pages 4-8 Illustrations Pages 10-11 Assembly Instructions Page 12 Introduction Page 13 Explanation of Symbols Used Pages 14-15 Technical Data Pages 16-19 Safety Pages 20-22 Operating the Machine Pages 23-24 Pages 25-26...
- Page 3 SC45E Circular Saw Description of the Machine The CAMON SC45E is a circular sawing machine with pivoting log carriage which is equipped with Pivoting carriage for feeding logs Log support (extractable) Handle Electric motor Fixed safety blade cover Main switch on/off...
- Page 4 SC45E Circular Saw Illustrations Page 4 SC45E/05.14...
- Page 5 SC45E Circular Saw Illustrations Page 5 SC45E/05.14...
- Page 6 SC45E Circular Saw Illustrations Page 6 SC45E/05.14...
- Page 7 SC45E Circular Saw Illustrations Page 7 SC45E/05.14...
- Page 8 SC45E Circular Saw Illustrations Page 8 SC45E/05.14...
- Page 9 SC45E Circular Saw Page 9 SC45E/05.14...
-
Page 10: Assembly Instructions
SC45E Circular Saw Assembly Instructions Page 10 SC45E/05.14... - Page 11 SC45E Circular Saw Assembly Instructions Page 11 SC45E/05.14...
- Page 12 The SC45E circular saw has been designed and manufactured in compliance with the most recent European safety regulations with particular reference to the EN 1870-6:2002(E) and EN 292-1 standards.
- Page 13 SC45E Circular Saw Explanation of Symbols Used Standard graphic symbols are used on all machines in order to ensure complete safety of all parts of the Log Splitter. As these symbols are very important, read the information below carefully. The machine must be used by one It is necessary to read carefully the entire person alone.
-
Page 14: Technical Data
SC45E Circular Saw Technical Data Length ~ 800mm Width ~ 800mm Height ~ 1020mm Weight ~ 59kg No-load speed (rpm) ~ 2800 Supply 230V 50Hz 1-phase Power 2.1KW Noise (average) <= 85 dB(A) Vibration <= 2.5 m/s Cutting capacity (max diameter) - Page 15 SC45E Circular Saw Technical Data WARNING The values given are the machine emission values, not the workplace safety values. Although there is a relationship between the noise levels and the daily exposure level, it cannot be stated with any certainty whether or not additional precautions are required.
- Page 16 WARNING: The CAMON SC45E Circular Saw has been designed and built for the sole purpose of Use of the machine for any other purpose shall be considered improper and the manufacturer shall not be liable for any injuries or damage to be ascribed to improper use of the machine.
- Page 17 SC45E Circular Saw Safety General safety regulations The machine must always be used by one operator only. The circular sawing machine must only be used outdoors (emission of dust). movement, could come outside in the direction of the operator, a rubber barrier was and replace if damaged.
- Page 18 SC45E Circular Saw Safety seriously injure you. When the machine is moving, do not try to remove with your hands any pieces of wood that may be stuck in the slot of the blade. In this case, proceed only after switching off the machine and disconnecting it from the power supply.
- Page 19 SC45E Circular Saw Safety Never leave the machine unattended with the power supply “on”. After use, always switch the machine off and disconnect it from the power supply, especially when any maintenance work is required. The information given in the chapter is extremely important for safety purposes. It describes possible hazards tied to use of the machine and instructions for correct use of this to avoid Injury or damage.
-
Page 20: Operating The Machine
SC45E Circular Saw Operating the Machine Unpacking and preparation of the circular sawing machine Assembly of the blade Check which way the motor rotates by following the instructions on page 21. REFER TO FIGS. 15a AND 15b (INCORRECT POSITION) AND FIGS. 16a, 16b AND 16c (CORRECT POSITION). - Page 21 SC45E Circular Saw Operating the Machine Start up the carriage and check that there is no contact between the carriage and the blade. Check the motor’s rotation direction After connecting the machine to the power supply with a three-phase electric motor, check which direction the motor rotates.
- Page 22 SC45E Circular Saw Operating the Machine A well-sharpened blade increases performance and decreases risks of kickback. Damaged and deformed blades must not be used. To replace the blade, proceed as described on page 26. If the pads around the slot of the blade show signs of wear and tear, they must be replaced with new ones of the right size.
- Page 23 SC45E Circular Saw WARNING: Protect the machine from atmospheric agents Using the circular sawing machine Only use the circular sawing machine outdoors (emission of dust). FIX THE MACHINE TO THE GROUND BY USING THE APPROPRIATE HOLES AVAILABLE ON THE FEET.
- Page 24 SC45E Circular Saw button or turning the switch to position “1”. The blade will start to rotate immediately, reaching working speed in a few seconds. with the blade. 1, page 3), push the pivoting carriage forward until the log is cut.
-
Page 25: Routine Maintenance
Routine Maintenance This chapter describes routine maintenance, i.e. operations carried out by the operator, on the circular sawing machine SC45E to keep it in perfect working order and therefore reliable for continuous, long-term use. All routine maintenance operations must be carried out with the machine off and with the power cable disconnected. - Page 26 SC45E Circular Saw Routine Maintenance Should the blade be replaced, proceed as follows: Disconnect the plug from the power supply and wear protective gloves. During this operation it is very important to verify the conditions of the pads and the anti-sawdust protection.
- Page 27 SC45E Circular Saw Troubleshooting Troubleshooting Problems that may arise when using the Log Splitter and recommended remedies are given in the table on the following page. In the case of operations carried out by unauthorised personnel, the guarantee will be immediately null and void and the manufacturer will be relieved of any responsibility for injury to persons and animals and damage.
- Page 28 SC45E Circular Saw Storing & Transporting the Machine Clean the machine from the sawdust and in particular the blade from sawdust and resin. Do not use jets of water to clean the machine. Block the pivoting carriage with the appropriate catch.
- Page 29 SC45E Circular Saw Scrapping & Disposal of the Machine The machine must be scrapped in compliance with all safety regulations for the prevention of personal injury and damage to the environment and animals. All parts of the machine must be scrapped and disposed of in accordance with applicable legislation in the place of scrapping.
-
Page 30: Spare Parts
SC45E Circular Saw Spare Parts IMPORTANT: Replacement of spare parts and therefore extraordinary maintenance of the machine must be carried out by the retailer’s specialised and authorised personnel only. If any maintenance operations other than those expressly indicated in this handbook are carried out, the warranty will be immediately null and void and manufacturer shall be relieved of all and any responsibility with regard to accidents involving persons, animals or things. - Page 31 SC45E Circular Saw Spare Parts Overview Diagram Page 31 SC45E/05.14...
- Page 32 SC45E Circular Saw Spare Parts Overview Diagram Part Numbers Part No. Part No. D05030720 E26035098 B41000680 E26770160 B41000890 E27070040 E26530442 E27120030 E26760022 E26760012 E31650010 B41000070 D05240310 E26221135 E98100150 E26760011 E98103145 E26560310 B50000020 E26560310 E26790010 B39220070 B82110060 D05030730 E26035143 D05002030 E26560446...
- Page 33 SC45E Circular Saw Spare Parts Power Supply Diagram Power Supply Diagram Part Numbers Part No. E85250015 1-phase E27675010 E27472160 E27675020 E26760022 E26515044 E87400190 E78100095 1-phase Page 33 SC45E/05.14...
-
Page 34: Wiring Diagram
SC45E Circular Saw Wiring Diagram Page 34 SC45E/05.14... - Page 35 SC45E Circular Saw Page 35 SC45E/05.14...
- Page 36 © Tracmaster Ltd 2014. Tracmaster Ltd, Sovereign Centre, Victoria Road, Burgess Hill RH15 9LR T: +44 (0) 1444 247689 F: +44 (0) 1444 871612 W: www.tracmaster.co.uk E: info@tracmaster.co.uk...
