Eion LibraPlus 5845 User Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
www.eionwireless.com
LibraPlus 5845
PN: 5724-0003
Document version: 1.74
Released on February 16 2010

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the LibraPlus 5845 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Eion LibraPlus 5845

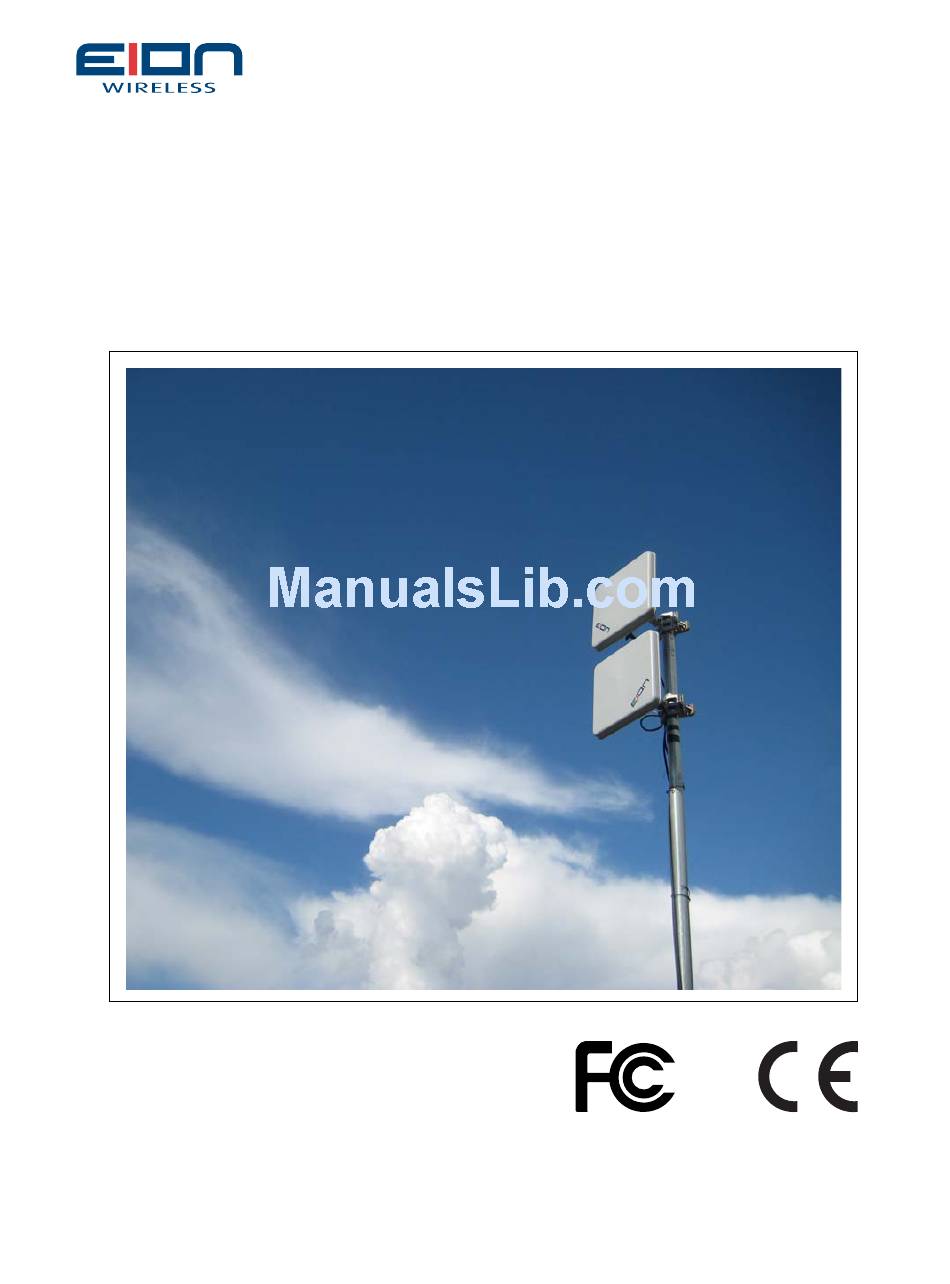

  • Page 1 LibraPlus 5845 PN: 5724-0003 Document version: 1.74 Released on February 16 2010...
  • Page 2 This page is intentionally left blank...
  • Page 3 2.1.3. About OFDM ..................5 2.1.4. About Point-to-Multi-Point (P-MP) Systems ..........6 2.1.4.1. Point to Multipoint based on CSMA ..........7 2.1.4.2. LibraPlus 5845 Adaptive Polling Protocol ........8 2.1.4.3. Access Point (AP) Equipment ............8 2.1.4.4. Customer Premise Equipment (CPE) ..........8 2.1.4.5.
  • Page 4 LibraPlus User Manual 4. Configuration ......................34 4.1. Getting Started ....................34 4.1.1. LibraPlus Configuration Management ............34 4.1.1.1. Configuration types ..............34 4.1.1.2. Default Login ................34 4.1.1.3. CLI Auto Complete ..............34 4.1.1.4. CLI Help ................. 35 4.1.1.5. Viewing Configuration ............... 35 4.1.1.6.
  • Page 5 7. Troubleshooting ...................... 111 7.1. Troublshooting the LibraPlus ................111 7.1.1. Preventative maintenance ..............111 7.1.2. Troubleshooting Areas ................. 111 7.1.3. Troubleshooting Chart ................. 113 8. Appendices ......................117 8.1. Appendix A: Glossary ..................117 8.2. LibraPlus 5845 Integrated Antenna Specifications ..........125...
  • Page 6 List of Figures 2.1. Orthogonal Arrangement of OFDM Subchannels ............7 2.2. LibraPlus P-MP System Components ................7 2.3. Time Division Duplexing Channels ................10 2.4. Time Division Multiplexing/Time Division Multiple Access (TDM/TDMA) ...... 10 2.5. LibraPlus Connection Panel ..................12 2.6.
  • Page 7 2.3. LibraPlus 5845 Wireless Networking Specifications ............ 114 2.4. LibraPlus 5845 Security Specifications ..............114 2.5. LibraPlus 5845 Management Specifications ............... 114 2.6. LibraPlus 5845 Physical, Electrical and Environmental Specifications ......114 4.1. WPA Configuration Table ..................52 4.2. Source and Destination Specifiers ................86 5.1.
  • Page 8 List of Examples 4.1. Viewing configuration ..................... 35 4.2. Viewing configuration part ..................35 4.3. Configuration backup and restore ................36 4.4. Specify IEEE 802.11 mode ..................39 4.5. List supported channels ................... 40 4.6. Set Carrier Frequency ....................40 4.7.
  • Page 9 LibraPlus User Manual 4.56. Show static route ....................79 4.57. Add/Delete host table entry ..................79 4.58. View static host table ..................... 80 4.59. Network pool configuration ..................81 4.60. Host pool configuration ..................82 4.61. Set and Disable Pool Type ..................82 4.62.
  • Page 10 LibraPlus User Manual 6.5. Show CPU load ....................109 6.6. Show uptime ......................109 6.7. Show interfaces ....................110...

  • Page 11: Important Information

    Change the passwords and community names as soon as possible. Default community names and passwords given in this book are provided to all customers and are not secure. 1.2. Notices and Contacts 1.2.1. Copyright Notice Copyright © July 2009 EION, Inc. All rights reserved.

  • Page 12: Regulatory Notice

    While every effort has been made to ensure that the information contained in this guide is correct, EION, Inc. does not warrant the information is free of errors or omissions. Information contained in this guide is subject to change without notice.

  • Page 13: Other Notices

    • Consult the dealer or an experienced radio/TV technician for help. 1.2.3. Other Notices Changes or modifications to the equipment not expressly approved by EION, Inc., could void the user’s authority to operate the equipment. Appropriately shielded remote I/O serial cable with the metal connector shell and cable shield properly connected to chassis ground shall be used to reduce the radio frequency interference.

  • Page 14: Contact Technical Support

    Business hours: 8:00 a.m. to 5:00 p.m. Eastern Standard Time (GMT - 5) Online request form at www.eionwireless.com/support To obtain information regarding EION products, contact the EION distributor in your region, or call 1-613-271-4400 to speak with a EION sales representative or visit our web site at www.eionwire-...

  • Page 15: Description

    Chapter 2. Description 2.1. LibraPlus Series Products 2.1.1. Overview The information in this guide applies to the EION "LibraPlus" series products. This chapter presents an overview of the features and different models in the LibraPlus Series product family. 2.1.2. Proprietary Protocol The LibraPlus uses proprietary protocols to acheive performance metrics that far exceed those offered by traditional WiFi devices.

  • Page 16: About Point-To-Multi-Point (P-Mp) Systems

    Description Fig. 2.1. Orthogonal Arrangement of OFDM Subchannels 2.1.4. About Point-to-Multi-Point (P-MP) Systems Two kinds of equipment are required for a wireless P-MP link: Access Point (AP) equipment and Customer Premise Equipment (CPE). AP equipment is located at the service provider’s site and CPE equipment is located at the customer’s site.

  • Page 17: Point To Multipoint Based On Csma

    Description Fig. 2.2. LibraPlus P-MP System Components 2.1.4.1. Point to Multipoint based on CSMA A CSMA/CA (Carrier Sense Multiple Access With Collision Avoidance) system will require that all remote stations be able to hear one another. If any one station in the system cannot hear all the rest of the stations, collisions will most likely occur.

  • Page 18: Libraplus 5845 Adaptive Polling Protocol

    The LibraPlus 5845 uses intelligence to determine the number of polling cycles every user gets depend- ing on the level of its activity. This way the network resources are not wasted during the polling of inactive users due to no user data transmission.

  • Page 19: Long Range Customer Premise Equipment (Lcpe)

    Description • LibraPlus CPE. The CPE is the main piece of equipment that would normally be installed out- doors (indoor installation is permitted when feasible) The CPE contains all of the necessary radio equipment to provide a high-speed wireless link. The CPE also has an integral antenna such that no RF cables are required for a typical installation.

  • Page 20: Quality Of Service (Qos)

    The following diagram shows TDM in a DL and TDMA in the UL. Each slot is allocated to a different CPE. In the EION system each slot may vary in time depending on traffic destined for each of the CPEs. CPEs that are not very active will also be polled less frequently thus reducing the latency of the system.

  • Page 21: Denflow Proprietary Protocol

    Description 2.1.5.1. DenFlow Proprietary Protocol DenFlow is a proprietary protocol that enhances LibraPlus 5845 performance and security for radios in a Point-to-Point configuration. With DenFlow, the radios will dynamically report and optimize the productivity of channels for PTP communication. The Denflow protocol improves system performance and work to protect the link against interference.

  • Page 22: Libraplus Connection Panel

    Description Fig. 2.5. LibraPlus Connection Panel 1. Power/Ethernet Port. Standard RJ 45 Ethernet Connector. A weatherproofing kit is provided with the unit, so that standard outdoor CAT-5 cable can be used. 2. Serial Port. 5-pin female connector. A matching connector and cable is available separately for local configuration.

  • Page 23: Libraplus Ap, Er And Lcpe Front Panel Rf Connector

    Description Fig. 2.8. LibraPlus AP, ER and LCPE Front Panel RF Connector Fig. 2.9. Ethernet Power Inserter 1. To Ethernet LAN 2. To LibraPlus Radio Caution Before connecting the LibraPlus to a power source, ensure that you are using the correct power supply for your radio.

  • Page 24: Mounting

    Description Fig. 2.10. Mounting Fig. 2.11. Large Pipe Diameter Mounting Configuration...

  • Page 25: Small Pipe Diameter Mounting Configuration

    Description Fig. 2.12. Small Pipe Diameter Mounting Configuration Fig. 2.13. Wall Mounting Configuration...

  • Page 26: Specifications

    Description 2.1.7. Specifications...

  • Page 27: Libraplus 5845 Radio Specifications

    N-type female (ER, AP, LCPE only) Output Power Adjustable from 0 dBm to +28 dBm Effective Point-to-Point Throughput Normal: up to 30 Mbps (20 MHz Channel) Turbo: up to 45 Mbps (40 MHz Channel) Duplexing TDD; Half-Duplex Table 2.1. LibraPlus 5845 Radio Specifications...

  • Page 28: Libraplus 5845 Network Support Specifications

    VLAN (802.1q) compliance RADIUS Support 802.1x Priority for voice and video over data; MAC and IP Layer Table 2.2. LibraPlus 5845 Network Support Specifications Wireless Networking Output Power Management Yes, Manual or Automatic Transmit Power Control (ATPC), 802.11h Dynamic Speed Selection...

  • Page 29: Libraplus 5845 Security Specifications

    Description Security Specifications Management Security Firewall, NAT Data Scrambling WPA, WPA-EAP (TKIP AES),WEP (64,128,154), MPPE Table 2.4. LibraPlus 5845 Security Specifications Management Specifications Remote Management CLI, SNMP Access Server PPPoE, PPtP, VPN Management Access Wireless and Wire Software Upgrade Over the Air, local...
  • Page 30 Description Physical, Electrical and Environ- mental Specifications Form-Factor AP, LCPE, ER: Outdoor, rugged RD, CPE: Outdoor, antenna integrated Enclosure AP, LCPE, ER: Die-cast with metal plate cover RD, CPE: Die-cast with plastic antenna housing Dimensions AP, LCPE, ER: 230 (w) x 65 (d) x 230 (h) mm RD, CPE: 300 (w) x 90 (d) x 300 (h) mm Weight AP, LCPE, ER: 2.0 kg...

  • Page 31: System Applications

    Description Table 2.6. LibraPlus 5845 Physical, Electrical and Environmental Specifications 2.2. System Applications 2.2.1. Making a Simple Wireless Bridge The simplest example of using a LibraPlus Radio is a point-to-point wireless bridge that connects two wired network segments or LANs. Two LibraPlus units are required: a Master (AP) and Slave (Station).
  • Page 32 Description Fig. 2.15. Point-to-Multipoint Wireless Network...

  • Page 33: Field Installation

    LibraPlus units (RD and ER for P-P links; LCPE, CPE and Access Point for P-MP), antenna locations, cable routing, equipment configuration settings, and other network require- ments. (EION, Inc. offers Network Planning and Site Preparation support. For more information on services and fees contact your Sales Representative or visit http://www.eionwireless.com/). Network planning should include visits to proposed sites to verify the feasibility of the network plan and work out the details.

  • Page 34: Slave (Rd Or Er) Unit

    Field Installation 3.2.1. Slave (RD or ER) Unit Use the following commands to configure the Slave (RD or ER) side of the point to point link. interface wireless 0 type station no shutdown mode a channel 5805 tx-power 26 speed auto wds-mode distance 300 ssid papasam...

  • Page 35: Libraplus Point-To-Multipoint Quick Setup

    • Default password: 123 3.3.1. CPE Unit Use the following commands to configure the CPE side. EION: interface wireless 0 type station ssid Eion mode a speed auto channel 5805 tx-power 26 (use the maximum if field installation) no rts...

  • Page 36: Ap Unit

    3.3.2. AP Unit Use the following commands to configure the AP Unit. EION: interface wireless 0 type ap ssid Eion mode a speed 54 (put speed ‘auto’ for variable signal strength) channel 5805 tx-power 5 (use the maximum if field installation)

  • Page 37: Libraplus Field Installation

    Field Installation copy running-config startup-config reboot 3.4. LibraPlus Field Installation This section discusses how to install, configure and test a LibraPlus in the field. Before you can install LibraPlus equipment in the field: • All units should be configured as described in the Configuration section •...

  • Page 38: Libraplus Package Checklist

    Field Installation • Compass or GPS • Customer acceptance form and Installation record, if required • Binoculars 3.4.3. LibraPlus Package Checklist • 1x LibraPlus Unit (with Integrated Antenna (CPE, RD units) or without (AP, LCPE, ER)) • 1x Power Cord •...

  • Page 39: Libraplus Installation Procedure

    Field Installation Warning Do NOT plug the LAN RJ45 cable into the power inserter marked "TO RADIO", as this port has power and may damage external equipment. 3.4.4. LibraPlus installation procedure Installing the CPE requires assembling the mounting hardware, finding a suitable mounting location, configuration, and then a link test to check the RF link integrity.

  • Page 40: Connecting The Libraplus

    Field Installation 5. For the CPE or RD, if Up or Down tilt is required, adjust the unit accordingly such that the face of the antenna is pointed as directly to the Access Point or the other unit in the P-P link as possible. 6.

  • Page 41: Antenna Alignment

    EION: interface Wireless 0 beeper Beeper is turned on. Use the no-form of the ‘beeper’ command to deactivate the audible tone: EION: interface Wireless 0 no beeper Beeper is turned off...

  • Page 42: Test Network Connectivity

    The 'associated' command shows the signal strength and noise levels for radios in the same bridge group. To see close to real time RSSI, add the "watch" command after the "associated" command. AP antenna alignment using the ‘watch’ command: EION: show interface Wireless 0 associated watch Client MAC Speed...

  • Page 43: Secure The Installation

    Field Installation 3.4.4.8. Secure the Installation Finish up the installation by doing the following. 1. Secure all the cables and weatherproof outside cable connection points 2. Clean up all boxes, cables and other materials. 3. Record installation information as required by the service provider such as •...

  • Page 44: Configuration

    • password: 123 4.1.1.3. CLI Auto Complete The command interpreter in the LibraPlus 5845 is designed to accommodate both a novice as well as an expert operator. All commands and parameters have descriptive names so that they are easily re- membered and their meaning is clear.

  • Page 45: Cli Help

    These commands can take an optional search key, which allows for viewing only desired parts of the configuration. The Displayed part contains matched strings and their value(s). Example 4.2. Viewing configuration part EION: show running-config ip interface Bridge 0 address 192.168.1.1 255.255.255.0 4.1.1.6.

  • Page 46: Configuration Backup And Restore

    • copy startup-config tftp copies the startup configuration to a TFTP server. • copy tftp startup-config downloads a startup configuration from a TFTP server. Example 4.3. Configuration backup and restore EION: copy running-config tftp 192.168.0.10 eion.rc Running-config successfully copied to tftp://192.168.0.10 'eion.rc'. EION: copy tftp startup-config 192.168.0.10 eion.rc Startup-config successfully copied from tftp://192.168.0.10 'eion.rc'.

  • Page 47: Command Summary

    Configuration The depth of a command level is indicated by the number of tabulation symbols or spaces in the begin- ning of a string. Command parts at the same level must be preceded by the same number of spaces or tabs.

  • Page 48: Running A Tftp Server

    Configuration copy startup-config tftp {server} {file} Backup the startup configuration to a TFTP server. Description. No-Form. N/A. Arguments. server TFTP server domain name or IP address. file Destination file name on the TFTP server. copy tftp startup-config {server} {file} Restore the startup configuration from a TFTP server. Description.

  • Page 49: Wireless Settings

    MHz; a static channel should be chosen for the sturboa mode to be operational (see more detail in the channel size section). Example 4.4. Specify IEEE 802.11 mode EION: interface Wireless 0 mode a The mode is set to 'a'. 4.2.1.2. Available Frequencies show interface {name} {index} channel-list Description.

  • Page 50: List Supported Channels

    Configuration Example 4.5. List supported channels EION: show interface Wireless 0 channel-list Channel: 36 : 5.180 GHz Channel: 40 : 5.200 GHz Dynamic Channel: 42 : 5.210 GHz Static Channel: 44 : 5.220 GHz Channel: 48 : 5.240 GHz Dynamic Channel: 50 : 5.250 GHz Static...

  • Page 51: Setting Data Transmission Rate

    18, 24, 36, 48 and 54 Mbit/s. If you set rate parameter to auto, the chipset will choose the best rate possible. Example 4.7. Set data rate EION: interface wireless 0 speed 54 Speed is set to 54 Mb/s. 4.2.2. Configuring SSID SSID stands for Service Set Identifier.

  • Page 52: Configuring Multiple Ssid

    ID for a new subinterface. If interface ssid is called for an existing interface or subinterface, it just sets ssid. Before a subinterface is created, it cannot be configured: EION: interface Wireless 0.2 type ap No such interface 'Wireless 0.2'.

  • Page 53: Advanced Wireless Settings

    4.2.4. Advanced Wireless Settings 4.2.4.1. Setting Transmit Power The LibraPlus 5845 hardware is available in two different power configurations. It is important to verify the specific LibraPlus model you are working with before setting the power level in the firmware.

  • Page 54: Setting Dynamic Frequency Selection (Dfs)

    Configuration Example 4.11. Setting the Distance Parameter EION: interface Wireless 0 distance 3000 The distance value is set to '3000 meters'. 4.2.4.3. Setting Dynamic Frequency Selection (DFS) Dynamic Frequency Selection (DFS) is the process of detecting radar signals that must be protected against 802.11a interference, and upon detection switching the 802.11a operating frequency to one...

  • Page 55: Wireless Security Settings

    Configuration Example 4.13. Enable DFS EION: interface Wireless 0 atpc ATPC is turned on. 4.2.5. Wireless Security Settings 4.2.5.1. Wireless Security Overview Wireless networks are insecure, because they are vulnerable to attacks which are more difficult to launch in the wired domain. Many wired networks benefit from their inherent physical security prop- erties.
  • Page 56 Configuration • Authenticator – a device that acts as an intermediary between a supplicant and an authentication server. Usually, the device is an access point. The mutual authentication in 802.1x involves the following steps: • A supplicant initiates a connection with an authenticator. The authenticator detects the initiation and enables the port of the supplicant.

  • Page 57: Wpa Psk

    Configuration • Applies Temporal Key Integrity Protocol (TKIP) on existing RC4 WEP to impose strong data en- cryption. • Uses Michael Message Integrity Check for message integrity. MIC is based on a 128-bit temporal key that is shared by both clients and access points, a MAC address of a client device and a 48-bit initialization vector describes a packet sequence number.

  • Page 58: Static Wep Access Point

    Interface 'Wireless 0': SSID 'FooBar'. EION: interface Wireless 0 encryption wep Interface 'Wireless 0': WEP enabled. EION: interface Wireless 0 encryption key 1 AB33948AB430298CD229830DEE WEP key [1] = 0xAB33948AB430298CD229830DEE (104-bit). EION: interface Wireless 0 no shutdown Interface 'Wireless 0' is up.

  • Page 59: Dynamic Wep Ttls Station (Cpe)

    Configuration Example 4.16. Dynamic WEP TTLS station (CPE) EION: interface Wireless 0 type station (CPE) Interface 'Wireless 0': type 'station'. EION: interface Wireless 0 ssid Barney Interface 'Wireless 0': SSID 'Barney'. EION: interface Wireless 0 encryption wep Interface 'Wireless 0': WEP enabled.

  • Page 60: Setting Wi-Fi Protected Access

    Example 4.17. Set/Delete WEP key by index EION: interface Wireless 1 encryption key ? {index: 1-4} {789ABC...} EION: interface Wireless 1 encryption key 1 113AAB3325 WEP key [1] = 0x113AAB3325 (40-bit). EION: interface Wireless 1 encryption key 2 AB33948AB430298CD229830DEE WEP key [2] = 0xAB33948AB430298CD229830DEE (104-bit).

  • Page 61: Access Point Wpa+Wpa2 Eap Example

    EION: interface Wireless 1 encryption ccmp Interface 'Wireless 1': CCMP enabled. EION: interface Wireless 1 authentication ieee-802.1x IEEE 802.1x enabled. EION: interface Wireless 1 authentication radius-profile rad1 Profile 'rad1' not found. EION: radius-profile rad1 ? server - Add/remove RADIUS server.

  • Page 62: Wpa Configuration Table

    EION: interface Wireless 1 type station Interface 'Wireless 1': type 'station'. EION: interface Wireless 1 ssid Acid Interface 'Wireless 1': SSID 'Acid'. EION: interface Wireless 1 encryption ccmp Interface 'Wireless 1': CCMP enabled. EION: interface Wireless 1 authentication wpa-psk qqKdoeeiUS2 WPA PSK enabled.

  • Page 63: Wpa Peap Station (Cpe)

    Using thawte.crt as CA certificate. EION: interface Wireless 1 authentication client-cert ivanov.crt Using ivanov.crt as a client certificate (CN = ivanov). EION: interface Wireless 1 authentication private-key ivanov.key s9*kffjUe8 Using ivanov.key as a private key. EION: interface Wireless 1 no shutdown...

  • Page 64: Wpa2 Eap-Ttls+Md5 Station (Cpe)

    EION: interface Wireless 1 authentication tls EAP TLS enabled. EION: interface Wireless 1 authentication md5 EAP MD5 enabled. EION: interface Wireless 1 authentication ca-cert thawte.crt Using thawte.crt as CA certificate. EION: interface Wireless 1 no shutdown Interface 'Wireless 1' is up.
  • Page 65 Arguments. Example. EION: interface Wireless 1 encryption ccmp Interface 'Wireless 1': CCMP enabled. EION: interface Wireless 1 encryption no ccmp Interface 'Wireless 1': CCMP disabled. interface {name} {index} authentication wpa-psk {pre-shared-key} Description. Set pre-shared key for WPA and WPA2 and enable WPA-PSK mode. The com- mand is applicable to both station (CPE) and access point modes.
  • Page 66 Configuration EION: interface Wireless 1 authentication no ieee-802.1x IEEE 802.1x disabled. interface {name} {index} authentication peap Description. Enable PEAP. The command is applicable to both station (CPE) and access point modes. No-Form. Disable PEAP. Arguments. No arguments. Example. EION: interface Wireless 1 authentication peap PEAP enabled.
  • Page 67 No arguments. Arguments. Example. EION: interface Wireless 1 authentication tls EAP TLS enabled. EION: interface Wireless 1 authentication no tls EAP TLS disabled. interface {name} {index} authentication ttls Description. Enable EAP-TTLS. The command is applicable to the station (CPE) mode only.
  • Page 68 EION: interface Wireless 1 authentication private-key ? {private-key.pem} [password] EION: interface Wireless 1 authentication private-key rogers.key Bad PEM key: bad password read. EION: interface Wireless 1 authentication private-key rogers.key q1w2e3r4 Using rogers.key as a private key. EION: interface Wireless 1 authentication no private-key Private key cleared.

  • Page 69: Certificate Management

    Configuration EION: interface Wireless 1 authentication no password Password cleared. 4.2.5.4. Certificate Management Certificates and private keys are currently used to connect a wireless station (CPE) to an access point using EAP-TLS authentication. Certificates should also be used to check authenticator's certificate signature in EAP-TLS, EAP-TTLS and PEAP modes.

  • Page 70: Mac Address Based Filtering

    Example 4.24. Download a PEM file from a TFTP server EION: certificate import 192.168.201.20 ivanov.pem Can't copy certificate 'ivanov.pem' to the repository: bad password read EION: certificate import 192.168.201.20 ivanov.pem aQsWde15r Certificate 'ivanov.pem' copied from tftp://192.168.201.20. certificate import {file} Description.

  • Page 71: Add/Delete Mac Address To List

    Example 4.26. Add/Delete MAC address to list EION: mac-access-list test address 1111.2222.3333 MAC address '1111.2222.3333' has been added to 'test'. EION: mac-access-list test address 2222.3333.4444 MAC address '2222.3333.4444' has been added to 'test'. EION: show running-config mac-ac mac-access-list test address 1111.2222.3333...

  • Page 72: Client Bridging

    Either black or white mode, as explained above. mode Example 4.28. MAC Address White/Black list EION: interface Wireless 0 mac-access-list test black MAC access list has been assigned to the interface 'Wireless 0'. EION: mac-access-list test address 13e4.c034.1122 MAC address '13e4.c034.1122' has been added to 'test'.

  • Page 73: Wireless Interface Monitoring

    SSID, frequency, signal quality, security modes etc. This information can be displayed using the show interface scan command: show interface {name} {index} scan Example 4.31. Interface Scan. EION: interface Wireless 0 type station Interface 'Wireless 0': type 'station'. EION: interface Wireless 0 no shutdown Interface 'Wireless 0' is up.

  • Page 74: Mac Address Settings

    Specifies a MAC address in a dot-separated hexadecimal format: mac-address xxxx.xxxx.xxxx. Example 4.32. Set an interface MAC Address EION: interface FastEthernet 0 mac-address 1234.5678.90ab MAC address is set to '1234.5678.90ab'. Important The command can be applied to the Ethernet based interfaces such as FastEthernet, Wireless or Bridge interface only.

  • Page 75: Wireless Interface Configuration

    EION: interface Bridge 0 no shutdown Interface 'Bridge 0' is up. 3. Configure IP address and mask: EION: interface Bridge 0 ip address 192.168.1.1 Device 'Bridge 0' address 192.168.1.1 netmask 255.255.255.0 4. Add any number of Ethernet based interfaces in a bridge group: EION: interface Wireless 0 bridge-group 0 Interface 'Wireless 0' was added to the bridge group 0.

  • Page 76: Deleting A Bridge

    Usually, a bridge legatee interface is the interface that is used to configure the device. Example 4.34. Deleting a Bridge EION: interface Bridge 0 ip legatee FastEthernet 0 Bridge legatee assigned. EION: no interface Bridge 0 Bridge 0 is removed.

  • Page 77: Bridge Command Summary

    Example 4.36. Assign a bridge IP legatee EION: no interface Bridge 0 Bridge 'Bridge 0' doesn't have a legatee. EION: interface Bridge 0 ip legatee Wireless 0 Bridge legatee assigned. EION: no interface Bridge 0 Bridge 0 has been removed.

  • Page 78: Vlan

    View the MAC address table of a Bridge interface. Description. N/A. No-Form. No arguments. Arguments. Example 4.38. View MAC Address of a Bridge Interface EION: show interface Bridge 0 mac-table Interface MAC address Local Ageing timer FastEthernet 0 0003.475f.4a5c 0.75 Wireless 0 0011.95df.8870...

  • Page 79: Point-To-Point Vlan System

    Configuration • Three-bit user priority • One-bit canonical format indicator (CFI) • Twelve-bit VLAN identifier (VID) – Uniquely identifies the VLAN to which the frame belongs LibraPlus VLAN interfaces always transmit and receive tagged frames. Virtual LANs operate at Layer 2 (the data link layer) of the OSI model.

  • Page 80: Command Summary

    Bridge 0 has been created. EION: interface Bridge 0 no shutdown Interface 'Bridge 0' is up. EION: interface Bridge 0 ip address 172.16.0.10/26 Device 'Bridge 0' address 172.16.0.10 netmask 255.255.255.192. EION: interface FastEthernet 0 bridge-group 1 Interface 'FastEthernet 0' was added to the bridge group '1'.

  • Page 81: Setting An Ip Address

    Device 'FastEthernet 1' address 192.168.0.1 netmask 255.255.255.0. EION: interface FastEthernet 1 ip address 192.168.0.1/24 Device 'FastEthernet 1' address 192.168.0.1 netmask 255.255.255.0. EION: interface FastEthernet 1 ip address 192.168.0.1 255.255.255.0 Device 'FastEthernet 1' address 192.168.0.1 netmask 255.255.255.0. Example 4.41. Adding secondary IP addresses EION: interface Wireless 0 ip address 10.0.0.1...

  • Page 82: Dynamic (Dhcp) Ip Address

    To delete a specific IP address from the secondaries, pass it as an argument: EION: interface Wireless 0 ip address 10.0.0.1 Device 'Wireless 0' address 10.0.0.1 netmask 255.0.0.0. EION: interface Wireless 0 ip address 192.168.1.10 secondary Secondary IP 192.168.1.10 with netmask 255.255.255.0 was added. EION: interface Wireless 0 ip address 192.168.2.10 secondary Secondary IP 192.168.2.10 with netmask 255.255.255.0 was added.

  • Page 83: Ip Broadcast Address

    Configuration EION: interface Wireless 0 ip dhcp DHCP client enabled. EION: interface Wireless 0 ip no dhcp DHCP client disabled. DHCP client automatically obtains an IP address, a default route and DNS server addresses from the DHCP server. All these dynamic parameters can be viewed using the show interfaces, show ip route and show ip name-server commands respectively.

  • Page 84: Domain Name

    An IP address of a DNS server. Example 4.44. Add/Remove DNS Server EION: ip name-server 10.0.0.2 Name server address added. EION: no ip name-server 10.0.0.2 Name server address deleted. show ip name-server View the name server list contents. Description.

  • Page 85: Host Name

    Configuration Example 4.46. Set/Clear local domain name EION: ip domain-name my-domain.lan New domain name: my-domain.lan EION: no ip domain-name Domain name cleared. show ip domain-name Description. View the local domain name setting. No-Form. N/A. Arguments. No arguments. Example 4.47. View local domain name setting...

  • Page 86: Arp Table

    IP address of the entry. ip-address MAC address of the entry. mac-address Example 4.50. Creating and Deleting an ARP Record EION: ip arptable arp 83.166.121.12 000e.34b8.3345 ARP record created. EION: ip arptable no arp 83.166.121.12 ARP record deleted. ip arptable size {size} Set the maximum number of ARP table entries.

  • Page 87: Static Routing And Default Gateway

    Configuration The size, valid range is 128 to 8192. size Example 4.51. Create ARP Table EION: ip arptable size 4096 New table size: 4096. show ip arptable arp Description. View the ARP cache. No-Form. N/A. No arguments. Arguments. Example 4.52. View ARP Cache...

  • Page 88: Add Static Route

    Network interface name and index. Routing entry metric. metric Example 4.54. Add static route EION: ip route 192.168.0.0 255.255.255.0 10.0.0.1 Static route added. An alternate way to do the same thing: EION: ip route 192.168.0.0/24 10.0.0.1 Static route added.

  • Page 89: Static Hosts

    IP address of the host. hostname Associated hostname. Example 4.57. Add/Delete host table entry EION: ip host 192.168.0.3 my-static-host.lan Static host record '192.168.0.3 my-static-host.lan' was added. EION: no ip host my-static-host.lan Static host record 'my-static-host.lan' was deleted. show ip hosts View the static host table.

  • Page 90: Dhcp Server

    Configuration Example 4.58. View static host table EION: show ip hosts IP address Host 192.168.0.1 my-static-host.lan 10.0.0.1 second-static-host.lan 4.7. DHCP Server 4.7.1. DHCP Server Dynamic Host Control Protocol (DHCP) allows to a server automatically assign reusable IP addresses to DHCP clients.

  • Page 91: Network Pool Configuration

    Although the pool binding procedure performs a range sanity check automatically, it is recommended to set valid ranges before enabling the DHCP server. Example 4.59. Network pool configuration EION: ip dhcp pool p1 EION(dhcp-config): network 10.0.0.0 255.255.0.0 Pool "p1": network 10.0.0.0 255.255.0.0 EION(dhcp-config): default-router 10.0.0.1 EION(dhcp-config): default-router 10.0.0.3...

  • Page 92: Command Summary

    Example 4.61. Set and Disable Pool Type (the first two commands do the same thing): EION: ip dhcp pool p1 network 10.0.0.0 255.255.0.0 Pool "p1": network 10.0.0.0 255.255.0.0 EION: ip dhcp pool p1 network 10.0.0.0/16 Pool "p1": network 10.0.0.0 255.255.0.0...

  • Page 93: Set Pool Type To Host

    Example 4.63. Add DHCP client address range to a network pool EION: ip dhcp pool p1 range 10.0.0.1 10.0.0.6 Added range: 10.0.0.1 10.0.0.6. EION: ip dhcp pool p1 no range 10.0.0.3 10.0.0.4 Deleted range: 10.0.0.3 10.0.0.4. EION: show running-config p1...

  • Page 94: Set Dhcp Lease Time

    Pool name. If the pool is mentioned for the first time, it will be created automatically. ip-address Default gateway IP address. Example 4.65. Set default gateway IP addresses for DHCP clients EION: ip dhcp pool p1 default-router 10.0.0.10 10.0.0.11 EION: show running-config p1 dhcp pool p1 default-router 10.0.0.10 ip dhcp pool {name} dns-server {ip-address} Set DNS server IP addresses for DHCP clients.

  • Page 95: Firewall And Nat

    Configuration Example 4.66. Set DNS server IP addresses for DHCP clients EION: ip dhcp pool p1 dns-server 10.0.0.100 10.0.0.101 EION: show running-config p1 dhcp pool p1 dns-server 10.0.0.100 ip dhcp pool {name} mac-address {mac-address} Description. Set a MAC address for a host pool. Note: network or undefined pools may accept the setting, even if the setting does not make sense.

  • Page 96: Source And Destination Specifiers

    Configuration • protocol type, which can be one of icmp, tcp or udp. • state of the connection, which can be new, established or related. LibraPlus implements stateful packet inspection, i.e. it tracks packets in the context of preceding communication between the same source and destination.

  • Page 97: Viewing Acl Settings

    Configuration Example 4.69. Permit TCP access-list 100 permit tcp any any access-list 100 deny any any interface FastEthernet 0 access-group 100 in interface Wireless 0 access-group 100 in Example 4.70. Permit TCP for a subnetwork access-list 100 permit tcp 192.168.1.0 0.0.0.255 any access-list 100 deny any any access-list 101 permit tcp any any state established,related access-list 101 deny any any...

  • Page 98: Network Address Translation

    IP addresses and usually also the TCP/UDP port numbers of IP packets as they pass through. EION refers to des- tination and source address translation as DNAT and SNAT respectively.

  • Page 99: Examples

    Configuration interface {name} {index} nat-group {list-id} Important Each network interface supports only one NAT list. 4.8.2.1. Examples Example 4.73. Simple NAT If a private network 192.168.1.0/24 is connected to FastEthernet 0, and WAN interface Wireless 0 has an external address 10.0.0.1, then simple many-to-one SNAT can be enabled like this: nat-list 110 snat 192.168.1.0 0.0.0.255 any to 10.0.0.1 interface Wireless 0 nat-group 110 Example 4.74.

  • Page 100: Pptp Interface

    PPP autoconnection disabled. EION: interface PPP 3 pptp pptp.example.net PPTP encapsulation enabled. Using server pptp.example.net. EION: interface PPP 3 authentication identity DOMAIN\00334 Using identity 'DOMAIN\00334'. EION: interface PPP 3 authentication password eeoiu3098 Password has been saved. EION: interface PPP 3 authentication mschap-v2 MSCHAPv2 enabled.

  • Page 101: Command Summary

    Configuration Example 4.77. PPPoE interface EION: interface PPP 3 Interface 'PPP 3' has been created. EION: interface PPP 3 pppoe FastEthernet 0 STREAM PPPoE encapsulation enabled. Using interface FastEthernet 0. EION: interface PPP 3 authentication identity ppp0989330@mtu Using identity 'ppp0989330@mtu'.

  • Page 102: Set Ppp Interface Name

    A PPPoE service identifier. This parameter shall be used service if the selected access concentrator has multiple services. Example 4.78. Set PPP interface name EION: interface PPP 1 pppoe FastEthernet 0 STREAM PPPoE encapsulation enabled. Using interface FastEthernet 0. EION: interface PPP 1 no pppoe PPPoE encapsulation disabled.

  • Page 103: Set/Clear Ppp Authentication Password

    Configuration Example 4.80. Set/Clear PPP authentication password EION: interface PPP 1 authentication password 508.drill?door Password has been saved. EION: interface PPP 1 authentication no password Password has been cleared. interface {name} {index} connect Description. Enable PPP autoconnection. No-Form. Disable PPP autoconnection. The default setting is "enabled", only the No-Form is shown in running config.

  • Page 104: Enable/Disable Pap Authentication

    Configuration Example 4.83. Enable/Disable PAP authentication EION: interface PPP 1 authentication pap PAP enabled. EION: interface PPP 1 no authentication pap PAP disabled. interface {name} {index} authentication chap Description. Enable CHAP authentication. No-Form. Disable CHAP authentication. Arguments. No arguments. Example 4.84. Enable/Disable CHAP authentication EION: interface PPP 1 authentication chap CHAP enabled.

  • Page 105: Enable/Disable Mschapv2 Authentication

    Configuration Example 4.86. Enable/Disable MSCHAPv2 authentication EION: interface PPP 1 authentication mschap-v2 MSCHAPv2 enabled. EION: interface PPP 1 no authentication mschap-v2 MSCHAPv2 disabled. interface {name} {index} ip default-gateway Description. Enable setting the remote peer IP address as a default gateway.

  • Page 106: Command Summary

    Configuration If authentication and accounting port settings are omitted, the entry is used as an authentication server with the port 1812. If both authentication and accounting ports are set, the entry is used for both pur- poses. At the moment of writing, RADIUS profiles are used for WPA authentication only. 4.10.2.

  • Page 107: Raduis Profile Settings

    Missing arguments. EION(config-rad-profile): server <tab> {address} [auth-port {port}] [acct-port {port}] [key {string}] EION(config-rad-profile): server 10.0.1.40 auth-port 8012 key eRFiduKdjfr55 Added RADIUS server 10.0.1.40 to profile 'r1'. EION(config-rad-profile): server 10.0.1.41 acct-port 8013 key fkdIjehffidJ24 Added RADIUS server 10.0.1.41 to profile 'r1'.

  • Page 108: System Maintenance

    N/A. No-Form. Arguments. No arguments. Example 5.1. Set System Date and Time EION: system date 10:26:00 5 mar Date and time adjusted. EION: show date Mon Mar 5 10:26:00 2007 5.2. NTP The Network Time Protocol (NTP) is a protocol for synchronizing the clocks of computer systems over the Internet.

  • Page 109: Command Summary

    "ntp" for convenience. Example 5.2. NTP client configuration EION: ntp server ntp.ufes.br Server 'ntp.ufes.br' has been added. EION: no ntp server ntp.ufes.br Server 'ntp.ufes.br' has been removed. EION: ntp server ntp.host.bg Server 'ntp.host.bg' has been added.

  • Page 110: Start/Stop Ntp Client Service

    Example 5.4. Add/Remove NTP server EION: ntp server ntp.ufes.br Server 'ntp.ufes.br' has been added. EION: no ntp server ntp.ufes.br Server 'ntp.ufes.br' has been removed. ntp retries {count} Description. Set the maximum number of attempts to connect to each NTP server.

  • Page 111: Set Ntp Retry Period

    System Maintenance Example 5.6. Set NTP retry period EION: ntp retry-period 10 NTP retry period is set to 10 second(s). ntp sync-period {period} Description. Set a time period between successive clock synchronizations. No-Form. Reset to default. Arguments. Synchronization period in seconds, integer. The valid range is 60 to (28 * 24 period * 60 * 60).

  • Page 112: System Update

    2. Execute the system update command. To confirm the system update, please answer Yes twice. Caution It is strongly discouraged to reboot the system while firmware update is in progress. Example 5.10. Firmware update EION: copy tftp flash 192.168.0.1 EION.img 392659 bytes copied. 780755 bytes copied. 14376358 bytes copied.

  • Page 113: Reboot

    System Maintenance Example 5.11. Download firmware image EION: copy tftp flash 192.168.0.1 EION.img 392659 bytes copied. 780755 bytes copied. 14376358 bytes copied. 14768038 bytes copied. New system update downloaded. system update Description. Update the system firmware using a previously downloaded image.

  • Page 114: Password Reset

    To change or reset a system password use the system password command. It requires you to specify both old and new passwords. system password {old-password} {new-password} Change the password. Description. N/A. No-Form. Arguments. old-password The old password. new-password A new password. Example 5.15. Change Password EION: password old-password new-password Password changed.

  • Page 115: Snmp

    Description. No-Form. N/A. Arguments. community-name A name given to the community that SNMP manager will connect Example 5.16. Set SNMP Community EION: snmp community 123 snmp contact {contact-name} Defines the contact point for the SNMP Description. No-Form. N/A. Arguments. contact-name Radio’s name.

  • Page 116: Set Snmp Allow

    Is the IP address of the machine where the SNMP manager is running. The SNMP manager has to be on the same subnet as the radios. Example 5.19. Set SNMP Allow EION: snmp allow 192.168.0.10 snmp service Enables the SNMP agent on the radio Description.

  • Page 117: Monitoring And Statistics

    Arguments. An IP address or a hostname. host Example 6.1. Ping a host EION: utilities ping google.com PING google.com (64.233.187.99) 56(84) bytes of data. 64 bytes from jc-in-f99.google.com (64.233.187.99): icmp_seq=1 ttl=242 time=1 64 bytes from jc-in-f99.google.com (64.233.187.99): icmp_seq=2 ttl=242 time=1 64 bytes from jc-in-f99.google.com (64.233.187.99): icmp_seq=3 ttl=242 time=1...

  • Page 118: Route Tracing

    [0–1023] having the destination address 10.0.0.1 with port range [1024–65535] and send all captured packet content to the remote syslog, do the following: EION: utilities tcpdump wireless 0 src 192.168.0.1 0 1023 dst 10.0.0.1 1024 6 Logging to syslog...

  • Page 119: General System Info

    Monitoring and Statistics Example 6.4. Start syslog service EION: service syslog 192.168.0.9 Syslog has started using the remote log server 192.168.0.9:514. EION: no service syslog Syslog has stopped. 6.5. General System Info The LibraPlus system provides several commands to view the current system state. All these commands can be found in the show branch.

  • Page 120: Show Interfaces

    Monitoring and Statistics Example 6.7. Show interfaces EION: show interfaces FastEthernet 0 is up Hardware address: 0014.c2d8.8b3e Internet address: 10.0.128.5 mask 255.255.0.0 broadcast: 10.0.255.255, MTU: 1500 Wireless 0 is up Hardware address: 0015.0034.4b9d Internet address: 0.0.0.0 mask 0.0.0.0 broadcast: 0.0.0.0, MTU: 1500 Type: station, SSID: "test", Mode: 802.11a...

  • Page 121: Troubleshooting

    • Keep a log of past and present problems and solutions. Store the log on-site for easy reference, if possible. The log identifies common failure points and fixes. • Before contacting EION’s Technical Assistance Center, document the symptoms of the fault and the steps taken to diagnose and fix the problem. Record the current configuration of the system.
  • Page 122 5. Embedded Software: Operate with a proven software image. Download new software if you suspect that a unit’s software is corrupted. Software images are available from the EION, Inc. website: ht- tp://www.eionwireless.com/support.

  • Page 123: Troubleshooting Chart

    Troubleshooting 7.1.3. Troubleshooting Chart...
  • Page 124 • Change polarization of antennas • Increase separation or change location of an- tenna • Increase separation between co-located antennas Radio Performance(Tx/Rx) • Contact EION, Inc. technical support No Ethernet connec- Bad CAT-5 cable • Visually inspect cable tion • Change cable Bad connectors •...
  • Page 125 Troubleshooting Indication Possible Cause Corrective Action Bad cable • Visually inspect cables/connectors • Sweep cable • Change cable/connectors Incorrect radio configuration • Bench test the radio to confirm configuration • Reconfigure radio No Fresnel zone clearance or • Check LOS for obstacles such as trees severe NLOS •...
  • Page 126 Incorrectly upgraded software • Reload the software image using ftp will not take Unable to access Invalid Passwords Contact EION, Inc. for information about how to main configuration re-enter your system. Units will need to be reset menu Unit will not oper-...

  • Page 127: Appendices

    Chapter 8. Appendices 8.1. Appendix A: Glossary Glossary Absorption Antennas mounted too close to “soft” objects, such as trees, may experience a reduction in signal strength due to absorption. Ab- sorption is most often encountered in antennas installed during fall or winter. The problem does not start until the spring, when leaves appear.
  • Page 128 Customer Premise Equipment – the remote or subscriber unit in the EION Broadband Wireless Access System. Co-Location Placing antennas in the same place. One rooftop may host up to six antennas, each attached to a different AP ODU and IDU.
  • Page 129 10log (P1/P2) DB-9 A D-shaped connector to the serial port on EION equipment, with nine pins. Used to connect the IDU and PC. dBd is antenna gain referenced over a half-wave dipole. This is an antenna with a doughnut-shaped radiation pattern. Gain of a Standard Dipole = 2.14 dBi.
  • Page 130 Frost Loading A concern of antenna operation affected by low temperatures. File Transfer Protocol. A method of copying files from one site to another. An operator of EION equipment might use ftp to download software upgrades. Gain The ability of a device to amplify a signal. Gain is the ratio of output power divided by input power, usually expressed in decibels (dB).
  • Page 131 Appendices IEEE Institute of Electrical and Electronics Engineers. IFIB Intermediate Frequency Interface Board. Image An image is a collection of configurations or settings for a partic- ular device. The System Image File in the Access Point contains a collection of configurations used when the unit is rebooted. Interference Any signal that tends to hamper the reception of a desired signal.
  • Page 132 Management Information Base. A set of commands that you can execute using the SNMP Manager to access the MIB database. A standard MIB and a EION-customized MIB store information relevant to the operation of a wireless network. Multipath Interference As a radio signal travels, it may reflect off objects in the environ-...
  • Page 133 Appendices OID nodes Object Identifier Nodes. These are the individual nodes in an MIB. See SNMP and MIB. Orthogonal An adjective that refers to the way the many carrier waves in a OFDM system affect each other. The carriers are spaced in such a way that the center frequency of each signal lies in the null spot of its neighbors.
  • Page 134 RF Center Frequencies EION Broadband Wireless Access Systems sometimes use two center frequencies. The AP transmits on one and the CPEs transmit on another.
  • Page 135 10- or 100-BaseT cable uses category three or five twisted pair wiring. Maximum length is 100 meters. 8.2. LibraPlus 5845 Integrated Antenna Specific- ations The specifications below apply to the integrated antenna that is included with the LibraPlus RD and...

  • Page 136: Integrated Antenna Specifications - Electrical

    Appendices Electrical Regulatory Compliance ETSI EN 302 085 V.1.1.2 (2001-02) Frequency Range 5.15 – 5.875 GHz Gain 23 dBi (min) VSWR 1.7 : 1 (max) 3 dB Beamwidth 9°(typ) Polarization Linear Vertical or Horizontal Sidelobes Level ETSI EN 302 085 V.1.2.2 Range 1, TS1-TS3 Cross Polarization -28dB (max) F/B Ratio...

  • Page 137: Integrated Antenna Specifications - Mechanical

    Appendices Electrical Antenna Dimensions (LxWxD) 305x305x25mm (max) Weight 1.2 kg (max) Connector N-Type Female Radome Plastic Base Plate Aluminum with chemical conversion coating Table 8.2. Integrated Antenna Specifications - Mechanical...

  • Page 138: Integrated Antenna Specifications - Envorinmental

    Appendices Environmental Low Temperature (IEC 68-2-1) -55 C for 72h High Temperature (IEC 68-2-2) +71 C for 72h Temperature Cycling (IEC 68-2-14) -45°C to +70°C, 3 cycles, 1h Vibration (IEC 60721-3-4) 30 min/axis, Random 4M3 Shock Mechanical (IEC 60721-3-4) Humidity (ETSI EN300-2-4 T4.1E) 95%, 144 h Water Tightness (IEC 529) IP67...

  • Page 139: Azimuth Radiation Pattern Midband Freq. 5.45 Ghz

    Appendices Fig. 8.1. Azimuth Radiation Pattern Midband Freq. 5.45 GHz Fig. 8.2. Azimuth Radiation Pattern Midband Freq. 5.35 GHz...
  • Page 140 © 2009 EION Inc.

Table of Contents
