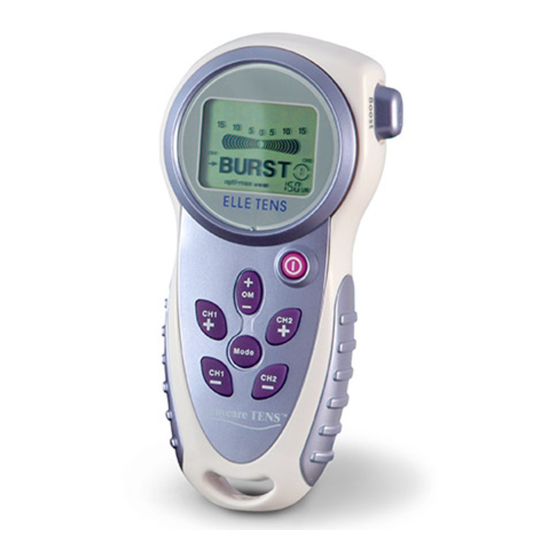

Babycare TENS Elle TENS Instructions For Use Manual
Pelvic floor stimulator
Hide thumbs
Also See for Elle TENS:
- Instructions for use manual (16 pages) ,
- Instructions for use (2 pages)
Related Manuals for Babycare TENS Elle TENS
Summary of Contents for Babycare TENS Elle TENS
- Page 1 Elle TENS Instructions for use...
- Page 2 This DVD will self-play and take you step by step through the instructions for set up and use of your Elle TENS unit. Have your unit and accessories within easy reach before commencing. To pause at any page use your DVD player pause...
- Page 3 Before using the Elle TENS for the first time, please read the contraindications and warnings on page 2 of the instruction manual supplied with your unit. These will be repeated at the end of this film.
- Page 4 Setting up your Elle TENS Check the following contents: • Elle TENS unit • Pack of 4 self adhesive electrodes • Two leadwires and one spare • Two batteries and two spare • Carrying pouch and easy-release neck cord • Instruction manual...
- Page 5 Inserting the Batteries Press and rotate the belt clip at the back of the Elle TENS in either direction to REVEAL the battery compartment.
- Page 6 Release the battery compartment cover and insert 2 x AA batteries. Ensure that the positive (+) and negative (-) terminals are correctly positioned as marked in the battery compartment and replace the cover.
- Page 7 Neck cord Thread the loop of the neck cord through the base hole. Slip the other end of the cord through the loop and pull into position.
- Page 8 Preparing leadwires You will use two leadwires with your Elle TENS unit.
- Page 9 Take both of the jack plugs and insert them into the two sockets at the top of the Elle TENS unit as indicated...
- Page 10 Now insert the pins (at the other end of the lead wires) into the sockets attached to the sticky electrodes. Do not remove the electrodes from the backing at this stage. NB. Each lead wire has a red and black pin. It makes NO difference whatsoever which electrode they are attached to!
- Page 11 Carefully peel the pads from the protective backing using your forefinger and thumb. Do not pull on the leadwires.
- Page 12 Positioning the pads for practising For a trial run, practise with the unit by placing just two pads (one pair) on your forearm and follow the instructions in the rest of this film.
- Page 13 You can alternatively practise with the unit by placing the pads in the labour position. This information will follow...
- Page 14 Positioning the pads for labour Position the top two pads (connected to the left socket CH1) approximately 4cm either side of Bra line the spine and 4-5cm above the imaginary navel line as seen in the diagram. Navel line...
- Page 15 Position the bottom two pads (connected to the right socket CH2) approximately 4cm either side of the spine and 4-5cm below the imaginary navel line as Bra line seen in the diagram. Navel line Panty line...
- Page 16 Turn on your Elle TENS Switch the unit on by pressing the button.
- Page 17 Ensure that the BOOST button located at the top right of the unit is NOT pressed in. The Elle TENS will always start up in BURST 1 mode.
- Page 18 Burst 1 This is the mode you will use when you first go into labour. You will also use this mode in between contractions. It feels like a bursting, tingling sensation and pulses on and off automatically. This promotes the body’s natural pain killing chemicals (endorphins).
- Page 19 Begin by pressing the to gradually increase the intensity. Each time you press the key a half moon shape will appear to show intensity level. You will feel a pulsating sensation in time with a small arrow flashing on the screen.
- Page 20 Repeat the previous step with keys. Now you will now feel a sensation in both sets of pads. NB. You may require more intensity in either one or the other of the channels. Simply set up the intensity to whichever feels most comfortable.
- Page 21 Boost 1 When experiencing a contraction simply press the BOOST button. It will automatically switch to BOOST 1 mode for an extra surge of continuous pain-neutralising power.
- Page 22 Once the contraction has passed simply release the BOOST button. The Elle TENS will return to the original BURST1 mode. Continue this cycle through the early stages of labour.
- Page 23 The Mode Button There are 2 modes in the Elle TENS. The Elle TENS always starts up in Mode 1, which is indicated by the number in the circle positioned to the right of both Burst and Boost. This Mode is recommended during...
- Page 24 Press the Mode Button to toggle between Mode 1 and Mode 2. Mode 2 is recommended when contractions become more intense. However, it is a matter of preference. Simply use which ever mode feels more comfortable for you.
- Page 25 The Opti-max This heightens or lessens the level of pulse power transmitted to the electrode pads. The level starts at 3 dots and 150 µs.
- Page 26 Pressing the OM key either + or - will increase or decrease the Opti-max sensation by units of 50µs (min one dot, max 5 dots). This is extremely useful for the final stages of labour when you need an extra surge of power.
-
Page 27: Frequently Asked Questions
A. Use as early as you can after the onset of labour to allow time for your body’s pain-killing chemicals to rise. Q. Can I try the Elle TENS before going into labour? A. Yes, place 2 pads on your forearm to feel the different pulse sensations, following the instructions on page 6 of your instruction manual. - Page 28 Q. Can the Elle TENS be used in hospital? A. Yes. However, a midwife may ask you to switch it off temporarily. Q. Can I use the Elle TENS if I am considering a water birth? A. Yes, but not in the water itself.
- Page 29 Troubleshooting Questions Q. Why does the stimulation not appear to be as strong after you have used the Elle TENS for a while? A. Increase the intensity, you may have become used to a lower setting. Q. Why does the stimulation feel strong but ineffective? A.
- Page 30 Troubleshooting Questions Q. Why does the stimulation not feel sufficiently strong even on a high setting? A. The batteries may need replacing. Q. What do I do if there is no stimulation, intermittent stimulation, or weak stimulation felt even with a new battery? A.
- Page 31 Precautions and Contraindications 1. Do NOT use the Elle TENS if you have a cardiac pacemaker. 2. Check with your medical adviser before using if you suffer from a heart condition, undiagnosed pain, have any metal implants, or any doubts whatsoever.
- Page 32 Precautions and Contraindications 3. TENS must NOT be used before the 37th week of pregnancy except under medical supervision. 4. Never use TENS to mask undiagnosed pain since this could require urgent treatment. 5. If you are pregnant, do NOT place the electrodes over your abdomen.
- Page 33 1. Do NOT use this unit without first reading these instructions. 2. Do NOT immerse the Elle TENS in any liquid. 3. Do NOT place it close to any source of excessive heat or operate it in the presence of flammable gas.
- Page 34 General Precautions 5. Do NOT attempt to dismantle the Elle TENS. 6. Only use specified batteries and electrodes. 7. If damaged, do not use. Return to supplier. 8. Remove the batteries when not in use. 9. Do NOT use while driving or operating potentially...
- Page 35 General Precautions 10. Keep out of the reach of children. 11. Do NOT place electrodes on or near the eyes, in the mouth, over the front or sides of the neck, across the head, heart, or an area of broken, inflamed, infected or numb skin.
- Page 36 General Precautions 12. Do NOT use in the presence of tuberculosis, malignant tumors, very high or very low blood pressure, high fever or acute inflammatory disease unless under medical supervision. 13. A mild shock may be caused if one electrode is accidentially removed.
- Page 37 For more products or information please visit www.babycaretens.com or telephone 0500 22 00 61...
