Summary of Contents for HQM 2060BC

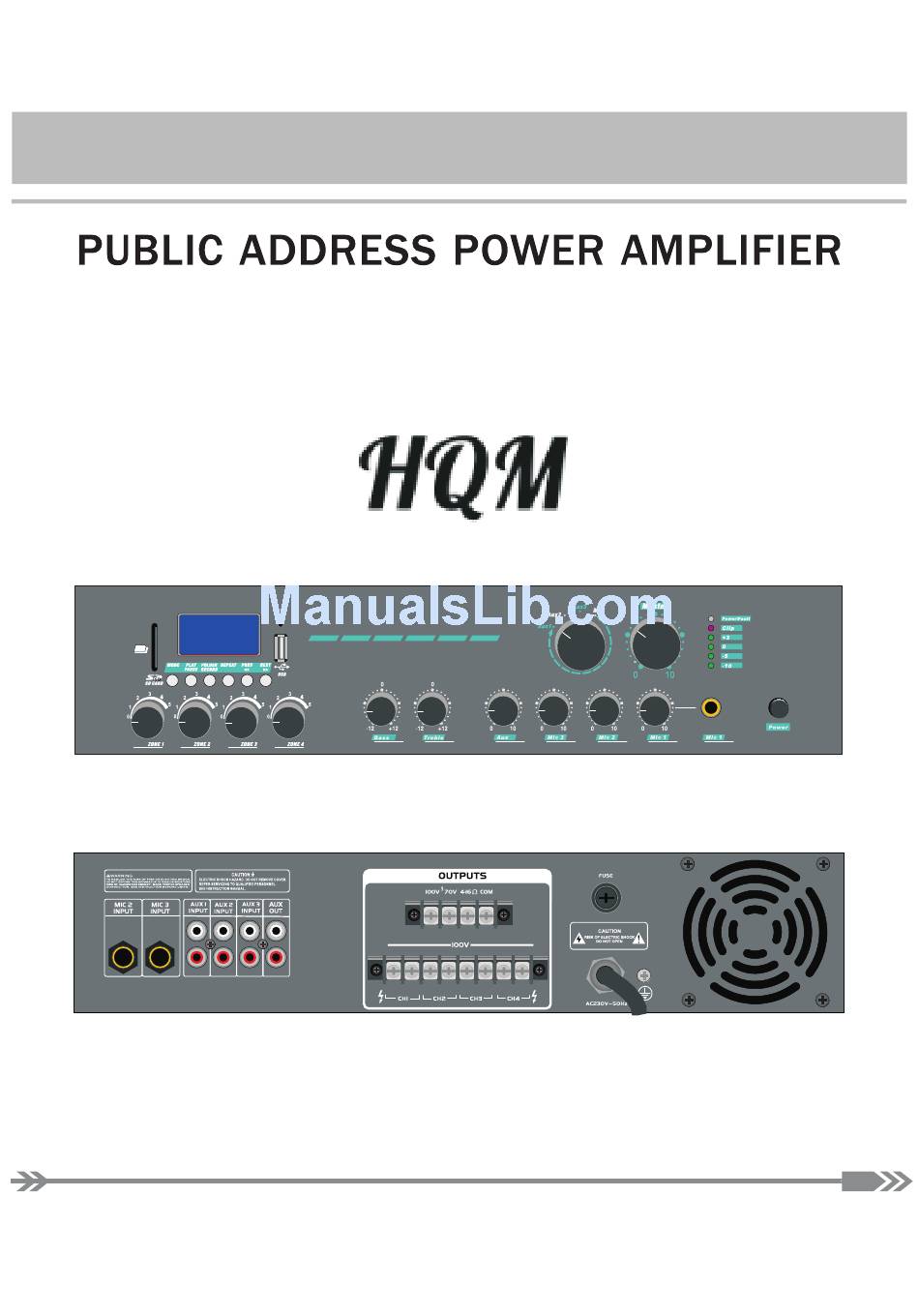

- Page 1 User＇ Manual Model: 2060BC/2120BC/2240BC...
-
Page 4: Front Panel Description
2060BC/2120BC/2240BC FEATURES · 3 Mic inputs and 3 Aux inputs, 1 Preamp Aux output · Mic 1 priority with mute-function · Treble and bass adjusters on output channel · Built-in Mp3 player with LCD display, remote control and recording ·... - Page 5 2060BC/2120BC/2240BC 6. Mic 1-3 Control 3 rotated knobs to adjust the level of the 3 MIC channel signals. 7. Mic 1 Connector To connect microphone with jack-plug, a priority microphone. 8. Power Switch A button to turn on or off the power supply of the power amplifier.
- Page 6 2060BC/2120BC/2240BC CONNECTORS 100V …… … … TECHNICAL PARAMETER MODEL 2060BC 2120BC 2240BC Output power 60W RMS 120W RMS 250 W RMS 70 V, 100 V 70 V, 100 V 70 V, 100 V Output type or 4-16Ω or 4-16Ω or 4-16Ω...
