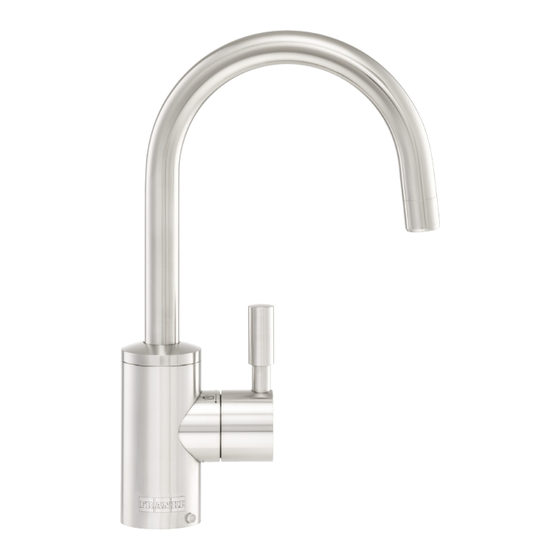

- Page 1 Franke omni DUo Boiling water system Installation & User Guide...
- Page 2 3. Franke water filter complete with a Franke 08 filter cartridge. (Part Number: 119.0380.582) This guide explains how to install a new Omni Duo Boiling Water appliance. The Omni Tap System must be installed using only the 3 genuine items listed above.
-
Page 3: Boiler Technical Data
Boiler technical data safety Description Value Unit take note: Boiling water is potentially dangerous. It is the Dimensions 230 x 182 x 354 responsibility of the owner to take sensible precautions when operating the boiling water function of the Omni Tap Load Amps and to instruct other family members and other new users... - Page 4 & outlet x2. 15. Vent Assembly 16. Saddle Clamp 17. Vent Hose 18. Vent Assembly Elbow 19. Pipe Cutter 20. Water Filter Housing Assembly 21. Franke 08 Water Filter Cartridge 22. Water Filter retaining screws x2 23. Stop Valve...
- Page 5 ProCeDUre installing tHe omni DUo kitCHen taP Carrying out this operation first will make it easier to plan the layout inside the cabinet. For safety it is advisable to locate the tap out of the reach of smaller children.
- Page 6 the plumbing install the filter unit important note: Before installing the new tap it is essential that important note: The filter unit must be installed inside a you thoroughly flush through the supply pipes in order to remove cupboard. Long term exposure to direct light can degrade the any remaining swarf, solder or other impurities.
- Page 7 Lock Nut Lock Nut Option 2 Option 1 install the plastic vent assembly Lock Nut Lock Nut important note: the vent pipe must be installed vertically with the air-gap at the top and strictly in accordance with the instructions. the vent pipe conforms to the building regulations and on no account should be shortened or Option 2 modified in any way.
-
Page 8: Install The Boiler
install the boiler install the filter change indicator module important note: Do not plug the boiler into the power supply at 1. Choose a convenient location for the module, on the side of this stage. the cabinet or the boiler, making sure that the attached power cable is within easy reach of the mating cable attached to the For ease of installation the boiler connections and the flexible base of the tap. -
Page 9: Commissioning The System
Commissioning the system 1. Install the filter cartridge into the filter housing. (refer to the separate Cartridge Change instructions overleaf). Top LED indicates Top LED indicates 2. Turn on the water supply. power on/off power on/off 3. Operate the boiling water function for 3 minutes to flush the system. -
Page 10: Care And Maintenance
All that is required to keep it Boiling Filtered water in good condition is a regular wipe over with a damp cloth - Franke offer a micro-fibre cloth for this purpose that can be purchased on Remove the red safety clip (3) line at www.frankefilterflow.co.uk—... -
Page 11: Resetting The Boiler
• Changing the filter cartridge every 6 months will keep the boiler 9. Turn the boiler power supply back on. in good condition. Franke will not accept responsibility for boiler failures due to the build-up of lime-scale if the filter cartridge 10. - Page 12 Frequently asked questions water fails to discharge from the vent tube after power and troubleshooting guide has been switched on to the boiler for 20 minutes. • Check there is power to the boiler. The ‘Plug’ LED should be the boiling water flow is agitated and noisy green.
- Page 13 2- 3 months. The life of the Franke 06 is dependent on the hardness of the water supply and the volume of water passed through it, so is impossible to predict, however the return of the ‘scum’...
- Page 14 3 years of purchase at Franke’s discretion. If any part is no longer available, or out of manufacture, Franke • The use of the filter system for anything other than normal reserve the right to replace it with a suitable alternative.
-
Page 15: Declaration Of Conformity
The Omni Duo system is a product designed in partnership with of Greg Rowe Ltd. England and is protected by the following patent applications GB1515295.2, 1516588.9, 1517097.0, GB2016/052804... - Page 16 Franke UK Limited After Sales Service West Park, MIOC FilterFlow Styal Road Old Winery Business Park Manchester Chapel Street, Cawston, Norfolk M22 5WB NR10 4FE Phone +44 (0)161 436 6280 Phone +44 (0)1603 875 468 Email info.uk@franke.com Email info@frankefilterflow.co.uk www.franke.co.uk...
