Summary of Contents for Seatec AIS6

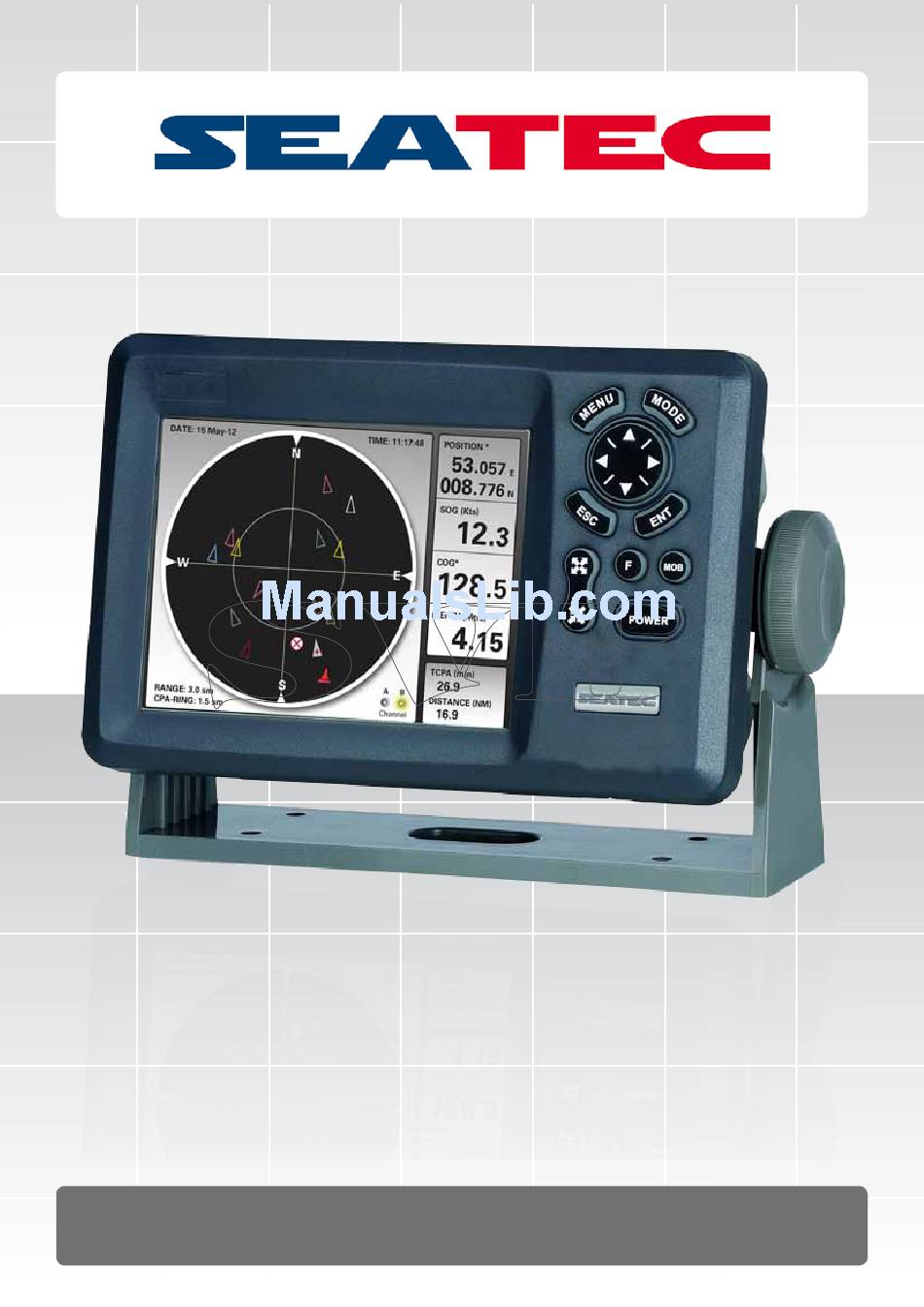

- Page 1 AIS6 / MFR6 User Manual...
- Page 2 Important Features at a glance Below you will find a brief summary of the main features of your Seatec AIS6 / MFR6. Your Seatec AIS6 / MFR6 will be your reliable partner for a safe navigation at sea. Integrated AIS Receiver...
- Page 3 Another great feature of the AIS6 is the handling of the received AIS SART signals. The Seatec AIS6/MFR allows you to recognize AIS SART signals quickly. When your AIS6 receives an AIS SART signal this will be displayed visually and in the form of an acoustic warning. Many AIS SART transmitter allow to send out an AIS SART TEST signal.
- Page 4 You can get a fast overview of the needed data. The built-in VHF splitter of your AIS6 permits you to use your existing VHF antenna for both; AIS reception and for your VHF-Radio. Beneath you will find a connection example for your AIS6 device.
- Page 5 Directory 1..........Frontview and Key´s 2..........Backview and cable assignment 2.1........AIS6 2.3........MFR6 3..........Screens / Views 3.1........AIS Screen 3.1.1.......AIS List of Ships 3.1.2......AIS Menu 3.2........Compass 3.3........Wind Display 3.4........Highway 3.5........Multidata Display 4..........Main Menu Settings 5..........AIS SART 5.1........AIS SART Test 6..........Technical Specifications...
- Page 6 Front View and Key´s The Seatec AIS devices have a varity of important funtions and features. The key mapping of your AIS6 device has been optimized so that you can easily edit all settings and operate safely and quickly even on rough sea.
- Page 7 Back view and cable assignment Great connectivity! The Seatec technology is based on proven and reliable data communication methods. This in- cludes the sending of AIS NMEA data and receiving of wind, autopilot, depth and speed data. These information can be integrated from external devices.
- Page 8 2.3 MFR6 Datacable Connector To insert and retrieve NMEA data, you need to connect the data cable here. Color Baudrate Description Brown 4.800 NMEA Input + 4.800 NMEA Input + Orange 4.800 NMEA Input + Yellow 4.800 NMEA Input + Green NMEA Input - (Ground) Blue...
- Page 9 Hint: To use the AIS screen it is necessary to connect an external GPS antenna. You can use any GPS device that has a NMEA0813 output. AIS Screen This is the main screen of your Seatec AIS device. Here you will find all received AIS targets displayed on a radar-like screen. Additional Functions: • Press the “F”...
- Page 10 AIS Reception LED The Seatec AIS units are equipped with virtual reception LEDs. They start blinking when a class A or B AIS signal has been received. Class A: Signals of this class are sent mainly from commercial shipping. These signals contain more information than Class B signals.
- Page 11 3.1.1 AIS List of ships The AIS list of ships shows all received AIS targets in one table. You can see the total num- ber of received targets and you have access to detailed information of these targets. To open the AIS list of ships you need to be on the AIS Screen (ref. to chapter 3.1) , then press “Menu”...
- Page 12 From the AIS list of ships you can choose a single target using the ▼, ▲- (3) buttons. Once you have selected the desired ship, press “ENT” (4) for detailed information about this AIS target. “ENT” (4) Depending on the ship class A or B (see AIS list, column “TYPE”) there are different ship information.
-
Page 13: Ais Menu
3.1.2 AIS Menu Press the “menu” (1) button to enter the AIS menu. You can now edit the following settings: • CPA Limit Here you can adjust the radius of the CPA ring. CPA (Closest Point of Approach) describes the distance between your current position and the AIS target before it becomes a threat to you. - Page 14 3.2 Compass The Seatec product range offers a clear display of the compass data received from the GPS. Additionally you can display further important information on the data field. Compass Graphical display of the current GPS course. Speed over ground (SOG) Displays the current speed over ground, which is received via GPS.
-
Page 15: Wind Display
3.3 Wind Display Using the marine NMEA 0183 data protocol, wind data can be imported from external instru- ments into the Seatec devices. The received data is presented on a structured display. Winddirection Graphical display of the wind data received by NMEA. - Page 16 3.4 Highway Many autopilotes offer the possibility to send data via NMEA to Seatec devices. Incoming autopilot NMEA data is represented professionally in the highway view. Waypoint Name Displays the name of the waypoint, which is being driven. Next Waypoint Shows the position of the next waypoint.
- Page 17 3.5 Multidatadisplay The Seatec products provide incoming NMEA data such as speed over ground (SOG), water speed (log) and depth (Depth) presented in a structured data field. Moreover, the currently applied voltage is displayed on the device. Speed over ground (SOG) Represents the current speed over ground (SOG), which is transmitted through the GPS receiver.
- Page 18 Main Menu Settings In the main menu of Seatec AIS devices you can edit basic settings, set alarms and show incoming NMEA data sets. To access the main menu, press the “Menu” (1) button twice. Now you have access to the...
- Page 19 AIS SART Your Seatec AIS6/MFR6 is one of the devices on the market that is capable of an acoustic and visual alert for incoming AIS SART signals. In addition to that, the position of the AIS SART signal will be displayed on the AIS screen. Therefore, you can easily navigate to the position of the AIS SART signal.
- Page 20 When pressing the “test” button, an “AIS-SART TEST” signal is sent out by the trans- mitter. To help you distinguish between a test and a real AIS SART signal, the Seatec AIS devices display whether this signal is a test message or a real message.
-
Page 21: Technical Specifications
10,5 to 35 VDC, Voltage drop <300 mA at 12V Current consumption 500 mA at 12V operating voltage Size(incl. bracket) 1129mm (H) 199mm (W) 89mm (T) (MFR6) 150mm (H) 223mm (W) 87mm (D) (AIS6) Weight about 0,9 kg Display 5,6“ Colour-, TFT-Display, 640x480 Pixel...
