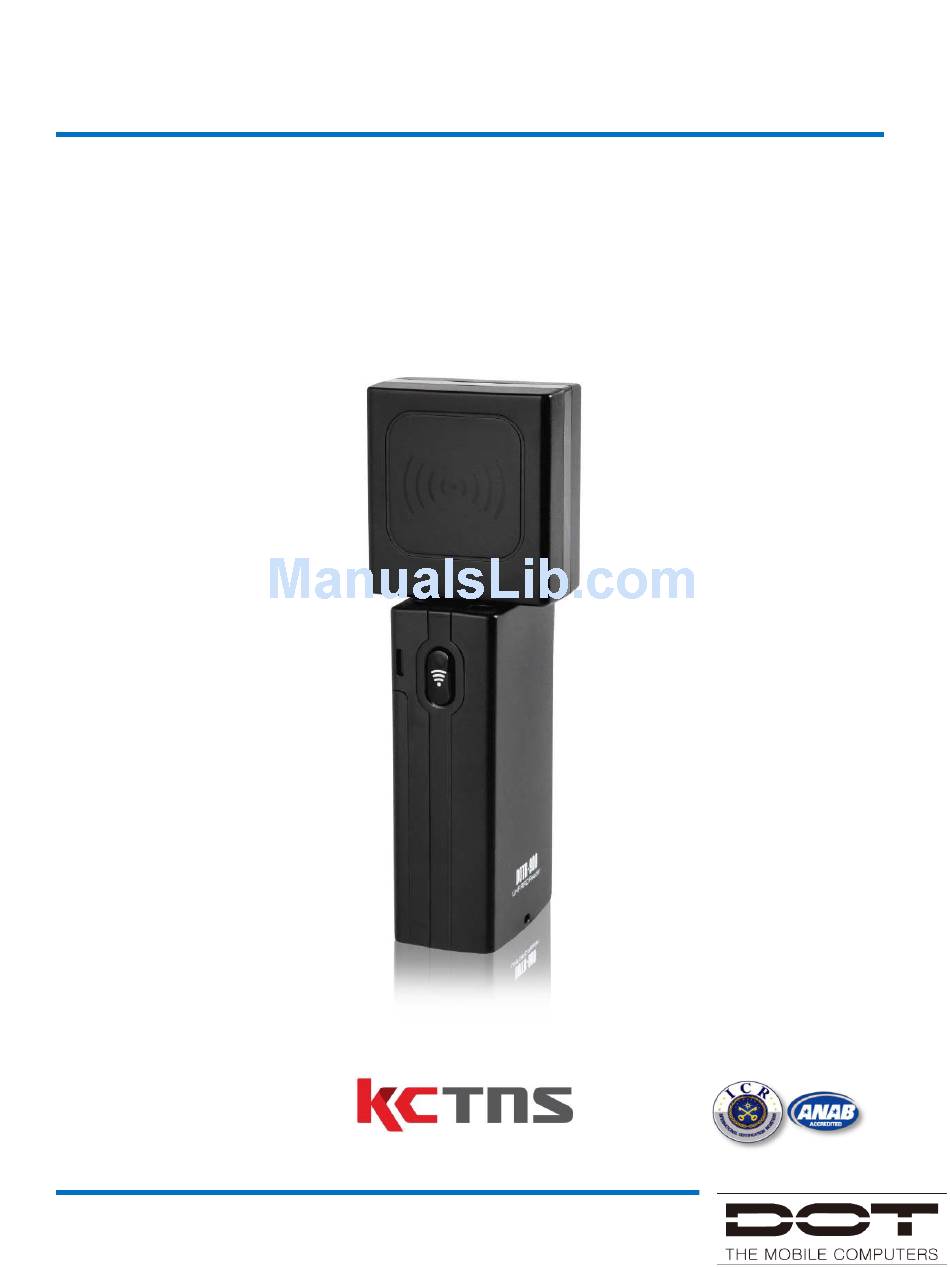

  • Page 1 DOTR-900 USER MANUAL ISO 9001 DOTR-900 Manual...
  • Page 2 1. This manual is written based on the latest version of Demo program, it could be differed from the SW which you have now. 1. This manual is made for introducing brief information and usage of DOTR-900. 2. This Radio facilities have possibility which is mixed to electric wave in using.
  • Page 3 KCTNS Co., Ltd. does not provide warranty for the software loaded after the product is shipped out of the factory. DOT is a trademark of KCTNS Co., Ltd. and protected by law. KCTNS Co., Ltd. may ask the application program providers to provide their software loaded in the product on request of mobile communication providers or for improvement or verification of the products.
  • Page 4 Adaptor(Option) The images and accessories in the manual may not reflect the color, shape and contents of the actual product. Please contact us on the web at www.dotel.co.kr if you wish to purchase any additional or optional products. DOTR-900 Manual...
  • Page 5 2. Before Using… Learning Basics Name of parts ① Trigger Button ② Swivel UHF Antenna ③ Power Button ④ Status LED DOTR-900 Manual...
  • Page 6 10 seconds Alerts. User san set “Auto-off” time by setting program “R900SETUP” which will be provide SDK. 2.Usage: DOTR-900 can be used in wired and wireless, with various Host devices. 1) USB cable connection to PC or laptop.
  • Page 7 2) Click “rfidbthost.exe” to operate. 3) Usually, DOTR-900 will be connected automatically with PC. 4) If DOTR-900 does not connect to PC, set up USB driver for proper connection. 5) User can set up driver on “new hardware device found” message.
  • Page 8 8) After DOTR-900 is found, Bind to COM7. And click LINK button. Comport can be different depend on host devices (Usually R900 uses COM7) It is unavailable to search DOTR-900 in Link screen depending on host device. That time, Link COM7 directly without search. This demo program Win 6.5 may not work depending on host device.

  • Page 9: Connecting The Device

    1. Bluetooth ON – add new device – select HQ_UHF_READER to connect 2. Put 1234 for connecting code. 3. Computer property. 4. Device manager. 5. Check COM Port number. 6. Demo program is run. 7. MENU - LINK 8. Select COM4, Click LINK (Port may vary) 9. finish DOTR-900 Manual...
  • Page 10 Bluetooth. When select a USB button, support connection by USB. CAUTION : USB Mode : The DOTR-900 and Android device must be connected by USB cable. If you use 64bit computer, you must need a gender. BT Mode : The DoTR-900 and Android device must be released from USB cable.
  • Page 11 Set a password in “Access password”. The default password is “00000000”. Check “Tag Memory Bank” tab and select one out of EPC/PC, Access PWD, Kill PWD, TID, RESERVED, UII Area, TID Area, USER Area. Then it reads TAG Memory. DOTR-900 Manual...
  • Page 12 Input and execute a Kill Password of TAG. “User Password Input” is to prevent to destroy the TAG by mistake. In order to disable TAG, input “tagkiller” in “User Password Input” and then push “Access” button. Be cautious, the killed TAG can’t be recovered. DOTR-900 Manual...
  • Page 13 If timeout value for Query is 0, there is no timeout. The unit is sec. Maximum decrease power is 9 dB. Output duty can be set 20~90% till. Battery State displays a battery life of DOTR-900. Select a single tag when running “Access”. Auto link is to connect automatically when disconnect.
  • Page 14 Warranty Product Warranty Classification Contents Model name DOTR-900 Date of purchase Purchased from Manufacturing no. Warranty period One year from the date of purchase Service Policy Within Product failure type warranty Out of warranty period Failure within 10 days after purchase...

  • Page 15: Specifications

    Specification DOTR-900 Section Specifications Supported Protocols ISO 18000-6C, EPC Class1 Gen2 Frequency 860MHz ~ 960MHz RF output power Interfaces Bluetooth 2.0 EDR / USB 1.1 compatible / UART 3.3V, 3-wire Battery 2350mAh Li-polymer rechargeable battery Operation Temperature -20°C to 50°C Storage Temperature -40°C to 70°C...
