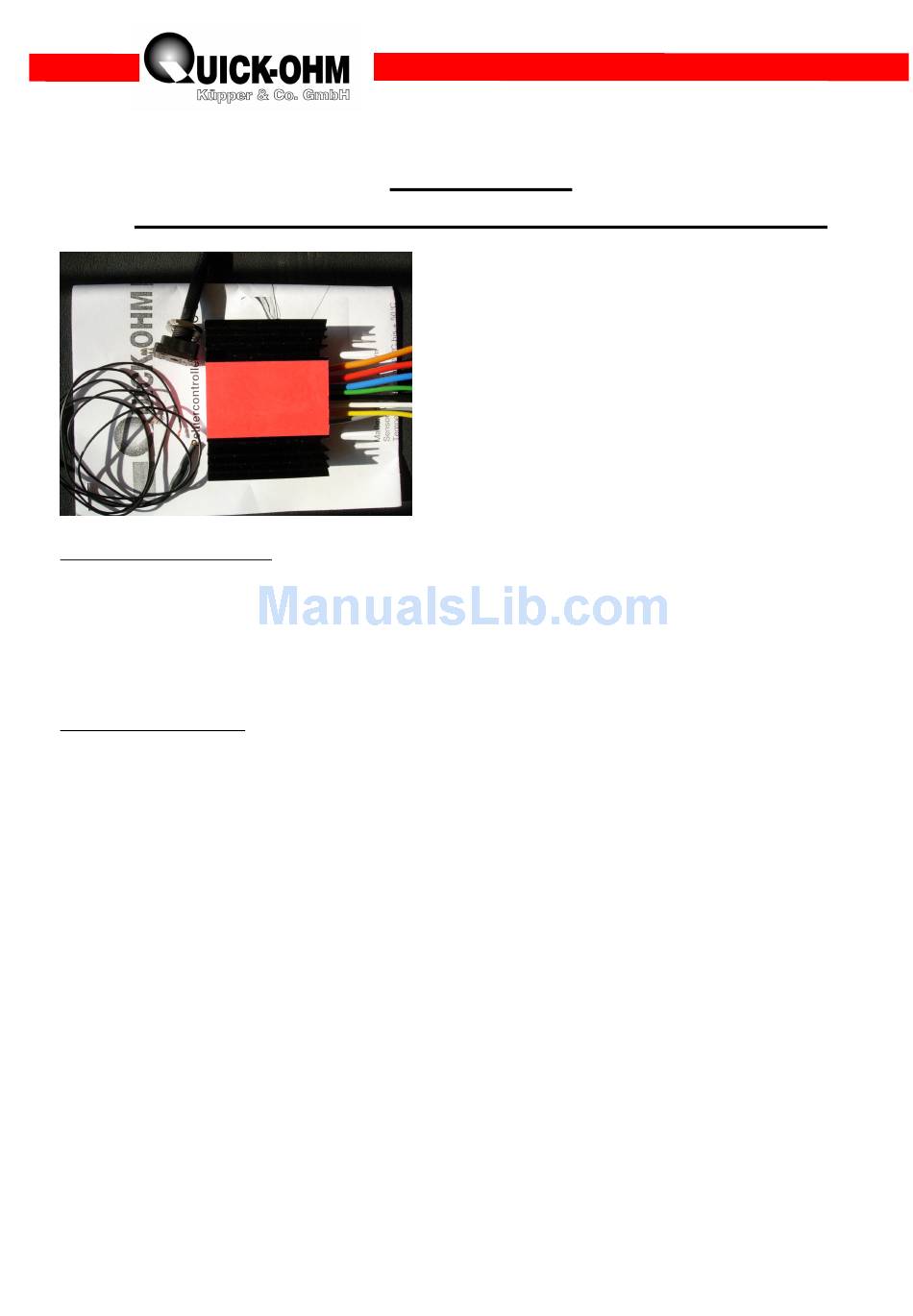

Quick-Ohm QC-PC-C01H-100 User Manual

Temperature Controller for Heating Applications
Technical specifications:
Dimension controller:
Temperature range:
Voltage supply:
Max. output voltage:
Max. output current:

1. Usage of controller QC-PC-C01H-100

The controller QC-PC-C01H-100 has been developed to heat up an object aided by a Peltier
element and to keep the temperature constant. Instead of a Peltier element also the utilization of a
flexible film heater or something similar is possible. The controller runs with a minor voltage and
must not get connected to a standard power supply. For the setup of a functioning control an
electric wiring needs to be installed, which requires basic knowledge about electronics. Please
only work on the device in a volt-free condition. Please consider that the controller and eventually
triggered components may get destroyed, if they are applied inappropriately. Despite the fact that a
minor input voltage is used, large currents occur, which initiate a significant heating at
unprofessionally executed contacts and too thin wires, which might cause a blaze. Because of that,
please read the user manual thoroughly and get some instructions by an electronics-specialist in
case you are none. If you notice a heating inside of the wiring at any time, please switch the circuit
volt-free immediately. If you follow the subsequent hints during the setup of your device, you will
enjoy your controller and the used Peltier elements for a long time.
Quick-Ohm Küpper & Co. GmbH
Components – Heat Management – Industry Ceramics
www.quick-ohm.de
20140423User Manual Peltiercontroller Compact Heating.docheating
Peltier Controller QC-PC-C01H-100
User Manual
Delivery contents:
65mm x 50mm x 20mm
0°C – 100°C
10V – 24V
corresponding to input voltage
10A
- 1 -
1 Peltier controller QC-PC-C01H-100
1 Temperature sensor NTC 10KΩ(β=3977K)
1 Potentiometer 10KΩ
1 User manual
