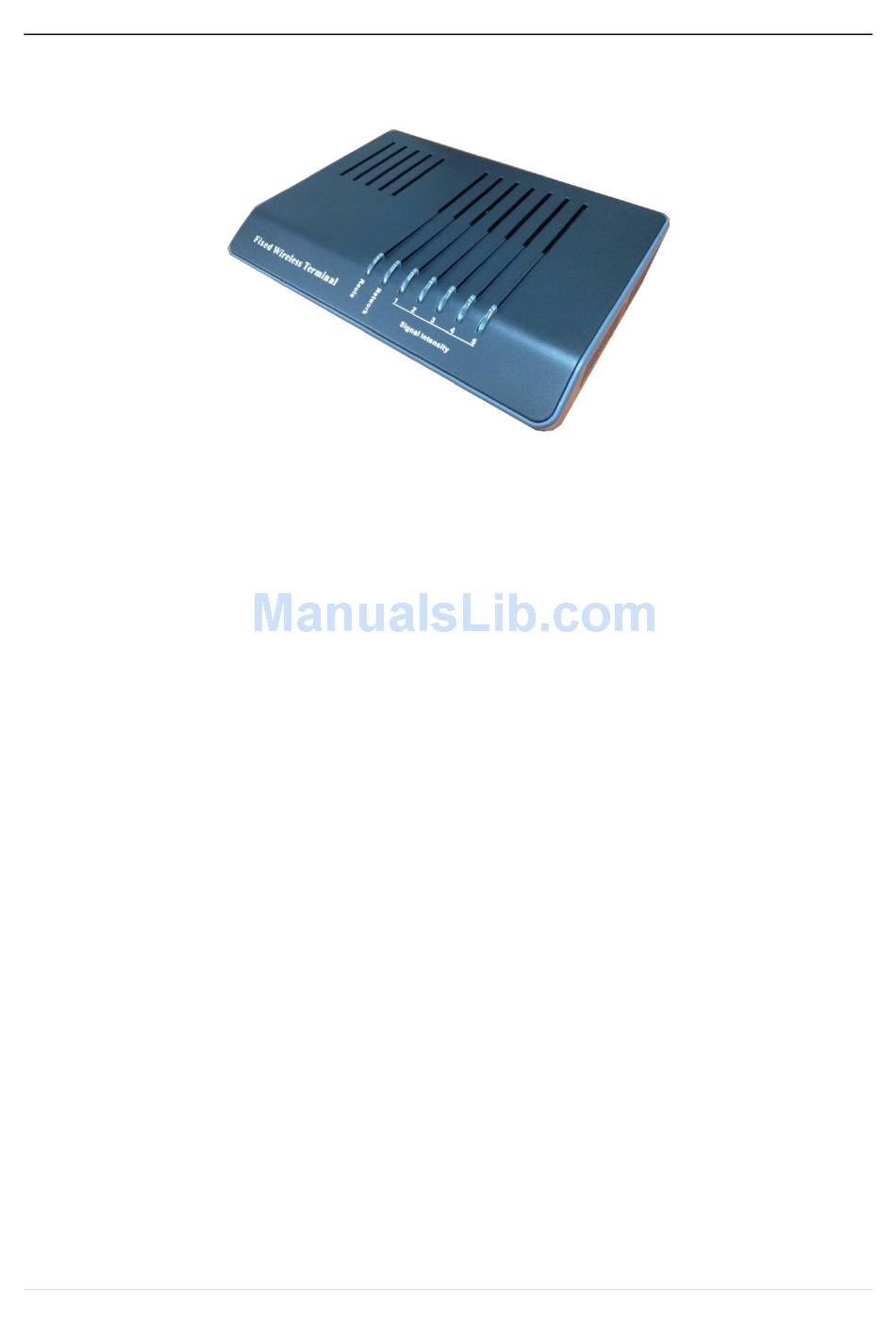

GSM Fixed Wireless Terminal (Model: GSM-680)
1.
Functions & Features
GSM fixed wireless terminal is an innovative wireless access terminal. It's ideal to be used in offices
and home to reduce comparatively high phone charges. It also can be connected to charge counter
as wireless public phone. This device has the following functions：
1)
Support GSM900/1800Mhz.
2)
Provide the reverse polarity signal and can connect with the charge counter for charging
3)
Can set up call-out/call-in restriction
4)
Caller ID
5)
Hands free, redial, sound volume adjustment while calling in/out.
6)
Can connect with PBX
7)
With back-up Li battery, support standby time over 48 hours.
2.

Terminal Installation

2.1

SIM card installation:

Caution! Please fix the SIM card before connecting to the power supply!
1)
Open the mainframe so you can see the SIM card pedestal at the bottom.
2)
Push SIM card nog gently along with arrowhead to put it up.
3)
Insert SIM card into the nog.
4)
Press down the nog of SIM card and push it by the backward direction of arrowhead until the
SIM nog is fixed on the card pedestal.
5)
Use the SIM cardboard to cover pedestal and screw it down.

User Manual

1
| P a g e

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the GSM-680 and is the answer not in the manual?

Questions and answers

Summary of Contents for DIGM Technology GSM-680

  • Page 1: User Manual

    GSM Fixed Wireless Terminal (Model: GSM-680) User Manual Functions & Features GSM fixed wireless terminal is an innovative wireless access terminal. It’s ideal to be used in offices and home to reduce comparatively high phone charges. It also can be connected to charge counter as wireless public phone.

  • Page 2: Operation Instructions

    GSM Fixed Wireless Terminal (Model: GSM-680) 2.2 Assembly of the Terminal: External ports Make sure the SIM card installed correctly. Screw down the connector of the antenna to the bolt stick on the panel marked with “Antenna” on the back of the device.

  • Page 3: Setting Functions

    GSM Fixed Wireless Terminal (Model: GSM-680) Answer a telephone call: When the telephone rings on, answer the phone by picking up the handset. Built-in Li-battery: It will automatically charge the Li-battery when the device is connected with AC adaptor and turned Setting Functions This terminal can set up and adjust the following functions：...

  • Page 4: Troubleshooting

    GSM Fixed Wireless Terminal (Model: GSM-680) Troubleshooting Problem Possible Causes Possible Remedy SIM card not inserted Install the SIM card again. correctly. Clean the SIM card with a dry connected SIM card is dirty. cloth. GSM network. Antenna well Check the antenna connection.
