RT London RH23LBM3674 Assembly Instructions Manual

SAFETY WARNINGS

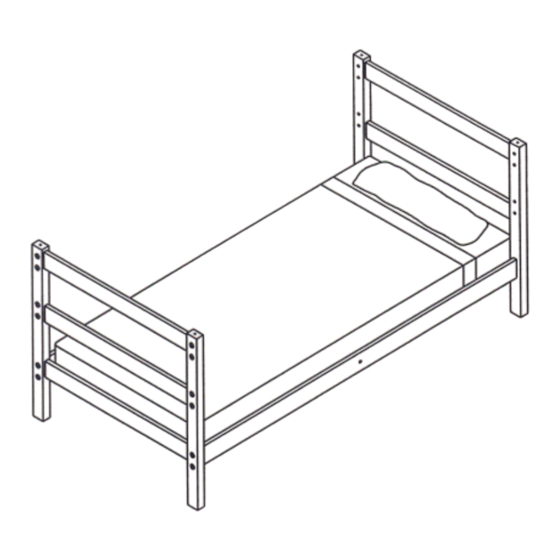

RH23 Bed with Center Stretcher
RH23 beds are designed for nine different configurations. For safety, beds should be only configured
in one of these nine styles and are not to be assembled in any other manner. For proper assembly of
the bed frame please follow the RH23 Bed Assembly Instructions attached as it relates to your
particular choice of bed style.
1. Each bed has been designed for a specific mattress size so that no greater than 1"is left between
the mattress and the bed end structure to prevent the likelihood of serious injury or fatalities
due to entrapment or falls. The table below specifies the appropriate and only mattress size to
be used with each bed. Absolutely do not use a different mattress size!
ITEM#
RH23LBM3674
RH23LBM3680
RH23LBM3874
RH23LBM3880
RH23LBO3674
RH23LBO3680
RH23LBO3874
RH23LBO3880
2. Guardrails are available and required for bunking or lofting beds. Check with your Student
Housing staff. Guard rails are to be used on both sides of the top bed when bunked or lofted.
Top boring pattern is for safety rails only when bunked or lofted.
3. Top surface of mattress must be at least 5" (five inches) below the upper edge of the guardrails
if guardrails are in use.
4 Do not allow children under six years of age to use the upper bunk.
5. Periodically check and ensure that the guardrails, ladder, and other components are in their
proper position, free from damage, and that all connectors are tight. Eight bolts with washers
should be used to secure head boards to rails for each RH23 bed frame. Four each
1/4"diameter x 3-1/4"long steel pins should be used-one at each bed post connection--when
lofting or bunking RH23 Beds.
6. Do not allow horseplay on or under the bed and prohibit jumping on the bed.
7. Only use the built-in ladder formed by the end slats of the bed boards or the ladder provided
for entering and leaving the upper bed if in a loft or a bunk.
8. Do not use substitute parts. Contact your Student Housing staff for substitute or repair parts.
You may contact us directly for information.
RT London-Norse
8605 Commerce Place Drive NE
Lacey, WA 98516
Ph# (360) 943-5090
Fax# (360) 943-8596
RT London-Norse, 8605 Commerce Place NE, Lacey, WA 98516, Ph# 360-943-5090, Fax# 360-943-8596
Instructions for RH23 beds, Page 1
NOMINAL
MATTRESS SIZE
36" x 74-75"
36" x 80"
38" x 74-75"
38" x 80"
36" x 74-75"
36" x 80"
38" x 74-75"
38" x 80"
NOMINAL
MATTRESS THICKNESS
No less than 7"
No less than 7"
No less than 7"
No less than 7"
No less than 7"
No less than 7"
No less than 7"
No less than 7"
