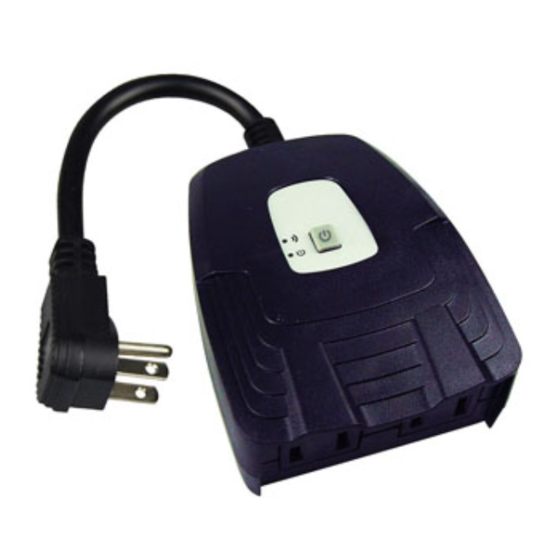

Eco Plugs RC-028W Instruction Manual

WORKS WITH
amazon alexa
Outdoor
Wi-Fi Outlet
INSTRUCTION GUIDE
125Vac, 60Hz, 15A Resistive,
15A General Use, 1000W Tungsten,
500VA Electronic Ballast,
120Vac, 60Hz, 8.3A Ballast, 1/2HP.
SETUP INSTRUCTION
READ ALL INSTRUCTIONS before using the Wi-Fi Plug.
! !
RECOMMENDATION: The closer the Wi-Fi Plug is located to
a WiFi router during set-up, the better the signal strength will be
for initial configuration and subsequent programming.
CAUTION! Suitable for use in outdoor applications.
Rain tight when mounted vertically with receptacles facing
DOWNWARD. For use ONLY with a three pronged GFCI protected
outlet. DO NOT IMMERSE IN WATER!
This device must be mounted in a vertical position with the
recepticle at least 2 feet aove the ground level.
Mac address: If your router identifies by Mac address, please
key in the code number shown in the code label of the unit.
i.e., 3x:2x:7x:0x:Cx:Cx
Wi-Fi ™ Status Indicator
LIGHT BLINKING LIGHT
Wi-Fi Plug is ready
for programming
FAST BLINKING LIGHT
Wi-Fi Plug cannot
find a WiFi router.
Please reset.
SOLID LIGHT:
Programming is
finished and the
Wi-Fi Plug is now
ready to be used
via ECO Plugs APP
NO LIGHT:
Wi-Fi Plug is rebooting
to default settings Power Indicator
RESET THE Wi-Fi PLUG
This is how you perform a factory reset of the Wi-Fi Plug
blinking
1 2
STEP STEP
Press and hold While holding the power button,
the power button plug the Wi-Fi Plug into a 120Vac
wall outlet, THEN release the power
button when the light turns off.
SMARTPHONE SETUP
DOWNLOAD THE ECO PLUGS APP:
You can download the ECO Plugs App from either the Apple
APP Store (iPhone) or the Google Play Store (Android)
Scan the QR Codes below or search for 'ECO Plugs'
(iOS 7 or higher)
*If you purchase more than
STEP 1
POWER BUTTON
Plug in the
Press this button
ECO plug
to turn the Wi-Fi
Plug ON and OFF
RESET:
Also used to reset
STEP 3
the Wi-Fi Plug
device (see
Your phone
instructions below)
Select the
ECO-XXXXXXXX
abcde
Receptacles (2)
Xyz95
For controlled
ECO-XXXXXXXX
devices (Will only xrgtg4
Home
be controlled via
ECO Plugs app as
a group. CANNOT
Select the ECO Plugs # (ECO-XXXXXXXX)
be controlled !
which labelled on the product.
individually)
blinking
OFF
3
STEP
Finished! You can
now start setting up
the ECO Plugs APP
with the Wi-Fi Plug
ECO Plugs
(Version 4 or higher)
, setup each device .
one ECO Plug one by one
STEP 2
Your phone
Your phone
Tap the
Wi-Fi/WLAN icon
Wi-Fi/WLAN
on
Setting
Go into your phone's setting
!
(Normally is as gear icon symbol first.)
STEP 4
Your phone
Your phone
Wi-Fi
ECO-XXXXXXXX
Xyz95
xrgtg4
ECO Plugs
Home
Tap the
ECO Plugs APP
STEP 5
Select Wi-Fi Network
USA
Device [ECO-XXXXXXXX] Enter Zip Code:
Home Router
Name Device:
Other Router A
Wi-Fi Router(WLAN):
Other Router B
Home Router
Enter Wi-Fi Router Password:
Select the Wi-Fi home router that
(Wi-Fi's password, if needed)
you want to connect to the ECO
Wi-Fi Plug or tap ( )
Fill in all your information.
(EX: Home Router)
*If this ECO-XXX network does not show in your list, perform a factory
RESET of the Wi-Fi Plug
*If your router does not show up in the list, press the
manually enter your router's information
STEP 7
EX: CANADA
EX: USA
USA Canada Other USA
Enter Zip Code: Phone Area Code:
2142 (Cambridge)
Name Device:
Name Device: (Named This Device)
Wi-Fi Router(WLAN): Wi-Fi Router(WLAN):
Home Router
Home Router
Enter Wi-Fi Router Password:
Enter Wi-Fi Router Password:
(Wi-Fi's password, if needed) (Wi-Fi's password, if needed)
/
Join Save Setting
Zip Code (USA Only)
Fill in Country,
Phone Area Code (CANADA Only)
Name Device (Lamp, TV, small appliances) and Router Password, click the
SAVE SETTING or JOIN button.
* iOS: If you can't find the Join button, please click in the password section.
*For Canada: Please select the Canada, entering the phone area code
instead of zip code.
*Your smartphone should reconnect to your home router. If it does
not, go back into your phone WiFi settings to connect back to it.
STEP 8
Your phone
Congratulations!...
Complete setup...
ADD MULTI Wi-Fi PLUG TO THE APP
Repeat steps 1-8 for each additional device. Remember to give each device a
different name (for example, Light 1, Light 2, etc.).
*Note: each controlled device requires a separate ECO Wi-Fi Plug.
STEP 6
Canada Other
(Named This Device)
icon to
Canada Other
416 (Toronto)
(Named This Device)
Your phone
ECO
Light 1
Successful !
