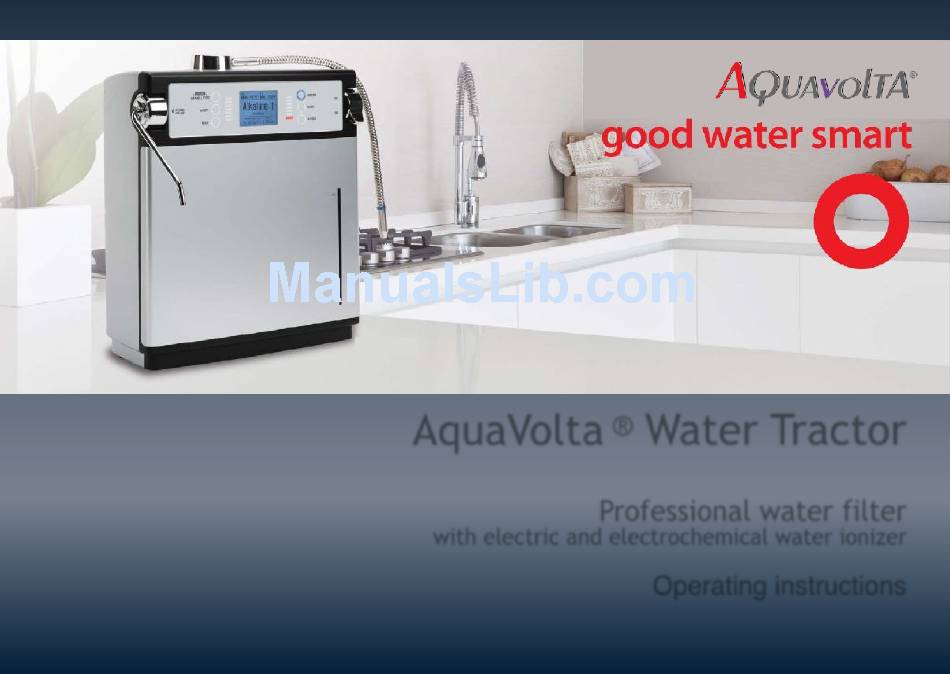

AquaVolta
Water Tractor

®


Professional water filter

with electric and electrochemical water ionizer



Operating instructions

Advertisement

loading
Need help?

Need help?

Do you have a question about the Water Tractor and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Aquavolta Water Tractor

Summary of Contents for Aquavolta Water Tractor

  • Page 1 AquaVolta Water Tractor
 ®
 Professional water filter
 with electric and electrochemical water ionizer

 Operating instructions...
  • Page 2 • 09 - What role does the water composition play AquaVolta® Water Tractor • 10 - Scope of delivery • 30 – Function water - performance of the AquaVolta® • 11 - Device overview Water Tractor • 12 - Positioning and preparation of the device •...
  • Page 3 3 - Purpose The AquaVolta Water Tractor is a multifunctional water filter with two high performance filters, two big, independent electrolysis cells and an electrochemical dosage unit. With that it clearly offers more options than a normal water ionizer for the household. This also makes it suitable for...
  • Page 4 4 - Multifunctionality • Removal of residual pollutants in tap water with • Production of strong alkaline, hydrogen saturated an effective combination of an activated carbon electrolyte water (catholyte, hydrogen content filter and a hollow fibre membrane filter. 1,6 ppm) for cleaning purposes and an enrichment of hydrogen on aged foods with a pH value from •...
  • Page 5 5 - Features ➢ Intelligent separation: The 7 electrode cell engages itself with the production of drinking water - The separate 5 electrode cell produces function water. ➢ Computer and sensor controlled electrolysis system to operate as
 a drinking - and function - water ionizer ➢...
  • Page 6 6 - Features / 2 ➢ Despite professional, multifunctional usage possibilities: a modern design, even for the aesthetically sophisticated kitchen ➢ The colour changing LCD display indicates the current operating mode ➢ The finely tuned double filter system before the electrolysis cell removes 99,99% of most pollutants in the drinking water.
  • Page 7 7 – Revolutionary electrodes ➢ 2 independent electrolysis cells with 12 completely newly developed 3-layer electrodes which are much more efficient than the usual platinum galvanised or baked electrodes. They allow the separate production of activated water for drinking and function water types such as: acidic water, anolyte, neutral anolyte and catholyte.

  • Page 8: General Safety Instructions

    8 - General safety instructions ➢ Operate the device only when you have read the instruction booklet and have understood it. ➢ Only operate the device with 220 Volt. ➢ The device has a 5 Amp fuse. Other fuses can lead to explosions or destruction of the device.
  • Page 9 ➢ As a rule, set to the highest level With the Aquavolta Water Tractor, the most powerful flow-through ionizer on the global market, can water with up ® to 750 ppm be ionized and a good pH value of 9 to 9,5 of alkaline activated water can be reached. Already with a pH value of 10,7 does an ORP result with up to - 735 mV (CSE) with a saturation of 1591 ppb (1,591 ppm - respectively milligram/l) of dissolved hydrogen.
  • Page 10 10 - Scope of delivery The AquaVolta Water Tractor is packed into one (1) ® cardboard box with all accessories. Please keep this cardboard box after unpacking the device should a service be necessary and you send it to us for inspection.
  • Page 11 11 - Device overview Control panel Front Water flow Outlet for acidic or regulator alkaline function water Selection button for alkaline water Selection button for acidic water Outlet for normal Selection button for filtered, non ionized water acidic or alkaline Display with Selection button for anolyte (strong acidic) or catholyte activated water...
  • Page 12 12 - Positioning and preparation of the device Hang the device on the Wet the drilling diagram Place the nails or screws mount. stencil with water and at the intended position. position it parallel to The head should the wall at the desired protrude 1 cm.
  • Page 13 13 - The two connection options of the device Attention: The installation With the easiest method is the ionizer connected is not possible with a to the water tap, as you can see left in the Electricity connection diversion from the cold diagram.
  • Page 14 14 - Connection diagram for the faucet After removing the aerator from the faucet can an adapter ring, if required, with a rubber seal be screwed into the tap (a) and the diverter body (b) is screwed off. To seal it, if necessary, can teflon tape also be used (c).
  • Page 15 15 - Connection diagram for the angle valve Close the cold water valve Loosen the nut of the cold located below the sink. water valve. Connect the ¼ inch hose Insert the 3/8 inch Garang (PE Hose), which leads valve (white/gold) in between downwards from the ionizer, the angle valve and the cold tightly to the T-diverter.
  • Page 16 16 - Setting for initial operation For the initial operation of the device it has STANDBY function setting to be plugged in and the main switch at the back (I) has to be switched on. When in Standby press the MODE button and the ALKALINE button to switch the standby mode on (ON, 33 Watt) or off (OFF, no date or time, 30 Watt).
  • Page 17 17 - pH-value measurement and optimal rate of flow 1. The pH value indicates the amount of H3O -ions found in the water. The fewer the water contains, the more alkaline it is. Alkaline activated water should be about 100 times more alkaline than tap water (pH 7).
  • Page 18 18 - Settings during operation The many available languages of the user guidance announcements are a good safety feature for people with impaired vision. Yet sometimes these can be annoying. Especially if they have been set very loudly and you would like a glass of water at night or in the morning and the rest of the household is wanting to sleep.
  • Page 19 19 - Dispensing alkaline activated water • Alkaline activated water for drinking. Maximum pH value 9,5. • Alkaline activated water for cooking and refreshing foods. Level 4 alkaline Once you turn the water switch ON, water flows through the device. 2/3 of the water comes out of the upper outlet, 1/3 out of the wastewater hose...
  • Page 20 20 - Dispensing acidic activated water (beauty-water) • This function allows you to dispense greater amounts of weak acidic activated water for skin and haircare. Also for pets, for cleaning, as a bath additive and to water the plants. Once you turn the water switch ON, water flows through the device.
  • Page 21 21 - Dispensing filtered water • The FILTERED function only removes existing pollutants. Water is not ionized with this function. • Some medication should fundamentally only be taken with filtered water. Ask your therapist, doctor or chemist. Once you turn the water switch ON, water flows through the device.
  • Page 22 22 - Dispensing anolyte and catholyte (strong acidic + alkaline water) • When using the left water spout, unfiltered tap water is enriched with the Not drinking water! Only saline solution from the salt water tank. Then it flows directly to the 9 electrode electrolysis cell on the left.
  • Page 23 23 - Dispensing anolyte and catholyte / 2 Not drinking water! Only use Switching over to function water mode / 2 under therapeutic supervision When water flows through the device and you press the STRONG ALKALINE/ACIDIC button, water flows out of the stainless steel outlet on the left side. By pressing again on the button you can change to Strong Alkaline or Strong Acidic water.
  • Page 24 24 - Alkaline activated water - not just a drink Daily drink up to 0,3 l per 10 kg bodyweight of water with a pH value from 8,5 to 9,5. Drink more with high temperatures or a • greater physical effort. Lay fruit, salad, raw eggs and vegetables for 15-30 minutes in fresh alkaline activated water.
  • Page 25 25 - Use of strong acidic function water (anolyte) • After washing your hair with shampoo, rinse it with anolyte instead of with a chemical conditioner. Your hair will get soft and your scalp will be disinfected. This will eliminate the basis of dandruff. •...
  • Page 26 26 - Use of strong alkaline function water (catholyte) • Catholyte is not suitable for drinking, unless this has been approved by a licensed therapist. For example in the course of a so called “swing therapy” for stimulation therapy, by alternately drinking anolyte and catholyte in small amounts. •...
  • Page 27 27 - The tomato fairy tale In sales events for so-called Kangen water devices are pictures often showed of tomatoes which are laid in catholyte. Soon ® the water turns a discoloured carrot yellow. The sales people of these devices claim falsely that: when growing tomatoes the used pesticides and toxic substances that sit in the skin are dissolved like this.
  • Page 28

 ® Enagic Leveluk SD 501:
 1 pre-filter & 1 electrolysis cell (7 electrodes) ® AquaVolta Water Tractor:
 2 pre-filters & 2 electrolysis cells (7 + 5 electrodes)

 High performance High performance electrolysis cell electrolysis cell ECA-devices
...
  • Page 29 29 – Performance of the Leveluk® SD 501 vs. the AquaVolta® Water Tractor The flow rate displayed by the AquaVolta ® water tractor does not show the amount of alkaline activated water, but the total water flow including acidic activated water.
  • Page 30 30 – Function water - performance of the AquaVolta® Water Tractor Also in the function water mode does the AquaVolta® Water Tractor show outstanding results with anolyte as well as with catholyte. We have not seen a flow through ionizer in the last 12 years that...
  • Page 31 The AquaVolta Water Tractor can produce neutral anolyte as well as under certain indications. Drinking this water is only allowed under catholyte.
  • Page 32 32 - Storage of activated water and function water Drinking, cooking and refreshing with alkaline activated water. Next to its alkaline properties is the most important advantage of alkaline activated water the maximum amount of dissolved hydrogen. Hydrogen is a very volatile gas and because of its minimally small molecule size can only very dense materials like glass and stainless steel impede it from escaping water in a few hours.
  • Page 33 33 - Internal filters: cartridge exchange It is generally safer to exchange each water filter at leaste every 6 months, even if the capacity indicated by the manufacturer has not been reached. The built in filter cartridges in your water ionizer are electronically monitored, independent of their operating life which has been calculated at 20 l/ day.
  • Page 34 34 - Manual decalcifying of the activated water system Pump The decalcifying procedure is for cleaning and disinfecting the water outlet system. This has to be followed for both outlet hoses. It is necessary when the usual water flow from the flex hose for activated water or the stainless steel outlet for function water is reduced over time because of calcium deposits.
  • Page 35 35 - Manual decalcifying of the function water system Pump Manual decalcifying of the function water system is not necessary when running normally, since there the most used anolyte is itself a good descaler. Yet catholyte also removes limescale over time. You could have a water flow interference if you produce much more catholyte than anolyte.
  • Page 36 36 – Further operating instructions Attention! Important for validating your Care and cleaning guarantee: The outside of the device can be cleaned with a cloth • Only use drinking water in the device. Other or a micro-fiber cloth. Do not allow water into the drinks can lead to a malfunction.
  • Page 37 37 – Storage of activated water 1. Next to its alkaline properties is the most important advantage of alkaline activated water the maximum amount of dissolved hydrogen. Hydrogen is a very volatile gas and because of its minimally small molecule size can only very dense materials like glass, HD Polyethylen or stainless steel impede it from escaping water in a few hours.
  • Page 38 38 - Service and Guarantee AquaVolta Water Tractor ECA fähiger Wasserionisierer ab 2016 Guarantee Your responsible contact person for guarantee services is your München, dealer. This applies, in particular, to commitments which have 01.05.2016 surpassed the two-year legal warranty. All guarantee assurances will be listed on your dealers purchase receipt (invoice).
  • Page 39 39 – Legal disclaimer, publishing details An instruction book by Euromultimedia publishers. 80798 Munich. Georgenstrasse 110. info@euromultimedia.de Author: Karl Heinz Asenbaum
 Copyright with the publisher IMPORTANT NOTES
 This instruction book contains important information. Read the whole book and if necessary repeatedly. Do not throw it away in case you wish to read it again.
