Accusys ExaSAN SWF16 V2 User Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

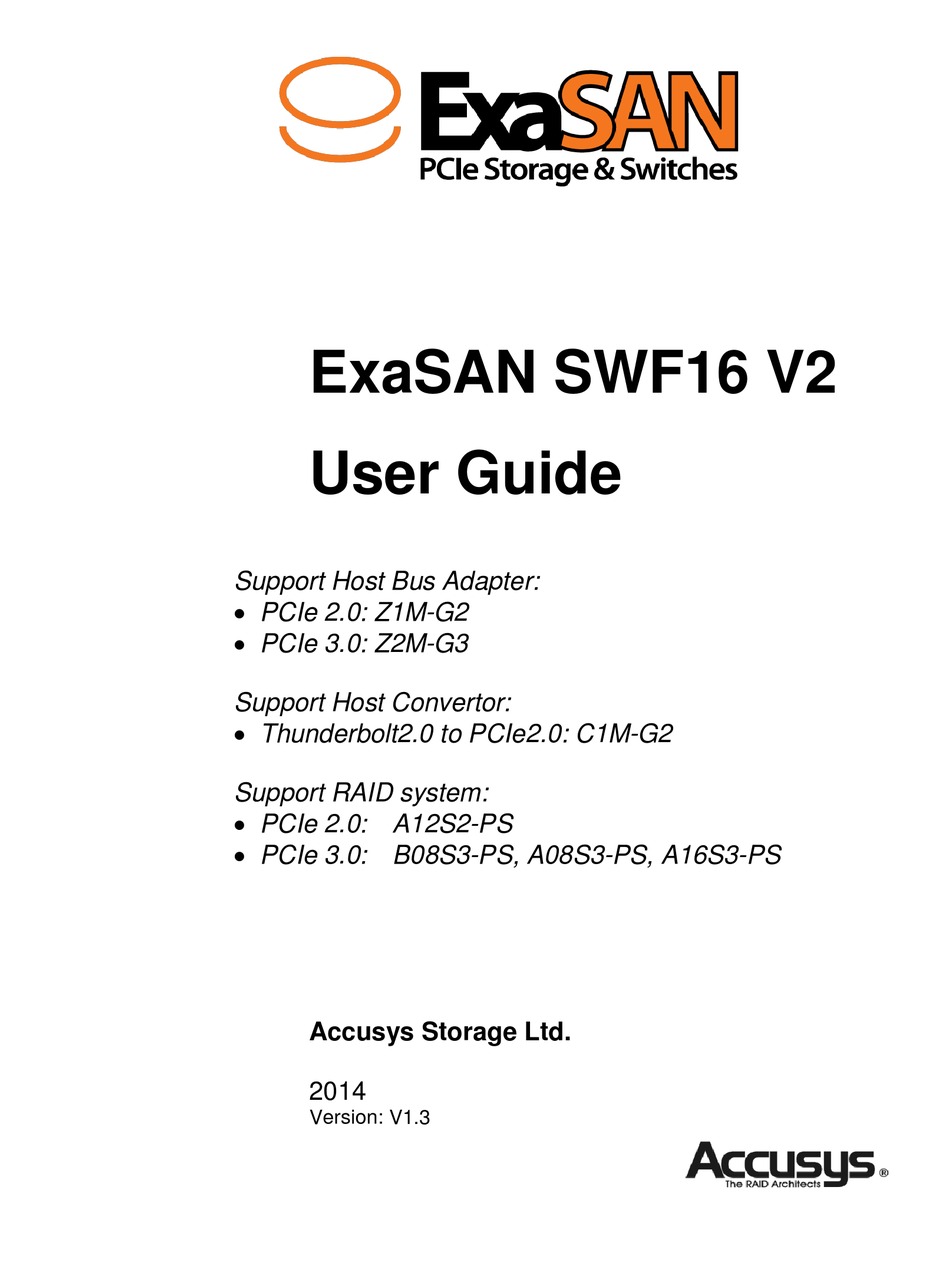

ExaSAN SWF16 V2

User Guide

Support Host Bus Adapter:
 PCIe 2.0: Z1M-G2
 PCIe 3.0: Z2M-G3
Support Host Convertor:
 Thunderbolt2.0 to PCIe2.0: C1M-G2
Support RAID system:
 PCIe 2.0: A12S2-PS
 PCIe 3.0: B08S3-PS, A08S3-PS, A16S3-PS
Accusys Storage Ltd.
2014
Version: V1.3
