Summary of Contents for TigerTech SmartCam

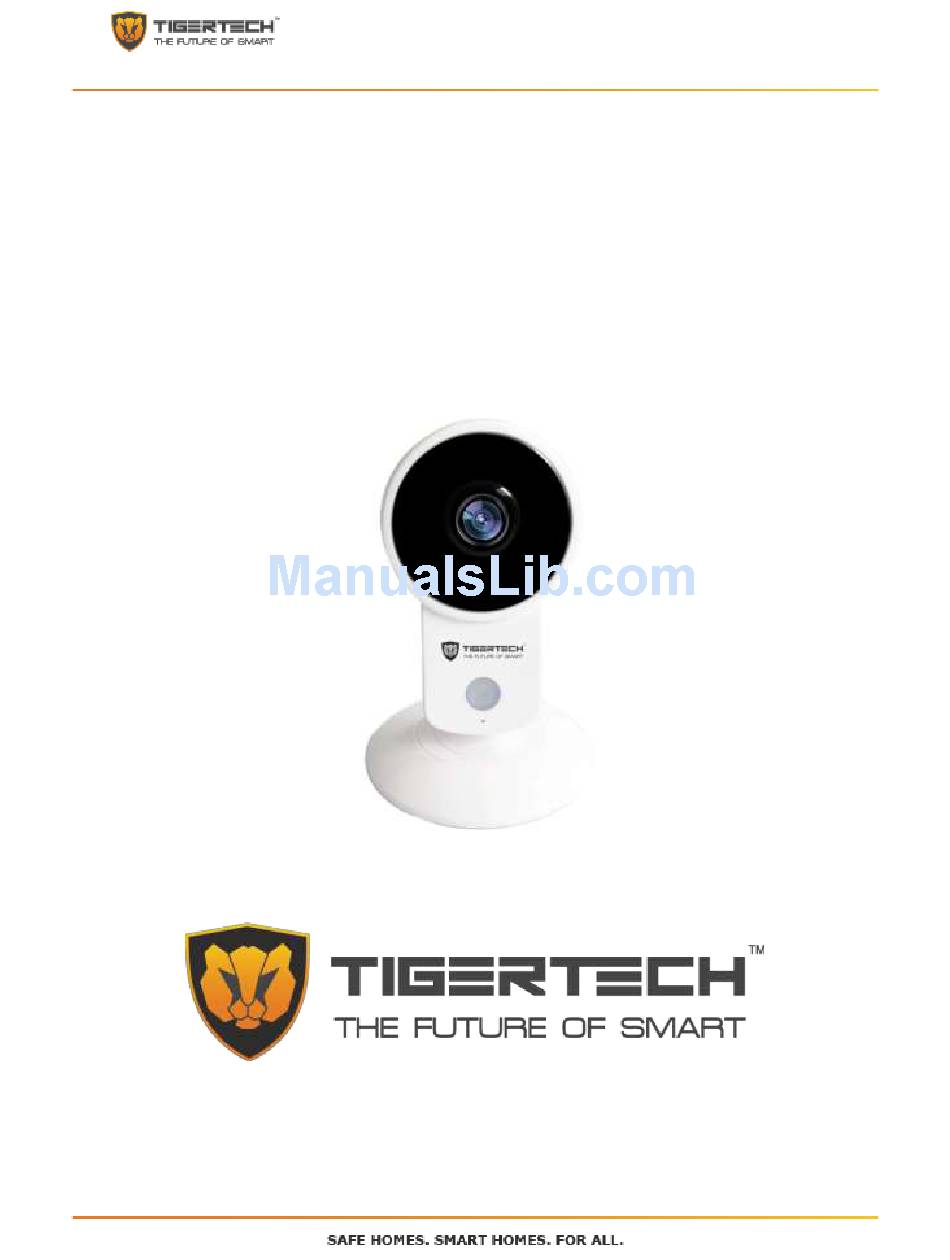

- Page 1 SmartCam User Manual...
- Page 2 720P HD Video streaming capability. It also has a 2-way Video Calling feature with a special ‘Call” button on the SmartCam. With the TigerTech SmartCam, you will enjoy complete piece of mind as you will be able to see your loved ones at any point in time.
- Page 3 User Manual Product Introduction The TigerTech SmartCam Camera is used to remotely monitor your home, office, shop or any other premises and to see, hear and speak to your family or friends using your Smart Phone. This product supports functions such as remote real-time video conversation, remote snapshots, remote video recording, two-way audio, motion alerts, auto recording on alarm, etc.
- Page 4 3. Please make sure you have a strong Wi-Fi connection in the location where you plan to install the camera. Weak Wi-Fi connection will reduce the quality of the video streaming. 4. You will need a 64GB (or less) SD Card to install in your SmartCam if you need to store Video Recordings or record Alarm Videos automatically.
- Page 5 1. Switch on the SmartCam and wait 20-30 seconds for it to power up. 2. After 20-30 seconds, you will hear “Please use your SmartPhone to connect the device” and the LED indicator starts to blink slowly. This is when the SmartCam generates its own Wi-Fi ‘Hot-Spot’ 3. Begin the following steps.
- Page 6 Password. The default password is 999999. vi. Enter the default password and Press “Join” on the Top Right vii. The App will add the SmartCam to the App and a video window will appear on the App with a “Play” button viii.
- Page 7 The Video screen on the App will also show “Online” vi. Pressing the ‘Call’ button on your SmartCam will now send a call alert to your mobile device.
- Page 8 Regular use See live video: Tap the “Play” button on any camera to start a live video feed from that camera. You will now be able to see and hear a live feed of the surroundings from that camera. Press the “Picture” button to take a picture.
- Page 9 Format SD Card Please install an SD Card (upto 64GB) in your SmartCam if you need to record any videos. This will allow you to record and store videos on demand, take pictures on demand, set the Camera to record continuously or to record videos automatically when it senses an alarm.
- Page 10 Advance Setting 1. Security Code: This allows you to change the Password for each SmartCam. Enter the old password and then enter the new password twice, followed by OK. 2. Video Quality: Allows you to choose between SD and HD with 5 options provided...
- Page 11 3. Video Flip: Allows you to install the SmartCam upside down on the ceiling and flip the video stream upside down or mirror it. 4. Device Tone: This is to select the language. Default is English. 5. Motion Detection: The SmartCam has a video based motion sensor which can trigger an alert to your Smartphone and also start recording automatically whenever an alarm is triggered.
- Page 12 6. Recording Mode: This option allows you to record the video stream continuously or only on alarm (when motion is sensed). Camera Reset In case you have entered an incorrect Wi-Fi password, or have moved your camera to a different location or you need setup the camera again, please follow the following steps: 1.
-
Page 13: Troubleshooting
Troubleshooting: Observation Possible Cause Action Camera shows Wi-Fi may have switched Go to “Settings” and press “Reconnect” “Offline” Camera shows Power may be off Connect Camera to UPS supported AC power “Offline” Camera shows Camera has Delete the camera from the App and add it again “Offline”... - Page 14 Working Temperature -20℃ to 50℃ Working Humidity ≤100% Size of Camera Unit Diameter: 67.5mm (Circular) / Thickness: 20.5mm Packing Size L: 144mm x W: 86mm x H: 69mm Gross Weight 320g Image Maximum Resolution 1280 x 800 Views of TigerTech SmartCam...
- Page 15 Technical parameters Image Sensor Sensor 1/4" 1.0M CMOS Sensor Low-light Level 0.05 lux Display resolution Max 1280*800p (1.1MP) Min 360x228p Lens FOV 166°/ Focal Distance: 2.8mm Effective range 10-20m (Daylight) 5-10m (Night) Voice Input/output Built-in microphone and speaker Supports Full-duplex video call. Audio Format SpeeX Speaker...
- Page 16 Alarm Alarm Detection PIR (Body Temperature Detection) External Sensor Wireless Transmission & Reception Module (Smart Learning) Alarm Handling Snapshot, Video recording SD card storage, Email, Push Message to Phone Interface Power supply USB DC adapter 5V/1.5A SD card Mini-SD card /TF card (Max support 64G) Access interface APP, WEB Explorer, Windows PC Client Android (.Jar .so)/IOS (.Framework .a)
- Page 17 . Please note that the device will not work when Wi-Fi is down and will not provide good results if Wi-Fi is slow. TigerTech does not undertake any responsibility for any losses of any kind and / or service disruption due to network failure or any other causes including force majeure causes.
- Page 18 Child Hazards. Keep the device and its accessories out of the reach of small children. Keeping the device Within Acceptable Temperatures. The TigerTech device is designed to be operated in regular temperatures in India (-20C to 50C). Extreme Low-or high-temperature conditions might cause the Device to stop working properly.
