Summary of Contents for EasyGates GTE KMG-2000

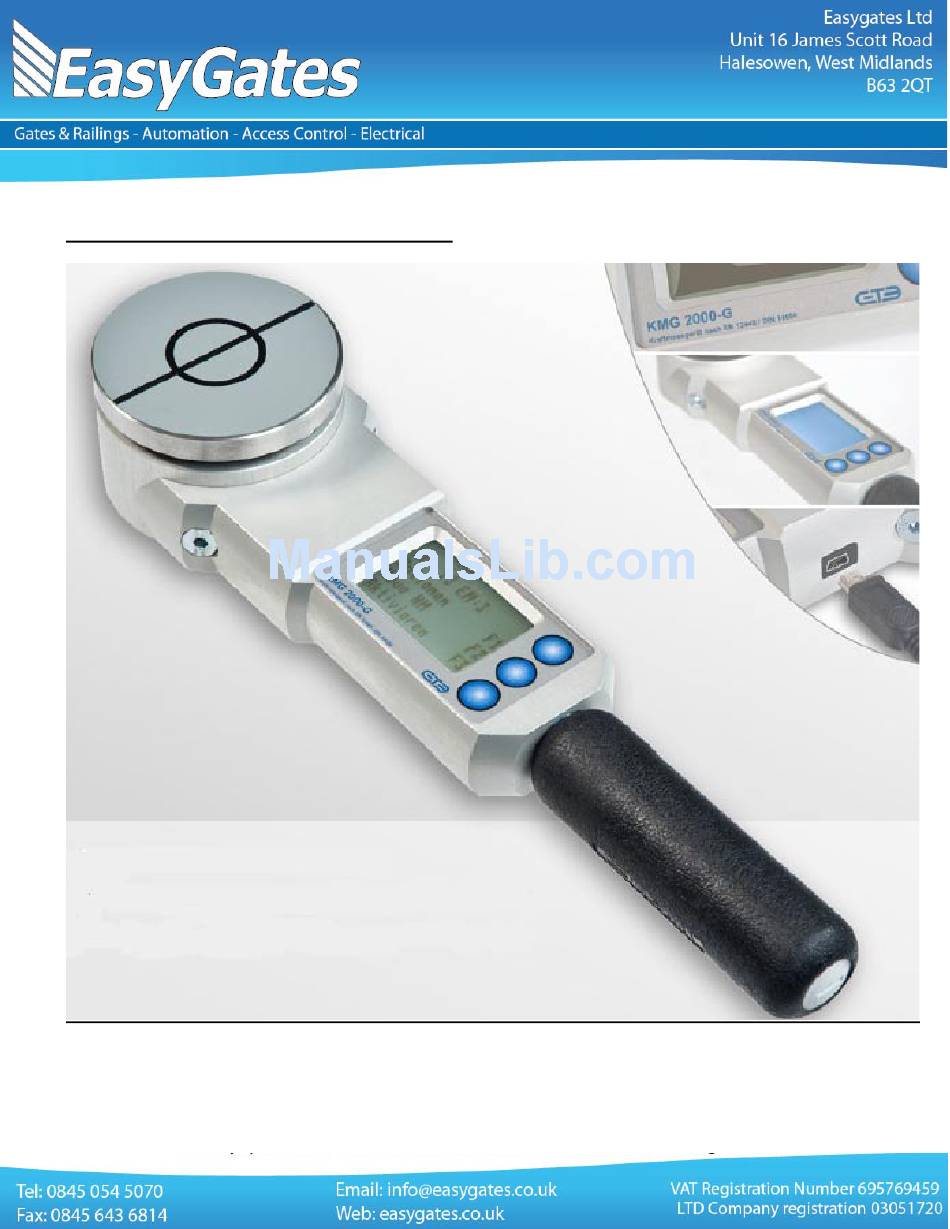

- Page 1 GTE KMG-2000 System Guide & Installation...
- Page 2 Any other use is improper and therefore dangerous. The information contained herein and in the enclosed documentation may be changed without notice, and are in fact provided in an approximate manner for application of the product. Easygates declines any and all liability in this regard.
- Page 3 GTE KMG-2000 Overview & contents The KMG-2000 system is used to measure forces exerted by automatic doors, gates & barriers used throughout the door & gate industry. The unit incorporates an on-board memory facility to store results collected whilst testing doors/gates to be later uploaded to computer to produce comprehensive reports.
- Page 4 Physical Connection & Software Installation Remove tester and components listed above from packaging and connect the KMG-2000 to a free USB port on your computer. Insert the supplied CD-ROM in to your computers CD drive (if your computer does not have a CD drive copy the contents of the CD to a USB flash drive or download the software directly to your computer using an internet connection).Follow any on-screen prompts for installation of driver software and the KMG VD 2005 software package.
- Page 5 Software Customisation & Configuration Start the KMG VD 2005 software program, then click on “Options” & then “Company Data” The following Screen will be displayed, fill-in your details and insert a company logo (if desired) and click “Save” To configure the software to your KMG-2000 device click on “Options” and then click “Options”...
- Page 6 The following screen will be displayed Click on the “KMG Connection” tab and check that your KMG-2000 device is listed next to a “Com” port and the tick is showing next to the device, click “Ok”. If the device does not appear re-check the driver installation or Windows device manager.
- Page 7 Once all measurement sets are transferred the data file needs to be saved. To accomplish this click on “File” and then “Save As” from the menu. The default format for saving the file provides the name of the device (KMG) and the date (2012_12_06) and the type (*.dat).
- Page 8 ** To Open a saved Measurement set using the Project browser you must click on the “File” and then “Open” option and then select the measurement set file (e.g. 2012_12_06) you created earlier when transferring data form the KMG-2000 device. With the measurement file open it will display the measurement sets in the project browser, these cab now be “dragged and dropped”...
