FOXFURY Nomad NOW Product Manual

Scene light, multi activation
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
NOW
NOMAD
®
200–400–100 | 200–400 –102
PRODUCT MANUAL

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Nomad NOW and is the answer not in the manual?

Questions and answers

Summary of Contents for FOXFURY Nomad NOW

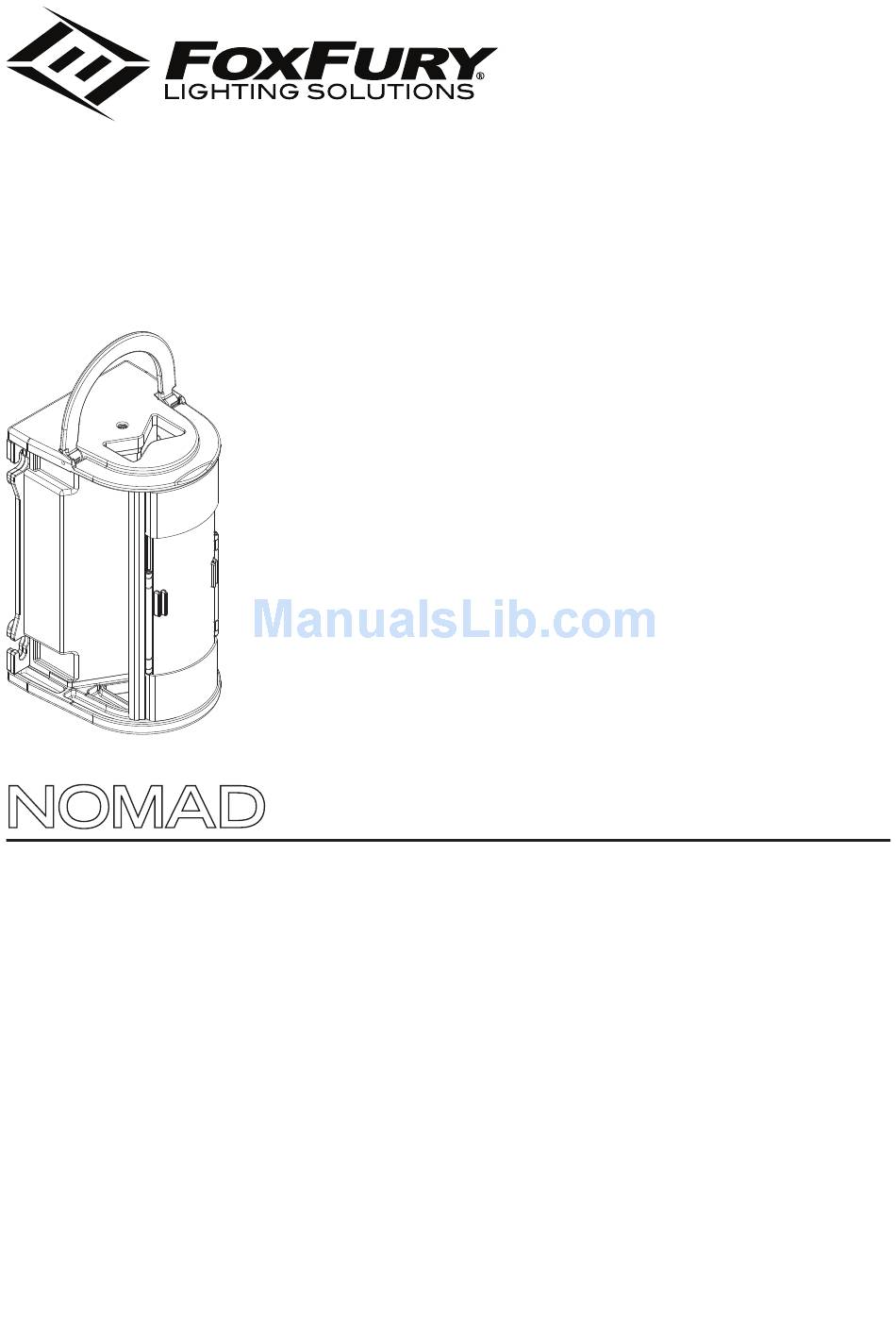

  • Page 1 NOMAD ® 200–400–100 | 200–400 –102 PRODUCT MANUAL...
  • Page 2 Sliding Diffuser Lens Remote Key Fob Use MOUNTING THE NOMAD ® Magnetic Mount Stacking ACCESSORIES (NOT INCLUDED) Horizontal Right Angle Mount Utility Mount Wall Mount Kit Tripo-Scope M1, Tripod and FoxFury Puck Adaptor ® MAINTENANCE 12–14 WARRANTY 16–17 CONTACT FOXFURY...

  • Page 3: Reference Guide

    NOMAD NOW REFERENCE GUIDE ® COLLAPSIBLE HANDLE MAGNETIC/WALL MOUNT HOLES (4) ¼"-20 MOUNT (ON TOP & BOTTOM) BATTERY LIFE/ CHARGE INDICATOR CHARGING PORT SWIVELING LIGHT HEAD POWER/MODE SWITCH REMOTE SWITCH SLIDING DIFFUSER LENS REMOTE SWITCH (AREA-SPOT) INDICATOR ALSO INCLUDED Remote Key Fob 12VDC Vehicle Adaptor Magnetic Mount Accessories Bag...

  • Page 4: Overview

    OVERVIEW The Nomad NOW is FoxFury's most compact and versatile Area-Spot light. ® It can provide up to 2,500 lumens on HIGH Power. Portable enough to go anywhere, it is completely waterproof and adapts to many specific needs. As a handheld lantern, it lights an immediate path. Rest it on a flat surface, hang it or mount it and have a well-lit work area and two free hands.

  • Page 5: Charging The Battery Pack

    RED (SOLID) CHARGING ERROR *If a charging error occurs, please contact FoxFury Customer Service (see pg. 16). NOTE: Continuously charging (leaving the unit plugged in) could damage the Battery Pack and lead to a decreased battery life. Please disconnect the unit once it is fully charged.

  • Page 6: Ac - Dc Adaptor And International Use

    Series has a AC - DC Adaptor which uses AC Cables like those ® used in desktop computers or monitors. With every Nomad , FoxFury supplies ® a cable that terminates in the USA standard 110 VAC plug. BARREL CONNECTOR...

  • Page 7: Battery Life

    BATTERY LIFE MODE BATTERY LIFE LUMENS HIGH POWER 3 hrs 2,500 MEDIUM POWER 9 hrs LOW POWER 24 hrs *Battery Pack life may vary according to age and ambient conditions. BATTERY LIFE INDICATOR COLOR DESCRIPTION GREEN FULL BATTERY ORANGE CAUTION — BATTERY IS GETTING LOW RED (FLASHING) CHARGE IMMEDIATEL Y USING THE NOMAD...

  • Page 8: Swiveling Light Head

    FEATURES SWIVELING LIGHT HEAD The Nomad NOW Light Head is able to swivel 45° to the left or right. This ® allows the light beam to be manually directed. LEFT NORMAL RIGHT SLIDING DIFFUSER LENS Lighting needs can change in an instant or on a case-by-case basis. As an Area-Spot light, the Nomad NOW provides two types of lights in one.

  • Page 9: Remote Key Fob Use

    Remote Key Fob can be used for only the Nomad ® NOW that it is paired to. LOST REMOTE KEY FOBS If the Remote Key Fob becomes lost, please contact FoxFury Customer Service (see pg. 16).

  • Page 10: Magnetic Mount

    MOUNTING THE NOMAD ® MAGNETIC MOUNT The Nomad NOW can also be mounted via the Magnetic Mount (included). ® This allows the NOW to be held vertically on a magnetic surface. The Nomad ® NOW and Magnetic Mount can be pulled and placed from one surface to another to fit your workspace and needs.

  • Page 11: Utility Mount

    The NOW can be mounted to the FoxFury Tripo-Scope M1, most professional ® tripods or to the FoxFury Puck Adaptor. Thread the hole of the Nomad ® onto the ¼"-20 Threaded Screw of the tripod or Puck Adaptor. Then, twist the Nomad NOW onto the Puck Adaptor until it is securely fastened.

  • Page 12: Maintenance

    MAINTENANCE REMOVING THE BATTERY PACK | 4 MINS (APPROX) At the end of the Battery Packs's life (which is about 500+ full charges), the Battery Pack will stop holding a charge and will need replacing. CONNECTOR Make sure the Nomad NOW is turned OFF before starting.
  • Page 13 REPLACING THE BATTERY PACK | 4 MINS (APPROX) Attach the new Battery Pack to the light by re-clipping it the Connector. Then, place the new Battery Pack back inside the Nomad NOW. ® Place the black strap over the Battery Pack. Then, re-insert and tighten the two (2) screws.

  • Page 14: Maintenance

    MAINTENANCE (CONT'D) GENERAL TIPS The Nomad NOW reaches a full charge in approximately 4 hours. ® (Charge time may depend on ambient conditions and battery health). Maintain the light fully charged at all times, so that it is ready for use in the event of an emergency .
  • Page 15 NOTES...

  • Page 16: Warranty

    WARRANTY AND OTHER INFORMATION PRODUCT DURABILITY WARNINGS FoxFury, LLC is not responsible for the incorrect use of any FoxFury Lighting product. When used for extended periods of IPX7 time the light will become HOT to the touch. Please use care when operating.

  • Page 17: Warranty

    THERE ARE NO REPRESENTATIONS ON CONTRACT OR TORT OR ANY OR WARRANTIES OF ANY KIND OTHER THEORY OF LAW, AND BY THE FOXFURY , EXPRESS OR (B) FOXFURY’S ONL Y DUTIES IN IMPLIED, WITH RESPECT TO THE CONNECTION WITH THE SALE...
  • Page 18 NOTES...
  • Page 19 NOTES...
  • Page 20 FOXFURY .COM 1/2018...
