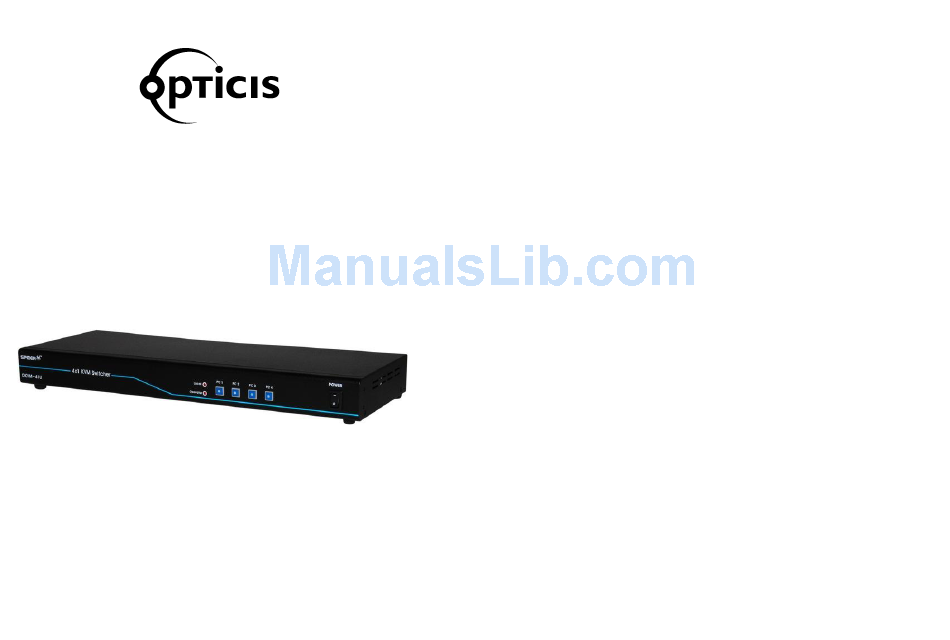

- Page 1 Unpacking OKVM-41U KVM switcher shipping group includes the following items; OKVM-41U KVM switcher Unit One (1) +12V, 3A Power Supply Adapter RS-232C Cable User manual SPIDER 4:1 KVM Switcher (OKVM-41U) 2:1 KVM Switcher (OKVM-21U) User’s Manual...
- Page 2 CONTENTS Description, General Specification ITEM DESCRIPTION Model Name OKVM-41U DVI (TMDS) Single Link, 4 Ports Input Signal Stereo Audio, 4Ports Contents USB B Type, 4Ports Description, General Specification DVI (TMDS) Single Link, 1 Port Output Signal Stereo Audio, 1 Port Environmental and Reliability Specifications USB A Type, 2 Ports Main Features...
- Page 3 Environmental and Reliability Specifications Main Features 1 Operating Conditions High Quality Picture and Audio - No Signal Loss and Digital Noise Free Temperature : 0℃~ 50℃ The product is built to deliver the highest quality picture preserving the native Humidity : 10% ~ 80%, non-condensing resolutions of the video sources without any signal loss.
- Page 4 Installation Mechanical Specification Dimensions STEP1 Plug the provided AC power cord to the AC/DC power adaptor then plug the DC cord to the +12VDC receptacle on the front panel. STEP2 Press POWER button on the front panel then Red LED will be lit on STEP3 The system is now ready to operate and connect each device.
- Page 5 Technical Specification Warranty Information Frequency bandwidth: 1.65 Gbps (Single Link) 1 (One) Year Warranty Supporting Graphic Resolution: WUXGA (1920 X 1200 at up to 60Hz) Opticis Co., Ltd warrants this OKVM-41U KVM Selector to be free from defects in workmanship and materials, under normal use and service, for a *Inputs: DVI Female (4 ports) period of one (1) year from the date of purchase from Opticis Co., Ltd or its USB B Type Female (4 ports)
-
Page 6: Troubleshooting
© 2010 Opticis Co., Ltd All Rights Reserved Troubleshooting Problem Remedy actions Switcher will not Make sure the 12V power is plugged in the back of the unit. operate Check to see if the power LED light is on. No picture (or 1.
