Preparation of the Units

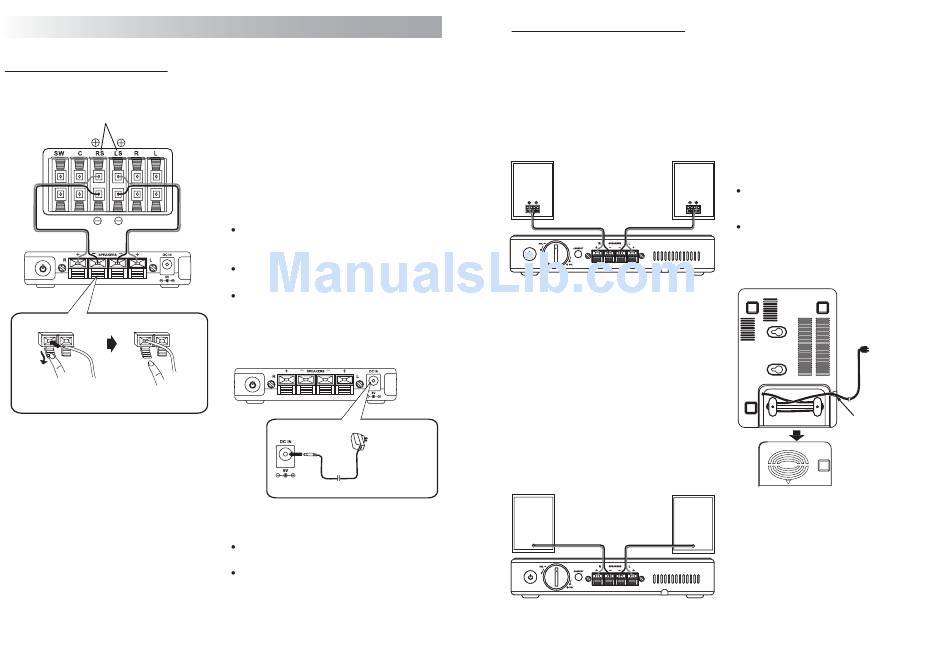

Connecting the Sender
A. Connecting the Sender with Amplifier
Surround Speaker Outputs
Sender's Rear Panel
Press&Hold Release
Caution: Turn off your amplifier while connecting
the units.
To connect the speaker cords between the
speaker terminals of Sender and your amplifier.
1. Use the supplied speaker cords of 2 feet long.
2. Connect the Right speaker terminals of Sender
to the Right Surround speaker terminals of
your amplifier.
(Similarly, connect the Left speaker terminals
of Sender to the Left Surround speaker
terminal of your amplifier.)
3. Each speaker cord consists of two wires in
different colors. Connect the Red (+) terminals
with the exposed tips of the Black (with White
line) wire, and connect the Black (-) terminals
with the exposed tips of the Black wire.
Notes:
Make sure the exposed tips of each cord do
not touch each other, and they are fully
inserted into the terminals.
The colors of the speaker cords may vary with
different HTIB systems.
Make sure you connect your amplifier using
the Surround Speaker Terminals only.
B. Connecting the Sender with AC Adapter
Sender's Rear Panel
To a wall outlet.
Plug the AC
adapter only after
your amplifier is
connected to the
Sender.
Caution: To avoid risk of fire, and to prevent
damage.
Do not use AC adapters except for the supplied
AC adapter.
Do not use the supplied AC adapter for other
equipment.
.4.
Connecting the Receiver
A. Connecting the Receiver with Surround
Speakers
To connect the speaker cords between the
speaker terminals of Receiver and your Surround
Speakers.
Case 1 - If connecting to the Surround Speakers
with speaker terminals
Right Surround Left Surround
Speaker Speaker
Receiver's Rear Panel
1. Use your surround speaker cords (not supplied).
2. Connect the Right speaker terminals of Receiver
to the terminals of your Right Surround Speaker.
(Similarly, connect the Left speaker terminals of
Receiver to the terminals of your Left Surround
Speaker.)
3. Connect the Red (+) and Black (-) terminals of
Receiver with your surround speaker cords.
Connect the other ends of the cords to the
terminals of your surround speakers.
(Each speaker cord consists of two wires in different
colors. Make sure to connect the same type
(+/-) of terminals with the wire in one color.)
Case 2 - If connecting to the Surround Speakers
with fixed speaker cords
Right Surround Left Surround
Speaker Speaker
Receiver's Rear Panel
1. Connect the fixed speaker cord of your Right
Surround Speaker to the Right speaker terminals
of Receiver.
(Similarly, connect the fixed speaker cord of
your Left Surround Speaker to the Left speaker
terminals of Receiver.)
2. Connect the Red (+) and Black (-) terminals of
Receiver with the fixed speaker cords
respectively.
(Each speaker cord consists of two wires in different
colors. Make sure to connect the same type
(+/-) of terminals with the wire in one color.)
Notes:
Make sure the exposed tips of each cord do
not touch each other, and they are fully
inserted into the terminals.
For more details about connecting speakers, please
see your speaker instruction book.
B. Connecting the Receiver with AC Power
To a wall outlet.
Connect the AC power
only after all speakers
are connected to the
Receiver.
Cable Hole
1. Open cover of the cable storage compartment
at the bottom of Receiver.
2. Unwrap the cable and extend it to the desired
length.
3. Close the cover. Make sure the extended
cable is not pinched and comes out from the
cable hole as shown in the diagram.
4. Connect the AC power plug to a wall outlet.
