Summary of Contents for Annso DCC-150T
-

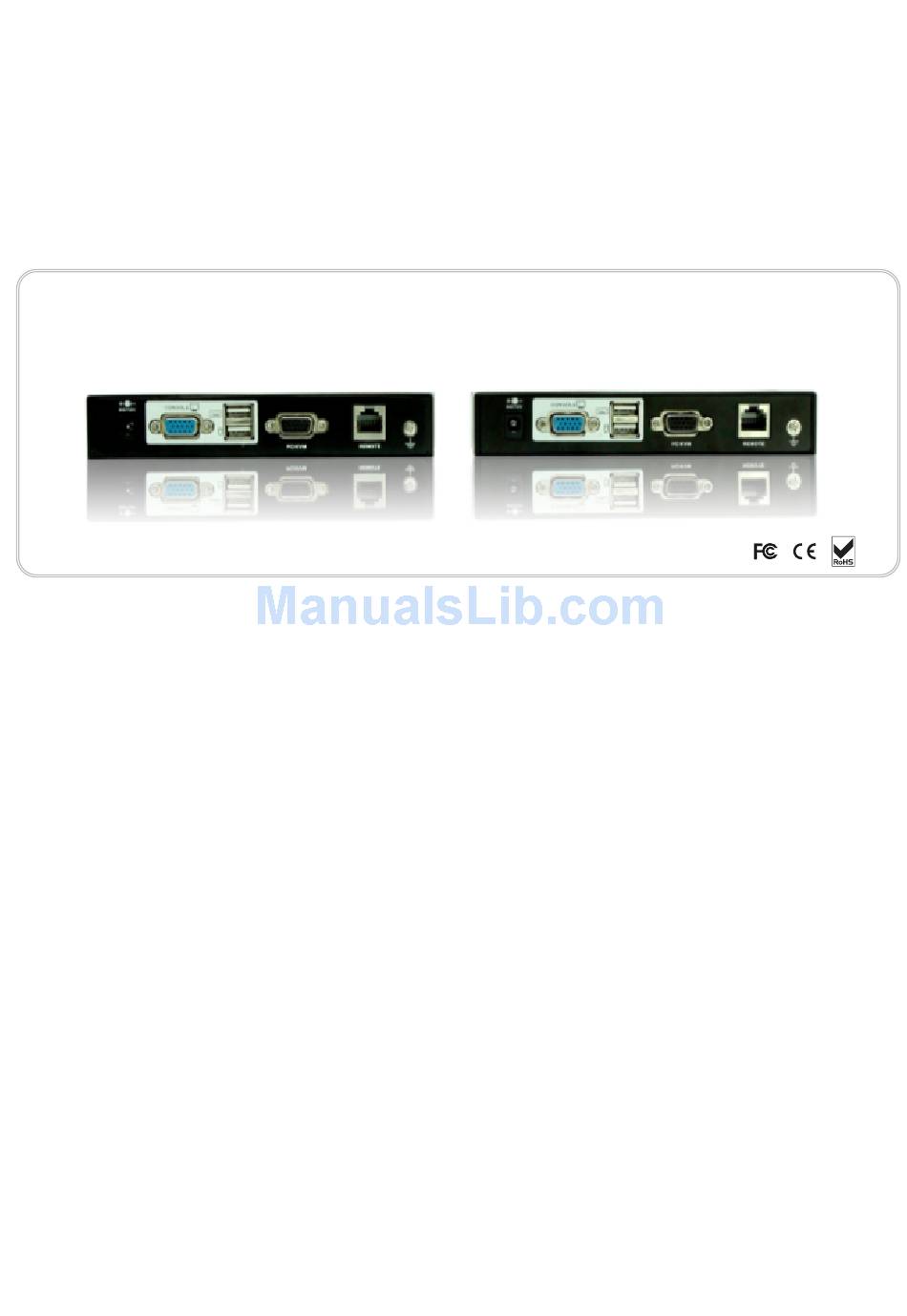

Page 1: User Manual
User Manual DCC-150T/300T, DCC-150R/300R -CAT6 KVM Extender Transmitter & Receiver 150/300 meters... - Page 2 Legal Information First English printing, October 2002 Information in this document has been carefully checked for accuracy; however, no guarantee is given to the correctness of the contents. The information in this document is subject to change without notice. We are not liable for any injury or loss that results from the use of this equipment.
- Page 3 Contents < Part. 1 > DCC-150T/300T, DCC-150R/300R Package Contents Transmitter Receiver Application < Part. 2 > Extending the KVM console port to 150 / 300 meters Extending the computer to KVM port to 150 / 300 meters Extending the computer up to 150 / 300 meters <...
-
Page 4: Before Installation
The equipment comes with the standard parts shown in package content. Check and make sure they are included and in good condition. If anything is missing, or damaged, contact the supplier immediately. < Part 1 > DCC-150T/300T, DCC-150R/300R < 1.1 > Package Contents DCC-150/300 Receiver and Transmitter X 1 - USB-VGA 1.8 M Combo KVM cable X 1... - Page 5 < 1.2 > Transmitter Local Power Computer Remote I/O Front Mouse Power Status Rear Status Description POWER Solid Blue Power is on ( from the local computer or power adapter ) No Light There is no Power ON LINE Solid Red The connection to Receiver is active Flashing Red Transmitter is sending or receiving data, or auto-adjusting the signal...
- Page 6 < 1.3 > Receiver Local Power Computer Remote I/O Front Mouse Remote Local Rear Select button Status Description REMOTE Solid Yellow Remote port is connected to the Transmitter Solid Red Remote port is selected Flashing Red Remote port is selected but no connection established or auto-adjusting the signal No Light Remote port is not connected or the power is OFF...
- Page 7 < Part 2 > Application < 2.1 > Extending the KVM console port to 150 / 300 meters USB Console KVM switch Monitor combo KVM cable Transmitter Front Cat6 cable up to 150 / 300 meters Monitor combo KVM cable Receiver Front...
- Page 8 < 2.2 > Extending the computer to KVM port to 150 / 300 meters Cat6 KVM port Cat5/6 dongle Transmitter Front DB-15 KVM port Mouse Cat6 cable up to 150 / 300 meters Monitor combo KVM cable Receiver Front...
- Page 9 < 2.3 > Extending the computer up to 150 / 300 meters Monitor combo KVM cable Transmitter Front Cat6 cable up to 150 / 300 m Monitor combo KVM cable Receiver Front...
- Page 10 < Part 3 > Keyboard Hotkey Command You can switch the Receiver from “LOCAL” to “REMOTE” and vice-versa through simple key sequences made by the remote console side. To send commands to the Receiver, you must press the hotkey (default is Caps Lock) twice within 2 seconds.
- Page 11 To show OSD menu (only for DCC-300T/R) When Receiver power on, log in window will present as follow, please enter S E C U R U S E R N A M E P A S S W O R D default user name 00000000 default password...
- Page 12 (F2) Press Caps lock twice and press , and the window will present as follow: then select the hot key type by pressing number key H O T K E Y (F3) Press Caps lock twice and press , and the window will present as follow: S E C U R U S E R N A M E P A S S W O R D...
