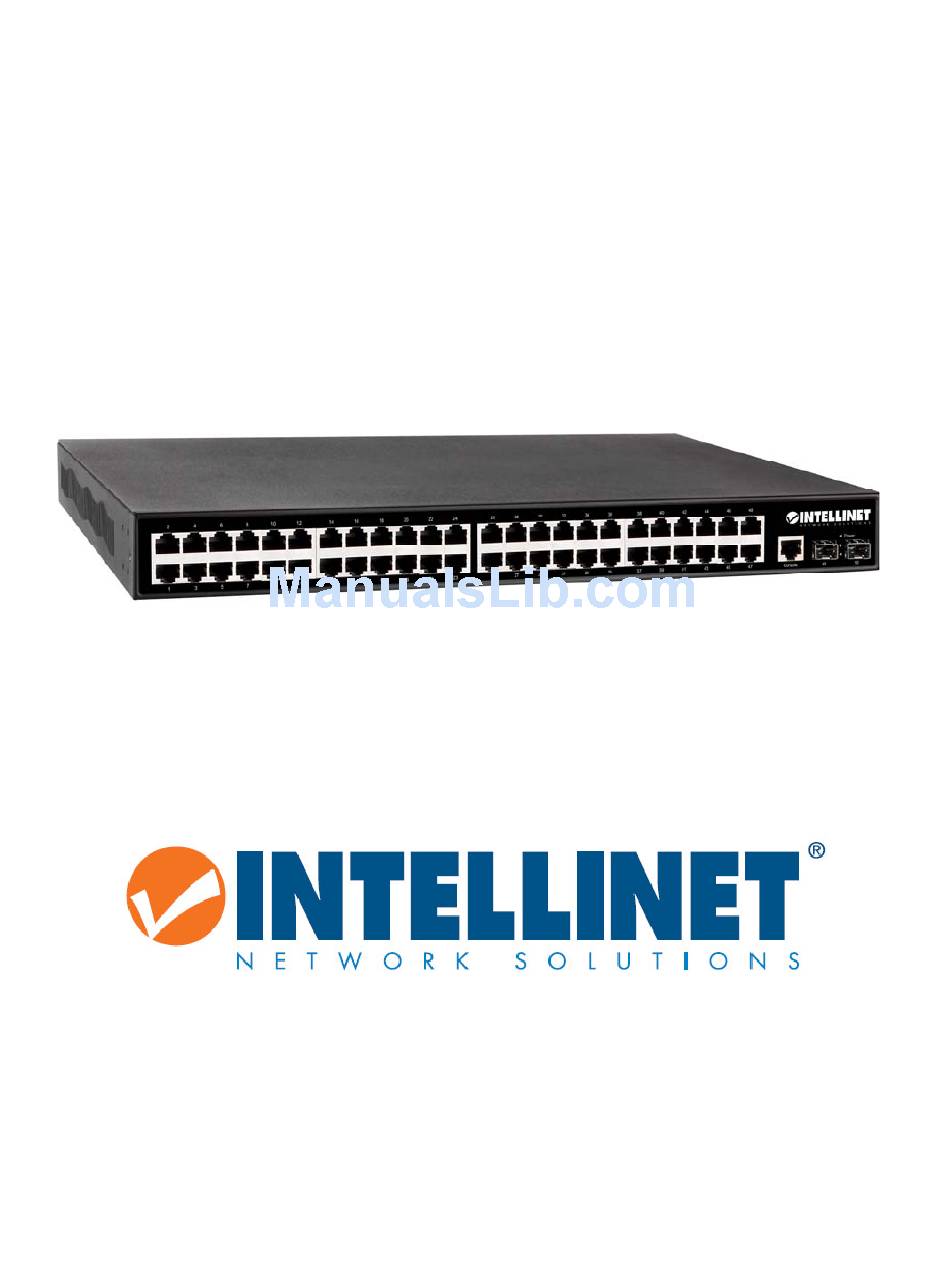

48‐PORT GIGABIT ETHERNET POE+ LAYER2+ MANAGED

SWITCH WITH 10 GBE UPLINK

USER MANUAL

Model 561112

Table of Contents

Need help?

Do you have a question about the 561112 and is the answer not in the manual?

Questions and answers

Summary of Contents for Intelligent network solutions 561112

Page 1 48‐PORT GIGABIT ETHERNET POE+ LAYER2+ MANAGED SWITCH WITH 10 GBE UPLINK USER MANUAL Model 561112 ...
Page 2 Table of Contents FCC Warning This Equipment has been tested and found to comply with the limits for a Class‐A digital device, pursuant to Part 15 of the FCC rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy. It may cause harmful interference to radio communications if the equipment is not installed and used in accordance with the instructions. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:  Reorient or relocate the receiving antenna.  Increase the separation between the equipment and receiver.  Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.  Consult the dealer or an experienced radio/TV technician for help. CE Mark Warning This is a Class‐B product. In a domestic environment this product may cause radio interference in which case the user may be required to take adequate measures. Intelinet 48‐Port Gigabit Ethernet PoE+ Layer2+ Managed Switch User Manual | 2 ...
Page 3 Table of Contents Table of Contents Before Starting .............................. 9 Intended Readers ............................ 10 Icons for Note, Caution, and Warning ...................... 10 Product Package Contents ........................ 11 Chapter 1: Product Overview ........................ 12 1.1. Product Brief Description ........................ 13 1.2. Product Specification ......................... 14 1.3. Hardware Description ........................ 17 1.4. Hardware Installation ........................ 19 Chapter 2: Preparing for Management ..................... 20 2.1. Preparation for Web Interface ...................... 21 Chapter 3: Web Management ........................ 23 3.1. Web Management ‐ Configure ...................... 24 3.1.1. Configuration ‐ System ....................... 26 3.1.1.1. System ‐ Information ...................... 26 3.1.1.2. System ‐ IP .......................... 27 3.1.1.3. System ‐ NTP ........................ 31 3.1.1.4. System ‐ Time........................ 32 ...
Page 4 Table of Contents 3.1.5.4. Security ‐ Switch ‐ SSH ...................... 54 3.1.5.5. Security ‐ Switch ‐ HTTPS ..................... 55 3.1.5.6. Security ‐ Switch ‐ Access Management ................ 56 3.1.5.7. Security ‐ Switch ‐ SNMP ..................... 58 3.1.5.7.1. Security ‐ Switch ‐ SNMP ‐ System ................ 58 3.1.5.7.2. Security ‐ Switch ‐ SNMP ‐ Community ................ 62 3.1.5.7.3. Security ‐ Switch ‐ SNMP ‐ User .................. 63 3.1.5.7.4. Security ‐ Switch ‐ SNMP ‐ Groups ................ 65 3.1.5.7.5. Security ‐ Switch ‐ SNMP ‐ Views ................. 66 3.1.5.7.6. Security ‐ Switch ‐ SNMP ‐ Access ................ 67 3.1.5.8. Security ‐ Switch ‐ RMON .................... 67 3.1.5.8.1. Security ‐ Switch ‐ RMON ‐ Statistics ................ 68 3.1.5.8.2. Security ‐ Switch ‐ RMON ‐ History ................ 69 3.1.5.8.3. Security ‐ Switch ‐ RMON ‐ Alarm ................ 70 3.1.5.8.4. Security ‐ Switch ‐ RMON ‐ Event ................. 72 3.1.5.9. Security ‐ Network ‐ Limit Control .................. 73 3.1.5.10. Security ‐ Network ‐ NAS (Network Access Server) ............ 77 3.1.5.11. Security ‐ Network ‐ ACL .................... 90 3.1.5.11.1. Security ‐ Network ‐ ACL ‐ Ports ................. 90 3.1.5.11.2. Security ‐ Network ‐ ACL ‐ Rate Limiter .............. 92 3.1.5.11.3. Security ‐ Network ‐ ACL ‐ Access Control List ............ 93 3.1.5.12. Security ‐ Network ‐ IP Source Guard ................ 110 3.1.5.12.1. Security ‐ Network ‐ IP Source Guard ‐ Configuration .......... 110 3.1.5.12.2. Security ‐ Network ‐ IP Source Guard ‐ Static Table .......... 111 3.1.5.13. Security ‐ Network ‐ ARP Inspection ................ 112 ...
Page 5 Table of Contents 3.1.8.4. Spanning Tree ‐ CIST Ports .................... 130 3.1.8.5. Spanning Tree ‐ MSTI Ports .................... 133 3.1.9. Configuration ‐ IPMC Profile ..................... 135 3.1.9.1. IPMC Profile ‐ Profile Table .................... 135 3.1.9.2. IPMC Profile ‐ Address Entry ..................... 137 3.1.10. Configuration ‐ MVR ....................... 138 3.1.11. Configuration ‐ IPMC....................... 142 3.1.11.1. IPMC ‐ IGMP Snooping .................... 142 3.1.11.1.1. IPMC ‐ IGMP Snooping ‐ Basic Configuration ............ 142 3.1.11.1.2. IPMC ‐ IGMP Snooping ‐ VLAN Configuration ............ 144 3.1.11.1.3. IPMC ‐ IGMP Snooping ‐ Port Group Filtering ............ 146 3.1.11.2. IPMC ‐ MLD Snooping ...................... 147 3.1.11.2.1. IPMC ‐ MLD Snooping ‐ Basic Configuration ............ 147 3.1.11.2.2. IPMC ‐ MLD Snooping ‐ VLAN Configuration ............ 149 3.1.11.2.3. IPMC ‐ MLD Snooping ‐ Port Group Filtering ............ 151 3.1.12. Configuration ‐ LLDP ....................... 152 3.1.12.1. LLDP ‐ LLDP ........................ 152 3.1.12.2. LLDP ‐ LLDP‐MED ...................... 155 3.1.13. Configuration ‐ PoE ......................... 163 3.1.14. Configuration ‐ MAC Table ...................... 166 3.1.15. Configuration ‐ VLANs...................... 168 3.1.15.1. VLANs ‐ VLAN Membership ..................... 168 3.1.15.2. VLANs ‐ Ports ........................ 170 ...
Page 6 Table of Contents 3.1.19.2. QoS ‐ Port Policing ...................... 186 3.1.19.3. QoS ‐ Port Scheduler ...................... 187 3.1.19.4. QoS ‐ Port Shaping ...................... 192 3.1.19.5. QoS ‐ Port Tag Remarking .................... 197 3.1.19.6. QoS ‐ Port DSCP ....................... 200 3.1.19.7. QoS ‐ DSCP‐Based QoS ..................... 202 3.1.19.8. QoS ‐ DSCP Translation .................... 203 3.1.19.9. QoS ‐ DSCP Classification .................... 204 3.1.19.10. QoS ‐ Storm Control ....................... 205 3.1.19.11. QoS ‐ WRED ........................ 206 3.1.20. Configuration ‐ Mirroring ....................... 208 3.1.21. Configuration ‐ UPnP ...................... 210 3.1.22. Configuration ‐ GVRP ...................... 211 3.1.22.1. GVRP ‐ Global Config ....................... 211 3.1.22.2. GVRP ‐ Port Config ...................... 212 3.1.23. Configuration ‐ sFlow ...................... 213 3.2. Web Management ‐ Monitor ...................... 216 3.2.1. Monitor ‐ System ........................ 216 3.2.1.1. System ‐ Information ...................... 216 3.2.1.2. System ‐ CPU Load ...................... 218 3.2.1.3. System ‐ IP Status ....................... 219 3.2.1.4. System ‐ Log ........................ 221 3.2.1.5. System ‐ Detailed Log ...................... 222 3.2.2. Monitor ‐ Green Ethernet ...
Page 7 Table of Contents 3.2.4.3. DHCP ‐ Relay Statistics ....................... 237 3.2.4.4. DHCP ‐ Detailed Statistics .................... 239 3.2.5. Monitor ‐ Security ........................ 242 3.2.5.1. Security ‐ Access Management Statistics ................ 242 3.2.5.2. Security ‐ Network ...................... 243 3.2.5.2.1. Security ‐ Network ‐ Port Security ‐ Switch .............. 243 3.2.5.2.2. Security ‐ Network ‐ Port Security ‐ Port .............. 246 3.2.5.2.3. Security ‐ Network ‐ NAS ‐ Switch ................ 247 3.2.5.2.4. Security ‐ Network ‐ NAS ‐ Port .................. 249 3.2.5.2.5. Security ‐ Network ‐ ACL Status .................. 254 3.2.5.2.6. Security ‐ Network ‐ ARP Inspection ................ 256 3.2.5.3. Security ‐ Network ...................... 260 3.2.5.3.1. Security ‐ AAA ‐ RADIUS Overview ................ 260 3.2.5.3.2. Security ‐ AAA ‐ RADIUS Details ................. 262 3.2.5.4. Security ‐ Switch ‐ RMON .................... 266 3.2.5.4.1. Security ‐ Switch ‐ RMON ‐ Statistics ................ 266 3.2.5.4.2. Security ‐ Switch ‐ RMON ‐ History ................ 269 3.2.5.4.3. Security ‐ Switch ‐ RMON ‐ Alarm ................ 271 3.2.5.4.4. Security ‐ Switch ‐ RMON ‐ Events ................ 273 3.2.6. Monitor ‐ LACP .......................... 275 3.2.6.1. LACP ‐ System Status ...................... 275 3.2.6.2. LACP ‐ Port Status ...................... 276 3.2.6.3. LACP ‐ Port Statistics ...................... 278 3.2.7. Monitor ‐ Loop Protection ...................... 279 ...
Page 8 Table of Contents 3.2.10.1.3. IPMC ‐ IGMP Snooping ‐ IPv4 SFM Information ............ 292 3.2.10.2. IPMC ‐ MLD Snooping ...................... 294 3.2.10.2.1. IPMC ‐ MLD Snooping ‐ Status .................. 294 3.2.10.2.2. IPMC ‐ MLD Snooping ‐ Groups Information ............ 296 3.2.10.2.3. IPMC ‐ MLD Snooping ‐ IPv6 Group Information ............. 297 3.2.11. Monitor ‐ LLDP ........................ 299 3.2.11.1. LLDP ‐ Neighbours ...................... 299 3.2.11.2. LLDP ‐ LLDP‐MED Neighbours .................. 301 3.2.11.3. LLDP ‐ PoE ......................... 305 3.2.11.4. LLDP ‐ EEE ......................... 307 3.2.11.5. LLDP ‐ Port Statistics ...................... 309 3.2.12. Monitor ‐ PoE .......................... 311 3.2.13. Monitor ‐ MAC Table ....................... 314 3.2.14. Monitor ‐ VLANs ........................ 317 3.2.14.1. VLANs ‐ VLAN Membership ..................... 317 3.2.14.2. VLANs ‐ VLAN Ports ...................... 319 3.2.15. Monitor ‐ sFlow ........................ 321 3.3. Web Management ‐ Diagnostics ..................... 323 3.3.1. Diagnostics ‐ Ping ........................ 323 3.3.2. Diagnostics ‐ Ping6 ........................ 325 3.3.3. Diagnostics ‐ VeriPHY ........................ 326 3.4. Web Management ‐ Maintenance .................... 328 ...
Page 9 Before You Begin This section contains introductory information, which includes:  Intended Readers  Icons for Note, Caution, and Warning  Product Package Contents ...
Page 10: Before Starting
Before Starting Intended Readers This manual provides information regarding to all the aspects and functions needed to install, configure, use, and maintain the product you’ve purchased. This manual is intended for technicians who are familiar with in‐depth concepts of networking management and terminologies. Icons for Note, Caution, and Warning To install, configure, use, and maintain this product properly, please pay attention when you see these icons in this manual: ...
Page 11: Product Package Contents
Before Starting Product Package Contents Before starting install this product, please check and verify the contents of the product package, which should include the following items: One Network Switch One Power Cord One User Manual CD One pair Rack‐mount kit + 8 Screws Note: If any item listed in this table above is missing or damaged, please contact your distributor or retailer as soon as possible. Intelinet 48‐Port Gigabit Ethernet PoE+ Layer2+ Managed Switch User Manual | 11 ...
Page 12 Chapter 1: Product Overview In Product Overview: This section will give you an overview of this product, including its feature functions and hardware/software specifications.  Product Brief Description  Product Specification  Hardware Description  Hardware Installation ...
Page 13: Chapter 1: Product Overview
Chapter 1: Product Overview Product Brief Description 1.1. Product Brief Description Introduction The switch is 48‐port 10/100/1000Base‐T + 2 × 10 Gigabit SFP+ Ports Rack‐mount L2+ Full Management Network Switch that is designed for medium or large network environment to strengthen its network connection. The switch supports 136G non‐blocking switch fabric, the 48 gigabit ports and 2 uplink 10G ports can transmit and receive data traffic without any lost. The EEE feature reduces the power consumption when there is no traffic forwarding even port is still connected. The switch also supports Layer 2+ full management software features. These features are powerful to provide network control, management, monitor and security feature requests. Including rack‐mount brackets, the 19" size fits into your rack environment. It is a superb choice to boost your network with better performance and efficiency. 2 10 Gigabit SFP+ Open Slots The switch equips with 2 10G SFP+ open slots as the uplink ports, the 10G uplink design provides an excellent solution for expanding your network from 1G to 10G. By 10G speed, this product provides high flexibility and high bandwidth connectivity to another 10G switch or the Servers, Workstations and other attached devices which support 10G interfaces. The user can also aggregate the 10G ports as Trunk group to enlarge the bandwidth. Full Layer 2 Management Features The switch includes full Layer 2+ Management features. The software set includes up to 4K 802.1Q VLAN and advanced Protocol VLAN, Private VLAN, MVR…features. There are 8 physical queues Quality of Service, IPv4/v6 Multicast filtering, Rapid Spanning Tree protocol to avoid network loop, Multiple Spanning Tree Protocol to integrate VLAN and Spanning Tree, LACP, LLDP; sFlow, port mirroring, cable diagnostic and advanced Network Security features. It also provides Console CLI for out of band management and SNMP, Web GUI for in band Management. ...
Page 14 Chapter 1: Product Overview Product Specification 1.2. Product Specification Interface 10/100/1000 Base RJ45 Ports 48 10G Uplink SFP + Slot 2 Console Port for CLI Management 1 System Performance Packet Buffer 64Mb MAC Address Table Size 64K Switching Capacity 136Gbps PoE Features IEEE 802.3 af/at IEEE 802.3 af/at Number of PSE Ports 48 Max. Power Consumption 500W External/Internal Power Internal Power  Power Feeding Detecting Capability on PD  PD Alive Check  PD Classification  Enable/Disable PoE Per Port  Power Management Priority Setting Per Port  ...
Page 15: Product Specification
Chapter 1: Product Overview Product Specification QoS Features Number of priority queue 8 queues/port Ingress Yes, 1KBps/1pps Rate Limiting Egress Yes, 1KBps/1pps  DiffServ (RFC2474 Remarking)  Scheduling (WRR, Strict, Hybrid)  IEEE 802.1p CoS  IP ToS precedence, IP DSCP Security  Management System User Name/Password Protection User Privilege Set user privilege up to 15 Level  Port Security (MAC‐based)  IEEE 802.1x Port‐based Access Control  ACL (L2/L3/L4)  IP Source Guard  RADIUS (Authentication, Authorization, Accounting)  TACACS+  HTTP & SSL (Secure Web)  SSH v2.0 (Secured Telnet Session)  ...
Page 16 Chapter 1: Product Overview Product Specification Standard  IEEE 802.3 – 10BaseT  IEEE 802.3u ‐ 100BaseTX  IEEE 802.3ab ‐ 1000BaseT  IEEE 802.3ae 10GBaseSX/LX  IEEE 802.3af Power over Ethernet (PoE)  IEEE 802.3at Power over Ethernet (PoE+)  IEEE 802.3az ‐ Energy Efficient Ethernet (EEE)  IEEE 802.3x ‐ Flow Control  IEEE 802.1Q ‐ VLAN  IEEE802.1v ‐ Protocol VLAN  IEEE 802.1p ‐ Class of Service  IEEE 802.1D ‐ Spanning Tree  IEEE 802.1w ‐ Rapid Spanning Tree  IEEE 802.1s ‐ Multiple Spanning Tree  IEEE 802.3ad ‐ Link Aggregation Control Protocol (LACP)  IEEE 802.1AB ‐ LLDP (Link Layer Discovery Protocol)  IEEE 802.1X ‐ Access Control Intelinet 48‐Port Gigabit Ethernet PoE+ Layer2+ Managed Switch User Manual | 16 ...
Page 17: Hardware Description
Chapter 1: Product Overview Hardware Description 1.3. Hardware Description This section mainly describes the hardware of Full‐Management PoE switch and gives a physical and functional overview on the certain switch. Front Panel The front panel of the switch consists of 48 10/100/1000 Base‐TX RJ‐45 ports and 2 10 Gigabit SFP+ ports. The LEDs are also located on the front panel. LED Indicators The LED Indicators present real‐time information of systematic operation status. Each of the switch’s RJ45 port has two LEDs, the green LED indicates RJ45 connection status/data link, and the amber LED indicates if that port is providing electrical power. Also, port 49 and port 50 (SFP+ Ports) has their own LEDs that indicate data link status as shown in the figure below: LED Color / Status Description No. of LEDs Green On Link Up 10/100/1000M 1~48 Green Blinking Data Activating PoE Amber On PD is connected 1~48 Green On Fiber Connected 49~50 SFP+ Receiving/Transmitting Green Blinking 49~50 Data ...
Page 18 Chapter 1: Product Overview Product Specification Rear Panel The rear panel of the Full‐Management PoE switch contains 2 ventilation fans, a power switch, and an IEC 60320 plug for power supply. Intelinet 48‐Port Gigabit Ethernet PoE+ Layer2+ Managed Switch User Manual | 18 ...
Page 19: Hardware Installation
Chapter 1: Product Overview Hardware Installation 1.4. Hardware Installation To install the Full‐Management PoE switch, please place it on a large flat surface with a power socket close by. This surface should be clean, smooth, and level. Also, please make sure that there is enough space around the Full‐Management PoE switch for RJ45 cable, power cord and ventilation. If you’re installing this Full‐Management PoE switch on a 19‐inch rack, please make sure to use the rack‐mount kit (L brackets) and screws come with the product package. All screws must be fastened so the rack‐mount kit and your product are tightly conjoined before installing it on your 19‐inch rack. Ethernet cable Request The wiring cable types are as below:  10 Base‐T: 2‐pair UTP/STP CAT. 3, 4, 5 cable, EIA/TIA‐568 100‐ohm (Max. 100m)  100 Base‐TX: 2‐pair UTP/STP CAT. 5 cable, EIA/TIA‐568 100‐ohm (Max. 100m)  1000 Base‐T: 4‐pair UTP/STP CAT. 5 cable, EIA/TIA‐568 100‐ohm (Max. 100m)  PoE: To delivery power properly, it is recommended to use CAT 5e and CAT 6 cable. Ethernet cables of higher qualities can reduce the power lost during transmission. SFP Installation While install the SFP transceiver, make sure the SFP type of the 2 ends is the same and the transmission distance, wavelength, fiber cable can meet your request. It is suggested to purchase the SFP transceiver with the switch provider to avoid any incompatible issue. The way to connect the SFP transceiver is to Plug in SFP fiber transceiver fist. The SFP transceiver has 2 plug for fiber cable, one is TX (transmit), the other is RX (receive). Cross‐connect the transmit channel at each end to the receive channel at the opposite end. For more information regarding to the product safety and maintenance guide, please refer to Appendix A: Product Safety. ...
Page 20 Chapter 2: Preparing for Management In Preparing for Management: This section will guide your how to manage this product via management web page.  Preparation for Web Interface ...
Page 21: Chapter 2: Preparing For Management
Chapter 2: Preparing for Management Preparation for Web Interface 2.1. Preparation for Web Interface The management web page allows you to use a web browser (such as Microsoft IE, Google Chrome, or Mozilla Firefox) to configure and monitor the switch from anywhere on the network. Before using the web interface to manage your switch, please verify that your switch and your PC are on the same network. Please follow the steps down below to configure your PC properly: Verify that the network interface card (NIC) of your PC is operational and properly installed, and that your operating system supports TCP/IP protocol. Connect your PC with the switch via an RJ45 cable. The default IP address of the switch is 192.168.2.1. The switch and your PC should locate within the same IP Subnet. Change your PC's IP address to 192.168.2.X, where X can be any number from 2 to 254. Please make sure that the IP address you’ve assigned to your PC cannot be the same with the switch. Launch the web browser (IE, Firefox, or Chrome) on your PC. Type 192.168.2.1 (or the IP address of the switch) in the web browser’s URL field, and press Enter. ...
Page 22: Preparation For Web Interface
Chapter 2: Preparing for Management Preparation for Web Interface The web browser will prompt you to sign in. The default username/password for the configuration web page is admin/1234. For more information, please refer to Appendix B: IP Configuration for Your PC. Intelinet 48‐Port Gigabit Ethernet PoE+ Layer2+ Managed Switch User Manual | 22 ...
Page 23 Chapter 3: Web Management In Web Management: As mentioned in Chapter 2.2. Preparation for Web Interface, This switch provides a web‐based management interface. You can make all settings and monitor system status with this management web page. Configuration/Monitor options included in the management web page can be divided into the following 4 categories, which will be discussed in detail in this chapter:  Web Management ‐ Configure  Web Management ‐ Monitor  Web Management ‐ Diagnostic  Web Management ‐ Maintenance ...
Page 24: Chapter 3: Web Management
Chapter 3: Web Management Web Management ‐ Configure 3.1. Web Management ‐ Configure In here you can access all the configuration options of the switch. The configuration options here include:  System: Here you can configure basic system settings such as system information, switch IP, NTP, system time and log.  Green Ethernet: You can enable EEE (Energy Efficient Ethernet) function on each port or adjust LED flashing intensity to conserve and save power used by the switch.  Ports: You can view the connection status of all the ports on the switch, as well as set port connection speed, flow control, maximum frame length, and power control mode.  DHCP: Here you can set DHCP snooping and DHCP relay, as well as IP settings.  Security: The Security option allows you to make settings that secures both the switch itself or your network.  Aggregation: Aggregation allows you to combine multiple physical ports into a logical port, thus allows the transmitting speed exceeding the limit of a single port.  Loop Protection: A network loop might cause broadcast storm and paralyze your entire network. You can enable loop protection function here to prevent network loop.  Spanning Tree: Spanning Tree Protocol is a network designed to ensure a loop‐free network and provide redundant links that serve as automatic backup paths if an active link fails. This switch supports STP, RSTP (Rapid STP), and MSTP (Multiple STP). ...
Page 25: Web Management ‐ Configure
Chapter 3: Web Management Web Management ‐ Configure  VLANs: VLAN stands for Virtual LAN, which allows you to separate ports into different VLAN groups. Only member of the same VLAN group can transmit/receive packets among each other, while other ports in different VLAN group can’t. Here you can set port‐based VLAN.  Private VLANs: Also known as port isolation. Only the same member in the private VLAN can communicate with each other.  VCL: Here you can set MAC‐based VLAN, Protocol‐based VLAN, and IP Subnet‐based VLAN.  Voice VLAN: Voice VLAN is a specific VLAN for voice communication (such as VoIP phones) that can ensure the transmission priority of voice traffic and voice quality.  QoS: QoS stands for Quality of Service, which allows you to control the network priority (which packet gets top priority to transmit and which gets low priority) via IEEE 802.1p or DSCP.  Mirroring: For purposes such as network diagnostics, you can direct packets transmitted/received to/from a port (or multiple ports) to a designated port.  UPnP: UPnP stands for Universal Plug and Play, a protocol that allows all the devices on the same network can discover each other and establishing network services such as data sharing. You can set UPnP here in this management page.  GVRP: GVRP stands for GARP VLAN Registration Protocol, a protocol that facilitates control of virtual local area networks (VLANs) within a larger network.  sFlow: sFlow is an industry standard technology for monitoring switched networks through random sampling of packets on switch ports and time‐based sampling of port counters. The sampled packets will be sent to the designated sFlow receiver (host) for system administrator ...
Page 26: Configuration ‐ System
Chapter 3: Web Management System ‐ Information 3.1.1. Configuration ‐ System 3.1.1.1. System ‐ Information The switch system information is provided here. System Contact The textual identification of the contact person for this managed node, together with information on how to contact this person. The allowed string length is 0 to 255, and the allowed content is the ASCII characters from 32 to 126. System Name You can input an assigned name for this switch. By convention, this is the switch's fully‐qualified domain name. A domain name is a text string drawn from the alphabet (A‐Z & a‐z), digits (0‐9), minus sign (‐). No space characters are permitted as part of a name. The first character must be an alpha character. And the first or last character must not be a minus sign. The allowed string length is 0 to 255. System Location The physical location of this node(e.g., telephone closet, 3rd floor). The allowed string length is 0 to 255, and the allowed content is the ASCII characters from 32 to 126. Buttons  Save: Click to save changes.  Reset: Click to undo any changes made locally and revert to previously saved values. ...
Page 27: System ‐ Ip
Chapter 3: Web Management System ‐ IPv6 3.1.1.2. System ‐ IP Configure IP basic settings, control IP interfaces and IP routes. The maximum number of interfaces supported is 128 and the maximum number of routes is 32. Basic Settings Mode Configure whether the IP stack should act as a Host or a Router. In Host mode, IP traffic between interfaces will not be routed. In Router mode traffic is routed between all interfaces. DNS Server This setting controls the DNS name resolution done by the switch. The following modes are supported:  From any DHCP interfaces: The first DNS server offered from a DHCP lease to a DHCP‐enabled interface will be used.  No DNS server: No DNS server will be used.  Configured: Explicitly provide the IP address of the DNS Server in dotted decimal notation.  From this DHCP interface: Specify from which DHCP‐enabled interface a provided DNS server should be preferred. DNS Proxy When DNS proxy is enabled, system will relay DNS requests to the currently configured DNS server, and reply as a DNS resolver to the client devices on the network. ...
Page 28 Chapter 3: Web Management Web Management ‐ Configure IP Interfaces Delete Select this option to delete an existing IP interface. VLAN The VLAN associated with the IP interface. Only ports in this VLAN will be able to access the IP interface. This field is only available for input when creating an new interface. IPv4 DHCP Enabled Enable the DHCP client by checking this box. If this option is enabled, the system will configure the IPv4 address and mask of the interface using the DHCP protocol. The DHCP client will announce the configured System Name as hostname to provide DNS lookup. IPv4 DHCP Fallback Timeout The number of seconds for trying to obtain a DHCP lease. After this period expires, a configured IPv4 address will be used as IPv4 interface address. A value of zero disables the fallback mechanism, such that DHCP will keep retrying until a valid lease is obtained. Legal values are 0 to 4294967295 seconds. IPv4 DHCP Current Lease For DHCP interfaces with an active lease, this column show the current interface address, as provided by the DHCP server. IPv4 Address The IPv4 address of the interface in dotted decimal notation. If DHCP is enabled, this field configures the fallback address. The field may be left blank if IPv4 operation on the interface is not desired ‐ or no DHCP fallback address is desired. IPv4 Mask The IPv4 network mask, in number of bits (prefix length). Valid values are between 0 and 30 bits for a IPv4 address. If DHCP is enabled, this field configures the fallback address network mask. The field may be left blank if IPv4 operation on the interface is not desired ‐ or no DHCP fallback address is desired. IPv6 Address The IPv6 address of the interface. A IPv6 address is in 128‐bit records represented as eight fields of up to four hexadecimal digits with a colon separating each field (:). For example, fe80::215:c5ff:fe03:4dc7. The symbol :: is a special syntax that can be used as a shorthand way of representing multiple 16‐bit groups of contiguous zeros; but it can appear only once. Intelinet 48‐Port Gigabit Ethernet PoE+ Layer2+ Managed Switch User Manual | 28 ...
Page 29 Chapter 3: Web Management Web Management ‐ Configure System accepts the valid IPv6 unicast address only, except IPv4‐Compatible address and IPv4‐Mapped address. The field may be left blank if IPv6 operation on the interface is not desired. IPv6 Mask The IPv6 network mask, in number of bits (prefix length). Valid values are between 1 and 128 bits for a IPv6 address. The field may be left blank if IPv6 operation on the interface is not desired. IP Routes Delete Select this option to delete an existing IP route. Network The destination IP network or host address of this route. Valid format is dotted decimal notationor a valid IPv6 notation. A default route can use the value 0.0.0.0or IPv6 :: notation. Mask Length The destination IP network or host mask, in number of bits (prefix length). It defines how much of a network address that must match, in order to qualify for this route. Valid values are between 0 and 32 bits respectively 128 for IPv6 routes. Only a default route will have a mask length of 0 (as it will match anything). Gateway The IP address of the IP gateway. Valid format is dotted decimal notationor a valid IPv6 notation. Gateway and Network must be of the same type. Next Hop VLAN (Only for IPv6) The VLAN ID (VID) of the specific IPv6 interface associated with the gateway. The given VID ranges from 1 to 4094 and will be effective only when the corresponding IPv6 interface is valid. If the IPv6 gateway address is link‐local, it must specify the next hop VLAN for the gateway. If the IPv6 gateway address is not link‐local, system ignores the next hop VLAN for the gateway. Buttons  Add Interface: Click to add a new IP interface. A maximum of 128 interfaces is supported.  Add Route: Click to add a new IP route. A maximum of 32 routes is supported.  Save: Click to save changes. ...
Page 30 Chapter 3: Web Management Web Management ‐ Configure  Reset: Click to undo any changes made locally and revert to previously saved values. Intelinet 48‐Port Gigabit Ethernet PoE+ Layer2+ Managed Switch User Manual | 30 ...
Page 31: System ‐ Ntp
Chapter 3: Web Management System ‐ NTP 3.1.1.3. System ‐ NTP NTP stands for Network Time Protocol, which allows switch to perform clock synchronization with the NTP server. Mode You can enable or disable NTP function on this switch:  Enabled: Enable NTP client mode.  Disabled: Disable NTP client mode. Server 1~5 Provide the IPv4 or IPv6 address of a NTP server. IPv6 address is in 128‐bit records represented as eight fields of up to four hexadecimal digits with a colon separating each field (:). For example, 'fe80::215:c5ff:fe03:4dc7'. The symbol '::' is a special syntax that can be used as a shorthand way of representing multiple 16‐bit groups of contiguous zeros; but it can appear only once. It can also represent a legally valid IPv4 address. For example, '::192.1.2.34'. Also, you can just input NTP server’s URL here as well. Buttons  Save: Click to save changes.  Reset: Click to undo any changes made locally and revert to previously saved values. ...
Page 32 Chapter 3: Web Management System ‐ Time 3.1.1.4. System ‐ Time This page allows you to configure the Time Zone and daylight saving time. Time Zone Configuration  Time Zone: Lists various Time Zones world wide. Select appropriate Time Zone from the drop down and click Save to set.  Acronym: User can set the acronym of the time zone. This is a User configurable acronym to identify the time zone. You can use up to 16 alphanumeric characters and punctuations such as “‐”, “_”, and “.”. Daylight Saving Time Configuration When enabled, the switch will set the clock forward or backward according to the configurations set below for a defined Daylight Saving Time duration.  Disable: Disable the Daylight Saving Time configuration. This is the default setting.  Recurring: The configuration of the daylight saving time duration will be applied every year.  Non‐Recurring: The configuration of the daylight saving time duration will be applied only once. ...
Page 33: System ‐ Time
Chapter 3: Web Management System ‐ Time Start time settings  Week ‐ Select the starting week number.  Day ‐ Select the starting day.  Month ‐ Select the starting month.  Hours ‐ Select the starting hour.  Minutes ‐ Select the starting minute. End time settings  Week ‐ Select the ending week number.  Day ‐ Select the ending day.  Month ‐ Select the ending month.  Hours ‐ Select the ending hour.  Minutes ‐ Select the ending minute. Offset settings  Offset ‐ Enter the number of minutes to add during Daylight Saving Time. (Range: 1 to 1440) Buttons  Save: Click to save changes.  Reset: Click to undo any changes made locally and revert to previously saved values. Intelinet 48‐Port Gigabit Ethernet PoE+ Layer2+ Managed Switch User Manual | 33 ...
Page 34: System ‐ Log
Chapter 3: Web Management System ‐ Log 3.1.1.5. System ‐ Log Configure System Log on this page. Server Mode When enabled, the system log message will be sent out to the system log server you set here. The system log protocol is based on UDP communication and received on UDP port 514 and the system log server will not send acknowledgments back sender since UDP is a connectionless protocol and it does not provide acknowledgments. The system log packet will always send out even if the system log server does not exist. Possible modes are:  Enabled: Enable server mode operation.  Disabled: Disable server mode operation. Server Address Indicates the IPv4 host address of system log server. If the switch provide DNS feature, it also can be a host name. System log Level Indicates what kind of message will send to system log server. Possible modes are:  Info: Send information, warnings and errors.  Warning: Send warnings and errors.  Error: Send errors. Buttons  Save: Click to save changes.  Reset: Click to undo any changes made locally and revert to previously saved values. ...
Page 35: Configuration ‐ Green Ethernet
Chapter 3: Web Management Green Ethernet ‐ LED 3.1.2. Configuration ‐ Green Ethernet 3.1.2.1. Green Ethernet ‐ LED Status LED The system status LED shows whether the system is running. The LED is green when system is running and no errors are detected. If errors has been detected the status LED will indicate this by blinking red Front Ethernet Port LEDs The front Ethernet ports have a dual color LEDs per port. The port LEDs is placed in a block (1‐high for SFPs, 2‐high for RJ45s) to the left of the ports. A pushbutton and a 4‐high tower of LEDs is placed next to the front Ethernet port LEDs. The pushbutton selects between four different port LED modes, indicated by the 4‐high LED mode tower. After 30 seconds the LED mode falls back to mode A. The port LED modes are named A through D and shows the following Port LED Indication mode D:  Green (1000Mbit): Solid=Link, Blink=Activity  Orange (10/100Mbit): Solid=Link, Blink=Activity Port LED Indication mode C:  Green: Solid=Full Duplex Off=No link  Orange: Solid=Half Duplex, Blink: Collisions Port LED Indication mode B:  Green: Solid = Link, Blink=Activity  Orange: Solid = Port disabled by management, Blink = Errors received Port LED Indication mode A:  Power save mode ‐ LEDs are off. ...
Page 36: Green Ethernet ‐ Led
Chapter 3: Web Management Green Ethernet ‐ LED LEDs Intensity The LEDs power consumption can be reduced by lowering the LEDs intensity. LEDs intensity could for example be lowered during night time, or they could be turn completely off. It is possible to configure 24 different hours of the day, at where the LEDs intensity should be set. Start Time The time at which the LEDs intensity shall be set to the corresponding intensity. End Time The time at which the LEDs intensity shall be set to a new intensity. If no intensity is specified for the next hour, the intensity is set to default intensity. Intensity The LEDs intensity (100% = Full power, 0% = LED off). Maintenance Maintenance Time When a network administrator does maintenance of the switch (e.g. adding or moving users) he might want to have full LED intensity during the maintenance period. Therefore it is possible to specify that the LEDs shall use full intensity a specific period of time. Maintenance Time is the number of seconds that the LEDs will have full intensity after either a port has changed link state, or the LED pushbutton has been pushed. Buttons  Save: Click to save changes.  Reset: Click to undo any changes made locally and revert to previously saved values. Intelinet 48‐Port Gigabit Ethernet PoE+ Layer2+ Managed Switch User Manual | 36 ...
Page 37: Green Ethernet ‐ Port Power Savings
Chapter 3: Web Management Green Ethernet ‐ Port Power Savings 3.1.2.2. Green Ethernet ‐ Port Power Savings EEE is a power saving option that reduces the power usage when there is low or no traffic utilization. EEE works by powering down circuits when there is no traffic. When a port gets data to be transmitted all circuits are powered up. The time it takes to power up the circuits is named wakeup time. The default wakeup time is 17 us for 1Gbit links and 30 us for other link speeds. EEE devices must agree upon the value of the wakeup time in order to make sure that both the receiving and transmitting device has all circuits powered up when traffic is transmitted. The devices can exchange wakeup time information using the LLDP protocol. EEE works for ports in auto‐negotiation mode, where the port is negotiated to either 1G or 100 Mbit full duplex mode. For ports that are not EEE‐capable the corresponding EEE checkboxes are grayed out and thus impossible to enable EEE for. When a port is powered down for saving power, outgoing traffic is stored in a buffer until the port is powered up again. Because there are some overhead in turning the port down and up, more power can be saved if the traffic can be buffered up until a large burst of traffic can be transmitted. Buffering traffic will give some latency in the traffic. ...
Page 38 Chapter 3: Web Management Green Ethernet ‐ LED Port Configuration Port The switch port number of the logical port. ActiPHY Link down power savings enabled. ActiPHY works by lowering the power for a port when there is no link. The port is power up for short moment in order to determine if cable is inserted. PerfectReach Cable length power savings enabled. PerfectReach works by determining the cable length and lowering the power for ports with short cables. EEE Controls whether EEE is enabled for this switch port. Buttons  Save: Click to save changes.  Reset: Click to undo any changes made locally and revert to previously saved values. Intelinet 48‐Port Gigabit Ethernet PoE+ Layer2+ Managed Switch User Manual | 38 ...
Page 39 Chapter 3: Web Management Configuration ‐ Ports 3.1.3. Configuration ‐ Ports This page displays current port configurations. Ports can also be configured here. The port settings relate to the currently selected stack unit, as reflected by the page header. Port This is the logical port number for this row. Link The current link state is displayed graphically. Green indicates the link is up and red that it is down. Current Link Speed The current link speed of the port. Configured Link Speed Selects any available link speed for the given switch port. Only speeds supported by the specific port is shown. Possible speeds are:  Disabled ‐ Disables the switch port operation.  Auto ‐ Cu port auto negotiating speed with the link partner and selects the highest speed that is compatible with the link partner.  10Mbps HDX ‐ Forces the cu port in 10Mbps half duplex mode.  10Mbps FDX ‐ Forces the cu port in 10Mbps full duplex mode.  100Mbps HDX ‐ Forces the cu port in 100Mbps half duplex mode.  100Mbps FDX ‐ Forces the cu port in 100Mbps full duplex mode.  1Gbps FDX ‐ Forces the cu port in 1Gbps full duplex mode. ...
Page 40: Configuration ‐ Ports
Chapter 3: Web Management Configuration ‐ Ports Auto‐Negotiation. Check the configured column to use flow control. This setting is related to the setting for Configured Link Speed. Maximum Frame Size Enter the maximum frame size allowed for the switch port, including FCS. Excessive Collision Mode Configure port transmit collision behavior.  Discard: Discard frame after 16 collisions (default).  Restart: Restart backoff algorithm after 16 collisions. Buttons  Save: Click to save changes.  Reset: Click to undo any changes made locally and revert to previously saved values.  Refresh: Click to refresh the page. Any changes made locally will be undone. Intelinet 48‐Port Gigabit Ethernet PoE+ Layer2+ Managed Switch User Manual | 40 ...
Page 41: Configuration ‐ Dhcp
Chapter 3: Web Management DHCP ‐ Server ‐ Mode 3.1.4. Configuration ‐ DHCP 3.1.4.1. DHCP ‐ Server 3.1.4.1.1. DHCP ‐ Server ‐ Mode This page configures global mode and VLAN mode to enable/disable DHCP server per system and per VLAN. Global Mode Configure operation mode to enable/disable DHCP server per system. Mode Configure the operation mode per system. Possible modes are:  Enabled: Enable DHCP server per system.  Disabled: Disable DHCP server pre system. VLAN Mode Configure operation mode to enable/disable DHCP server per VLAN. VLAN Range Indicate the VLAN range in which DHCP server is enabled or disabled. The first VLAN ID must be smaller than or equal to the second VLAN ID. BUT, if the VLAN range contains only 1 VLAN ID, then you can just input it into either one of the first and second VLAN ID or both. On the other hand, if you want to disable existed VLAN range, then you can follow the steps. 1. Press “Add VLAN Range” to add a new VLAN range. 2. Input the VLAN range that you want to disable. 3. Choose Mode to be Disabled. 4. Press “Save” to apply the change. Then, you will see the disabled VLAN range is removed from the DHCP Server mode configuration ...
Page 42: Dhcp ‐ Server
Chapter 3: Web Management DHCP ‐ Server ‐ Mode Mode Indicate the the operation mode per VLAN. Possible modes are:  Enabled: Enable DHCP server per VLAN.  Disabled: Disable DHCP server pre VLAN. Buttons  Add VLAN Range: Click to add a new VLAN range.  Save: Click to save changes.  Reset: Click to undo any changes made locally and revert to previously saved values. Intelinet 48‐Port Gigabit Ethernet PoE+ Layer2+ Managed Switch User Manual | 42 ...
Page 43: Dhcp ‐ Server ‐ Excluded Ip
Chapter 3: Web Management DHCP ‐ Server ‐ Excluded IP 3.1.4.1.2. DHCP ‐ Server ‐ Excluded IP This page configures excluded IP addresses. DHCP server will not allocate these excluded IP addresses to DHCP client. Excluded IP Address Configure excluded IP addresses. IP Range Define the IP range to be excluded IP addresses. The first excluded IP must be smaller than or equal to the second excluded IP. BUT, if the IP range contains only 1 excluded IP, then you can just input it to either one of the first and second excluded IP or both. Buttons  Add IP Range: Click to add a new excluded IP range.  Save: Click to save changes.  Reset: Click to undo any changes made locally and revert to previously saved values. ...
Page 44 Chapter 3: Web Management DHCP ‐ Server ‐ Pool 3.1.4.1.3. DHCP ‐ Server ‐ Pool This page manages DHCP pools. According to the DHCP pool, DHCP server will allocate IP address and deliver configuration parameters to DHCP client. Pool Setting Add or delete pools. Adding a pool and giving a name is to create a new pool with "default" configuration. If you want to configure all settings including type, IP subnet mask and lease time, you can click the pool name to go into the configuration page. Name Configure the pool name that accepts all printable characters, except white space. If you want to configure the detail settings, you can click the pool name to go into the configuration page. Type Display which type of the pool is.  Network: the pool defines a pool of IP addresses to service more than one DHCP client.  Host: the pool services for a specific DHCP client identified by client identifier or hardware address. If "‐" is displayed, it means not defined. IP Display network number of the DHCP address pool. If "‐" is displayed, it means not defined. Subnet Mask Display subnet mask of the DHCP address pool. If "‐" is displayed, it means not defined. ...
Page 45: Dhcp ‐ Server ‐ Pool
Chapter 3: Web Management DHCP ‐ Server ‐ Pool Lease Time Display lease time of the pool. Buttons  Add New Pool: Click to add a new DHCP pool.  Save: Click to save changes.  Reset: Click to undo any changes made locally and revert to previously saved values. Intelinet 48‐Port Gigabit Ethernet PoE+ Layer2+ Managed Switch User Manual | 45 ...
Page 46: Dhcp ‐ Snooping
Chapter 3: Web Management DHCP ‐ Snooping 3.1.4.2. DHCP ‐ Snooping Configure DHCP Snooping on this page. Snooping Mode Indicates the DHCP snooping mode operation. Possible modes are:  Enabled: Enable DHCP snooping mode operation. When DHCP snooping mode operation is enabled, the DHCP request messages will be forwarded to trusted ports and only allow reply packets from trusted ports.  Disabled: Disable DHCP snooping mode operation. Port Mode Configuration Indicates the DHCP snooping port mode. Possible port modes are:  Trusted: Configures the port as trusted source of the DHCP messages.  Untrusted: Configures the port as untrusted source of the DHCP messages. Buttons  Save: Click to save changes.  Reset: Click to undo any changes made locally and revert to previously saved values. Intelinet 48‐Port Gigabit Ethernet PoE+ Layer2+ Managed Switch User Manual | 46 ...
Page 47 Chapter 3: Web Management DHCP ‐ Relay 3.1.4.3. DHCP ‐ Relay A DHCP relay agent is used to forward and to transfer DHCP messages between the clients and the server when they are not in the same subnet domain. It stores the incoming interface IP address in the GIADDR field of the DHCP packet. The DHCP server can use the value of GIADDR field to determine the assigned subnet. For such condition, please make sure the switch configuration of VLAN interface IP address and PVID(Port VLAN ID) correctly. Relay Mode Indicates the DHCP relay mode operation. Possible modes are:  Enabled: Enable DHCP relay mode operation. When DHCP relay mode operation is enabled, the agent forwards and transfers DHCP messages between the clients and the server when they are not in the same subnet domain. And the DHCP broadcast message won't be flooded for security considerations.  Disabled: Disable DHCP relay mode operation. Relay Server Indicates the DHCP relay server IP address. Relay Information Mode Indicates the DHCP relay information mode option operation. The option 82 circuit ID format as "[vlan_id][module_id][port_no]". The first four characters represent the VLAN ID, the fifth and sixth characters are the module ID(in standalone device it always equal 0, in stackable device it means switch ID), and the last two characters are the port number. For example, "00030108" means the DHCP message receive form VLAN ID 3, switch ID 1, port No 8. And the option 82 remote ID value is equal the switch MAC address. Possible modes are:  Enabled: Enable DHCP relay information mode operation. When DHCP relay information mode operation is enabled, the agent inserts specific information (option 82) into a DHCP message when forwarding to DHCP server and removes it from a DHCP message when ...
Page 48: Dhcp ‐ Relay
Chapter 3: Web Management DHCP ‐ Relay  Disabled: Disable DHCP relay information mode operation. Relay Information Policy Indicates the DHCP relay information option policy. When DHCP relay information mode operation is enabled, if the agent receives a DHCP message that already contains relay agent information it will enforce the policy. The 'Replace' policy is invalid when relay information mode is disabled. Possible policies are:  Replace: Replace the original relay information when a DHCP message that already contains it is received.  Keep: Keep the original relay information when a DHCP message that already contains it is received.  Drop: Drop the package when a DHCP message that already contains relay information is received. Buttons  Save: Click to save changes.  Reset: Click to undo any changes made locally and revert to previously saved values. Intelinet 48‐Port Gigabit Ethernet PoE+ Layer2+ Managed Switch User Manual | 48 ...
Page 49: Configuration ‐ Security
Chapter 3: Web Management Security ‐ Switch ‐ Users 3.1.5. Configuration ‐ Security This section provides settings regarding to the switch’s security functions. Settings provided here can be divided into 3 categories:  Switch: Here you can make security settings regarding to the switch itself.  Network: Providing security settings regarding to the network.  AAA: Here you can set RADIUS and TACACS+ authentication settings. 3.1.5.1. Security ‐ Switch ‐ Users This page provides an overview of the current users. Currently the only way to login as another user on the web server is to close and reopen the browser. User Name The name of the user. You can also click on the link to configure user account. Privilege Level The privilege level of the user. The allowed range is 1 to 15. If the privilege level value is 15, it can access all groups, i.e. that is granted the fully control of the device. But others value need to refer to each group privilege level. User's privilege should be same or greater than the group privilege level to have the access of that group. By default setting, most group privileges level 5 has the read‐only access and privilege level 10 has the read‐write access. And the system maintenance (software upload, factory defaults and etc.) need user privilege level 15. Generally, the privilege level 15 can be used for an administrator account, privilege level 10 for a standard user account and privilege level 5 for a guest account. Buttons  Add New User: Click to add a new user. ...
Page 50: Security ‐ Switch ‐ Users
Chapter 3: Web Management Security ‐ Switch ‐ Users This page configures a user. User Name A string identifying the user name that this entry should belong to. The allowed string length is 1 to 31. The valid user name is a combination of letters, numbers and underscores. Password The password of the user. The allowed string length is 0 to 31. Privilege Level The privilege level of the user. The allowed range is 1 to 15. If the privilege level value is 15, it can access all groups, i.e. that is granted the fully control of the device. But others value need to refer to each group privilege level. User's privilege should be same or greater than the group privilege level to have the access of that group. By default setting, most groups privilege level 5 has the read‐only access and privilege level 10 has the read‐write access. And the system maintenance (software upload, factory defaults and etc.) need user privilege level 15. Generally, the privilege level 15 can be used for an administrator account, privilege level 10 for a standard user account and privilege level 5 for a guest account. Buttons  Save: Click to save changes.  Reset: Click to undo any changes made locally and revert to previously saved values.  Cancel: Click to undo any changes made locally and return to the Users.  Delete User: Delete the current user. Please note that the default user (admin) cannot be deleted. Intelinet 48‐Port Gigabit Ethernet PoE+ Layer2+ Managed Switch User Manual | 50 ...
Page 51 Chapter 3: Web Management Security ‐ Switch ‐ Privilege Level 3.1.5.2. Security ‐ Switch ‐ Privilege Level This page provides an overview of the privilege levels. Group Name The name identifying the privilege group. In most cases, a privilege level group consists of a single module (e.g. LACP, RSTP or QoS), but a few of them contains more than one. The following description defines these privilege level groups in details:  System: Contact, Name, Location, Timezone, Daylight Saving Time, Log.  Security: Authentication, System Access Management, Port (contains Dot1x port, MAC based and the MAC Address Limit), ACL, HTTPS, SSH, ARP Inspection, IP source guard.  IP: Everything except 'ping'.  Port: Everything except 'VeriPHY'.  Diagnostics: 'ping' and 'VeriPHY'.  Maintenance: CLI‐ System Reboot, System Restore Default, System Password, Configuration Save, Configuration Load and Firmware Load. Web‐ Users, Privilege Levels and everything in Maintenance.  Debug: Only present in CLI. ...
Page 52: Security ‐ Switch ‐ Privilege Level
Chapter 3: Web Management Security ‐ Switch ‐ Privilege Level Privilege Levels Every group has an authorization Privilege level for the following sub groups: configuration read‐only, configuration/execute read‐write, status/statistics read‐only, status/statistics read‐write (e.g. for clearing of statistics). User Privilege should be same or greater than the authorization Privilege level to have the access to that group. Buttons  Save: Click to save changes.  Reset: Click to undo any changes made locally and revert to previously saved values. Intelinet 48‐Port Gigabit Ethernet PoE+ Layer2+ Managed Switch User Manual | 52 ...
Page 53: Security ‐ Switch ‐ Authentication Method
Chapter 3: Web Management Security ‐ Switch ‐ Authentication Method 3.1.5.3. Security ‐ Switch ‐ Authentication Method This page allows you to configure how a user is authenticated when he logs into the stack via one of the management client interfaces. Client The management client for which the configuration below applies. Authentication Method Authentication Method can be set to one of the following values:  None: authentication is disabled and login is not possible.  Local: use the local user database on the stack for authentication.  RADIUS: use a remote RADIUS server for authentication.  TACACS+: use a remote TACACS+ server for authentication. Fallback Enable fallback to local authentication by checking this box. If none of the configured authentication servers are alive, the local user database is used for authentication. This is only possible if the Authentication Method is set to a value other than 'none' or 'local'. Buttons  Save: Click to save changes.  Reset: Click to undo any changes made locally and revert to previously saved values. ...
Page 54 Chapter 3: Web Management Security ‐ Switch ‐ SSH 3.1.5.4. Security ‐ Switch ‐ SSH Configure SSH on this page. Mode Indicates the SSH mode operation. Possible modes are:  Enabled: Enable SSH mode operation.  Disabled: Disable SSH mode operation. Buttons  Save: Click to save changes.  Reset: Click to undo any changes made locally and revert to previously saved values. ...
Page 55: Security ‐ Switch ‐ Ssh
Chapter 3: Web Management Security ‐ Switch ‐ HTTPS 3.1.5.5. Security ‐ Switch ‐ HTTPS Configure HTTPS on this page. Mode Indicates the HTTPS mode operation. When the current connection is HTTPS, to apply HTTPS disabled mode operation will automatically redirect web browser to an HTTP connection. Possible modes are:  Enabled: Enable HTTPS mode operation.  Disabled: Disable HTTPS mode operation. Automatic Redirect Indicates the HTTPS redirect mode operation. Automatically redirects web browser to an HTTPS connection when both HTTPS mode and Automatic Redirect are enabled. Possible modes are:  Enabled: Enable HTTPS redirect mode operation.  Disabled: Disable HTTPS redirect mode operation. Buttons  Save: Click to save changes.  Reset: Click to undo any changes made locally and revert to previously saved values. ...
Page 56: Security ‐ Switch ‐ Access Management
Chapter 3: Web Management Security ‐ Switch ‐ Access Management 3.1.5.6. Security ‐ Switch ‐ Access Management Configure access management table on this page. The maximum number of entries is 16. If the application's type match any one of the access management entries, it will allow access to the switch. Mode Indicates the access management mode operation. Possible modes are:  Enabled: Enable access management mode operation.  Disabled: Disable access management mode operation. Delete Check to delete the entry. It will be deleted during the next save. Start IP address Indicates the start IP address for the access management entry. End IP address Indicates the end IP address for the access management entry. HTTP/HTTPS Indicates that the host can access the switch from HTTP/HTTPS interface if the host IP address matches the IP address range provided in the entry. SNMP Indicates that the host can access the switch from SNMP interface if the host IP address matches the IP address range provided in the entry. TELNET/SSH Indicates that the host can access the switch from TELNET/SSH interface if the host IP address matches the IP address range provided in the entry. Buttons  Add New Entry: Click to add a new access management entry.  Save: Click to save changes.  Reset: Click to undo any changes made locally and revert to previously saved values. ...
Page 57 Chapter 3: Web Management Security ‐ Switch ‐ Privilege Level Intelinet 48‐Port Gigabit Ethernet PoE+ Layer2+ Managed Switch User Manual | 57 ...
Page 58 Chapter 3: Web Management Security ‐ Switch ‐ SNMP ‐ System 3.1.5.7. Security ‐ Switch ‐ SNMP 3.1.5.7.1. Security ‐ Switch ‐ SNMP ‐ System Configure SNMP on this page. Mode Indicates the SNMP mode operation. Possible modes are:  Enabled: Enable SNMP mode operation.  Disabled: Disable SNMP mode operation. Version Indicates the SNMP supported version. Possible versions are:  SNMP v1: Set SNMP supported version 1.  SNMP v2c: Set SNMP supported version 2c.  SNMP v3: Set SNMP supported version 3. Read Community Indicates the community read access string to permit access to SNMP agent. The allowed string length is 0 to 255, and the allowed content is the ASCII characters from 33 to 126. The field is applicable only when SNMP version is SNMPv1 or SNMPv2c. If SNMP version is SNMPv3, the community string will be associated with SNMPv3 communities table. It provides more flexibility to configure security name than a SNMPv1 or SNMPv2c community string. In addition to community string, a particular range of source addresses can be used to restrict source subnet. Write Community Indicates the community write access string to permit access to SNMP agent. The allowed string length is 0 to 255, and the allowed content is the ASCII characters from 33 to 126. The field is applicable only when SNMP version is SNMPv1 or SNMPv2c. If SNMP version is SNMPv3, the community string will be associated with SNMPv3 communities table. It provides more flexibility to configure security name than a SNMPv1 or SNMPv2c community string. In addition to community string, a particular range of source addresses can be used to restrict source ...
Page 59: Security ‐ Switch ‐ Snmp
Chapter 3: Web Management Security ‐ Switch ‐ SNMP ‐ System Engine ID Indicates the SNMPv3 engine ID. The string must contain an even number(in hexadecimal format) with number of digits between 10 and 64, but all‐zeros and all‐'F's are not allowed. Change of the Engine ID will clear all original local users. SNMP Trap Configuration Configure SNMP trap on this page. Trap Mode Indicates the SNMP trap mode operation. Possible modes are:  Enabled: Enable SNMP trap mode operation.  Disabled: Disable SNMP trap mode operation. Trap Version Indicates the SNMP trap supported version. Possible versions are:  SNMP v1: Set SNMP trap supported version 1.  SNMP v2c: Set SNMP trap supported version 2c.  SNMP v3: Set SNMP trap supported version 3. Trap Community Indicates the community access string when sending SNMP trap packet. The allowed string length is 0 to 255, and the allowed content is ASCII characters from 33 to 126. Trap Destination Address Indicates the SNMP trap destination address. It allow a valid IP address in dotted decimal notation ('x.y.z.w'). And it also allow a valid hostname. A valid hostname is a string drawn from the alphabet (A‐Za‐z), digits (0‐9), dot (.), dash (‐). Spaces are not allowed, the first character must be an alpha character, and the first and last characters must not be a dot or a dash. Intelinet 48‐Port Gigabit Ethernet PoE+ Layer2+ Managed Switch User Manual | 59 ...
Page 60 Chapter 3: Web Management Security ‐ Switch ‐ SNMP ‐ System Trap Destination IPv6 Address Indicates the SNMP trap destination IPv6 address. IPv6 address is in 128‐bit records represented as eight fields of up to four hexadecimal digits with a colon separating each field (:). For example, 'fe80::215:c5ff:fe03:4dc7'. The symbol '::' is a special syntax that can be used as a shorthand way of representing multiple 16‐bit groups of contiguous zeros; but it can appear only once. It can also represent a legally valid IPv4 address. For example, '::192.1.2.34'. Trap Authentication Failure Indicates that the SNMP entity is permitted to generate authentication failure traps. Possible modes are:  Enabled: Enable SNMP trap authentication failure.  Disabled: Disable SNMP trap authentication failure. Trap Link‐up and Link‐down Indicates the SNMP trap link‐up and link‐down mode operation. Possible modes are:  Enabled: Enable SNMP trap link‐up and link‐down mode operation.  Disabled: Disable SNMP trap link‐up and link‐down mode operation. Trap Inform Mode Indicates the SNMP trap inform mode operation. Possible modes are:  Enabled: Enable SNMP trap inform mode operation.  Disabled: Disable SNMP trap inform mode operation. Trap Inform Timeout (seconds) Indicates the SNMP trap inform timeout. The allowed range is 0 to 2147. Trap Inform Retry Times Indicates the SNMP trap inform retry times. The allowed range is 0 to 255. Trap Probe Security Engine ID ...
Page 61 Chapter 3: Web Management Security ‐ Switch ‐ SNMP ‐ System Indicates the SNMP trap security name. SNMPv3 traps and informs using USM for authentication and privacy. A unique security name is needed when traps and informs are enabled. Buttons  Save: Click to save changes.  Reset: Click to undo any changes made locally and revert to previously saved values. Intelinet 48‐Port Gigabit Ethernet PoE+ Layer2+ Managed Switch User Manual | 61 ...
Page 62: Security ‐ Switch ‐ Snmp ‐ Community
Chapter 3: Web Management Security ‐ Switch ‐ SNMP ‐ Community 3.1.5.7.2. Security ‐ Switch ‐ SNMP ‐ Community Configure SNMPv3 community table on this page. The entry index key is Community. Delete Check to delete the entry. It will be deleted during the next save. Community Indicates the community access string to permit access to SNMPv3 agent. The allowed string length is 1 to 32, and the allowed content is ASCII characters from 33 to 126. The community string will be treated as security name and map a SNMPv1 or SNMPv2c community string. Source IP Indicates the SNMP access source address. A particular range of source addresses can be used to restrict source subnet when combined with source mask. Source Mask Indicates the SNMP access source address mask. Buttons  Add New Entry: Click to add a new community entry.  Save: Click to save changes.  Reset: Click to undo any changes made locally and revert to previously saved values. ...
Page 63 Chapter 3: Web Management Security ‐ Switch ‐ SNMP ‐ User 3.1.5.7.3. Security ‐ Switch ‐ SNMP ‐ User Configure SNMPv3 user table on this page. The entry index keys are Engine ID and User Name. Delete Check to delete the entry. It will be deleted during the next save. Engine ID An octet string identifying the engine ID that this entry should belong to. The string must contain an even number(in hexadecimal format) with number of digits between 10 and 64, but all‐zeros and all‐'F's are not allowed. The SNMPv3 architecture uses the User‐based Security Model (USM) for message security and the View‐based Access Control Model (VACM) for access control. For the USM entry, the usmUserEngineID and usmUserName are the entry's keys. In a simple agent, usmUserEngineID is always that agent's own snmpEngineID value. The value can also take the value of the snmpEngineID of a remote SNMP engine with which this user can communicate. In other words, if user engine ID equal system engine ID then it is local user; otherwise it's remote user. User Name A string identifying the user name that this entry should belong to. The allowed string length is 1 to 32, and the allowed content is ASCII characters from 33 to 126. Security Level Indicates the security model that this entry should belong to. Possible security models are:  NoAuth, NoPriv: No authentication and no privacy.  Auth, NoPriv: Authentication and no privacy.  Auth, Priv: Authentication and privacy. The value of security level cannot be modified if entry already exists. That means it must first be ensured that the value is set correctly. ...
Page 64: Security ‐ Switch ‐ Snmp ‐ User
Chapter 3: Web Management Security ‐ Switch ‐ SNMP ‐ User Authentication Protocol Indicates the authentication protocol that this entry should belong to. Possible authentication protocols are:  None: No authentication protocol.  MD5: An optional flag to indicate that this user uses MD5 authentication protocol.  SHA: An optional flag to indicate that this user uses SHA authentication protocol. The value of security level cannot be modified if entry already exists. That means must first ensure that the value is set correctly. Authentication Password A string identifying the authentication password phrase. For MD5 authentication protocol, the allowed string length is 8 to 32. For SHA authentication protocol, the allowed string length is 8 to 40. The allowed content is ASCII characters from 33 to 126. Privacy Protocol Indicates the privacy protocol that this entry should belong to. Possible privacy protocols are:  None: No privacy protocol.  DES: An optional flag to indicate that this user uses DES authentication protocol. Privacy Password A string identifying the privacy password phrase. The allowed string length is 8 to 32, and the allowed content is ASCII characters from 33 to 126. Buttons  Add New Entry: Click to add a new community entry.  Save: Click to save changes. ...
Page 65: Security ‐ Switch ‐ Snmp ‐ Groups
Chapter 3: Web Management Security ‐ Switch ‐ SNMP ‐ Groups 3.1.5.7.4. Security ‐ Switch ‐ SNMP ‐ Groups Configure SNMPv3 group table on this page. Delete Check to delete the entry. It will be deleted during the next save. Security Model Indicates the security model that this entry should belong to. Possible security models are:  v1: Reserved for SNMPv1.  v2c: Reserved for SNMPv2c.  usm: User‐based Security Model (USM). Security Name A string identifying the security name that this entry should belong to. The allowed string length is 1 to 32, and the allowed content is ASCII characters from 33 to 126. Group Name A string identifying the group name that this entry should belong to. The allowed string length is 1 to 32, and the allowed content is ASCII characters from 33 to 126. Buttons  Add New Entry: Click to add a new community entry.  Save: Click to save changes.  Reset: Click to undo any changes made locally and revert to previously saved values. ...
Page 66: Security ‐ Switch ‐ Snmp ‐ Views
Chapter 3: Web Management Security ‐ Switch ‐ SNMP ‐ Views 3.1.5.7.5. Security ‐ Switch ‐ SNMP ‐ Views Configure SNMPv3 view table on this page. The entry index keys are View Name and OID Subtree. Delete Check to delete the entry. It will be deleted during the next save. View Name A string identifying the view name that this entry should belong to. The allowed string length is 1 to 32, and the allowed content is ASCII characters from 33 to 126. View Type Indicates the view type that this entry should belong to. Possible view types are:  included: An optional flag to indicate that this view subtree should be included.  excluded: An optional flag to indicate that this view subtree should be excluded. In general, if a view entry's view type is 'excluded', there should be another view entry existing with view type as 'included' and it's OID subtree should overstep the 'excluded' view entry. OID Subtree The OID defining the root of the subtree to add to the named view. The allowed OID length is 1 to 128. The allowed string content is digital number or asterisk(*). Buttons  Add New Entry: Click to add a new community entry.  Save: Click to save changes.  Reset: Click to undo any changes made locally and revert to previously saved values. ...
Page 67: Security ‐ Switch ‐ Snmp ‐ Access
Chapter 3: Web Management Security ‐ Switch ‐ SNMP ‐ Access 3.1.5.7.6. Security ‐ Switch ‐ SNMP ‐ Access Configure SNMPv3 access table on this page. Delete Check to delete the entry. It will be deleted during the next save. Group Name A string identifying the group name that this entry should belong to. The allowed string length is 1 to 32, and the allowed content is ASCII characters from 33 to 126. Security Model Indicates the security model that this entry should belong to. Possible security models are:  any: Any security model accepted(v1|v2c|usm).  v1: Reserved for SNMPv1.  v2c: Reserved for SNMPv2c.  usm: User‐based Security Model (USM). Security Level Indicates the security model that this entry should belong to. Possible security models are:  NoAuth, NoPriv: No authentication and no privacy.  Auth, NoPriv: Authentication and no privacy.  Auth, Priv: Authentication and privacy. Read View Name The name of the MIB view defining the MIB objects for which this request may request the current values. The allowed string length is 1 to 32, and the allowed content is ASCII characters from 33 to ...
Page 68: Security ‐ Switch ‐ Rmon
Chapter 3: Web Management Security ‐ Switch ‐ RMON ‐ Statistics 3.1.5.8.1. Security ‐ Switch ‐ RMON ‐ Statistics Configure RMON Statistics table on this page. The entry index key is ID. Delete Check to delete the entry. It will be deleted during the next save. ID Indicates the index of the entry. The range is from 1 to 65535. Data Source Indicates the port ID which wants to be monitored. If in stacking switch, the value must add 1000*(switch ID‐1), for example, if the port is switch 3 port 5, the value is 2005 Buttons  Add New Entry: Click to add a new community entry.  Save: Click to save changes.  Reset: Click to undo any changes made locally and revert to previously saved values. Intelinet 48‐Port Gigabit Ethernet PoE+ Layer2+ Managed Switch User Manual | 68 ...
Page 69: Security ‐ Switch ‐ Rmon ‐ History
Chapter 3: Web Management Security ‐ Switch ‐ RMON ‐ History 3.1.5.8.2. Security ‐ Switch ‐ RMON ‐ History Configure RMON History table on this page. The entry index key is ID. Delete Check to delete the entry. It will be deleted during the next save. ID Indicates the index of the entry. The range is from 1 to 65535. Data Source Indicates the port ID which wants to be monitored. If in stacking switch, the value must add 1000*(switch ID‐1), for example, if the port is switch 3 port 5, the value is 2005. Interval Indicates the interval in seconds for sampling the history statistics data. The range is from 1 to 3600, default value is 1800 seconds. Buckets Indicates the maximum data entries associated this History control entry stored in RMON. The range is from 1 to 3600, default value is 50. Buckets Granted The number of data shall be saved in the RMON. Buttons  Add New Entry: Click to add a new community entry.  Save: Click to save changes.  Reset: Click to undo any changes made locally and revert to previously saved values. ...
Page 70 Chapter 3: Web Management Security ‐ Switch ‐ RMON ‐ Alarm 3.1.5.8.3. Security ‐ Switch ‐ RMON ‐ Alarm Configure RMON Alarm table on this page. The entry index key is ID. Delete Check to delete the entry. It will be deleted during the next save. ID Indicates the index of the entry. The range is from 1 to 65535. Interval Indicates the interval in seconds for sampling and comparing the rising and falling threshold. The range is from 1 to 2^31‐1. Variable Indicates the particular variable to be sampled, the possible variables are:  InOctets: The total number of octets received on the interface, including framing characters.  InUcastPkts: The number of uni‐cast packets delivered to a higher‐layer protocol.  InNUcastPkts: The number of broad‐cast and multi‐cast packets delivered to a higher‐layer protocol.  InDiscards: The number of inbound packets that are discarded even the packets are normal.  InErrors: The number of inbound packets that contained errors preventing them from being deliverable to a higher‐layer protocol.  InUnknownProtos: the number of the inbound packets that were discarded because of the unknown or un‐support protocol.  OutOctets: The number of octets transmitted out of the interface , including framing characters.  OutUcastPkts: The number of uni‐cast packets that request to transmit.  OutNUcastPkts: The number of broad‐cast and multi‐cast packets that request to transmit.  OutDiscards: The number of outbound packets that are discarded event the packets are ...
Page 71: Security ‐ Switch ‐ Rmon ‐ Alarm
Chapter 3: Web Management Security ‐ Switch ‐ RMON ‐ Alarm  Absolute: Get the sample directly.  Delta: Calculate the difference between samples (default). Value The value of the statistic during the last sampling period. Startup Alarm The method of sampling the selected variable and calculating the value to be compared against the thresholds, possible sample types are:  RisingTrigger alarm when the first value is larger than the rising threshold.  FallingTrigger alarm when the first value is less than the falling threshold.  RisingOrFallingTrigger alarm when the first value is larger than the rising threshold or less than the falling threshold (default). Rising Threshold Rising threshold value (‐2147483648‐2147483647). Rising Index Rising event index (1‐65535). Falling Threshold Falling threshold value (‐2147483648‐2147483647) Falling Index Falling event index (1‐65535). Buttons  Add New Entry: Click to add a new community entry.  Save: Click to save changes.  Reset: Click to undo any changes made locally and revert to previously saved values. Intelinet 48‐Port Gigabit Ethernet PoE+ Layer2+ Managed Switch User Manual | 71 ...
Page 72: Security ‐ Switch ‐ Rmon ‐ Event
Chapter 3: Web Management Security ‐ Switch ‐ RMON ‐ Event 3.1.5.8.4. Security ‐ Switch ‐ RMON ‐ Event Configure RMON Event table on this page. The entry index key is ID. Delete Check to delete the entry. It will be deleted during the next save. ID Indicates the index of the entry. The range is from 1 to 65535. Desc Indicates this event, the string length is from 0 to 127, default is a null string. Type Indicates the notification of the event, the possible types are:  None: The total number of octets received on the interface, including framing characters.  Log: The number of uni‐cast packets delivered to a higher‐layer protocol.  snmptrap: The number of broad‐cast and multi‐cast packets delivered to a higher‐layer protocol.  logandtrap: The number of inbound packets that are discarded even the packets are normal. Community Specify the community when trap is sent, the string length is from 0 to 127, default is "public". Event Last Time Indicates the value of sysUpTime at the time this event entry last generated an event. Buttons  Add New Entry: Click to add a new community entry.  Save: Click to save changes.  Reset: Click to undo any changes made locally and revert to previously saved values. ...
Page 73 Chapter 3: Web Management Security ‐ Network ‐ Limit Control 3.1.5.9. Security ‐ Network ‐ Limit Control This page allows you to configure the Port Security Limit Control system and port settings. Limit Control allows for limiting the number of users on a given port. A user is identified by a MAC address and VLAN ID. If Limit Control is enabled on a port, the limit specifies the maximum number of users on the port. If this number is exceeded, an action is taken. The action can be one of the four different actions as described below. The Limit Control module utilizes a lower‐layer module, Port Security module, which manages MAC addresses learnt on the port. The Limit Control configuration consists of two sections, a system‐ and a port‐wide. System Configuration Mode Indicates if Limit Control is globally enabled or disabled on the stack. If globally disabled, other modules may still use the underlying functionality, but limit checks and corresponding actions are disabled. ...
Page 74: Security ‐ Network ‐ Limit Control
Chapter 3: Web Management Security ‐ Network ‐ Limit Control Aging Enabled If checked, secured MAC addresses are subject to aging as discussed under Aging Period . Aging Period If Aging Enabled is checked, then the aging period is controlled with this input. If other modules are using the underlying port security for securing MAC addresses, they may have other requirements to the aging period. The underlying port security will use the shorter requested aging period of all modules that use the functionality. The Aging Period can be set to a number between 10 and 10,000,000 seconds. To understand why aging may be desired, consider the following scenario: Suppose an end‐host is connected to a 3rd party switch or hub, which in turn is connected to a port on this switch on which Limit Control is enabled. The end‐host will be allowed to forward if the limit is not exceeded. Now suppose that the end‐host logs off or powers down. If it wasn't for aging, the end‐host would still take up resources on this switch and will be allowed to forward. To overcome this situation, enable aging. With aging enabled, a timer is started once the end‐host gets secured. When the timer expires, the switch starts looking for frames from the end‐host, and if such frames are not seen within the next Aging Period, the end‐host is assumed to be disconnected, and the corresponding resources are freed on the switch. Port Configuration The table has one row for each port on the selected switch in the stack and a number of columns, which are: Port The port number to which the configuration below applies. Mode Controls whether Limit Control is enabled on this port. Both this and the Global Mode must be set to Enabled for Limit Control to be in effect. Notice that other modules may still use the underlying port security features without enabling Limit Control on a given port. Limit The maximum number of MAC addresses that can be secured on this port. This number cannot exceed 1024. If the limit is exceeded, the corresponding action is taken. The stack is "born" with a total number of MAC addresses from which all ports draw whenever a new MAC address is seen on a Port Security‐enabled port. Since all ports draw from the same pool, it may happen that a configured maximum cannot be granted, if the remaining ports have already used all available MAC addresses. Intelinet 48‐Port Gigabit Ethernet PoE+ Layer2+ Managed Switch User Manual | 74 ...
Page 75 Chapter 3: Web Management Security ‐ Network ‐ Limit Control Action If Limit is reached, the switch can take one of the following actions:  None: Do not allow more than Limit MAC addresses on the port, but take no further action.  Trap: If Limit + 1 MAC addresses is seen on the port, send an SNMP trap. If Aging is disabled, only one SNMP trap will be sent, but with Aging enabled, new SNMP traps will be sent every time the limit gets exceeded.  Shutdown: If Limit + 1 MAC addresses is seen on the port, shut down the port. This implies that all secured MAC addresses will be removed from the port, and no new address will be learned. Even if the link is physically disconnected and reconnected on the port (by disconnecting the cable), the port will remain shut down. There are three ways to re‐open the port: Boot the stack or elect a new master, Disable and re‐enable Limit Control on the port or the stack, Click the Reopen button.  Trap & Shutdown: If Limit + 1 MAC addresses is seen on the port, both the "Trap" and the "Shutdown" actions described above will be taken. State This column shows the current state of the port as seen from the Limit Control's point of view. The state takes one of four values:  Disabled: Limit Control is either globally disabled or disabled on the port.  Ready: The limit is not yet reached. This can be shown for all actions.  Limit Reached: Indicates that the limit is reached on this port. This state can only be shown if Action is set to None or Trap.  Shutdown: Indicates that the port is shut down by the Limit Control module. This state can only be shown if Action is set to Shutdown or Trap & Shutdown. Re‐open Button If a port is shutdown by this module, you may reopen it by clicking this button, which will only be enabled if this is the case. For other methods, refer to Shutdown in the Action section. ...
Page 76 Chapter 3: Web Management Security ‐ Network ‐ Limit Control Intelinet 48‐Port Gigabit Ethernet PoE+ Layer2+ Managed Switch User Manual | 76 ...
Page 77 Chapter 3: Web Management Security ‐ Network ‐ NAS (Network Access Server) 3.1.5.10. Security ‐ Network ‐ NAS (Network Access Server) This page allows you to configure the IEEE 802.1X and MAC‐based authentication system and port settings. The IEEE 802.1X standard defines a port‐based access control procedure that prevents unauthorized access to a network by requiring users to first submit credentials for authentication. One or more central servers, the backend servers, determine whether the user is allowed access to the network. These backend (RADIUS) servers are configured on the "Configuration→Security→AAA" page. The IEEE802.1X standard defines port‐based operation, but non‐standard variants overcome security limitations as shall be explored below. MAC‐based authentication allows for authentication of more than one user on the same port, and doesn't require the user to have special 802.1X supplicant software installed on his system. The switch uses the user's MAC address to authenticate against the backend server. Intruders can create counterfeit MAC addresses, which makes MAC‐based authentication less secure than 802.1X authentication. The NAS configuration consists of two sections, a system‐ and a port‐wide. System Configuration Mode Indicates if NAS is globally enabled or disabled on the stack. If globally disabled, all ports are allowed forwarding of frames. Re‐authentication Enabled If checked, successfully authenticated supplicants/clients are re‐authenticated after the interval specified by the Re‐authentication Period. Re‐authentication for 802.1X‐enabled ports can be used to detect if a new device is plugged into a switch port or if a supplicant is no longer attached. Intelinet 48‐Port Gigabit Ethernet PoE+ Layer2+ Managed Switch User Manual | 77 ...
Page 78: Security ‐ Network ‐ Nas (Network Access Server)
Chapter 3: Web Management Security ‐ Network ‐ NAS (Network Access Server) For MAC‐based ports, re‐authentication is only useful if the RADIUS server configuration has changed. It does not involve communication between the switch and the client, and therefore doesn't imply that a client is still present on a port (see Aging Period below). Re‐authentication Period Determines the period, in seconds, after which a connected client must be re‐authenticated. This is only active if the Re‐authentication Enabled checkbox is checked. Valid values are in the range 1 to 3600 seconds. EAPOL Timeout Determines the time for retransmission of Request Identity EAPOL frames. Valid values are in the range 1 to 65535 seconds. This has no effect for MAC‐based ports. Aging Period This setting applies to the following modes, i.e. modes using the Port Security functionality to secure MAC addresses:  Single 802.1X  Multi 802.1X  MAC‐Based Auth. When the NAS module uses the Port Security module to secure MAC addresses, the Port Security module needs to check for activity on the MAC address in question at regular intervals and free resources if no activity is seen within a given period of time. This parameter controls exactly this period and can be set to a number between 10 and 1000000 seconds. If re‐authentication is enabled and the port is in an 802.1X‐based mode, this is not so critical, since supplicants that are no longer attached to the port will get removed upon the next re‐authentication, which will fail. But if re‐authentication is not enabled, the only way to free resources is by aging the entries. For ports in MAC‐based Auth. mode, re‐authentication doesn't cause direct communication between the switch and the client, so this will not detect whether the client is still attached or not, and the only way to free any resources is to age the entry. Hold Time This setting applies to the following modes, i.e. modes using the Port Security functionality to secure MAC addresses: ...
Page 79 Chapter 3: Web Management Security ‐ Network ‐ NAS (Network Access Server) If a client is denied access ‐ either because the RADIUS server denies the client access or because the RADIUS server request times out (according to the timeout specified on the "Configuration→Security →AAA" page) ‐ the client is put on hold in the Unauthorized state. The hold timer does not count during an on‐going authentication. In MAC‐based Auth. mode, the switch will ignore new frames coming from the client during the hold time. The Hold Time can be set to a number between 10 and 1000000 seconds. RADIUS‐Assigned QoS Enabled RADIUS‐assigned QoS provides a means to centrally control the traffic class to which traffic coming from a successfully authenticated supplicant is assigned on the switch. The RADIUS server must be configured to transmit special RADIUS attributes to take advantage of this feature (see RADIUS‐Assigned QoS Enabled below for a detailed description). The "RADIUS‐Assigned QoS Enabled" checkbox provides a quick way to globally enable/disable RADIUS‐server assigned QoS Class functionality. When checked, the individual ports' ditto setting determine whether RADIUS‐assigned QoS Class is enabled on that port. When unchecked, RADIUS‐server assigned QoS Class is disabled on all ports. RADIUS‐Assigned VLAN Enabled RADIUS‐assigned VLAN provides a means to centrally control the VLAN on which a successfully authenticated supplicant is placed on the switch. Incoming traffic will be classified to and switched on the RADIUS‐assigned VLAN. The RADIUS server must be configured to transmit special RADIUS attributes to take advantage of this feature (see RADIUS‐Assigned VLAN Enabled below for a detailed description). The "RADIUS‐Assigned VLAN Enabled" checkbox provides a quick way to globally enable/disable RADIUS‐server assigned VLAN functionality. When checked, the individual ports' ditto setting determine whether RADIUS‐assigned VLAN is enabled on that port. When unchecked, RADIUS‐server assigned VLAN is disabled on all ports. Guest VLAN Enabled A Guest VLAN is a special VLAN ‐ typically with limited network access ‐ on which 802.1X‐unaware clients are placed after a network administrator‐defined timeout. The switch follows a set of rules for entering and leaving the Guest VLAN as listed below. The "Guest VLAN Enabled" checkbox provides a quick way to globally enable/disable Guest VLAN functionality. When checked, the individual ports' ditto setting determines whether the port can be moved into Guest VLAN. When unchecked, the ability to move to the Guest VLAN is disabled on all Intelinet 48‐Port Gigabit Ethernet PoE+ Layer2+ Managed Switch User Manual | 79 ...
Page 80 Chapter 3: Web Management Security ‐ Network ‐ NAS (Network Access Server) ports. Intelinet 48‐Port Gigabit Ethernet PoE+ Layer2+ Managed Switch User Manual | 80 ...
Page 81 Chapter 3: Web Management Security ‐ Network ‐ NAS (Network Access Server) Guest VLAN ID This is the value that a port's Port VLAN ID is set to if a port is moved into the Guest VLAN. It is only changeable if the Guest VLAN option is globally enabled. Valid values are in the range [1; 4095]. Max. Reauth. Count The number of times the switch transmits an EAPOL Request Identity frame without response before considering entering the Guest VLAN is adjusted with this setting. The value can only be changed if the Guest VLAN option is globally enabled. Valid values are in the range [1; 255]. Allow Guest VLAN if EAPOL Seen The switch remembers if an EAPOL frame has been received on the port for the life‐time of the port. Once the switch considers whether to enter the Guest VLAN, it will first check if this option is enabled or disabled. If disabled (unchecked; default), the switch will only enter the Guest VLAN if an EAPOL frame has not been received on the port for the life‐time of the port. If enabled (checked), the switch will consider entering the Guest VLAN even if an EAPOL frame has been received on the port for the life‐time of the port. The value can only be changed if the Guest VLAN option is globally enabled. Intelinet 48‐Port Gigabit Ethernet PoE+ Layer2+ Managed Switch User Manual | 81 ...
Page 82 Chapter 3: Web Management Security ‐ Network ‐ NAS (Network Access Server) Port Configuration The table has one row for each port on the selected switch in the stack and a number of columns, which are: Port The port number for which the configuration below applies. Admin State If NAS is globally enabled, this selection controls the port's authentication mode. The following modes are available: Force Authorized In this mode, the switch will send one EAPOL Success frame when the port link comes up, and any client on the port will be allowed network access without authentication. Force Unauthorized In this mode, the switch will send one EAPOL Failure frame when the port link comes up, and any client on the port will be disallowed network access. Port‐based 802.1X In the 802.1X‐world, the user is called the supplicant, the switch is the authenticator, and the RADIUS server is the authentication server. The authenticator acts as the man‐in‐the‐middle, forwarding Intelinet 48‐Port Gigabit Ethernet PoE+ Layer2+ Managed Switch User Manual | 82 ...
Page 83 Chapter 3: Web Management Security ‐ Network ‐ NAS (Network Access Server) requests and responses between the supplicant and the authentication server. Frames sent between the supplicant and the switch are special 802.1X frames, known as EAPOL (EAP Over LANs) frames. EAPOL frames encapsulate EAP PDUs (RFC3748). Frames sent between the switch and the RADIUS server are RADIUS packets. RADIUS packets also encapsulate EAP PDUs together with other attributes like the switch's IP address, name, and the supplicant's port number on the switch. EAP is very flexible, in that it allows for different authentication methods, like MD5‐Challenge, PEAP, and TLS. The important thing is that the authenticator (the switch) doesn't need to know which authentication method the supplicant and the authentication server are using, or how many information exchange frames are needed for a particular method. The switch simply encapsulates the EAP part of the frame into the relevant type (EAPOL or RADIUS) and forwards it. When authentication is complete, the RADIUS server sends a special packet containing a success or failure indication. Besides forwarding this decision to the supplicant, the switch uses it to open up or block traffic on the switch port connected to the supplicant. Note: Suppose two backend servers are enabled and that the server timeout is configured to X seconds (using the AAA configuration page), and suppose that the first server in the list is currently down (but not considered dead). Now, if the supplicant retransmits EAPOL Start frames at a rate faster than X seconds, then it will never get authenticated, because the switch will cancel on‐going backend authentication server requests whenever it receives a new EAPOL Start frame from the supplicant. And since the server hasn't yet failed (because the X seconds haven't expired), the same server will be contacted upon the next backend authentication server request from the switch. This scenario will loop forever. Therefore, the server timeout should be smaller than the supplicant's EAPOL Start frame retransmission rate. Single 802.1X In port‐based 802.1X authentication, once a supplicant is successfully authenticated on a port, the whole port is opened for network traffic. This allows other clients connected to the port (for instance through a hub) to piggy‐back on the successfully authenticated client and get network access even though they really aren't authenticated. To overcome this security breach, use the Single 802.1X variant. Single 802.1X is really not an IEEE standard, but features many of the same characteristics as does port‐based 802.1X. In Single 802.1X, at most one supplicant can get authenticated on the port at a time. Normal EAPOL frames are used in the communication between the supplicant and the switch. If more than one supplicant is connected to a port, the one that comes first when the port's link comes up will be the first one considered. If that supplicant doesn't provide valid credentials within a certain amount of time, another supplicant will get a chance. Once a supplicant is successfully Intelinet 48‐Port Gigabit Ethernet PoE+ Layer2+ Managed Switch User Manual | 83 ...
Page 84 Chapter 3: Web Management Security ‐ Network ‐ NAS (Network Access Server) authenticated, only that supplicant will be allowed access. This is the most secure of all the supported modes. In this mode, the Port Security module is used to secure a supplicant's MAC address once successfully authenticated. Multi 802.1X Multi 802.1X is ‐ like Single 802.1X ‐ not an IEEE standard, but a variant that features many of the same characteristics. In Multi 802.1X, one or more supplicants can get authenticated on the same port at the same time. Each supplicant is authenticated individually and secured in the MAC table using the Port Security module. In Multi 802.1X it is not possible to use the multicast BPDU MAC address as destination MAC address for EAPOL frames sent from the switch towards the supplicant, since that would cause all supplicants attached to the port to reply to requests sent from the switch. Instead, the switch uses the supplicant's MAC address, which is obtained from the first EAPOL Start or EAPOL Response Identity frame sent by the supplicant. An exception to this is when no supplicants are attached. In this case, the switch sends EAPOL Request Identity frames using the BPDU multicast MAC address as destination ‐ to wake up any supplicants that might be on the port. The maximum number of supplicants that can be attached to a port can be limited using the Port Security Limit Control functionality. MAC‐based Auth. Unlike port‐based 802.1X, MAC‐based authentication is not a standard, but merely a best‐practices method adopted by the industry. In MAC‐based authentication, users are called clients, and the switch acts as the supplicant on behalf of clients. The initial frame (any kind of frame) sent by a client is snooped by the switch, which in turn uses the client's MAC address as both username and password in the subsequent EAP exchange with the RADIUS server. The 6‐byte MAC address is converted to a string on the following form "xx‐xx‐xx‐xx‐xx‐xx", that is, a dash (‐) is used as separator between the lower‐cased hexadecimal digits. The switch only supports the MD5‐Challenge authentication method, so the RADIUS server must be configured accordingly. When authentication is complete, the RADIUS server sends a success or failure indication, which in turn causes the switch to open up or block traffic for that particular client, using the Port Security module. Only then will frames from the client be forwarded on the switch. There are no EAPOL frames involved in this authentication, and therefore, MAC‐based Authentication has nothing to do with the 802.1X standard. The advantage of MAC‐based authentication over 802.1X‐based authentication is that the clients don't need special supplicant software to authenticate. The disadvantage is that MAC addresses can Intelinet 48‐Port Gigabit Ethernet PoE+ Layer2+ Managed Switch User Manual | 84 ...
Page 85 Chapter 3: Web Management Security ‐ Network ‐ NAS (Network Access Server) be spoofed by malicious users ‐ equipment whose MAC address is a valid RADIUS user can be used by anyone. Also, only the MD5‐Challenge method is supported. The maximum number of clients that can be attached to a port can be limited using the Port Security Limit Control functionality. RADIUS‐Assigned QoS Enabled When RADIUS‐Assigned QoS is both globally enabled and enabled (checked) on a given port, the switch reacts to QoS Class information carried in the RADIUS Access‐Accept packet transmitted by the RADIUS server when a supplicant is successfully authenticated. If present and valid, traffic received on the supplicant's port will be classified to the given QoS Class. If (re‐)authentication fails or the RADIUS Access‐Accept packet no longer carries a QoS Class or it's invalid, or the supplicant is otherwise no longer present on the port, the port's QoS Class is immediately reverted to the original QoS Class (which may be changed by the administrator in the meanwhile without affecting the RADIUS‐assigned). This option is only available for single‐client modes, i.e.  Port‐based 802.1X  Single 802.1X RADIUS attributes used in identifying a QoS Class: The User‐Priority‐Table attribute defined in RFC4675 forms the basis for identifying the QoS Class in an Access‐Accept packet. Only the first occurrence of the attribute in the packet will be considered, and to be valid, it must follow this rule:  All 8 octets in the attribute's value must be identical and consist of ASCII characters in the range '0' ‐ '7', which translates into the desired QoS Class in the range [0; 7]. RADIUS‐Assigned VLAN Enabled When RADIUS‐Assigned VLAN is both globally enabled and enabled (checked) for a given port, the switch reacts to VLAN ID information carried in the RADIUS Access‐Accept packet transmitted by the RADIUS server when a supplicant is successfully authenticated. If present and valid, the port's Port VLAN ID will be changed to this VLAN ID, the port will be set to be a member of that VLAN ID, and the port will be forced into VLAN unaware mode. Once assigned, all traffic arriving on the port will be classified and switched on the RADIUS‐assigned VLAN ID. Intelinet 48‐Port Gigabit Ethernet PoE+ Layer2+ Managed Switch User Manual | 85 ...
Page 86 Chapter 3: Web Management Security ‐ Network ‐ NAS (Network Access Server) If (re‐)authentication fails or the RADIUS Access‐Accept packet no longer carries a VLAN ID or it's invalid, or the supplicant is otherwise no longer present on the port, the port's VLAN ID is immediately reverted to the original VLAN ID (which may be changed by the administrator in the meanwhile without affecting the RADIUS‐assigned). This option is only available for single‐client modes, i.e.  Port‐based 802.1X  Single 802.1X For trouble‐shooting VLAN assignments, use the "Monitor→VLANs→VLAN Membership and VLAN Port" pages. These pages show which modules have (temporarily) overridden the current Port VLAN configuration. RADIUS attributes used in identifying a VLAN ID: RFC2868 and RFC3580 form the basis for the attributes used in identifying a VLAN ID in an Access‐Accept packet. The following criteria are used:  The Tunnel‐Medium‐Type, Tunnel‐Type, and Tunnel‐Private‐Group‐ID attributes must all be present at least once in the Access‐Accept packet.  The switch looks for the first set of these attributes that have the same Tag value and fulfil the following requirements (if Tag == 0 is used, the Tunnel‐Private‐Group‐ID does not need to include a Tag):  Value of Tunnel‐Medium‐Type must be set to "IEEE‐802" (ordinal 6).  Value of Tunnel‐Type must be set to "VLAN" (ordinal 13).  Value of Tunnel‐Private‐Group‐ID must be a string of ASCII chars in the range '0' ‐ '9', which is interpreted as a decimal string representing the VLAN ID. Leading '0's are discarded. The final value must be in the range [1; 4095]. Guest VLAN Enabled When Guest VLAN is both globally enabled and enabled (checked) for a given port, the switch considers moving the port into the Guest VLAN according to the rules outlined below. This option is only available for EAPOL‐based modes, i.e.:  Port‐based 802.1X ...
Page 87 Chapter 3: Web Management Security ‐ Network ‐ NAS (Network Access Server) configuration. Intelinet 48‐Port Gigabit Ethernet PoE+ Layer2+ Managed Switch User Manual | 87 ...
Page 88 Chapter 3: Web Management Security ‐ Network ‐ NAS (Network Access Server) Guest VLAN Operation: When a Guest VLAN enabled port's link comes up, the switch starts transmitting EAPOL Request Identity frames. If the number of transmissions of such frames exceeds Max. Reauth. Count and no EAPOL frames have been received in the meanwhile, the switch considers entering the Guest VLAN. The interval between transmission of EAPOL Request Identity frames is configured with EAPOL Timeout. If Allow Guest VLAN if EAPOL Seen is enabled, the port will now be placed in the Guest VLAN. If disabled, the switch will first check its history to see if an EAPOL frame has previously been received on the port (this history is cleared if the port link goes down or the port's Admin State is changed), and if not, the port will be placed in the Guest VLAN. Otherwise it will not move to the Guest VLAN, but continue transmitting EAPOL Request Identity frames at the rate given by EAPOL Timeout. Once in the Guest VLAN, the port is considered authenticated, and all attached clients on the port are allowed access on this VLAN. The switch will not transmit an EAPOL Success frame when entering the Guest VLAN. While in the Guest VLAN, the switch monitors the link for EAPOL frames, and if one such frame is received, the switch immediately takes the port out of the Guest VLAN and starts authenticating the supplicant according to the port mode. If an EAPOL frame is received, the port will never be able to go back into the Guest VLAN if the "Allow Guest VLAN if EAPOL Seen" is disabled. Port State The current state of the port. It can undertake one of the following values:  Globally Disabled: NAS is globally disabled.  Link Down: NAS is globally enabled, but there is no link on the port.  Authorized: The port is in Force Authorized or a single‐supplicant mode and the supplicant is authorized.  Unauthorized: The port is in Force Unauthorized or a single‐supplicant mode and the supplicant is not successfully authorized by the RADIUS server.  X Auth/Y Unauth: The port is in a multi‐supplicant mode. Currently X clients are authorized and Y are unauthorized. Restart Two buttons are available for each row. The buttons are only enabled when authentication is globally enabled and the port's Admin State is in an EAPOL‐based or MAC‐based mode. ...
Page 89 Chapter 3: Web Management Security ‐ Network ‐ NAS (Network Access Server)  Re‐authenticate: Schedules a re‐authentication whenever the quiet‐period of the port runs out (EAPOL‐based authentication). For MAC‐based authentication, re‐authentication will be attempted immediately. The button only has effect for successfully authenticated clients on the port and will not cause the clients to get temporarily unauthorized.  Reinitialize: Forces a reinitialization of the clients on the port and thereby a re‐authentication immediately. The clients will transfer to the unauthorized state while the re‐authentication is in progress. Buttons  Add New Entry: Click to add a new community entry.  Save: Click to save changes.  Reset: Click to undo any changes made locally and revert to previously saved values. Intelinet 48‐Port Gigabit Ethernet PoE+ Layer2+ Managed Switch User Manual | 89 ...
Page 90 Chapter 3: Web Management Security ‐ Network ‐ ACL ‐ Ports 3.1.5.11. Security ‐ Network ‐ ACL 3.1.5.11.1. Security ‐ Network ‐ ACL ‐ Ports Configure the ACL parameters (ACE) of each switch port. These parameters will affect frames received on a port unless the frame matches a specific ACE. The settings relate to the currently selected stack unit, as reflected by the page header. Port The logical port for the settings contained in the same row. Policy ID Select the policy to apply to this port. The allowed values are 0 through 255. The default value is 0. Action Select whether forwarding is permitted ("Permit") or denied ("Deny"). The default value is "Permit". Rate Limiter ID Select which rate limiter to apply on this port. The allowed values are Disabled or the values 1 through 16. The default value is "Disabled". Port Redirect Select which port frames are redirected on. The allowed values are Disabled or a specific port number and it can't be set when action is permitted. The default value is "Disabled". Intelinet 48‐Port Gigabit Ethernet PoE+ Layer2+ Managed Switch User Manual | 90 ...
Page 91: Security ‐ Network ‐ Acl
Chapter 3: Web Management Security ‐ Network ‐ ACL ‐ Ports Logging Specify the logging operation of this port. The allowed values are:  Enabled: Frames received on the port are stored in the System Log.  Disabled: Frames received on the port are not logged. The default value is "Disabled". Please note that the System Log memory size and logging rate is limited. Shutdown Specify the port shut down operation of this port. The allowed values are:  Enabled: If a frame is received on the port, the port will be disabled.  Disabled: Port shut down is disabled. The default value is "Disabled". State Specify the port state of this port. The allowed values are:  Enabled: To reopen ports by changing the volatile port configuration of the ACL user module.  Disabled: To close ports by changing the volatile port configuration of the ACL user module. The default value is "Enabled". Counter Counts the number of frames that match this ACE. Buttons ...
Page 92: Security ‐ Network ‐ Acl ‐ Rate Limiter
Chapter 3: Web Management Security ‐ Network ‐ ACL ‐ Rate Limiter 3.1.5.11.2. Security ‐ Network ‐ ACL ‐ Rate Limiter Configure the rate limiter for the ACL of the switch. Rate Limiter ID The rate limiter ID for the settings contained in the same row. Rate The allowed values are: 0‐131071 in pps Buttons  Save: Click to save changes.  Reset: Click to undo any changes made locally and revert to previously saved values. Intelinet 48‐Port Gigabit Ethernet PoE+ Layer2+ Managed Switch User Manual | 92 ...
Page 93: Security ‐ Network ‐ Acl ‐ Access Control List
Chapter 3: Web Management Security ‐ Network ‐ DHCP ‐ Relay 3.1.5.11.3. Security ‐ Network ‐ ACL ‐ Access Control List This page shows the Access Control List (ACL), which is made up of the ACEs defined on this switch. Each row describes the ACE that is defined. The maximum number of ACEs is 512 on each switch. Click on the lowest plus sign to add a new ACE to the list. The reserved ACEs used for internal protocol, cannot be edited or deleted, the order sequence cannot be changed and the priority is highest. Notice: the ACE won't apply to any stacking or none existing port. Ingress Port Indicates the ingress port of the ACE. Possible values are:  All: The ACE will match all ingress port.  Port: The ACE will match a specific ingress port. Policy / Bitmask Indicates the policy number and bitmask of the ACE. Frame Type Indicates the frame type of the ACE. Possible values are:  Any: The ACE will match any frame type.  EType: The ACE will match Ethernet Type frames. Note that an Ethernet Type based ACE will not get matched by IP and ARP frames.  ARP: The ACE will match ARP/RARP frames.  IPv4: The ACE will match all IPv4 frames. ...
Page 94 Chapter 3: Web Management Security ‐ Network ‐ DHCP ‐ Relay Port Redirect Indicates the port redirect operation of the ACE. Frames matching the ACE are redirected to the port number. The allowed values are Disabled or a specific port number. When Disabled is displayed, the port redirect operation is disabled. Counter The counter indicates the number of times the ACE was hit by a frame. Modification Buttons You can modify each ACE (Access Control Entry) in the table using the following buttons:  : Inserts a new ACE before the current row.  : Edits the ACE row.  : Moves the ACE up the list.  : Moves the ACE down the list.  : Deletes the ACE.  : The lowest plus sign adds a new entry at the bottom of the ACE listings. Buttons  Auto‐refresh: Check this box to refresh the page automatically. Automatic refresh occurs every 3 seconds.  Refresh: Click to refresh the page; any changes made locally will be undone.  Clear: Click to clear the counters.  Remove All: Click to remove all ACEs. ...
Page 95 Chapter 3: Web Management Security ‐ Network ‐ DHCP ‐ Relay Configure an ACE (Access Control Entry) on this page. An ACE consists of several parameters. These parameters vary according to the frame type that you select. First select the ingress port for the ACE, and then select the frame type. Different parameter options are displayed depending on the frame type selected. A frame that hits this ACE matches the configuration that is defined here. Ingress Port Select the ingress port for which this ACE applies.  All: The ACE applies to all port.  Port n: The ACE applies to this port number, where n is the number of the switch port. Policy Filter Specify the policy number filter for this ACE.  Any: No policy filter is specified. (policy filter status is "don't‐care".)  Specific: If you want to filter a specific policy with this ACE, choose this value. Two field for entering an policy value and bitmask appears. Policy Value When "Specific" is selected for the policy filter, you can enter a specific policy value. The allowed range is 0 to 255. Policy Bitmask When "Specific" is selected for the policy filter, you can enter a specific policy bitmask. The allowed range is 0x0 to 0xff. Switch Select the switch to which this ACE applies.  Any: The ACE applies to any port. ...
Page 96 Chapter 3: Web Management Security ‐ Network ‐ DHCP ‐ Relay Frame Type Select the frame type for this ACE. These frame types are mutually exclusive.  Any: Any frame can match this ACE.  Ethernet Type: Only Ethernet Type frames can match this ACE. The IEEE 802.3 describes the value of Length/Type Field specifications to be greater than or equal to 1536 decimal (equal to 0600 hexadecimal).  ARP: Only ARP frames can match this ACE. Notice the ARP frames won't match the ACE with ethernet type.  IPv4: Only IPv4 frames can match this ACE. Notice the IPv4 frames won't match the ACE with ethernet type.  IPv6: Only IPv6 frames can match this ACE. Notice the IPv6 frames won't match the ACE with Ethernet type. Action Specify the action to take with a frame that hits this ACE.  Permit: The frame that hits this ACE is granted permission for the ACE operation.  Deny: The frame that hits this ACE is dropped. Rate Limiter Specify the rate limiter in number of base units. The allowed range is 1 to 16. Disabled indicates that the rate limiter operation is disabled. Port Redirect Frames that hit the ACE are redirected to the port number specified here. The allowed range is the same as the switch port number range. Disabled indicates that the port redirect operation is disabled and the specific port number of 'Port Redirect' can't be set when action is permitted. ...
Page 97 Chapter 3: Web Management Security ‐ Network ‐ DHCP ‐ Relay MAC Parameters SMAC Filter (Only displayed when the frame type is Ethernet Type or ARP.) Specify the source MAC filter for this ACE.  Any: No SMAC filter is specified. (SMAC filter status is "don't‐care".)  Specific: If you want to filter a specific source MAC address with this ACE, choose this value. A field for entering an SMAC value appears. SMAC Value When "Specific" is selected for the SMAC filter, you can enter a specific source MAC address. The legal format is "xx‐xx‐xx‐xx‐xx‐xx" or "xx.xx.xx.xx.xx.xx" or "xxxxxxxxxxxx" (x is a hexadecimal digit). A frame that hits this ACE matches this SMAC value. DMAC Filter Specify the destination MAC filter for this ACE.  Any: No DMAC filter is specified. (DMAC filter status is "don't‐care".)  MC: Frame must be multicast.  BC: Frame must be broadcast.  UC: Frame must be unicast.  Specific: If you want to filter a specific destination MAC address with this ACE, choose this value. A field for entering a DMAC value appears. DMAC Value When "Specific" is selected for the DMAC filter, you can enter a specific destination MAC address. ...
Page 98 Chapter 3: Web Management Security ‐ Network ‐ DHCP ‐ Relay VLAN Parameters VLAN ID Filter Specify the VLAN ID filter for this ACE.  Any: No VLAN ID filter is specified. (VLAN ID filter status is "don't‐care".)  Specific: If you want to filter a specific VLAN ID with this ACE, choose this value. A field for entering a VLAN ID number appears. VLAN ID When "Specific" is selected for the VLAN ID filter, you can enter a specific VLAN ID number. The allowed range is 1 to 4095. A frame that hits this ACE matches this VLAN ID value. Tag Priority Specify the tag priority for this ACE. A frame that hits this ACE matches this tag priority. The allowed number range is 0 to 7. The value Any means that no tag priority is specified (tag priority is "don't‐care".) Intelinet 48‐Port Gigabit Ethernet PoE+ Layer2+ Managed Switch User Manual | 98 ...
Page 99 Chapter 3: Web Management Security ‐ Network ‐ DHCP ‐ Relay ARP Parameters The ARP parameters can be configured when Frame Type "ARP" is selected. ARP/RARP Specify the available ARP/RARP opcode (OP) flag for this ACE.  Any: No ARP/RARP OP flag is specified. (OP is "don't‐care".)  ARP: Frame must have ARP opcode set to ARP.  RARP: Frame must have RARP opcode set to RARP.  Other: Frame has unknown ARP/RARP Opcode flag. Request/Reply Specify the available Request/Reply opcode (OP) flag for this ACE.  Any: No Request/Reply OP flag is specified. (OP is "don't‐care".)  Request: Frame must have ARP Request or RARP Request OP flag set.  Reply: Frame must have ARP Reply or RARP Reply OP flag. Sender IP Filter Specify the sender IP filter for this ACE.  Any: No sender IP filter is specified. (Sender IP filter is "don't‐care".)  Host: Sender IP filter is set to Host. Specify the sender IP address in the SIP Address field ...
Page 100 Chapter 3: Web Management Security ‐ Network ‐ DHCP ‐ Relay Target IP Filter Specify the target IP filter for this specific ACE.  Any: No target IP filter is specified. (Target IP filter is "don't‐care".)  Host: Target IP filter is set to Host. Specify the target IP address in the Target IP Address field that appears. Network: Target IP filter is set to Network. Specify the target IP address and target IP mask in the Target IP Address and Target IP Mask fields that appear. Target IP Address When "Host" or "Network" is selected for the target IP filter, you can enter a specific target IP address in dotted decimal notation. Target IP Mask When "Network" is selected for the target IP filter, you can enter a specific target IP mask in dotted decimal notation. ARP Sender MAC Match Specify whether frames can hit the action according to their sender hardware address field (SHA) settings.  0: ARP frames where SHA is not equal to the SMAC address.  1: ARP frames where SHA is equal to the SMAC address.  Any: Any value is allowed ("don't‐care"). RARP Target MAC Match Specify whether frames can hit the action according to their target hardware address field (THA) settings.  0: RARP frames where THA is not equal to the target MAC address. ...
Page 101 Chapter 3: Web Management Security ‐ Network ‐ DHCP ‐ Relay IP Specify whether frames can hit the action according to their ARP/RARP hardware address space (HRD) settings.  0: ARP/RARP frames where the HLD is not equal to Ethernet (1).  1: ARP/RARP frames where the HLD is equal to Ethernet (1).  Any: Any value is allowed ("don't‐care"). Ethernet Specify whether frames can hit the action according to their ARP/RARP protocol address space (PRO) settings.  0: ARP/RARP frames where the PRO is not equal to IP (0x800).  1: ARP/RARP frames where the PRO is equal to IP (0x800).  Any: Any value is allowed ("don't‐care"). Intelinet 48‐Port Gigabit Ethernet PoE+ Layer2+ Managed Switch User Manual | 101 ...
Page 102 Chapter 3: Web Management Security ‐ Network ‐ DHCP ‐ Relay IP Parameters The IP parameters can be configured when Frame Type "IPv4" is selected. IP Protocol Filter Specify the IP protocol filter for this ACE.  Any: No IP protocol filter is specified ("don't‐care").  Specific: If you want to filter a specific IP protocol filter with this ACE, choose this value. A field for entering an IP protocol filter appears.  ICMP: Select ICMP to filter IPv4 ICMP protocol frames. Extra fields for defining ICMP parameters will appear. These fields are explained later in this help file.  UDP: Select UDP to filter IPv4 UDP protocol frames. Extra fields for defining UDP parameters will appear. These fields are explained later in this help file.  TCP: Select TCP to filter IPv4 TCP protocol frames. Extra fields for defining TCP parameters will appear. These fields are explained later in this help file. IP Protocol Value When "Specific" is selected for the IP protocol value, you can enter a specific value. The allowed range is 0 to 255. A frame that hits this ACE matches this IP protocol value. IP TTL Specify the Time‐to‐Live settings for this ACE.  zero: IPv4 frames with a Time‐to‐Live field greater than zero must not be able to match this entry.  non‐zero: IPv4 frames with a Time‐to‐Live field greater than zero must be able to match this ...
Page 103 Chapter 3: Web Management Security ‐ Network ‐ DHCP ‐ Relay No: IPv4 frames where the MF bit is set or the FRAG OFFSET field is greater than zero must not be able to match this entry.  Yes: IPv4 frames where the MF bit is set or the FRAG OFFSET field is greater than zero must be able to match this entry.  Any: Any value is allowed ("don't‐care"). IP Option Specify the options flag setting for this ACE.  No: IPv4 frames where the options flag is set must not be able to match this entry.  Yes: IPv4 frames where the options flag is set must be able to match this entry.  Any: Any value is allowed ("don't‐care"). SIP Filter Specify the source IP filter for this ACE.  Any: No source IP filter is specified. (Source IP filter is "don't‐care".)  Host: Source IP filter is set to Host. Specify the source IP address in the SIP Address field that appears.  Network: Source IP filter is set to Network. Specify the source IP address and source IP mask in the SIP Address and SIP Mask fields that appear. SIP Address When "Host" or "Network" is selected for the source IP filter, you can enter a specific SIP address in dotted decimal notation. ...
Page 104 Chapter 3: Web Management Security ‐ Network ‐ DHCP ‐ Relay When "Network" is selected for the destination IP filter, you can enter a specific DIP mask in dotted decimal notation. Intelinet 48‐Port Gigabit Ethernet PoE+ Layer2+ Managed Switch User Manual | 104 ...
Page 105 Chapter 3: Web Management Security ‐ Network ‐ DHCP ‐ Relay ICMP Parameters ICMP Type Filter Specify the ICMP filter for this ACE.  Any: No ICMP filter is specified (ICMP filter status is "don't‐care").  Specific: If you want to filter a specific ICMP filter with this ACE, you can enter a specific ICMP value. A field for entering an ICMP value appears. ICMP Type Value When "Specific" is selected for the ICMP filter, you can enter a specific ICMP value. The allowed range is 0 to 255. A frame that hits this ACE matches this ICMP value. ICMP Code Filter Specify the ICMP code filter for this ACE.  Any: No ICMP code filter is specified (ICMP code filter status is "don't‐care").  Specific: If you want to filter a specific ICMP code filter with this ACE, you can enter a specific ICMP code value. A field for entering an ICMP code value appears. ICMP Code Value When "Specific" is selected for the ICMP code filter, you can enter a specific ICMP code value. The allowed range is 0 to 255. A frame that hits this ACE matches this ICMP code value. Intelinet 48‐Port Gigabit Ethernet PoE+ Layer2+ Managed Switch User Manual | 105 ...
Page 106 Chapter 3: Web Management Security ‐ Network ‐ DHCP ‐ Relay TCP/UDP Parameters TCP/UDP Source Filter Specify the TCP/UDP source filter for this ACE.  Any: No TCP/UDP source filter is specified (TCP/UDP source filter status is "don't‐care").  Specific: If you want to filter a specific TCP/UDP source filter with this ACE, you can enter a specific TCP/UDP source value. A field for entering a TCP/UDP source value appears.  Range: If you want to filter a specific TCP/UDP source range filter with this ACE, you can enter a specific TCP/UDP source range value. A field for entering a TCP/UDP source value appears. TCP/UDP Source No. When "Specific" is selected for the TCP/UDP source filter, you can enter a specific TCP/UDP source value. The allowed range is 0 to 65535. A frame that hits this ACE matches this TCP/UDP source value. TCP/UDP Source Range When "Range" is selected for the TCP/UDP source filter, you can enter a specific TCP/UDP source range value. The allowed range is 0 to 65535. A frame that hits this ACE matches this TCP/UDP source value. TCP/UDP Destination Filter Specify the TCP/UDP destination filter for this ACE.  Any: No TCP/UDP destination filter is specified (TCP/UDP destination filter status is "don't‐care").  Specific: If you want to filter a specific TCP/UDP destination filter with this ACE, you can ...
Page 107 Chapter 3: Web Management Security ‐ Network ‐ DHCP ‐ Relay enter a specific TCP/UDP destination value. A field for entering a TCP/UDP destination value appears.  Range: If you want to filter a specific range TCP/UDP destination filter with this ACE, you can enter a specific TCP/UDP destination range value. A field for entering a TCP/UDP destination value appears. TCP/UDP Destination Number When "Specific" is selected for the TCP/UDP destination filter, you can enter a specific TCP/UDP destination value. The allowed range is 0 to 65535. A frame that hits this ACE matches this TCP/UDP destination value. TCP/UDP Destination Range When "Range" is selected for the TCP/UDP destination filter, you can enter a specific TCP/UDP destination range value. The allowed range is 0 to 65535. A frame that hits this ACE matches this TCP/UDP destination value. TCP FIN Specify the TCP "No more data from sender" (FIN) value for this ACE.  0: TCP frames where the FIN field is set must not be able to match this entry.  1: TCP frames where the FIN field is set must be able to match this entry.  Any: Any value is allowed ("don't‐care"). TCP SYN Specify the TCP "Synchronize sequence numbers" (SYN) value for this ACE.  0: TCP frames where the SYN field is set must not be able to match this entry.  1: TCP frames where the SYN field is set must be able to match this entry. ...
Page 108 Chapter 3: Web Management Security ‐ Network ‐ DHCP ‐ Relay TCP ACK Specify the TCP "Acknowledgment field significant" (ACK) value for this ACE.  0: TCP frames where the ACK field is set must not be able to match this entry.  1: TCP frames where the ACK field is set must be able to match this entry.  Any: Any value is allowed ("don't‐care"). TCP URG Specify the TCP "Urgent Pointer field significant" (URG) value for this ACE.  0: TCP frames where the URG field is set must not be able to match this entry.  1: TCP frames where the URG field is set must be able to match this entry.  Any: Any value is allowed ("don't‐care"). Intelinet 48‐Port Gigabit Ethernet PoE+ Layer2+ Managed Switch User Manual | 108 ...
Page 109 Chapter 3: Web Management Security ‐ Network ‐ DHCP ‐ Relay Ethernet Type Parameters The Ethernet Type parameters can be configured when Frame Type "Ethernet Type" is selected. EtherType Filter Specify the Ethernet type filter for this ACE.  Any: No EtherType filter is specified (EtherType filter status is "don't‐care").  Specific: If you want to filter a specific EtherType filter with this ACE, you can enter a specific EtherType value. A field for entering a EtherType value appears. Ethernet Type Value When "Specific" is selected for the EtherType filter, you can enter a specific EtherType value. The allowed range is 0x600 to 0xFFFF but excluding 0x800(IPv4), 0x806(ARP) and 0x86DD(IPv6). A frame that hits this ACE matches this EtherType value. Buttons  Save: Click to save changes.  Reset: Click to undo any changes made locally and revert to previously saved values.  Cancel: Return to the previous page. Intelinet 48‐Port Gigabit Ethernet PoE+ Layer2+ Managed Switch User Manual | 109 ...
Page 110 Chapter 3: Web Management Security ‐ Network ‐ IP Source Guard ‐ Configuration 3.1.5.12. Security ‐ Network ‐ IP Source Guard 3.1.5.12.1. Security ‐ Network ‐ IP Source Guard ‐ Configuration This page provides IP Source Guard related configuration. Mode of IP Source Guard Configuration Enable the Global IP Source Guard or disable the Global IP Source Guard. All configured ACEs will be lost when the mode is enabled. Port Mode Configuration Specify IP Source Guard is enabled on which ports. Only when both Global Mode and Port Mode on a given port are enabled, IP Source Guard is enabled on this given port. Max Dynamic Clients Specify the maximum number of dynamic clients that can be learned on given port. This value can be 0, 1, 2 or unlimited. If the port mode is enabled and the value of max dynamic client is equal to 0, it means only allow the IP packets forwarding that are matched in static entries on the specific port. Buttons  Save: Click to save changes.  Reset: Click to undo any changes made locally and revert to previously saved values.  Translate Dynamic to Static: Click to translate all dynamic entries to static entries. Intelinet 48‐Port Gigabit Ethernet PoE+ Layer2+ Managed Switch User Manual | 110 ...
Page 111: Security ‐ Network ‐ Ip Source Guard
Chapter 3: Web Management Security ‐ Network ‐ IP Source Guard ‐ Static Table 3.1.5.12.2. Security ‐ Network ‐ IP Source Guard ‐ Static Table Delete Check to delete the entry. It will be deleted during the next save. Port The logical port for the settings. VLAN ID The vlan id for the settings. IP Address Allowed Source IP address. IP Mask It can be used for calculating the allowed network with IP address. Buttons  Add New Entry: Click to add a new entry to the Static IP Source Guard table.  Save: Click to save changes.  Reset: Click to undo any changes made locally and revert to previously saved values. Intelinet 48‐Port Gigabit Ethernet PoE+ Layer2+ Managed Switch User Manual | 111 ...
Page 112 Chapter 3: Web Management Security ‐ Network ‐ ARP Inspection ‐ Configuration 3.1.5.13. Security ‐ Network ‐ ARP Inspection 3.1.5.13.1. Security ‐ Network ‐ ARP Inspection ‐ Configuration This page provides ARP Inspection related configuration. Mode of ARP Inspection Configuration Enable the Global ARP Inspection or disable the Global ARP Inspection. Port Mode Configuration Specify ARP Inspection is enabled on which ports. Only when both Global Mode and Port Mode on a given port are enabled, ARP Inspection is enabled on this given port. Buttons  Save: Click to save changes.  Reset: Click to undo any changes made locally and revert to previously saved values.  Translate Dynamic to Static: Click to translate all dynamic entries to static entries. Intelinet 48‐Port Gigabit Ethernet PoE+ Layer2+ Managed Switch User Manual | 112 ...
Page 113: Security ‐ Network ‐ Arp Inspection
Chapter 3: Web Management Security ‐ Network ‐ ARP Inspection ‐ Static Table 3.1.5.13.2. Security ‐ Network ‐ ARP Inspection ‐ Static Table Delete Check to delete the entry. It will be deleted during the next save. Port The logical port for the settings. VLAN ID The vlan id for the settings. MAC Address Allowed Source MAC address in ARP request packets. IP Address Allowed Source IP address in ARP request packets. Buttons  Add New Entry: Click to add a new entry to the Static IP Source Guard table.  Save: Click to save changes.  Reset: Click to undo any changes made locally and revert to previously saved values. Intelinet 48‐Port Gigabit Ethernet PoE+ Layer2+ Managed Switch User Manual | 113 ...
Page 114 Chapter 3: Web Management Security ‐ AAA 3.1.5.14. Security ‐ AAA Common Server Configuration These setting are common for all of the Authentication Servers. Timeout The Timeout, which can be set to a number between 3 and 3600 seconds, is the maximum time to wait for a reply from a server. If the server does not reply within this time frame, we will consider it to be dead and continue with the next enabled server (if any). RADIUS servers are using the UDP protocol, which is unreliable by design. In order to cope with lost frames, the timeout interval is divided into 3 subintervals of equal length. If a reply is not received within the subinterval, the request is transmitted again. This algorithm causes the RADIUS server to be queried up to 3 times before it is considered to be dead. Dead Time The Dead Time, which can be set to a number between 0 and 3600 seconds, is the period during which the switch will not send new requests to a server that has failed to respond to a previous request. This will stop the switch from continually trying to contact a server that it has already determined as dead. Setting the Dead Time to a value greater than 0 (zero) will enable this feature, but only if more than one server has been configured. Intelinet 48‐Port Gigabit Ethernet PoE+ Layer2+ Managed Switch User Manual | 114 ...
Page 115: Security ‐ Aaa
Chapter 3: Web Management Security ‐ AAA RADIUS Authentication Server Configuration The table has one row for each RADIUS Authentication Server and a number of columns, which are: # The RADIUS Authentication Server number for which the configuration below applies. Enabled Enable the RADIUS Authentication Server by checking this box. IP Address/Hostname The IP address or hostname of the RADIUS Authentication Server. IP address is expressed in dotted decimal notation. Port The UDP port to use on the RADIUS Authentication Server. If the port is set to 0 (zero), the default port (1812) is used on the RADIUS Authentication Server. Secret The secret ‐ up to 29 characters long ‐ shared between the RADIUS Authentication Server and the stack. Intelinet 48‐Port Gigabit Ethernet PoE+ Layer2+ Managed Switch User Manual | 115 ...
Page 116 Chapter 3: Web Management Security ‐ AAA RADIUS Accounting Server Configuration The table has one row for each RADIUS Accounting Server and a number of columns, which are: # The RADIUS Accounting Server number for which the configuration below applies. Enabled Enable the RADIUS Accounting Server by checking this box. IP Address/Hostname The IP address or hostname of the RADIUS Accounting Server. IP address is expressed in dotted decimal notation. Port The UDP port to use on the RADIUS Accounting Server. If the port is set to 0 (zero), the default port (1813) is used on the RADIUS Accounting Server. Secret The secret ‐ up to 29 characters long ‐ shared between the RADIUS Accounting Server and the stack. Intelinet 48‐Port Gigabit Ethernet PoE+ Layer2+ Managed Switch User Manual | 116 ...
Page 117 Chapter 3: Web Management Security ‐ AAA TACACS+ Authentication Server Configuration The table has one row for each TACACS+ Authentication Server and a number of columns, which are: # The TACACS+ Authentication Server number for which the configuration below applies. Enabled Enable the TACACS+ Authentication Server by checking this box. IP Address/Hostname The IP address or hostname of the TACACS+ Authentication Server. IP address is expressed in dotted decimal notation. Port The TCP port to use on the TACACS+ Authentication Server. If the port is set to 0 (zero), the default port (49) is used on the TACACS+ Authentication Server. Secret The secret ‐ up to 29 characters long ‐ shared between the TACACS+ Authentication Server and the stack. Buttons  Save: Click to save changes.  Reset: Click to undo any changes made locally and revert to previously saved values. Intelinet 48‐Port Gigabit Ethernet PoE+ Layer2+ Managed Switch User Manual | 117 ...
Page 118: Configuration ‐ Aggregation
Chapter 3: Web Management Aggregation ‐ Static 3.1.6. Configuration ‐ Aggregation 3.1.6.1. Aggregation ‐ Static This page is used to configure the Aggregation hash mode and the aggregation group. Hash Code Contributors Source MAC Address The Source MAC address can be used to calculate the destination port for the frame. Check to enable the use of the Source MAC address, or uncheck to disable. By default, Source MAC Address is enabled. Destination MAC Address The Destination MAC Address can be used to calculate the destination port for the frame. Check to enable the use of the Destination MAC Address, or uncheck to disable. By default, Destination MAC Address is disabled. IP Address The IP address can be used to calculate the destination port for the frame. Check to enable the use of the IP Address, or uncheck to disable. By default, IP Address is enabled. TCP/UDP Port Number The TCP/UDP port number can be used to calculate the destination port for the frame. Check to enable the use of the TCP/UDP Port Number, or uncheck to disable. By default, TCP/UDP Port Number is enabled. Intelinet 48‐Port Gigabit Ethernet PoE+ Layer2+ Managed Switch User Manual | 118 ...
Page 119: Aggregation ‐ Static
Chapter 3: Web Management Aggregation ‐ Static Aggregation Group Configuration Locality Indicates the aggregation group type. This field is only valid for stackable switches.  Global: The group members may reside on different units in the stack. Each global aggregation may consist of up to 8 members.  Local: The group members reside on the same unit. Each local aggregation may consist of up to 16 members. Group ID Indicates the group ID for the settings contained in the same row. Group ID "Normal" indicates there is no aggregation. Only one group ID is valid per port. Port Members Each switch port is listed for each group ID. Select a radio button to include a port in an aggregation, or clear the radio button to remove the port from the aggregation. By default, no ports belong to any aggregation group. Only full duplex ports can join an aggregation and ports must be in the same speed in each group. Buttons  Save: Click to save changes.  Reset: Click to undo any changes made locally and revert to previously saved values. Intelinet 48‐Port Gigabit Ethernet PoE+ Layer2+ Managed Switch User Manual | 119 ...
Page 120 Chapter 3: Web Management Aggregation ‐ LACP 3.1.6.2. Aggregation ‐ LACP This page allows the user to inspect the current LACP port configurations, and possibly change them as well. The LACP port settings relate to the currently selected stack unit, as reflected by the page header. Port The switch port number. LACP Enabled Controls whether LACP is enabled on this switch port. LACP will form an aggregation when 2 or more ports are connected to the same partner. LACP can form max 12 LLAGs per switch and 2 GLAGs per stack. Key The Key value incurred by the port, range 1‐65535 . The Auto setting will set the key as appropriate by the physical link speed, 10Mb = 1, 100Mb = 2, 1Gb = 3. Using the Specific setting, a user‐defined value can be entered. Ports with the same Key value can participate in the same aggregation group, while ports with different keys cannot. Role The Role shows the LACP activity status. The Active will transmit LACP packets each second, while Intelinet 48‐Port Gigabit Ethernet PoE+ Layer2+ Managed Switch User Manual | 120 ...
Page 121: Aggregation ‐ Lacp
Chapter 3: Web Management Aggregation ‐ LACP Passive will wait for a LACP packet from a partner (speak if spoken to). Intelinet 48‐Port Gigabit Ethernet PoE+ Layer2+ Managed Switch User Manual | 121 ...
Page 122 Chapter 3: Web Management Aggregation ‐ LACP Timeout The Timeout controls the period between BPDU transmissions. Fast will transmit LACP packets each second, while Slow will wait for 30 seconds before sending a LACP packet. Prio The Prio controls the priority of the port. If the LACP partner wants to form a larger group than is supported by this device then this parameter will control which ports will be active and which ports will be in a backup role. Lower number means greater priority. Buttons  Save: Click to save changes.  Reset: Click to undo any changes made locally and revert to previously saved values. Intelinet 48‐Port Gigabit Ethernet PoE+ Layer2+ Managed Switch User Manual | 122 ...
Page 123: Configuration ‐ Loop Protection
Chapter 3: Web Management Loop Protection 3.1.7. Configuration ‐ Loop Protection This page allows the user to inspect the current Loop Protection configurations, and possibly change them as well. General Settings Enable Loop Protection Controls whether loop protections is enabled (as a whole). Transmission Time The interval between each loop protection PDU sent on each port. valid values are 1 to 10 seconds. Shutdown Time The period (in seconds) for which a port will be kept disabled in the event of a loop is detected (and the port action shuts down the port). Valid values are 0 to 604800 seconds (7 days). A value of zero will keep a port disabled (until next device restart). Intelinet 48‐Port Gigabit Ethernet PoE+ Layer2+ Managed Switch User Manual | 123 ...
Page 124 Chapter 3: Web Management Loop Protection Port Configuration Port The switch port number of the port. Enable Controls whether loop protection is enabled on this switch port. Action Configures the action performed when a loop is detected on a port. Valid values are Shutdown Port, Shutdown Port and Log or Log Only. Tx Mode Controls whether the port is actively generating loop protection PDU's, or whether it is just passively looking for looped PDU's. Buttons  Save: Click to save changes.  Reset: Click to undo any changes made locally and revert to previously saved values. Intelinet 48‐Port Gigabit Ethernet PoE+ Layer2+ Managed Switch User Manual | 124 ...
Page 125: Configuration ‐ Spanning Tree
Chapter 3: Web Management Spanning Tree ‐ Bridge Settings 3.1.8. Configuration ‐ Spanning Tree 3.1.8.1. Spanning Tree ‐ Bridge Settings This page allows you to configure STP system settings. The settings are used by all STP Bridge instances in the Switch Stack. Basic Settings Protocol Version The MSTP / RSTP / STP protocol version setting. Valid values are STP, RSTP and MSTP. Bridge Priority Controls the bridge priority. Lower numeric values have better priority. The bridge priority plus the MSTI instance number, concatenated with the 6‐byte MAC address of the switch forms a Bridge Identifier. For MSTP operation, this is the priority of the CIST. Otherwise, this is the priority of the STP/RSTP bridge. Forward Delay The delay used by STP Bridges to transit Root and Designated Ports to Forwarding (used in STP compatible mode). Valid values are in the range 4 to 30 seconds. Max Age The maximum age of the information transmitted by the Bridge when it is the Root Bridge. Valid values are in the range 6 to 40 seconds, and MaxAge must be <= (FwdDelay‐1)*2. Intelinet 48‐Port Gigabit Ethernet PoE+ Layer2+ Managed Switch User Manual | 125 ...
Page 126: Spanning Tree ‐ Bridge Settings
Chapter 3: Web Management Spanning Tree ‐ Bridge Settings Maximum Hop Count This defines the initial value of remaining Hops for MSTI information generated at the boundary of an MSTI region. It defines how many bridges a root bridge can distribute its BPDU information to. Valid values are in the range 6 to 40 hops. Transmit Hold Count The number of BPDU's a bridge port can send per second. When exceeded, transmission of the next BPDU will be delayed. Valid values are in the range 1 to 10 BPDU's per second. Advanced Settings Edge Port BPDU Filtering Control whether a port explicitly configured as Edge will transmit and receive BPDUs. Edge Port BPDU Guard Control whether a port explicitly configured as Edge will disable itself upon reception of a BPDU. The port will enter the error‐disabled state, and will be removed from the active topology. Port Error Recovery Control whether a port in the error‐disabled state automatically will be enabled after a certain time. If recovery is not enabled, ports have to be disabled and re‐enabled for normal STP operation. The condition is also cleared by a system reboot. Port Error Recovery Timeout The time to pass before a port in the error‐disabled state can be enabled. Valid values are between 30 and 86400 seconds (24 hours). Buttons  Save: Click to save changes.  Reset: Click to undo any changes made locally and revert to previously saved values. Intelinet 48‐Port Gigabit Ethernet PoE+ Layer2+ Managed Switch User Manual | 126 ...
Page 127 Chapter 3: Web Management Spanning Tree ‐ MSTI Mapping 3.1.8.2. Spanning Tree ‐ MSTI Mapping This page allows the user to inspect the current STP MSTI bridge instance priority configurations, and possibly change them as well. Configuration Identification Configuration Name The name identifying the VLAN to MSTI mapping. Bridges must share the name and revision (see below), as well as the VLAN‐to‐MSTI mapping configuration in order to share spanning trees for MSTI's (Intra‐region). The name is at most 32 characters. Configuration Revision The revision of the MSTI configuration named above. This must be an integer between 0 and 65535. MSTI Mapping MSTI The bridge instance. The CIST is not available for explicit mapping, as it will receive the VLANs not explicitly mapped. Intelinet 48‐Port Gigabit Ethernet PoE+ Layer2+ Managed Switch User Manual | 127 ...
Page 128: Spanning Tree ‐ Msti Mapping
Chapter 3: Web Management Spanning Tree ‐ MSTI Mapping VLANs Mapped The list of VLANs mapped to the MSTI. The VLANs can be given as a single (xx, xx being between 1 and 4094) VLAN, or a range (xx‐yy), each of which must be separated with comma and/or space. A VLAN can only be mapped to one MSTI. An unused MSTI should just be left empty. (I.e. not having any VLANs mapped to it.) Example: 2,5,20‐40. Buttons  Save: Click to save changes.  Reset: Click to undo any changes made locally and revert to previously saved values. Intelinet 48‐Port Gigabit Ethernet PoE+ Layer2+ Managed Switch User Manual | 128 ...
Page 129: Spanning Tree ‐ Msti Priorities
Chapter 3: Web Management Spanning Tree ‐ MSTI Priorities 3.1.8.3. Spanning Tree ‐ MSTI Priorities This page allows the user to inspect the current STP MSTI bridge instance priority configurations, and possibly change them as well. MSTI The bridge instance. The CIST is the default instance, which is always active. Priority Controls the bridge priority. Lower numeric values have better priority. The bridge priority plus the MSTI instance number, concatenated with the 6‐byte MAC address of the switch forms a Bridge Identifier. Buttons  Save: Click to save changes.  Reset: Click to undo any changes made locally and revert to previously saved values. Intelinet 48‐Port Gigabit Ethernet PoE+ Layer2+ Managed Switch User Manual | 129 ...
Page 130 Chapter 3: Web Management Spanning Tree ‐ CIST Ports 3.1.8.4. Spanning Tree ‐ CIST Ports This page allows the user to inspect the current STP CIST port configurations, and possibly change them as well. This page contains settings for physical and aggregated ports. The aggregation settings are stack global. The STP port settings relate to the currently selected stack unit, as reflected by the page header. Port The switch port number of the logical STP port. STP Enabled Controls whether STP is enabled on this switch port. Intelinet 48‐Port Gigabit Ethernet PoE+ Layer2+ Managed Switch User Manual | 130 ...
Page 131: Spanning Tree ‐ Cist Ports
Chapter 3: Web Management Spanning Tree ‐ CIST Ports Path Cost Controls the path cost incurred by the port. The Auto setting will set the path cost as appropriate by the physical link speed, using the 802.1D recommended values. Using the Specific setting, a user‐defined value can be entered. The path cost is used when establishing the active topology of the network. Lower path cost ports are chosen as forwarding ports in favour of higher path cost ports. Valid values are in the range 1 to 200000000. Priority Controls the port priority. This can be used to control priority of ports having identical port cost. (See above). operEdge (state flag) Operational flag describing whether the port is connecting directly to edge devices. (No Bridges attached). Transition to the forwarding state is faster for edge ports (having operEdge true) than for other ports. The value of this flag is based on AdminEdge and AutoEdge fields. This flag is displayed as Edge in Monitor‐>Spanning Tree ‐> STP Detailed Bridge Status. AdminEdge Controls whether the operEdge flag should start as set or cleared. (The initial operEdge state when a port is initialized). AutoEdge Controls whether the bridge should enable automatic edge detection on the bridge port. This allows operEdge to be derived from whether BPDU's are received on the port or not. Restricted Role If enabled, causes the port not to be selected as Root Port for the CIST or any MSTI, even if it has the best spanning tree priority vector. Such a port will be selected as an Alternate Port after the Root Port has been selected. If set, it can cause lack of spanning tree connectivity. It can be set by a network administrator to prevent bridges external to a core region of the network influence the spanning tree active topology, possibly because those bridges are not under the full control of the administrator. This feature is also known as Root Guard. Restricted TCN If enabled, causes the port not to propagate received topology change notifications and topology changes to other ports. If set it can cause temporary loss of connectivity after changes in a spanning tree's active topology as a result of persistently incorrect learned station location information. It is set by a network administrator to prevent bridges external to a core region of the network, causing address flushing in that region, possibly because those bridges are not under the full control of the administrator or the physical link state of the attached LANs transits frequently. Intelinet 48‐Port Gigabit Ethernet PoE+ Layer2+ Managed Switch User Manual | 131 ...
Page 132 Chapter 3: Web Management Spanning Tree ‐ CIST Ports BPDU Guard If enabled, causes the port to disable itself upon receiving valid BPDU's. Contrary to the similar bridge setting, the port Edge status does not effect this setting. A port entering error‐disabled state due to this setting is subject to the bridge Port Error Recovery setting as well. Point‐to‐Point Controls whether the port connects to a point‐to‐point LAN rather than to a shared medium. This can be automatically determined, or forced either true or false. Transition to the forwarding state is faster for point‐to‐point LANs than for shared media. Buttons  Save: Click to save changes.  Reset: Click to undo any changes made locally and revert to previously saved values. Intelinet 48‐Port Gigabit Ethernet PoE+ Layer2+ Managed Switch User Manual | 132 ...
Page 133 Chapter 3: Web Management Spanning Tree ‐ MSTI Ports 3.1.8.5. Spanning Tree ‐ MSTI Ports This page allows the user to inspect the current STP MSTI port configurations, and possibly change them as well. An MSTI port is a virtual port, which is instantiated separately for each active CIST (physical) port for each MSTI instance configured on and applicable to the port. The MSTI instance must be selected before displaying actual MSTI port configuration options. Intelinet 48‐Port Gigabit Ethernet PoE+ Layer2+ Managed Switch User Manual | 133 ...
Page 134: Spanning Tree ‐ Msti Ports
Chapter 3: Web Management Spanning Tree ‐ MSTI Ports This page contains MSTI port settings for physical and aggregated ports. The aggregation settings are stack global. Apart from the selected MSTI, the STP MSTI port settings also relate to the currently selected stack unit, as reflected by the page header. Port The switch port number of the corresponding STP CIST (and MSTI) port. Path Cost Controls the path cost incurred by the port. The Auto setting will set the path cost as appropriate by the physical link speed, using the 802.1D recommended values. Using the Specific setting, a user‐defined value can be entered. The path cost is used when establishing the active topology of the network. Lower path cost ports are chosen as forwarding ports in favour of higher path cost ports. Valid values are in the range 1 to 200000000. Priority Controls the port priority. This can be used to control priority of ports having identical port cost. (See above). Buttons  Get: Click to retrieve settings for a specific MSTI.  Save: Click to save changes.  Reset: Click to undo any changes made locally and revert to previously saved values. Intelinet 48‐Port Gigabit Ethernet PoE+ Layer2+ Managed Switch User Manual | 134 ...
Page 135: Configuration ‐ Ipmc Profile
Chapter 3: Web Management IPMC Profile ‐ Profile Table 3.1.9. Configuration ‐ IPMC Profile 3.1.9.1. IPMC Profile ‐ Profile Table This page provides IPMC Profile related configurations. The IPMC profile is used to deploy the access control on IP multicast streams. It is allowed to create at maximum 64 Profiles with at maximum 128 corresponding rules for each. Global Profile Mode Enable/Disable the Global IPMC Profile. System starts to do filtering based on profile settings only when the global profile mode is enabled. Delete Check to delete the entry. The designated entry will be deleted during the next save. Profile Name The name used for indexing the profile table. Each entry has the unique name which is composed of at maximum 16 alphabetic and numeric characters. At least one alphabet must be present. Profile Description Additional description, which is composed of at maximum 64 alphabetic and numeric characters, about the profile. No blank or space characters are permitted as part of description. Use "_" or "‐" to separate the description sentence. Intelinet 48‐Port Gigabit Ethernet PoE+ Layer2+ Managed Switch User Manual | 135 ...
Page 136: Ipmc Profile ‐ Profile Table
Chapter 3: Web Management IPMC Profile ‐ Profile Table Rule When the profile is created, click the edit button to enter the rule setting page of the designated profile. Summary about the designated profile will be shown by clicking the view button. You can manage or inspect the rules of the designated profile by using the following buttons:  Navigate: List the rules associated with the designated profile.  Edit: Adjust the rules associated with the designated profile. Buttons  Add New IPMC Profile: Click to add new IPMC profile. Specify the name and configure the new entry. Click "Save".  Save: Click to save changes.  Reset: Click to undo any changes made locally and revert to previously saved values. Intelinet 48‐Port Gigabit Ethernet PoE+ Layer2+ Managed Switch User Manual | 136 ...
Page 137: Ipmc Profile ‐ Address Entry
Chapter 3: Web Management IPMC Profile ‐ Address Entry 3.1.9.2. IPMC Profile ‐ Address Entry This page provides address range settings used in IPMC profile. The address entry is used to specify the address range that will be associated with IPMC Profile. It is allowed to create at maximum 128 address entries in the system. Delete Check to delete the entry. The designated entry will be deleted during the next save. Entry Name The name used for indexing the address entry table. Each entry has the unique name which is composed of at maximum 16 alphabetic and numeric characters. At least one alphabet must be present. Start Address The starting IPv4/IPv6 Multicast Group Address that will be used as an address range. End Address The ending IPv4/IPv6 Multicast Group Address that will be used as an address range. Buttons  Add New Address (Range) Entry: Click to add new address range. Specify the name and configure the addresses. Click "Save"  Save: Click to save changes.  Reset: Click to undo any changes made locally and revert to previously saved values.  Refresh: Refreshes the displayed table starting from the input fields.  |<<: Updates the table starting from the first entry in the IPMC Profile Address Configuration.  >>: Updates the table, starting with the entry after the last entry currently displayed. Intelinet 48‐Port Gigabit Ethernet PoE+ Layer2+ Managed Switch User Manual | 137 ...
Page 138: Configuration ‐ Mvr
Chapter 3: Web Management MVR 3.1.10. Configuration ‐ MVR This page provides MVR related configurations. Most of the settings are global, whereas the Immediate Leave and MVR Port‐Role configuration is related to the current selecting stack unit, as reflected by the page header. The MVR feature enables multicast traffic forwarding on the Multicast VLANs. In a multicast television application, a PC or a network television or a set‐top box can receive the multicast stream. Multiple set‐top boxes or PCs can be connected to one subscriber port, which is a switch port configured as an MVR receiver port. When a subscriber selects a channel, the set‐top box or PC sends an IGMP/MLD report message to Switch A to join the appropriate multicast group address. Uplink ports that send and receive multicast data to and from the multicast VLAN are called MVR source ports. It is allowed to create at maximum 8 MVR VLANs with corresponding channel settings for each Multicast VLAN. There will be totally at maximum 256 group addresses for channel settings. MVR Mode Enable/Disable the Global MVR. The Unregistered Flooding control depends on the current configuration in IGMP/MLD Snooping. It is suggested to enable Unregistered Flooding control when the MVR group table is full. Delete Check to delete the entry. The designated entry will be deleted during the next save. MVR VID Specify the Multicast VLAN ID. Note: MVR source ports are not recommended to be overlapped with management VLAN ports. Intelinet 48‐Port Gigabit Ethernet PoE+ Layer2+ Managed Switch User Manual | 138 ...
Page 139 Chapter 3: Web Management MVR MVR Name MVR Name is an optional attribute to indicate the name of the specific MVR VLAN. Maximum length of the MVR VLAN Name string is 32. MVR VLAN Name can only contain alphabets or numbers. When the optional MVR VLAN name is given, it should contain at least one alphabet. MVR VLAN name can be edited for the existing MVR VLAN entries or it can be added to the new entries. Mode Specify the MVR mode of operation. In Dynamic mode, MVR allows dynamic MVR membership reports on source ports. In Compatible mode, MVR membership reports are forbidden on source ports. The default is Dynamic mode. Tagging Specify whether the traversed IGMP/MLD control frames will be sent as Untagged or Tagged with MVR VID. The default is Tagged. Priority Specify how the traversed IGMP/MLD control frames will be sent in prioritized manner. The default Priority is 0. LLQI Define the maximum time to wait for IGMP/MLD report memberships on a receiver port before removing the port from multicast group membership. The value is in units of tenths of a seconds. The range is from 0 to 31744. The default LLQI is 5 tenths or one‐half second. Interface Channel Setting When the MVR VLAN is created, click the Edit symbol to expand the corresponding multicast channel settings for the specific MVR VLAN. Summary about the Interface Channel Setting (of the MVR VLAN) will be shown besides the Edit symbol. Detail information regarding to the Interface Channel Setting will be covered on page 122. Port The logical port for the settings. Port Role Configure an MVR port of the designated MVR VLAN as one of the following roles.  Inactive (I): The designated port does not participate MVR operations.  Source (S): Configure uplink ports that receive and send multicast data as source ports. ...
Page 140 Chapter 3: Web Management MVR Note: MVR source ports are not recommended to be overlapped with management VLAN ports. Select the port role by clicking the Role symbol to switch the setting. Immediate Leave Enable the fast leave on the port. Buttons  Add New NVR VLAN: Click to add new MVR VLAN. Specify the VID and configure the new entry. Click "Save".  Save: Click to save changes.  Reset: Click to undo any changes made locally and revert to previously saved values. Intelinet 48‐Port Gigabit Ethernet PoE+ Layer2+ Managed Switch User Manual | 140 ...
Page 141 Chapter 3: Web Management MVR This page provides MVR channel settings for a specific MVR VLAN. Delete Check to delete the entry. The designated entry will be deleted during the next save. VLAN ID Display the specific Multicast VLAN ID. This field is not editable. VLAN Name Display the name of the specific Multicast VLAN. This field is not editable. Start Address The starting IPv4/IPv6 Multicast Group Address that will be used as a streaming channel. End Address The ending IPv4/IPv6 Multicast Group Address that will be used as a streaming channel. Channel Name Indicate the name of the Channel of the specific Multicast VLAN. Maximum length of the Channel Name string is 32. Channel Name can only contain alphabets or numbers. Channel name should contain at least one alphabet. Channel name can be edited for the existing Channel entries or it can be added to the new entries. Buttons  Add New MVR Channel: Click to add new Channel for a given MVR VLAN. Specify the Address and configure the new entry. Click "Save"  Save: Click to save changes.  Reset: Click to undo any changes made locally and revert to previously saved values.  Refresh: Refreshes the displayed table starting from the input fields.  |<<: Updates the table starting from the first entry in the MVR Channel Configuration for a specific MVR VLAN.  >>: Updates the table, starting with the entry after the last entry currently displayed. Intelinet 48‐Port Gigabit Ethernet PoE+ Layer2+ Managed Switch User Manual | 141 ...
Page 142: Configuration ‐ Ipmc
Chapter 3: Web Management IPMC ‐ IGMP Snooping ‐ Basic Configuration 3.1.11. Configuration ‐ IPMC 3.1.11.1. IPMC ‐ IGMP Snooping 3.1.11.1.1. IPMC ‐ IGMP Snooping ‐ Basic Configuration This page provides IGMP Snooping related configuration. Most of the settings are global, whereas the Router Port configuration is related to the currently selected stack unit, as reflected by the page header. Snooping Enabled Enable the Global IGMP Snooping. Unregistered IPMCv4 Flooding Enabled Enable unregistered IPMCv4 traffic flooding. The flooding control takes effect only when IGMP Snooping is enabled. When IGMP Snooping is disabled, unregistered IPMCv4 traffic flooding is always active in spite of this setting. IGMP SSM Range SSM (Source‐Specific Multicast) Range allows the SSM‐aware hosts and routers run the SSM service model for the groups in the address range. Intelinet 48‐Port Gigabit Ethernet PoE+ Layer2+ Managed Switch User Manual | 142 ...
Page 143: Ipmc ‐ Igmp Snooping
Chapter 3: Web Management IPMC ‐ IGMP Snooping ‐ Basic Configuration Leave Proxy Enabled Enable IGMP Leave Proxy. This feature can be used to avoid forwarding unnecessary leave messages to the router side. Proxy Enabled Enable IGMP Proxy. This feature can be used to avoid forwarding unnecessary join and leave messages to the router side. Router Port Specify which ports act as router ports. A router port is a port on the Ethernet switch that leads towards the Layer 3 multicast device or IGMP querier. If an aggregation member port is selected as a router port, the whole aggregation will act as a router port. Fast Leave Enable the fast leave on the port. Throttling Enable to limit the number of multicast groups to which a switch port can belong. Buttons  Save: Click to save changes.  Reset: Click to undo any changes made locally and revert to previously saved values. Intelinet 48‐Port Gigabit Ethernet PoE+ Layer2+ Managed Switch User Manual | 143 ...
Page 144 Chapter 3: Web Management IPMC ‐ IGMP Snooping ‐ VLAN Configuration 3.1.11.1.2. IPMC ‐ IGMP Snooping ‐ VLAN Configuration Each page shows up to 99 entries from the VLAN table, default being 20, selected through the "entries per page" input field. When first visited, the web page will show the first 20 entries from the beginning of the VLAN Table. The first displayed will be the one with the lowest VLAN ID found in the VLAN Table. The "VLAN" input fields allow the user to select the starting point in the VLAN Table. Clicking the Refresh button will update the displayed table starting from that or the next closest VLAN Table match. The >>| will use the last entry of the currently displayed entry as a basis for the next lookup. When the end is reached the text "No more entries" is shown in the displayed table. Use the << button to start over. IGMP Snooping VLAN Table Columns Delete Check to delete the entry. The designated entry will be deleted during the next save. VLAN ID The VLAN ID of the entry. IGMP Snooping Enabled Enable the per‐VLAN IGMP Snooping. Up to 32 VLANs can be selected for IGMP Snooping. IGMP Querier Enable the IGMP Querier in the VLAN. Compatibility Compatibility is maintained by hosts and routers taking appropriate actions depending on the versions of IGMP operating on hosts and routers within a network. The allowed selection is IGMP‐Auto, Forced IGMPv1, Forced IGMPv2, Forced IGMPv3, default compatibility value is IGMP‐Auto. Intelinet 48‐Port Gigabit Ethernet PoE+ Layer2+ Managed Switch User Manual | 144 ...
Page 145: Ipmc ‐ Igmp Snooping ‐ Vlan Configuration
Chapter 3: Web Management IPMC ‐ IGMP Snooping ‐ VLAN Configuration RV Robustness Variable. The Robustness Variable allows tuning for the expected packet loss on a network. The allowed range is 1 to 255, default robustness variable value is 2. QI Query Interval. The Query Interval is the interval between General Queries sent by the Querier. The allowed range is 1 to 31744 seconds, default query interval is 125 seconds. QRI Query Response Interval. The Maximum Response Delay used to calculate the Maximum Response Code inserted into the periodic General Queries. The allowed range is 0 to 31744 in tenths of seconds, default query response interval is 100 in tenths of seconds (10 seconds). LLQI (LMQI for IGMP) Last Member Query Interval. The Last Member Query Time is the time value represented by the Last Member Query Interval, multiplied by the Last Member Query Count. The allowed range is 0 to 31744 in tenths of seconds, default last member query interval is 10 in tenths of seconds (1 second). URI Unsolicited Report Interval. The Unsolicited Report Interval is the time between repetitions of a host's initial report of membership in a group. The allowed range is 0 to 31744 seconds, default unsolicited report interval is 1 second. Buttons  Refresh: Refreshes the displayed table starting from the "VLAN" input fields.  |<<: Updates the table starting from the first entry in the VLAN Table, i.e. the entry with the lowest VLAN ID.  >>: Updates the table, starting with the entry after the last entry currently displayed.  Add New IGMP VLAN: Click to add new IGMP VLAN. Specify the VID and configure the new entry. Click "Save". The specific IGMP VLAN starts working after the corresponding static VLAN is also created.  Save: Click to save changes.  Reset: Click to undo any changes made locally and revert to previously saved values. ...
Page 146: Ipmc ‐ Igmp Snooping ‐ Port Group Filtering
Chapter 3: Web Management IPMC ‐ IGMP Snooping ‐ Port Group Filtering 3.1.11.1.3. IPMC ‐ IGMP Snooping ‐ Port Group Filtering Delete Check to delete the entry. It will be deleted during the next save. Port The logical port for the settings. Filtering Groups The IP Multicast Group that will be filtered. Add New Filtering Group Click “Add New Filtering Group” button to add a new entry to the Group Filtering table. Specify the Port, and Filtering Group of the new entry. Click "Save". Buttons  Add New Filtering Group: Click to add a new entry to the Group Filtering table.  Save: Click to save changes.  Reset: Click to undo any changes made locally and revert to previously saved values. Intelinet 48‐Port Gigabit Ethernet PoE+ Layer2+ Managed Switch User Manual | 146 ...
Page 147 Chapter 3: Web Management IPMC ‐ MLD Snooping ‐ Basic Configuration 3.1.11.2. IPMC ‐ MLD Snooping 3.1.11.2.1. IPMC ‐ MLD Snooping ‐ Basic Configuration This page provides MLD Snooping related configuration. Most of the settings are global, whereas the Router Port configuration is related to the currently selected stack unit, as reflected by the page header. Snooping Enabled Enable the Global MLD Snooping. Unregistered IPMCv6 Flooding Enabled Enable unregistered IPMCv6 traffic flooding. The flooding control takes effect only when MLD Snooping is enabled. When MLD Snooping is disabled, unregistered IPMCv6 traffic flooding is always active in spite of this setting. MLD SSM Range SSM (Source‐Specific Multicast) Range allows the SSM‐aware hosts and routers run the SSM service model for the groups in the address range. Leave Proxy Enabled Enable MLD Leave Proxy. This feature can be used to avoid forwarding unnecessary leave messages to the router side. Proxy Enabled Enable MLD Proxy. This feature can be used to avoid forwarding unnecessary join and leave Intelinet 48‐Port Gigabit Ethernet PoE+ Layer2+ Managed Switch User Manual | 147 ...
Page 148: Ipmc ‐ Mld Snooping
Chapter 3: Web Management IPMC ‐ MLD Snooping ‐ Basic Configuration messages to the router side. Router Port Specify which ports act as router ports. A router port is a port on the Ethernet switch that leads towards the Layer 3 multicast device or MLD querier. If an aggregation member port is selected as a router port, the whole aggregation will act as a router port. Fast Leave Enable the fast leave on the port. Throttling Enable to limit the number of multicast groups to which a switch port can belong. Buttons  Save: Click to save changes.  Reset: Click to undo any changes made locally and revert to previously saved values. Intelinet 48‐Port Gigabit Ethernet PoE+ Layer2+ Managed Switch User Manual | 148 ...
Page 149 Chapter 3: Web Management IPMC ‐ MLD Snooping ‐ VLAN Configuration 3.1.11.2.2. IPMC ‐ MLD Snooping ‐ VLAN Configuration Each page shows up to 99 entries from the VLAN table, default being 20, selected through the "entries per page" input field. When first visited, the web page will show the first 20 entries from the beginning of the VLAN Table. The first displayed will be the one with the lowest VLAN ID found in the VLAN Table. The "VLAN" input fields allow the user to select the starting point in the VLAN Table. Clicking the Refresh button will update the displayed table starting from that or the next closest VLAN Table match. The >>| will use the last entry of the currently displayed entry as a basis for the next lookup. When the end is reached the text "No more entries" is shown in the displayed table. Use the << button to start over. MLD Snooping VLAN Table Columns Delete Check to delete the entry. The designated entry will be deleted during the next save. VLAN ID The VLAN ID of the entry. MLD Snooping Enabled Enable the per‐VLAN MLD Snooping. Up to 32 VLANs can be selected for MLD Snooping. MLD Querier Enable the IGMP Querier in the VLAN. Compatibility Compatibility is maintained by hosts and routers taking appropriate actions depending on the versions of MLD operating on hosts and routers within a network. The allowed selection is MLD‐Auto, Forced MLDv1, Forced MLDv2, default compatibility value is MLD‐Auto. RV Robustness Variable. The Robustness Variable allows tuning for the expected packet loss on a link. The allowed range is 1 to 255, default robustness variable value is 2. Intelinet 48‐Port Gigabit Ethernet PoE+ Layer2+ Managed Switch User Manual | 149 ...
Page 150: Ipmc ‐ Mld Snooping ‐ Vlan Configuration
Chapter 3: Web Management IPMC ‐ MLD Snooping ‐ VLAN Configuration QI Query Interval. The Query Interval is the interval between General Queries sent by the Querier. The allowed range is 1 to 31744 seconds, default query interval is 125 seconds. QRI Query Response Interval. The Maximum Response Delay used to calculate the Maximum Response Code inserted into the periodic General Queries. The allowed range is 0 to 31744 in tenths of seconds, default query response interval is 100 in tenths of seconds (10 seconds). LLQI Last Listener Query Interval. The Last Listener Query Interval is the Maximum Response Delay used to calculate the Maximum Response Code inserted into Multicast Address Specific Queries sent in response to Version 1 Multicast Listener Done messages. It is also the Maximum Response Delay used to calculate the Maximum Response Code inserted into Multicast Address and Source Specific Query messages. The allowed range is 0 to 31744 in tenths of seconds, default last listener query interval is 10 in tenths of seconds (1 second). URI Unsolicited Report Interval. The Unsolicited Report Interval is the time between repetitions of a node's initial report of interest in a multicast address. The allowed range is 0 to 31744 seconds, default unsolicited report interval is 1 second. Buttons  Refresh: Refreshes the displayed table starting from the "VLAN" input fields.  |<<: Updates the table starting from the first entry in the VLAN Table, i.e. the entry with the lowest VLAN ID.  >>: Updates the table, starting with the entry after the last entry currently displayed.  Add New MLD VLAN: Click to add new MLD VLAN. Specify the VID and configure the new entry. Click "Save". The specific MLD VLAN starts working after the corresponding static VLAN is also created.  Save: Click to save changes.  Reset: Click to undo any changes made locally and revert to previously saved values. Intelinet ...
Page 151: Ipmc ‐ Mld Snooping ‐ Port Group Filtering
Chapter 3: Web Management IPMC ‐ MLD Snooping ‐ Port Group Filtering 3.1.11.2.3. IPMC ‐ MLD Snooping ‐ Port Group Filtering Delete Check to delete the entry. It will be deleted during the next save. Port The logical port for the settings. Filtering Groups The IP Multicast Group that will be filtered. Add New Filtering Group Click “Add New Filtering Group” button to add a new entry to the Group Filtering table. Specify the Port, and Filtering Group of the new entry. Click "Save". Buttons  Add New Filtering Group: Click to add a new entry to the Group Filtering table.  Save: Click to save changes.  Reset: Click to undo any changes made locally and revert to previously saved values. Intelinet 48‐Port Gigabit Ethernet PoE+ Layer2+ Managed Switch User Manual | 151 ...
Page 152: Configuration ‐ Lldp
Chapter 3: Web Management LLDP ‐ LLDP 3.1.12. Configuration ‐ LLDP 3.1.12.1. LLDP ‐ LLDP This page allows the user to inspect and configure the current LLDP port settings. LLDP Parameters Tx Interval The switch periodically transmits LLDP frames to its neighbors for having the network discovery information up‐to‐date. The interval between each LLDP frame is determined by the Tx Interval value. Valid values are restricted to 5 ‐ 32768 seconds. Tx Hold Each LLDP frame contains information about how long the information in the LLDP frame shall be considered valid. The LLDP information valid period is set to Tx Hold multiplied by Tx Interval seconds. Valid values are restricted to 2 ‐ 10 times. Tx Delay If some configuration is changed (e.g. the IP address) a new LLDP frame is transmitted, but the time between the LLDP frames will always be at least the value of Tx Delay seconds. Tx Delay cannot be larger than 1/4 of the Tx Interval value. Valid values are restricted to 1 ‐ 8192 seconds. Intelinet 48‐Port Gigabit Ethernet PoE+ Layer2+ Managed Switch User Manual | 152 ...
Page 153: Lldp ‐ Lldp
Chapter 3: Web Management LLDP ‐ LLDP Tx Reinit When a port is disabled, LLDP is disabled or the switch is rebooted, an LLDP shutdown frame is transmitted to the neighboring units, Signaling that the LLDP information isn't valid anymore. Tx Reinit controls the amount of seconds between the shutdown frame and a new LLDP initialization. Valid values are restricted to 1 ‐ 10 seconds. LLDP Port Configuration The LLDP port settings relate to the currently selected stack unit, as reflected by the page header. Port The switch port number of the logical LLDP port. Mode Select LLDP mode. Rx only The switch will not send out LLDP information, but LLDP information from neighbor units is analyzed. Tx only The switch will drop LLDP information received from neighbors, but will send out LLDP information. Disabled The switch will not send out LLDP information, and will drop LLDP information received from neighbors. Enabled The switch will send out LLDP information, and will analyze LLDP information received from neighbors. CDP Aware Select CDP awareness. The CDP operation is restricted to decoding incoming CDP frames (The switch doesn't transmit CDP frames). CDP frames are only decoded if LLDP on the port is enabled. Only CDP TLVs that can be mapped to a corresponding field in the LLDP neighbors' table are decoded. All other TLVs are discarded (Unrecognized CDP TLVs and discarded CDP frames are not shown in the LLDP statistics.). CDP TLVs are mapped onto LLDP neighbors' table as shown below. CDP TLV "Device ID" is mapped to the LLDP "Chassis ID" field. CDP TLV "Address" is mapped to the LLDP "Management Address" field. The CDP address TLV can contain multiple addresses, but only the first address is shown in the LLDP neighbors table. CDP TLV "Port ID" is mapped to the LLDP "Port ID" field. Intelinet 48‐Port Gigabit Ethernet PoE+ Layer2+ Managed Switch User Manual | 153 ...
Page 154 Chapter 3: Web Management LLDP ‐ LLDP CDP TLV "Version and Platform" is mapped to the LLDP "System Description" field. Both the CDP and LLDP support "system capabilities", but the CDP capabilities cover capabilities that are not part of the LLDP. These capabilities are shown as "others" in the LLDP neighbors' table. If all ports have CDP awareness disabled the switch forwards CDP frames received from neighbor devices. If at least one port has CDP awareness enabled all CDP frames are terminated by the switch. Note: When CDP awareness on a port is disabled the CDP information isn't removed immediately, but gets removed when the hold time is exceeded. Port Descr Optional TLV: When checked the "port description" is included in LLDP information transmitted. Sys Name Optional TLV: When checked the "system name" is included in LLDP information transmitted. Sys Descr Optional TLV: When checked the "system description" is included in LLDP information transmitted. Sys Capa Optional TLV: When checked the "system capability" is included in LLDP information transmitted. Mgmt Addr Optional TLV: When checked the "management address" is included in LLDP information transmitted. Buttons  Save: Click to save changes.  Reset: Click to undo any changes made locally and revert to previously saved values. Intelinet 48‐Port Gigabit Ethernet PoE+ Layer2+ Managed Switch User Manual | 154 ...
Page 155 Chapter 3: Web Management LLDP ‐ LLDP‐MED 3.1.12.2. LLDP ‐ LLDP‐MED This page allows you to configure the LLDP‐MED. This function applies to VoIP devices which support LLDP‐MED. Fast start repeat count Fast start repeat count Rapid startup and Emergency Call Service Location Identification Discovery of endpoints is a critically important aspect of VoIP systems in general. In addition, it is best to advertise only those pieces of information which are specifically relevant to particular endpoint types (for example only advertise the voice network policy to permitted voice‐capable devices), both in order to conserve the limited LLDPU space and to reduce security and system integrity issues that can come with inappropriate knowledge of the network policy. With this in mind LLDP‐MED defines an LLDP‐MED Fast Start interaction between the protocol and the application layers on top of the protocol, in order to achieve these related properties. Initially, a Network Connectivity Device will only transmit LLDP TLVs in an LLDPDU. Only after an LLDP‐MED Endpoint Device is detected, will an LLDP‐MED capable Network Connectivity Device start to advertise LLDP‐MED TLVs in outgoing LLDPDUs on the associated port. The LLDP‐MED application will temporarily speed up the transmission of the LLDPDU to start within a second, when a new LLDP‐MED neighbor has been detected in order share LLDP‐MED information as fast as possible to new neighbors. Because there is a risk of an LLDP frame being lost during transmission between neighbors, it is Intelinet 48‐Port Gigabit Ethernet PoE+ Layer2+ Managed Switch User Manual | 155 ...
Page 156: Lldp ‐ Lldp‐Med
Chapter 3: Web Management LLDP ‐ LLDP‐MED recommended to repeat the fast start transmission multiple times to increase the possibility of the neighbors receiving the LLDP frame. With Fast start repeat count it is possible to specify the number of times the fast start transmission would be repeated. The recommended value is 4 times, given that 4 LLDP frames with a 1 second interval will be transmitted, when an LLDP frame with new information is received. It should be noted that LLDP‐MED and the LLDP‐MED Fast Start mechanism is only intended to run on links between LLDP‐MED Network Connectivity Devices and Endpoint Devices, and as such does not apply to links between LAN infrastructure elements, including Network Connectivity Devices, or other types of links. Coordinates Location Latitude Latitude SHOULD be normalized to within 0‐90 degrees with a maximum of 4 digits. It is possible to specify the direction to either North of the equator or South of the equator. Longitude Longitude SHOULD be normalized to within 0‐180 degrees with a maximum of 4 digits. It is possible to specify the direction to either East of the prime meridian or West of the prime meridian. Altitude Altitude SHOULD be normalized to within ‐32767 to 32767 with a maximum of 4 digits. It is possible to select between two altitude types (floors or meters).  Meters: Representing meters of Altitude defined by the vertical datum specified.  Floors: Representing altitude in a form more relevant in buildings which have different floor‐to‐floor dimensions. An altitude = 0.0 is meaningful even outside a building, and represents ground level at the given latitude and longitude. Inside a building, 0.0 represents the floor level associated with ground level at the main entrance. Map Datum The Map Datum is used for the coordinates given in these options:  WGS84: (Geographical 3D) ‐ World Geodesic System 1984, CRS Code 4327, Prime Meridian Name: Greenwich.  NAD83/NAVD88: North American Datum 1983, CRS Code 4269, Prime Meridian Name: Greenwich; The associated vertical datum is the North American Vertical Datum of 1988 (NAVD88). This datum pair is to be used when referencing locations on land, not near tidal ...
Page 157 Chapter 3: Web Management LLDP ‐ LLDP‐MED water (which would use Datum = NAD83/MLLW). Intelinet 48‐Port Gigabit Ethernet PoE+ Layer2+ Managed Switch User Manual | 157 ...
Page 158 Chapter 3: Web Management LLDP ‐ LLDP‐MED  NAD83/MLLW: North American Datum 1983, CRS Code 4269, Prime Meridian Name: Greenwich; The associated vertical datum is Mean Lower Low Water (MLLW). This datum pair is to be used when referencing locations on water/sea/ocean. Civic Address Location IETF Geopriv Civic Address based Location Configuration Information (Civic Address LCI). Country code The two‐letter ISO 3166 country code in capital ASCII letters ‐ Example: DK, DE or US. State National subdivisions (state, canton, region, province, prefecture). County County, parish, gun (Japan), district. City City, township, shi (Japan) ‐ Example: Copenhagen. City district City division, borough, city district, ward, chou (Japan). Block (Neighborhood) Neighborhood, block. Street Street ‐ Example: Poppelvej. Leading street direction Leading street direction ‐ Example: N. Trailing street suffix Trailing street suffix ‐ Example: SW. Street suffix Street suffix ‐ Example: Ave, Platz. House no. House number ‐ Example: 21. House no. suffix House number suffix ‐ Example: A, 1/2. Landmark Landmark or vanity address ‐ Example: Columbia University. Intelinet 48‐Port Gigabit Ethernet PoE+ Layer2+ Managed Switch User Manual | 158 ...
Page 159 Chapter 3: Web Management LLDP ‐ LLDP‐MED Additional location info Additional location info ‐ Example: South Wing. Name Name (residence and office occupant) ‐ Example: Flemming Jahn. Zip code Postal/zip code ‐ Example: 2791. Building Building (structure) ‐ Example: Low Library. Apartment Unit (Apartment, suite) ‐ Example: Apt 42. Floor Floor ‐ Example: 4. Room no. Room number ‐ Example: 450F. Place type Place type ‐ Example: Office. Postal community name Postal community name ‐ Example: Leonia. P.O. Box Post office box (P.O. BOX) ‐ Example: 12345. Additional code Additional code ‐ Example: 1320300003. Emergency Call Service Emergency Call Service (e.g. E911 and others), such as defined by TIA or NENA. Emergency Call Service Emergency Call Service ELIN identifier data format is defined to carry the ELIN identifier as used during emergency call setup to a traditional CAMA or ISDN trunk‐based PSAP. This format consists of a numerical digit string, corresponding to the ELIN to be used for emergency calling. Policies Network Policy Discovery enables the efficient discovery and diagnosis of mismatch issues with the VLAN configuration, along with the associated Layer 2 and Layer 3 attributes, which apply for a set of specific protocol applications on that port. Improper network policy configurations are a very Intelinet 48‐Port Gigabit Ethernet PoE+ Layer2+ Managed Switch User Manual | 159 ...
Page 160 Chapter 3: Web Management LLDP ‐ LLDP‐MED significant issue in VoIP environments that frequently result in voice quality degradation or loss of service. Policies are only intended for use with applications that have specific 'real‐time' network policy requirements, such as interactive voice and/or video services. The network policy attributes advertised are: 1. Layer 2 VLAN ID (IEEE 802.1Q‐2003) 2. Layer 2 priority value (IEEE 802.1D‐2004) 3. Layer 3 Diffserv code point (DSCP) value (IETF RFC 2474) This network policy is potentially advertised and associated with multiple sets of application types supported on a given port. The application types specifically addressed are: 1. Voice 2. Guest Voice 3. Softphone Voice 4. Video Conferencing 5. Streaming Video 6. Control / Signaling (conditionally support a separate network policy for the media types above) A large network may support multiple VoIP policies across the entire organization, and different policies per application type. LLDP‐MED allows multiple policies to be advertised per port, each corresponding to a different application type. Different ports on the same Network Connectivity Device may advertise different sets of policies, based on the authenticated user identity or port configuration. It should be noted that LLDP‐MED is not intended to run on links other than between Network Connectivity Devices and Endpoints, and therefore does not need to advertise the multitude of network policies that frequently run on an aggregated link interior to the LAN. Delete Check to delete the policy. It will be deleted during the next save. Policy ID ...
Page 161 Chapter 3: Web Management LLDP ‐ LLDP‐MED interactive voice services. These devices are typically deployed on a separate VLAN for ease of deployment and enhanced security by isolation from data applications. 2. Voice Signaling (conditional) ‐ for use in network topologies that require a different policy for the voice Signaling than for the voice media. This application type should not be advertised if all the same network policies apply as those advertised in the Voice application policy. 3. Guest Voice ‐ support a separate 'limited feature‐set' voice service for guest users and visitors with their own IP Telephony handsets and other similar appliances supporting interactive voice services. 4. Guest Voice Signaling (conditional) ‐ for use in network topologies that require a different policy for the guest voice Signaling than for the guest voice media. This application type should not be advertised if all the same network policies apply as those advertised in the Guest Voice application policy. 5. Softphone Voice ‐ for use by softphone applications on typical data centric devices, such as PCs or laptops. This class of endpoints frequently does not support multiple VLANs, if at all, and are typically configured to use an 'untagged' VLAN or a single 'tagged' data specific VLAN. When a network policy is defined for use with an 'untagged' VLAN (see Tagged flag below), then the L2 priority field is ignored and only the DSCP value has relevance. 6. Video Conferencing ‐ for use by dedicated Video Conferencing equipment and other similar appliances supporting real‐time interactive video/audio services. 7. Streaming Video ‐ for use by broadcast or multicast based video content distribution and other similar applications supporting streaming video services that require specific network policy treatment. Video applications relying on TCP with buffering would not be an intended use of this application type. 8. Video Signaling (conditional) ‐ for use in network topologies that require a separate policy for the video Signaling than for the video media. This application type should not be advertised if all the same network policies apply as those advertised in the Video Conferencing application policy. Tag Tag indicating whether the specified application type is using a 'tagged' or an 'untagged' VLAN. Untagged indicates that the device is using an untagged frame format and as such does not include a ...
Page 162 Chapter 3: Web Management LLDP ‐ LLDP‐MED VLAN ID VLAN identifier (VID) for the port as defined in IEEE 802.1Q‐2003. L2 Priority L2 Priority is the Layer 2 priority to be used for the specified application type. L2 Priority may specify one of eight priority levels (0 through 7), as defined by IEEE 802.1D‐2004. A value of 0 represents use of the default priority as defined in IEEE 802.1D‐2004. DSCP DSCP value to be used to provide Diffserv node behaviour for the specified application type as defined in IETF RFC 2474. DSCP may contain one of 64 code point values (0 through 63). A value of 0 represents use of the default DSCP value as defined in RFC 2475. Adding a new policy Click “Add New Policy” to add a new policy. Specify the Application type, Tag, VLAN ID, L2 Priority and DSCP for the new policy. Click "Save". The number of policies supported is 32 Port Policies Configuration Every port may advertise a unique set of network policies or different attributes for the same network policies, based on the authenticated user identity or port configuration. Port The port number to which the configuration applies. Policy Id The set of policies that shall apply to a given port. The set of policies is selected by check marking the checkboxes that corresponds to the policies. Buttons  Save: Click to save changes.  Reset: Click to undo any changes made locally and revert to previously saved values. Intelinet 48‐Port Gigabit Ethernet PoE+ Layer2+ Managed Switch User Manual | 162 ...
Page 163: Configuration ‐ Poe
Chapter 3: Web Management PoE 3.1.13. Configuration ‐ PoE This page allows the user to inspect and configure the current PoE port settings. Power over Ethernet Configuration Reserved Power determined by There are three modes for configuring how the ports/PDs may reserve power. 1. Allocated mode: In this mode the user allocates the amount of power that each port may reserve. The allocated/reserved power for each port/PD is specified in the Maximum Power fields. 2. Class mode: In this mode each port automatically determines how much power to reserve according to the class the connected PD belongs to, and reserves the power accordingly. Four different port classes exist and one for 4, 7, 15.4 or 30 Watts. In this mode the Maximum Power fields have no effect. 3. LLDP‐MED mode: This mode is similar to the Class mode expect that each port determine the amount power it reserves by exchanging PoE information using the LLDP protocol and reserves power accordingly. If no LLDP information is available for a port, the port will reserve power using the class mode. In this mode the Maximum Power fields have no effect For all modes: If a port uses more power than the reserved power for the port, the port is shut down. Intelinet 48‐Port Gigabit Ethernet PoE+ Layer2+ Managed Switch User Manual | 163 ...
Page 164 Chapter 3: Web Management PoE Power Management Mode There are 2 modes for configuring when to shut down the ports: 1. Actual Consumption: In this mode the ports are shut down when the actual power consumption for all ports exceeds the amount of power that the power supply can deliver or if the actual power consumption for a given port exceeds the reserved power for that port. The ports are shut down according to the ports priority. If two ports have the same priority the port with the highest port number is shut down. 2. Reserved Power: In this mode the ports are shut down when total reserved powered exceeds the amount of power that the power supply can deliver. In this mode the port power is not turned on if the PD requests more power than available from the power supply. Power Supply Configuration Primary and Backup Power Source Some switches support having two PoE power supplies. One is used as primary power source, and one as backup power source. If the switch doesn't support backup power supply only the primary power supply settings will be shown. In case that the primary power source fails the backup power source will take over. For being able to determine the amount of power the PD may use, it must be defined what amount of power the primary and backup power sources can deliver. Valid values are in the range 0 to 2000 Watts. Port Configuration Port This is the logical port number for this row. Ports that are not PoE‐capable are grayed out and thus impossible to configure PoE for. PoE Mode The PoE Mode represents the PoE operating mode for the port.  Disabled: PoE disabled for the port.  PoE: Enables PoE IEEE 802.3af (Class 4 PDs limited to 15.4W)  PoE+: Enables PoE+ IEEE 802.3at (Class 4 PDs limited to 30W) Intelinet 48‐Port Gigabit Ethernet PoE+ Layer2+ Managed Switch User Manual | 164 ...
Page 165 Chapter 3: Web Management PoE Priority The Priority represents the ports priority. There are three levels of power priority named Low, High and Critical. The priority is used in the case where the remote devices requires more power than the power supply can deliver. In this case the port with the lowest priority will be turn off starting from the port with the highest port number. Maximum Power The Maximum Power value contains a numerical value that indicates the maximum power in watts that can be delivered to a remote device. The maximum allowed value is 30 W. Buttons  Save: Click to save changes.  Reset: Click to undo any changes made locally and revert to previously saved values. Intelinet 48‐Port Gigabit Ethernet PoE+ Layer2+ Managed Switch User Manual | 165 ...
Page 166: Configuration ‐ Mac Table
Chapter 3: Web Management MAC Table 3.1.14. Configuration ‐ MAC Table The MAC Address Table is configured on this page. Set timeouts for entries in the dynamic MAC Table and configure the static MAC table here. Aging Configuration By default, dynamic entries are removed from the MAC table after 300 seconds. This removal is also called aging. Configure aging time by entering a value here in seconds. The allowed range is 10 to 1000000 seconds. Disable the automatic aging of dynamic entries by checking the “Disable automatic aging” checkbox. . MAC Table Learning If the learning mode for a given port is greyed out, another module is in control of the mode, so that it cannot be changed by the user. An example of such a module is the MAC‐Based Authentication under 802.1X. Each port can do learning based upon the following settings: Auto Learning is done automatically as soon as a frame with unknown SMAC is received. Disable No learning is done. Intelinet 48‐Port Gigabit Ethernet PoE+ Layer2+ Managed Switch User Manual | 166 ...
Page 167 Chapter 3: Web Management MAC Table Secure Only static MAC entries are learned, all other frames are dropped. Note: Make sure that the link used for managing the switch is added to the Static Mac Table before changing to secure learning mode, otherwise the management link is lost and can only be restored by using another non‐secure port or by connecting to the switch via the serial interface. Static MAC Table Configuration The static entries in the MAC table are shown in this table. The static MAC table can contain 64 entries. The maximum of 64 entries is for the whole stack, and not per switch. The MAC table is sorted first by VLAN ID and then by MAC address. Delete Check to delete the entry. It will be deleted during the next save. VLAN ID The VLAN ID of the entry. MAC Address The MAC address of the entry. Port Members Checkmarks indicate which ports are members of the entry. Check or uncheck as needed to modify the entry. Adding a New Static Entry Click “Add New Static Entry” to add a new entry to the static MAC table. Specify the VLAN ID, MAC address, and port members for the new entry. Click "Save". Buttons  Save: Click to save changes.  Reset: Click to undo any changes made locally and revert to previously saved values. Intelinet 48‐Port Gigabit Ethernet PoE+ Layer2+ Managed Switch User Manual | 167 ...
Page 168: Configuration ‐ Vlans
Chapter 3: Web Management VLANs ‐ VLAN Membership 3.1.15. Configuration ‐ VLANs 3.1.15.1. VLANs ‐ VLAN Membership The VLAN membership configuration for the selected stack switch unit can be monitored and modified here. Up to 4096 VLANs are supported. This page allows for adding and deleting VLANs as well as adding and deleting port members of each VLAN. Navigating the VLAN Table Each page shows up to 99 entries from the VLAN table, default being 20, selected through the "entries per page" input field. When first visited, the web page will show the first 20 entries from the beginning of the VLAN Table. The first displayed will be the one with the lowest VLAN ID found in the VLAN Table. The "VLAN" input fields allow the user to select the starting point in the VLAN Table. Clicking the “Refresh” button will update the displayed table starting from that or the closest next VLAN Table match. The “>>” will use the last entry of the currently displayed VLAN entry as a basis for the next lookup. When the end is reached the text "No more entries" is shown in the displayed table. Use the “|<<” button to start over. Delete To delete a VLAN entry, check this box. The entry will be deleted on the selected switch in the stack. If none of the ports of this switch are members of a VLAN then the delete checkbox will be greyed out (you cannot delete that entry. during the next Save. VLAN ID Indicates the ID of this particular VLAN. VLAN Name Indicates the name of the VLAN. Maximum length of the VLAN Name String is 32. VLAN Name can be null. If it is not null, it must contain alphabets or numbers. At least one alphabet must be present in a non‐null VLAN name. VLAN name can be edited for the existing VLAN entries or it can be added to the new entries. Intelinet 48‐Port Gigabit Ethernet PoE+ Layer2+ Managed Switch User Manual | 168 ...
Page 169: Vlans ‐ Vlan Membership
Chapter 3: Web Management VLANs ‐ VLAN Membership Port Members A row of check boxes for each port is displayed for each VLAN ID. To include a port in a VLAN, check the box as port. To include a port in a forbidden port list, check the box as shown forbid. To remove or exclude the port from the VLAN, make sure the box is unchecked as shown menu_o. By default, no ports are members, and for every new VLAN entry all boxes are unchecked. Adding a New VLAN Click “Add New VLAN” to add a new VLAN ID. An empty row is added to the table, and the VLAN can be configured as needed. Legal values for a VLAN ID are 1 through 4095. The VLAN is enabled on the selected stack switch unit when you click on "Save". The VLAN is thereafter present on the other stack switch units, but with no port members. The check box is greyed out when VLAN is displayed on other stacked switches, but user can add member ports to it. The “Delete” button can be used to undo the addition of new VLANs. Buttons  Save: Click to save changes.  Reset: Click to undo any changes made locally and revert to previously saved values.  Refresh: Refreshes the displayed table starting from the "VLAN ID" input fields.  >>|: Updates the table starting from the first entry in the VLAN Table, i.e. the entry with the lowest VLAN ID.  <<: Updates the table, starting with the entry after the last entry currently displayed. Intelinet 48‐Port Gigabit Ethernet PoE+ Layer2+ Managed Switch User Manual | 169 ...
Page 170 Chapter 3: Web Management VLANs ‐ Ports 3.1.15.2. VLANs ‐ Ports This page is used for configuring the selected stack switch unit port VLAN. Ethertype for Custom S‐ports This field specifies the ether type used for Custom S‐ports. This is a global setting for all the Custom S‐ports. Port This is the logical port number of this row. Port Type Port can be one of the following types: Unaware, Customer port(C‐port), Service port(S‐port), Custom Service port(S‐custom‐port) If Port Type is Unaware, all frames are classified to the Port VLAN ID and tags are not removed. Ingress Filtering Enable ingress filtering on a port by checking the box. This parameter affects VLAN ingress processing. If ingress filtering is enabled and the ingress port is not a member of the classified VLAN of the frame, the frame is discarded. By default, ingress filtering is disabled (no checkmark). Frame Type Determines whether the port accepts all frames or only tagged/untagged frames. This parameter affects VLAN ingress processing. If the port only accepts tagged frames, untagged frames received on the port are discarded. By default, the field is set to All. Port VLAN Mode Configures the Port VLAN Mode. The allowed values are None or Specific. This parameter affects VLAN ingress and egress processing. If None is selected, a VLAN tag with the classified VLAN ID is inserted in frames transmitted on the port. This mode is normally used for ports connected to VLAN aware switches. Tx tag should be set to Intelinet 48‐Port Gigabit Ethernet PoE+ Layer2+ Managed Switch User Manual | 170 ...
Page 171: Vlans ‐ Ports
Chapter 3: Web Management VLANs ‐ Ports Untag_pvid when this mode is used. If Specific (the default value) is selected, a Port VLAN ID can be configured (see below). Untagged frames received on the port are classified to the Port VLAN ID. If VLAN awareness is disabled, all frames received on the port are classified to the Port VLAN ID. If the classified VLAN ID of a frame transmitted on the port is different from the Port VLAN ID, a VLAN tag with the classified VLAN ID is inserted in the frame. Port VLAN ID Configures the VLAN identifier for the port. The allowed values are from 1 through 4095. The default value is 1. Note: The port must be a member of the same VLAN as the Port VLAN ID. Tx Tag Determines egress tagging of a port. Untag_pvid ‐ All VLANs except the configured PVID will be tagged. Tag_all ‐ All VLANs are tagged. Untag_all ‐ All VLANs are untagged. Buttons  Auto‐refresh: Check this box to refresh the page automatically. Automatic refresh occurs every 3 seconds.  Refresh: Click to refresh the page immediately.  Save: Click to save changes.  Reset: Click to undo any changes made locally and revert to previously saved values. Intelinet 48‐Port Gigabit Ethernet PoE+ Layer2+ Managed Switch User Manual | 171 ...
Page 172: Configuration ‐ Private Vlan
Chapter 3: Web Management Private VLAN ‐ Port Isolation 3.1.16. Configuration ‐ Private VLAN 3.1.16.1. Private VLAN ‐ Port Isolation Overview This page is used for enabling or disabling port isolation on ports in a Private VLAN. A port member of a VLAN can be isolated to other isolated ports on the same VLAN. The port settings relate to the currently selected stack unit, as reflected by the page header. This feature works across the stack. Configuration Port Members A check box is provided for each port of a private VLAN. When checked, port isolation is enabled on that port. When unchecked, port isolation is disabled on that port. By default, port isolation is disabled on all ports. Buttons  Auto‐refresh: Check this box to refresh the page automatically. Automatic refresh occurs every 3 seconds.  Refresh: Click to refresh the page immediately.  Save: Click to save changes.  Reset: Click to undo any changes made locally and revert to previously saved values. Intelinet 48‐Port Gigabit Ethernet PoE+ Layer2+ Managed Switch User Manual | 172 ...
Page 173: Configuration ‐ Vcl
Chapter 3: Web Management VCL ‐ MAC‐based VLAN 3.1.17. Configuration ‐ VCL 3.1.17.1. VCL ‐ MAC‐based VLAN The MAC‐based VLAN entries can be configured here. This page allows for adding and deleting MAC‐based VLAN entries and assigning the entries to different ports. This page shows only static entries. Delete To delete a MAC‐based VLAN entry, check this box and press save. The entry will be deleted on the selected switch in the stack. MAC Address Indicates the MAC address. VLAN ID Indicates the VLAN ID. Port Members A row of check boxes for each port is displayed for each MAC‐based VLAN entry. To include a port in a MAC‐based VLAN, check the box. To remove or exclude the port from the MAC‐based VLAN, make sure the box is unchecked. By default, no ports are members, and all boxes are unchecked. Adding a New MAC‐based VLAN Click “Adding New Entry” to add a new MAC‐based VLAN entry. An empty row is added to the table, and the MAC‐based VLAN entry can be configured as needed. Any unicast MAC address can be configured for the MAC‐based VLAN entry. No broadcast or multicast MAC addresses are allowed. Legal values for a VLAN ID are 1 through 4095. The MAC‐based VLAN entry is enabled on the selected stack switch unit when you click on "Save". A MAC‐based VLAN without any port members on any stack unit will be deleted when you click "Save". The “Delete” button can be used to undo the addition of new MAC‐based VLANs. The maximum possible MAC‐based VLAN entries are limited to 256. Intelinet 48‐Port Gigabit Ethernet PoE+ Layer2+ Managed Switch User Manual | 173 ...
Page 174: Vcl ‐ Mac‐Based Vlan
Chapter 3: Web Management VCL ‐ MAC‐based VLAN Buttons  Save: Click to save changes.  Reset: Click to undo any changes made locally and revert to previously saved values.  Auto‐refresh: Check this box to refresh the page automatically. Automatic refresh occurs every 3 seconds.  Refresh: Click to refresh the page immediately.  |<<: Updates the table starting from the first entry in the MAC‐based VLAN Table.  >>: Updates the table, starting with the entry after the last entry currently displayed. Intelinet 48‐Port Gigabit Ethernet PoE+ Layer2+ Managed Switch User Manual | 174 ...
Page 175 Chapter 3: Web Management VCL ‐ Port‐based VLAN ‐ Protocol to Group 3.1.17.2. VCL ‐ Port‐based VLAN 3.1.17.2.1. VCL ‐ Port‐based VLAN ‐ Protocol to Group This page allows you to add new protocols to Group Name (unique for each Group) mapping entries as well as allow you to see and delete already mapped entries for the selected stack switch unit. Delete To delete a Protocol to Group Name map entry, check this box. The entry will be deleted on the switch during the next Save. Frame Type Frame Type can have one of the following values: Ethernet LLC SNAP Note: On changing the Frame type field, valid value of the following text field will vary depending on the new frame type you selected. Value Valid value that can be entered in this text field depends on the option selected from the the preceding Frame Type selection menu. Below is the criteria for three different Frame Types: For Ethernet: Values in the text field when Ethernet is selected as a Frame Type is called etype. Valid values for etype ranges from 0x0600‐0xffff For LLC: Valid value in this case is comprised of two different sub‐values. a. DSAP: 1‐byte long string (0x00‐0xff) b. SSAP: 1‐byte long string (0x00‐0xff) For SNAP: Valid value in this case also is comprised of two different sub‐values. a.
Page 176: Vcl ‐ Port‐Based Vlan
Chapter 3: Web Management VCL ‐ Port‐based VLAN ‐ Protocol to Group value for the protocol running on top of SNAP; if the OUI is an OUI for a particular organization, the protocol ID is a value assigned by that organization to the protocol running on top of SNAP. In other words, if value of OUI field is 00‐00‐00 then value of PID will be etype (0x0600‐0xffff) and if value of OUI is other than 00‐00‐00 then valid value of PID will be any value from 0x0000 to 0xffff. Group Name A valid Group Name is a unique 16‐character long string for every entry which consists of a combination of alphabets (a‐z or A‐Z) and integers(0‐9). Note: special character and underscore(_) are not allowed. Adding a New Group to VLAN mapping entry Click “Add New Entry” to add a new entry in mapping table. An empty row is added to the table; Frame Type, Value and the Group Name can be configured as needed. The “Delete” button can be used to undo the addition of new entry. The maximum possible Protocol to Group mappings are limited to 128. Buttons  Save: Click to save changes.  Reset: Click to undo any changes made locally and revert to previously saved values.  Auto‐refresh: Check this box to refresh the page automatically. Automatic refresh occurs every 3 seconds.  Refresh: Click to refresh the page immediately. Intelinet 48‐Port Gigabit Ethernet PoE+ Layer2+ Managed Switch User Manual | 176 ...
Page 177: Vcl ‐ Port‐Based Vlan ‐ Group To Vlan
Chapter 3: Web Management VCL ‐ Port‐based VLAN ‐ Group to VLAN 3.1.17.2.2. VCL ‐ Port‐based VLAN ‐ Group to VLAN This page allows you to map an already configured Group Name to a VLAN for the selected stack switch unit. Delete To delete a Group Name to VLAN map entry, check this box. The entry will be deleted on the switch during the next Save Group Name A valid Group Name is a string at the most 16 characters which consists of a combination of alphabets (a‐z or A‐Z) and integers(0‐9), no special character is allowed. Whichever Group name you try map to a VLAN must be present in Protocol to Group mapping table and must not be pre‐used by any other existing mapping entry on this page. VLAN ID Indicates the ID to which Group Name will be mapped. A valid VLAN ID ranges from 1‐4095. Port Members A row of check boxes for each port is displayed for each Group Name to VLAN ID mapping. To include a port in a mapping, check the box. To remove or exclude the port from the mapping, make sure the box is unchecked. By default, no ports are members, and all boxes are unchecked. Adding a New Group to VLAN mapping entry Click “Add New Entry” to add a new entry in mapping table. An empty row is added to the table, the Group Name, VLAN ID and port members can be configured as needed. Legal values for a VLAN ID are 1 through 4095. The “Delete” button can be used to undo the addition of new entry. The maximum possible Group to VLAN mappings are limited to 64. Buttons  Save: Click to save changes.  Reset: Click to undo any changes made locally and revert to previously saved values.  Auto‐refresh: Check this box to refresh the page automatically. Automatic refresh occurs every 3 seconds.  Refresh: Click to refresh the page immediately. Intelinet ...
Page 178 Chapter 3: Web Management VCL ‐ IP Subnet‐based VLAN 3.1.17.3. VCL ‐ IP Subnet‐based VLAN The IP subnet‐based VLAN entries can be configured here. This page allows for adding, updating and deleting IP subnet‐based VLAN entries and assigning the entries to different ports. This page shows only static entries. Delete To delete a IP subnet‐based VLAN entry, check this box and press save. The entry will be deleted on the selected switch in the stack. VCE ID Indicates the index of the entry. It is user configurable. It's value ranges from 0‐128. If a VCE ID is 0, application will auto‐generate the VCE ID for that entry. Deletion and lookup of IP subnet‐based VLAN are based on VCE ID. IP Address Indicates the IP address. Mask Length Indicates the network mask length. VLAN ID Indicates the VLAN ID. VLAN ID can be changed for the existing entries. Port Members A row of check boxes for each port is displayed for each IP subnet‐based VLAN entry. To include a port in a IP subnet‐based VLAN, check the box. To remove or exclude the port from the IP subnet‐based VLAN, make sure the box is unchecked. By default, no ports are members, and all boxes are unchecked. Adding a New IP subnet‐based VLAN Click “Add New Entry” to add a new IP subnet‐based VLAN entry. An empty row is added to the table, and the IP subnet‐based VLAN entry can be configured as needed. Any IP address/mask can be configured for the IP subnet‐based VLAN entry. Legal values for a VLAN ID are 1 through 4095. The IP subnet‐based VLAN entry is enabled on the selected stack switch unit when you click on "Save". The “Delete” button can be used to undo the addition of new IP subnet‐based VLANs. The maximum possible IP subnet‐based VLAN entries are limited to 128. Intelinet 48‐Port Gigabit Ethernet PoE+ Layer2+ Managed Switch User Manual | 178 ...
Page 179: Vcl ‐ Ip Subnet‐Based Vlan
Chapter 3: Web Management VCL ‐ IP Subnet‐based VLAN Buttons  Save: Click to save changes.  Reset: Click to undo any changes made locally and revert to previously saved values.  Auto‐refresh: Check this box to refresh the page automatically. Automatic refresh occurs every 3 seconds.  Refresh: Refreshes the displayed table. Intelinet 48‐Port Gigabit Ethernet PoE+ Layer2+ Managed Switch User Manual | 179 ...
Page 180: Configuration ‐ Voice Vlan
Chapter 3: Web Management Voice VLAN ‐ Configuration 3.1.18. Configuration ‐ Voice VLAN 3.1.18.1. Voice VLAN ‐ Configuration The Voice VLAN feature enables voice traffic forwarding on the Voice VLAN, then the switch can classify and schedule network traffic. It is recommended that there be two VLANs on a port ‐ one for voice, one for data. Before connecting the IP device to the switch, the IP phone should configure the voice VLAN ID correctly. It should be configured through its own GUI. Mode Indicates the Voice VLAN mode operation. We must disable MSTP feature before we enable Voice VLAN. It can avoid the conflict of ingress filtering. Possible modes are:  Enabled: Enable Voice VLAN mode operation.  Disabled: Disable Voice VLAN mode operation. VLAN ID Indicates the Voice VLAN ID. It should be a unique VLAN ID in the system and cannot equal each port PVID. It is a conflict in configuration if the value equals management VID, MVR VID, PVID etc. The allowed range is 1 to 4095. Aging Time Indicates the Voice VLAN secure learning aging time. The allowed range is 10 to 10000000 seconds. It is used when security mode or auto detect mode is enabled. In other cases, it will be based on hardware aging time. The actual aging time will be situated between the [age_time; 2 * age_time] interval. Traffic Class Intelinet 48‐Port Gigabit Ethernet PoE+ Layer2+ Managed Switch User Manual | 180 ...
Page 181: Voice Vlan ‐ Configuration
Chapter 3: Web Management Voice VLAN ‐ Configuration Indicates the Voice VLAN traffic class. All traffic on the Voice VLAN will apply this class. Intelinet 48‐Port Gigabit Ethernet PoE+ Layer2+ Managed Switch User Manual | 181 ...
Page 182 Chapter 3: Web Management Voice VLAN ‐ Configuration Port Mode Indicates the Voice VLAN port mode. Possible port modes are:  Disabled: Disjoin from Voice VLAN.  Auto: Enable auto detect mode. It detects whether there is VoIP phone attached to the specific port and configures the Voice VLAN members automatically.  Forced: Force join to Voice VLAN. Port Security Indicates the Voice VLAN port security mode. When the function is enabled, all non‐telephonic MAC addresses in the Voice VLAN will be blocked for 10 seconds. Possible port modes are:  Enabled: Enable Voice VLAN security mode operation.  Disabled: Disable Voice VLAN security mode operation. Port Discovery Protocol Indicates the Voice VLAN port discovery protocol. It will only work when auto detect mode is enabled. We should enable LLDP feature before configuring discovery protocol to "LLDP" or "Both". Changing the discovery protocol to "OUI" or "LLDP" will restart auto detect process. Possible discovery protocols are:  OUI: Detect telephony device by OUI address.  LLDP: Detect telephony device by LLDP.  Both: Both OUI and LLDP. ...
Page 183: Voice Vlan ‐ Oui
Chapter 3: Web Management Voice VLAN ‐ OUI 3.1.18.2. Voice VLAN ‐ OUI Configure VOICE VLAN OUI table on this page. The maximum number of entries is 16. Modifying the OUI table will restart auto detection of OUI process. Delete Check to delete the entry. It will be deleted during the next save. Telephony OUI A telephony OUI address is a globally unique identifier assigned to a vendor by IEEE. It must be 6 characters long and the input format is "xx‐xx‐xx" (x is a hexadecimal digit). Description The description of OUI address. Normally, it describes which vendor telephony device it belongs to. The allowed string length is 0 to 32. Buttons  Add New Entry: Click to add a new access management entry.  Save: Click to save changes.  Reset: Click to undo any changes made locally and revert to previously saved values. Intelinet 48‐Port Gigabit Ethernet PoE+ Layer2+ Managed Switch User Manual | 183 ...
Page 184: Configuration ‐ Qos
Chapter 3: Web Management QoS ‐ Port Classification 3.1.19. Configuration ‐ QoS 3.1.19.1. QoS ‐ Port Classification This page allows you to configure the basic QoS Ingress Classification settings for all switch ports. The settings relate to the currently selected stack unit, as reflected by the page header. Port The port number for which the configuration below applies. QoS class Controls the default QoS class. All frames are classified to a QoS class. There is a one to one mapping between QoS class, queue and priority. A QoS class of 0 (zero) has the lowest priority. If the port is VLAN aware and the frame is tagged, then the frame is classified to a QoS class that is based on the PCP value in the tag as shown below. Otherwise the frame is classified to the default QoS class. PCP value: 0 1 2 3 4 5 6 7 QoS class: 1 0 2 3 4 5 6 7 The classified QoS class can be overruled by a QCL entry. Note: If the default QoS class has been dynamically changed, then the actual default QoS class is shown in parentheses after the configured default QoS class. ...
Page 185: Qos ‐ Port Classification
Chapter 3: Web Management QoS ‐ Port Classification DP level Controls the default Drop Precedence Level. All frames are classified to a DP level. If the port is VLAN aware and the frame is tagged, then the frame is classified to a DP level that is equal to the DEI value in the tag. Otherwise the frame is classified to the default DP level. The classified DP level can be overruled by a QCL entry. DSCP Based Click to Enable DSCP Based QoS Ingress Port Classification. Buttons  Save: Click to save changes.  Reset: Click to undo any changes made locally and revert to previously saved values. Intelinet 48‐Port Gigabit Ethernet PoE+ Layer2+ Managed Switch User Manual | 185 ...
Page 186 Chapter 3: Web Management QoS ‐ Port Policing 3.1.19.2. QoS ‐ Port Policing This page allows you to configure the Policer settings for all switch ports. The settings relate to the currently selected stack unit, as reflected by the page header. Port The port number for which the configuration below applies. Enabled Controls whether the policer is enabled on this switch port. Rate Controls the rate for the policer. The default value is 500. This value is restricted to 100‐1000000 when the "Unit" is "kbps" or "fps", and it is restricted to 1‐13200 when the "Unit" is "Mbps" or "kfps". Unit Controls the unit of measure for the policer rate as kbps, Mbps, fps or kfps . The default value is "kbps". Flow Control If flow control is enabled and the port is in flow control mode, then pause frames are sent instead of discarding frames. Buttons  Save: Click to save changes.  Reset: Click to undo any changes made locally and revert to previously saved values. Intelinet 48‐Port Gigabit Ethernet PoE+ Layer2+ Managed Switch User Manual | 186 ...
Page 187 Chapter 3: Web Management QoS ‐ Port Scheduler 3.1.19.3. QoS ‐ Port Scheduler This page provides an overview of QoS Egress Port Schedulers for all switch ports. The ports belong to the currently selected stack unit, as reflected by the page header. Port The logical port for the settings contained in the same row. Click on the port number in order to configure the schedulers. Mode Shows the scheduling mode for this port. Qn Shows the weight for this queue and port. Intelinet 48‐Port Gigabit Ethernet PoE+ Layer2+ Managed Switch User Manual | 187 ...
Page 188: Qos ‐ Port Scheduler
Chapter 3: Web Management QoS ‐ Port Scheduler This page allows you to configure the Scheduler and Shapers for a specific port. The settings relate to the currently selected stack unit, as reflected by the page header. Scheduler Mode Controls whether the scheduler mode is "Strict Priority" or "Weighted" on this switch port. Queue Shaper Enable Controls whether the queue shaper is enabled for this queue on this switch port. Queue Shaper Rate Controls the rate for the queue shaper. The default value is 500. This value is restricted to 100‐1000000 when the "Unit" is "kbps", and it is restricted to 1‐13200 when the "Unit" is "Mbps". Queue Shaper Unit Controls the unit of measure for the queue shaper rate as "kbps" or "Mbps". The default value is "kbps". Queue Shaper Excess Controls whether the queue is allowed to use excess bandwidth. Queue Scheduler Weight Controls the weight for this queue. The default value is "17". This value is restricted to 1‐100. This parameter is only shown if "Scheduler Mode" is set to "Weighted". Intelinet 48‐Port Gigabit Ethernet PoE+ Layer2+ Managed Switch User Manual | 188 ...
Page 189 Chapter 3: Web Management QoS ‐ Port Scheduler Queue Scheduler Percent Shows the weight in percent for this queue. This parameter is only shown if "Scheduler Mode" is set to "Weighted". Port Shaper Enable Controls whether the port shaper is enabled for this switch port. Port Shaper Rate Controls the rate for the port shaper. The default value is 500. This value is restricted to 100‐1000000 when the "Unit" is "kbps", and it is restricted to 1‐13200 when the "Unit" is "Mbps". Port Shaper Unit Controls the unit of measure for the port shaper rate as "kbps" or "Mbps". The default value is "kbps". Buttons  Save: Click to save changes.  Reset: Click to undo any changes made locally and revert to previously saved values.  Cancel: Click to undo any changes made locally and return to the previous page. Intelinet 48‐Port Gigabit Ethernet PoE+ Layer2+ Managed Switch User Manual | 189 ...
Page 190 Chapter 3: Web Management QoS ‐ Port Scheduler This page allows you to configure the Scheduler and Shapers for a specific port. The settings relate to the currently selected stack unit, as reflected by the page header. Scheduler Mode Controls whether the scheduler mode is "Strict Priority" or "Weighted" on this switch port. Queue Shaper Enable Controls whether the queue shaper is enabled for this queue on this switch port. Queue Shaper Rate Controls the rate for the queue shaper. The default value is 500. This value is restricted to 100‐1000000 when the "Unit" is "kbps", and it is restricted to 1‐13200 when the "Unit" is "Mbps". Queue Shaper Unit Controls the unit of measure for the queue shaper rate as "kbps" or "Mbps". The default value is "kbps". Queue Shaper Excess Controls whether the queue is allowed to use excess bandwidth. Queue Scheduler Weight Controls the weight for this queue. The default value is "17". This value is restricted to 1‐100. This parameter is only shown if "Scheduler Mode" is set to "Weighted". Intelinet 48‐Port Gigabit Ethernet PoE+ Layer2+ Managed Switch User Manual | 190 ...
Page 191 Chapter 3: Web Management QoS ‐ Port Scheduler Queue Scheduler Percent Shows the weight in percent for this queue. This parameter is only shown if "Scheduler Mode" is set to "Weighted". Port Shaper Enable Controls whether the port shaper is enabled for this switch port. Port Shaper Rate Controls the rate for the port shaper. The default value is 500. This value is restricted to 100‐1000000 when the "Unit" is "kbps", and it is restricted to 1‐13200 when the "Unit" is "Mbps". Port Shaper Unit Controls the unit of measure for the port shaper rate as "kbps" or "Mbps". The default value is "kbps". Buttons  Save: Click to save changes.  Reset: Click to undo any changes made locally and revert to previously saved values.  Cancel: Click to undo any changes made locally and return to the previous page. Intelinet 48‐Port Gigabit Ethernet PoE+ Layer2+ Managed Switch User Manual | 191 ...
Page 192 Chapter 3: Web Management QoS ‐ Port Shaping 3.1.19.4. QoS ‐ Port Shaping This page provides an overview of QoS Egress Port Shapers for all switch ports. The ports belong to the currently selected stack unit, as reflected by the page header. Port The logical port for the settings contained in the same row. Click on the port number in order to configure the shapers. Qn Shows "disabled" or actual queue shaper rate ‐ e.g. "800 Mbps". Port Shows "disabled" or actual port shaper rate ‐ e.g. "800 Mbps". Intelinet 48‐Port Gigabit Ethernet PoE+ Layer2+ Managed Switch User Manual | 192 ...
Page 193: Qos ‐ Port Shaping
Chapter 3: Web Management QoS ‐ Port Shaping This page allows you to configure the Scheduler and Shapers for a specific port. The settings relate to the currently selected stack unit, as reflected by the page header. Scheduler Mode Controls whether the scheduler mode is "Strict Priority" or "Weighted" on this switch port. Queue Shaper Enable Controls whether the queue shaper is enabled for this queue on this switch port. Queue Shaper Rate Controls the rate for the queue shaper. The default value is 500. This value is restricted to 100‐1000000 when the "Unit" is "kbps", and it is restricted to 1‐13200 when the "Unit" is "Mbps". Queue Shaper Unit Controls the unit of measure for the queue shaper rate as "kbps" or "Mbps". The default value is "kbps". Queue Shaper Excess Controls whether the queue is allowed to use excess bandwidth. Queue Scheduler Weight Controls the weight for this queue. The default value is "17". This value is restricted to 1‐100. This parameter is only shown if "Scheduler Mode" is set to "Weighted". Intelinet 48‐Port Gigabit Ethernet PoE+ Layer2+ Managed Switch User Manual | 193 ...
Page 194 Chapter 3: Web Management QoS ‐ Port Shaping Queue Scheduler Percent Shows the weight in percent for this queue. This parameter is only shown if "Scheduler Mode" is set to "Weighted". Port Shaper Enable Controls whether the port shaper is enabled for this switch port. Port Shaper Rate Controls the rate for the port shaper. The default value is 500. This value is restricted to 100‐1000000 when the "Unit" is "kbps", and it is restricted to 1‐13200 when the "Unit" is "Mbps". Port Shaper Unit Controls the unit of measure for the port shaper rate as "kbps" or "Mbps". The default value is "kbps". Buttons  Save: Click to save changes.  Reset: Click to undo any changes made locally and revert to previously saved values.  Cancel: Click to undo any changes made locally and return to the previous page. Intelinet 48‐Port Gigabit Ethernet PoE+ Layer2+ Managed Switch User Manual | 194 ...
Page 195 Chapter 3: Web Management QoS ‐ Port Shaping This page allows you to configure the Scheduler and Shapers for a specific port. The settings relate to the currently selected stack unit, as reflected by the page header. Scheduler Mode Controls whether the scheduler mode is "Strict Priority" or "Weighted" on this switch port. Queue Shaper Enable Controls whether the queue shaper is enabled for this queue on this switch port. Queue Shaper Rate Controls the rate for the queue shaper. The default value is 500. This value is restricted to 100‐1000000 when the "Unit" is "kbps", and it is restricted to 1‐13200 when the "Unit" is "Mbps". Queue Shaper Unit Controls the unit of measure for the queue shaper rate as "kbps" or "Mbps". The default value is "kbps". Queue Shaper Excess Controls whether the queue is allowed to use excess bandwidth. Queue Scheduler Weight Controls the weight for this queue. The default value is "17". This value is restricted to 1‐100. This parameter is only shown if "Scheduler Mode" is set to "Weighted". Intelinet 48‐Port Gigabit Ethernet PoE+ Layer2+ Managed Switch User Manual | 195 ...
Page 196 Chapter 3: Web Management QoS ‐ Port Shaping Queue Scheduler Percent Shows the weight in percent for this queue. This parameter is only shown if "Scheduler Mode" is set to "Weighted". Port Shaper Enable Controls whether the port shaper is enabled for this switch port. Port Shaper Rate Controls the rate for the port shaper. The default value is 500. This value is restricted to 100‐1000000 when the "Unit" is "kbps", and it is restricted to 1‐13200 when the "Unit" is "Mbps". Port Shaper Unit Controls the unit of measure for the port shaper rate as "kbps" or "Mbps". The default value is "kbps". Buttons  Save: Click to save changes.  Reset: Click to undo any changes made locally and revert to previously saved values.  Cancel: Click to undo any changes made locally and return to the previous page. Intelinet 48‐Port Gigabit Ethernet PoE+ Layer2+ Managed Switch User Manual | 196 ...
Page 197 Chapter 3: Web Management QoS ‐ Port Tag Remarking 3.1.19.5. QoS ‐ Port Tag Remarking This page provides an overview of QoS Egress Port Tag Remarking for all switch ports. The ports belong to the currently selected stack unit, as reflected by the page header. Port The logical port for the settings contained in the same row. Click on the port number in order to configure tag remarking. Mode Shows the tag remarking mode for this port.  Classified: Use classified PCP/DEI values.  Default: Use default PCP/DEI values.  Mapped: Use mapped versions of QoS class and DP level. Intelinet 48‐Port Gigabit Ethernet PoE+ Layer2+ Managed Switch User Manual | 197 ...
Page 198: Qos ‐ Port Tag Remarking
Chapter 3: Web Management QoS ‐ Port Tag Remarking The QoS Egress Port Tag Remarking for a specific port are configured on this page. Mode Controls the tag remarking mode for this port.  Classified: Use classified PCP/DEI values.  Default: Use default PCP/DEI values.  Mapped: Use mapped versions of QoS class and DP level. PCP/DEI Configuration Controls the default PCP and DEI values used when the mode is set to Default. Intelinet 48‐Port Gigabit Ethernet PoE+ Layer2+ Managed Switch User Manual | 198 ...
Page 199 Chapter 3: Web Management QoS ‐ Port Tag Remarking DP level Configuration Controls the Drop Precedence level translation table when the mode is set to Mapped. The purpose of this table is to reduce the 2 bit classified DP level to a 1 bit DP level used in the (QoS class, DP level) to (PCP, DEI) mapping process. (QoS class, DP level) to (PCP, DEI) Mapping Controls the mapping of the classified (QoS class, DP level) to (PCP, DEI) values when the mode is set to Mapped. Buttons  Save: Click to save changes.  Reset: Click to undo any changes made locally and revert to previously saved values.  Cancel: Click to undo any changes made locally and return to the previous page. Intelinet 48‐Port Gigabit Ethernet PoE+ Layer2+ Managed Switch User Manual | 199 ...
Page 200 Chapter 3: Web Management QoS ‐ Port DSCP 3.1.19.6. QoS ‐ Port DSCP This page allows you to configure the basic QoS Port DSCP Configuration settings for all switch ports. The settings relate to the currently selected stack unit, as reflected by the page header. Port The Port column shows the list of ports for which you can configure dscp ingress and egress settings. Ingress In Ingress settings you can change ingress translation and classification settings for individual ports. There are two configuration parameters available in Ingress: 1. Translate 2. Classify 1. Translate To Enable the Ingress Translation click the checkbox. 2. Classify Classification for a port have 4 different values.  Disable: No Ingress DSCP Classification.  DSCP=0: Classify if incoming (or translated if enabled) DSCP is 0.  Selected: Classify only selected DSCP for which classification is enabled as specified in DSCP Translation window for the specific DSCP.  All: Classify all DSCP. Intelinet 48‐Port Gigabit Ethernet PoE+ Layer2+ Managed Switch User Manual | 200 ...
Page 201: Qos ‐ Port Dscp
Chapter 3: Web Management QoS ‐ Port DSCP Egress Port Egress Rewriting can be one of ‐  Disable: No Egress rewrite.  Enable: Rewrite enabled without remapping.  Remap: DSCP from analyzer is remapped and frame is remarked with remapped DSCP value. Buttons  Save: Click to save changes.  Reset: Click to undo any changes made locally and revert to previously saved values. Intelinet 48‐Port Gigabit Ethernet PoE+ Layer2+ Managed Switch User Manual | 201 ...
Page 202: Qos ‐ Dscp‐Based Qos
Chapter 3: Web Management QoS ‐ DSCP‐Based QoS 3.1.19.7. QoS ‐ DSCP‐Based QoS This page allows you to configure the basic QoS DSCP based QoS Ingress Classification settings for all switches. DSCP Maximum number of supported DSCP values are 64. Trust Controls whether a specific DSCP value is trusted. Only frames with trusted DSCP values are mapped to a specific QoS class and Drop Precedence Level. Frames with untrusted DSCP values are treated as a non‐IP frame. QoS Class QoS class value can be any of (0‐7) DPL Drop Precedence Level (0‐3) Buttons  Save: Click to save changes.  Reset: Click to undo any changes made locally and revert to previously saved values. Intelinet 48‐Port Gigabit Ethernet PoE+ Layer2+ Managed Switch User Manual | 202 ...
Page 203: Qos ‐ Dscp Translation
Chapter 3: Web Management QoS ‐ DSCP Translation 3.1.19.8. QoS ‐ DSCP Translation This page allows you to configure the basic QoS DSCP Translation settings for all switches. DSCP translation can be done in Ingress or Egress. DSCP Maximum number of supported DSCP values are 64 and valid DSCP value ranges from 0 to 63. Ingress Ingress side DSCP can be first translated to new DSCP before using the DSCP for QoS class and DPL map. There are two configuration parameters for DSCP Translation ‐ 1. Translate 2. Classify 1. Translate DSCP at Ingress side can be translated to any of (0‐63) DSCP values. 2. Classify Click to enable Classification at Ingress side. Egress There is the following configurable parameter for Egress side ‐  Remap Remap Select the DSCP value from select menu to which you want to remap. DSCP value ranges form 0 to 63. Buttons  Save: Click to save changes.  Reset: Click to undo any changes made locally and revert to previously saved values. ...
Page 204: Qos ‐ Dscp Classification
Chapter 3: Web Management QoS ‐ DSCP Classification 3.1.19.9. QoS ‐ DSCP Classification This page allows you to configure the mapping of QoS class to DSCP value. The settings relate to the currently selected stack unit, as reflected by the page header. QoS Class Actual QoS class. DSCP Select the classified DSCP value (0‐63). Buttons  Save: Click to save changes.  Reset: Click to undo any changes made locally and revert to previously saved values. Intelinet 48‐Port Gigabit Ethernet PoE+ Layer2+ Managed Switch User Manual | 204 ...
Page 205: Qos ‐ Storm Control
Chapter 3: Web Management QoS ‐ Storm Control 3.1.19.10. QoS ‐ Storm Control This page allows you to configure the storm control settings for all switch ports. There is a storm rate control for unicast frames, broadcast frames and unknown (flooded) frames. The settings relate to the currently selected stack unit, as reflected by the page header. Port The port number for which the configuration below applies. Enabled Controls whether the storm control is enabled on this switch port. Rate Controls the rate for the storm control. The default value is 500. This value is restricted to 100‐1000000 when the "Unit" is "kbps" or "fps", and it is restricted to 1‐13200 when the "Unit" is "Mbps" or "kfps". Unit Controls the unit of measure for the storm control rate as kbps, Mbps, fps or kfps . The default value is "kbps". Buttons  Save: Click to save changes.  Reset: Click to undo any changes made locally and revert to previously saved values. Intelinet 48‐Port Gigabit Ethernet PoE+ Layer2+ Managed Switch User Manual | 205 ...
Page 206 Chapter 3: Web Management QoS ‐ WRED 3.1.19.11. QoS ‐ WRED This page allows you to configure the Random Early Detection (RED) settings for queue 0 to 5. RED cannot be applied to queue 6 and 7. Through different RED configuration for the queues (QoS classes) it is possible to obtain Weighted Random Early Detection (WRED) operation between queues. The settings are global for all ports in the stack. Queue The queue number (QoS class) for which the configuration below applies. Enable Controls whether RED is enabled for this queue. Min. Threshold Controls the lower RED threshold. If the average queue filling level is below this threshold, the drop probability is zero. This value is restricted to 0‐100. Max. DP 1 Controls the drop probability for frames marked with Drop Precedence Level 1 when the average queue filling level is 100%. This value is restricted to 0‐100. Max. DP 2 Controls the drop probability for frames marked with Drop Precedence Level 2 when the average queue filling level is 100%. This value is restricted to 0‐100. Max. DP 3 Controls the drop probability for frames marked with Drop Precedence Level 3 when the average queue filling level is 100%. This value is restricted to 0‐100. Intelinet 48‐Port Gigabit Ethernet PoE+ Layer2+ Managed Switch User Manual | 206 ...
Page 207: Qos ‐ Wred
Chapter 3: Web Management QoS ‐ WRED RED Drop Probability Function The following illustration shows the drop probability function with associated parameters. RED Drop Probability Function Max. DP 1‐3 is the drop probability when the average queue filling level is 100%. Frames marked with Drop Precedence Level 0 are never dropped. Min. Threshold is the average queue filling level where the queues randomly start dropping frames. The drop probability for frames marked with Drop Precedence Level n increases linearly from zero (at Min. Threshold average queue filling level) to Max. DP n (at 100% average queue filling level). Buttons  Save: Click to save changes.  Reset: Click to undo any changes made locally and revert to previously saved values. Intelinet 48‐Port Gigabit Ethernet PoE+ Layer2+ Managed Switch User Manual | 207 ...
Page 208 Chapter 3: Web Management Configuration ‐ Mirroring 3.1.20. Configuration ‐ Mirroring Configure port Mirroring on this page. To debug network problems, selected traffic can be copied, or mirrored, on a mirror port where a frame analyzer can be attached to analyze the frame flow. The traffic to be copied on the mirror port is selected as follows:  All frames received on a given port (also known as ingress or source mirroring).  All frames transmitted on a given port (also known as egress or destination mirroring). Port to mirror to Port to mirror also known as the mirror port. Frames from ports that have either source (rx) or destination (tx) mirroring enabled are mirrored on this port. Disabled disables mirroring. Switch to mirror to Frames from ports that have either source (rx) or destination (tx) mirroring enabled are mirrored to this switch. Mirror Port Configuration The following table is used for Rx and Tx enabling. Port The logical port for the settings contained in the same row. Intelinet 48‐Port Gigabit Ethernet PoE+ Layer2+ Managed Switch User Manual | 208 ...
Page 209: Configuration ‐ Mirroring
Chapter 3: Web Management Configuration ‐ Mirroring Mode Select mirror mode.  Rx only: Frames received on this port are mirrored on the mirror port. Frames transmitted are not mirrored.  Tx only: Frames transmitted on this port are mirrored on the mirror port. Frames received are not mirrored.  Disabled: Neither frames transmitted nor frames received are mirrored.  Enabled: Frames received and frames transmitted are mirrored on the mirror port. Note: For a given port, a frame is only transmitted once. It is therefore not possible to mirror mirror port Tx frames. Because of this, mode for the selected mirror port is limited to Disabled or Rx only. Buttons  Save: Click to save changes.  Reset: Click to undo any changes made locally and revert to previously saved values. Intelinet 48‐Port Gigabit Ethernet PoE+ Layer2+ Managed Switch User Manual | 209 ...
Page 210: Configuration ‐ Upnp
Chapter 3: Web Management Configuration ‐ UPnP 3.1.21. Configuration ‐ UPnP Configure UPnP on this page. Mode Indicates the UPnP operation mode. Possible modes are:  Enabled: Enable UPnP mode operation.  Disabled: Disable UPnP mode operation. When the mode is enabled, two ACEs are added automatically to trap UPNP related packets to CPU. The ACEs are automatically removed when the mode is disabled. TTL The TTL value is used by UPnP to send SSDP advertisement messages. Valid values are in the range 1 to 255. Advertising Duration The duration, carried in SSDP packets, is used to inform a control point or control points how often it or they should receive an SSDP advertisement message from this switch. If a control point does not receive any message within the duration, it will think that the switch no longer exists. Due to the unreliable nature of UDP, in the standard it is recommended that such refreshing of advertisements to be done at less than one‐half of the advertising duration. In the implementation, the switch sends SSDP messages periodically at the interval one‐half of the advertising duration minus 30 seconds. Valid values are in the range 100 to 86400. Buttons  Save: Click to save changes.  Reset: Click to undo any changes made locally and revert to previously saved values. Intelinet 48‐Port Gigabit Ethernet PoE+ Layer2+ Managed Switch User Manual | 210 ...
Page 211: Configuration ‐ Gvrp
Chapter 3: Web Management GVRP ‐ Global Config 3.1.22. Configuration ‐ GVRP 3.1.22.1. GVRP ‐ Global Config This page allows you to configure the basic GVRP Configuration settings for all switch ports. Enable GVRP globally The GVRP feature is enabled by setting the check mark in the checkbox named Enable GVRP. GVRP protocol timers Join‐time is a value in the range 1‐20 in the units of centi seconds, i.e. in units of one hundredth of a second. The default is 20. Leave‐time is a value in the range 60‐300 in the units of centi seconds, i.e. in units of one hundredth of a second.The default is 60. LeaveAll‐time is a value in the range 1000‐5000 in the units of centi seconds, i.e. in units of one hundredth of a second. The default is 1000. Max number of VLANs When GVRP is enabled a maximum number of VLANs supported by GVRP is specified. By default this number is 20. This number can only be changed when GVRP is turned off. Buttons  Save: Click to save changes. Intelinet 48‐Port Gigabit Ethernet PoE+ Layer2+ Managed Switch User Manual | 211 ...
Page 212: Gvrp ‐ Port Config
Chapter 3: Web Management GVRP ‐ Port Config 3.1.22.2. GVRP ‐ Port Config This page allows you to enable a port for GVRP. Button  Save: Click to save changes.  Reset: Click to undo any changes made locally and revert to previously saved values. Intelinet 48‐Port Gigabit Ethernet PoE+ Layer2+ Managed Switch User Manual | 212 ...
Page 213 Chapter 3: Web Management Configuration ‐ sFlow 3.1.23. Configuration ‐ sFlow This page allows for configuring sFlow. The configuration is divided into two parts: Configuration of the sFlow receiver (a.k.a. sFlow collector) and configuration of per‐port flow and counter samplers. sFlow configuration is not persisted to non‐volatile memory, which means that a reboot or master change will disable sFlow sampling. Receiver Configuration Owner Basically, sFlow can be configured in two ways: Through local management using the Web or CLI interface or through SNMP. This read‐only field shows the owner of the current sFlow configuration and assumes values as follows:  If sFlow is currently unconfigured/unclaimed, Owner contains <none>.  If sFlow is currently configured through Web or CLI, Owner contains <Configured through local management>.  If sFlow is currently configured through SNMP, Owner contains a string identifying the sFlow receiver. If sFlow is configured through SNMP, all controls ‐ except for the Release‐button ‐ are disabled to avoid inadvertent reconfiguration. The “Release” button allows for releasing the current owner and disable sFlow sampling. The button is disabled if sFlow is currently unclaimed. If configured through SNMP, the release must be Intelinet 48‐Port Gigabit Ethernet PoE+ Layer2+ Managed Switch User Manual | 213 ...
Page 214: Configuration ‐ Sflow
Chapter 3: Web Management Configuration ‐ sFlow confirmed (a confirmation request will appear). IP Address/Hostname The IP address or hostname of the sFlow receiver. Both IPv4 and IPv6 addresses are supported. UDP Port The UDP port on which the sFlow receiver listens to sFlow datagrams. If set to 0 (zero), the default port (6343) is used. Timeout The number of seconds remaining before sampling stops and the current sFlow owner is released. While active, the current time left can be updated with a click on the Refresh‐button. If locally managed, the timeout can be changed on the fly without affecting any other settings. Max. Datagram Size The maximum number of data bytes that can be sent in a single sample datagram. This should be set to a value that avoids fragmentation of the sFlow datagrams. Valid range is 200 to 1468 bytes with default being 1400 bytes. Port Configuration Port The port number for which the configuration below applies. Flow Sampler Enabled Enables/disables flow sampling on this port. Flow Sampler Sampling Rate The statistical sampling rate for packet sampling. Set to N to sample on average 1/Nth of the packets transmitted/received on the port. Not all sampling rates are achievable. If an unsupported sampling rate is requested, the switch will automatically adjust it to the closest achievable. This will be reported back in this field. Flow Sampler Max. Header The maximum number of bytes that should be copied from a sampled packet to the sFlow datagram. Valid range is 14 to 200 bytes with default being 128 bytes. If the maximum datagram size does not take into account the maximum header size, samples may be dropped. Counter Poller Enabled Enables/disables counter polling on this port. Counter Poller Interval Intelinet 48‐Port Gigabit Ethernet PoE+ Layer2+ Managed Switch User Manual | 214 ...
Page 215 Chapter 3: Web Management Configuration ‐ sFlow With counter polling enabled, this specifies the interval ‐ in seconds ‐ between counter poller samples. Buttons  Release: See description under Owner.  Refresh: Click to refresh the page. Note that unsaved changes will be lost.  Save: Click to save changes. Note that sFlow configuration is not persisted to non‐volatile memory.  Reset: Click to undo any changes made locally and revert to previously saved values. Intelinet 48‐Port Gigabit Ethernet PoE+ Layer2+ Managed Switch User Manual | 215 ...
Page 216: Monitor ‐ System
Chapter 3: Web Management System ‐ Information 3.2. Web Management ‐ Monitor You can monitor and view system status here. Also, all the settings you’ve made in the Configuration section of the management web page can be viewed here as well. 3.2.1. Monitor ‐ System 3.2.1.1. System ‐ Information The switch system information is provided here. Contact The system contact configured in Configuration | System | Information | System Contact. Name The system name configured in Configuration | System | Information | System Name. Location The system location configured in Configuration | System | Information | System Location. MAC Address The MAC Address of this switch. System Date The current (GMT) system time and date. The system time is obtained through the Timing server running on the switch, if any. System Uptime The period of time the device has been operational. Switch ID The switch ID. Chip ID The Chip ID of this switch. Software Version The software version of this switch. Intelinet 48‐Port Gigabit Ethernet PoE+ Layer2+ Managed Switch User Manual | 216 ...
Page 217: System ‐ Information
Chapter 3: Web Management System ‐ Information Software Date The date when the switch software was produced. Buttons  Auto‐refresh: Check this box to refresh the page automatically. Automatic refresh occurs every 3 seconds.  Refresh: Click to refresh the page. Intelinet 48‐Port Gigabit Ethernet PoE+ Layer2+ Managed Switch User Manual | 217 ...
Page 218: System ‐ Cpu Load
Chapter 3: Web Management System ‐ CPU Load 3.2.1.2. System ‐ CPU Load This page displays the CPU load, using an SVG graph. The load is measured as averaged over the last 100ms, 1sec and 10 seconds intervals. The last 120 samples are graphed, and the last numbers are displayed as text as well. In order to display the SVG graph, your browser must support the SVG format. Consult the SVG Wiki for more information on browser support. Specifically, at the time of writing, Microsoft Internet Explorer will need to have a plugin installed to support SVG. Buttons  Auto‐refresh: Check this box to refresh the page automatically. Automatic refresh occurs every 3 seconds. Intelinet 48‐Port Gigabit Ethernet PoE+ Layer2+ Managed Switch User Manual | 218 ...
Page 219 Chapter 3: Web Management System ‐ IP Status 3.2.1.3. System ‐ IP Status This page displays the status of the IP protocol layer. The status is defined by the IP interfaces, the IP routes and the neighbour cache (ARP cache) status. IP Interfaces Interface The name of the interface. Type The address type of the entry. This may be LINK or IPv4. Address The current address of the interface (of the given type). Status The status flags of the interface (and/or address). IP Routes Network The destination IP network or host address of this route. Gateway The gateway address of this route. Status The status flags of the route. Neighbour cache IP Address The IP address of the entry. Link Address Intelinet 48‐Port Gigabit Ethernet PoE+ Layer2+ Managed Switch User Manual | 219 ...
Page 220: System ‐ Ip Status
Chapter 3: Web Management System ‐ IP Status The Link (MAC) address for which a binding to the IP address given exist.. Buttons  Refresh: Click to refresh the page immediately.  Auto‐refresh: Check this box to refresh the page automatically. Automatic refresh occurs every 3 seconds. Intelinet 48‐Port Gigabit Ethernet PoE+ Layer2+ Managed Switch User Manual | 220 ...
Page 221 Chapter 3: Web Management System ‐ Log 3.2.1.4. System ‐ Log The switch system log information is provided here. ID The ID (>= 1) of the system log entry. Level The level of the system log entry. The following level types are supported:  Info: Information level of the system log.  Warning: Warning level of the system log.  Error: Error level of the system log.  All: All levels. Time The time of the system log entry. Message The message of the system log entry. Buttons  Auto‐refresh: Check this box to refresh the page automatically. Automatic refresh occurs every 3 seconds.  Refresh: Updates the system log entries, starting from the current entry ID.  Clear: Flushes the selected log entries.  |<<: Updates the system log entries, starting from the first available entry ID.  <<: Updates the system log entries, ending at the last entry currently displayed.  >>: Updates the system log entries, starting from the last entry currently displayed.  >>|: Updates the system log entries, ending at the last available entry ID. ...
Page 222: System ‐ Log
Chapter 3: Web Management System ‐ Detailed Log 3.2.1.5. System ‐ Detailed Log The switch system detailed log information is provided here. ID The ID (>= 1) of the system log entry. Message The detailed message of the system log entry. Buttons  Refresh: Updates the system log entry to the current entry ID.  |<<: Updates the system log entry to the first available entry ID.  <<: Updates the system log entry to the previous available entry ID.  >>: Updates the system log entry to the next available entry ID.  >>|: Updates the system log entry to the last available entry ID. Intelinet 48‐Port Gigabit Ethernet PoE+ Layer2+ Managed Switch User Manual | 222 ...
Page 223: Monitor ‐ Green Ethernet
Chapter 3: Web Management Green Ethernet ‐ Port Power Savings Status 3.2.2. Monitor ‐ Green Ethernet 3.2.2.1. Green Ethernet ‐ Port Power Savings Status This page provides the current status for EEE. Local Port This is the logical port number for this row. Link Shows if the link is up for the port (green = link up, red = link down). EEE cap Shows if the port is EEE capable. EEE Ena Shows if EEE is enabled for the port (reflects the settings at the Port Power Savings configuration page). LP EEE cap Shows if the link partner is EEE capable. EEE In power save Shows if the system is currently saving power due to EEE. When EEE is enabled, the system will powered down if no frame has been received or transmitted in 5 uSec. Actiphy Savings Shows if the system is currently saving power due to ActiPhy. PerfectReach Savings Shows if the system is currently saving power due to PerfectReach. Buttons  Auto‐refresh: Check this box to refresh the page automatically. Automatic refresh occurs every 3 seconds.  Refresh: Click to refresh the page. Intelinet 48‐Port Gigabit Ethernet PoE+ Layer2+ Managed Switch User Manual | 223 ...
Page 224: Monitor ‐ Ports
Chapter 3: Web Management Ports ‐ State 3.2.3. Monitor ‐ Ports 3.2.3.1. Ports ‐ State This page provides an overview of the current switch port states. The port states are illustrated as follows: Status Disabled Down Link RJ45 ports SFP ports X2 ports Buttons  Auto‐refresh: Check this box to refresh the page automatically. Automatic refresh occurs every 3 seconds.  Refresh: Click to refresh the page. Intelinet 48‐Port Gigabit Ethernet PoE+ Layer2+ Managed Switch User Manual | 224 ...
Page 225 Chapter 3: Web Management Ports ‐ Traffic Overview 3.2.3.2. Ports ‐ Traffic Overview This page provides an overview of general traffic statistics for all switch ports. The ports belong to the currently selected stack unit, as reflected by the page header. Port The logical port for the settings contained in the same row. Packets The number of received and transmitted packets per port. Bytes The number of received and transmitted bytes per port. Errors The number of frames received in error and the number of incomplete transmissions per port. Drops The number of frames discarded due to ingress or egress congestion. Filtered The number of received frames filtered by the forwarding process. Buttons  Refresh: Click to refresh the page immediately.  Clear: Clears the counters for all ports.  Auto‐refresh: Check this box to refresh the page automatically. Automatic refresh occurs every 3 seconds. Intelinet 48‐Port Gigabit Ethernet PoE+ Layer2+ Managed Switch User Manual | 225 ...
Page 226: Ports ‐ Traffic Overview
Chapter 3: Web Management Ports ‐ Traffic Overview Intelinet 48‐Port Gigabit Ethernet PoE+ Layer2+ Managed Switch User Manual | 226 ...
Page 227: Ports ‐ Qos Statistics
Chapter 3: Web Management Ports ‐ QoS Statistics 3.2.3.3. Ports ‐ QoS Statistics This page provides statistics for the different queues for all switch ports. The ports belong to the currently selected stack unit, as reflected by the page header. Port The logical port for the settings contained in the same row. Qn There are 8 QoS queues per port. Q0 is the lowest priority queue. Rx/Tx The number of received and transmitted packets per queue. Buttons  Auto‐refresh: Check this box to refresh the page automatically. Automatic refresh occurs every 3 seconds.  Refresh: Click to refresh the page immediately.  Clear: Clears the counters for all ports. Intelinet 48‐Port Gigabit Ethernet PoE+ Layer2+ Managed Switch User Manual | 227 ...
Page 228 Chapter 3: Web Management Ports ‐ Detailed Statistics 3.2.3.4. Ports ‐ Detailed Statistics This page provides detailed traffic statistics for a specific switch port. Use the port select box to select which switch port details to display. The selected port belongs to the currently selected stack unit, as reflected by the page header. The displayed counters are the totals for receive and transmit, the size counters for receive and transmit, and the error counters for receive and transmit. Receive Total and Transmit Total Rx and Tx Packets The number of received and transmitted (good and bad) packets. Rx and Tx Octets The number of received and transmitted (good and bad) bytes. Includes FCS, but excludes framing bits. Rx and Tx Unicast The number of received and transmitted (good and bad) unicast packets. Rx and Tx Multicast The number of received and transmitted (good and bad) multicast packets. Rx and Tx Broadcast The number of received and transmitted (good and bad) broadcast packets. Intelinet 48‐Port Gigabit Ethernet PoE+ Layer2+ Managed Switch User Manual | 228 ...
Page 229: Ports ‐ Detailed Statistics
Chapter 3: Web Management Ports ‐ Detailed Statistics Rx and Tx Pause A count of the MAC Control frames received or transmitted on this port that have an opcode indicating a PAUSE operation. Receive and Transmit Size Counters The number of received and transmitted (good and bad) packets split into categories based on their respective frame sizes. Receive and Transmit Queue Counters The number of received and transmitted packets per input and output queue. Receive Error Counters Rx Drops The number of frames dropped due to lack of receive buffers or egress congestion. Rx CRC/Alignment The number of frames received with CRC or alignment errors. Rx Undersize The number of short 1 frames received with valid CRC. Rx Oversize The number of long 2 frames received with valid CRC. Rx Fragments The number of short 1 frames received with invalid CRC. Rx Jabber The number of long 2 frames received with invalid CRC. Rx Filtered The number of received frames filtered by the forwarding process. Note 1: Short frames are frames that are smaller than 64 bytes. Note 2: Long frames are frames that are longer than the configured maximum frame length for this port. Transmit Error Counters Tx Drops The number of frames dropped due to output buffer congestion. Tx Late/Exc. Coll. The number of frames dropped due to excessive or late collisions. Intelinet 48‐Port Gigabit Ethernet PoE+ Layer2+ Managed Switch User Manual | 229 ...
Page 230 Chapter 3: Web Management Ports ‐ Detailed Statistics Buttons  Refresh: Click to refresh the page immediately.  Clear: Clears the counters for the selected port.  Auto‐refresh: Check this box to refresh the page automatically. Automatic refresh occurs every 3 seconds. Note: The port select box determines which port is affected by clicking the buttons. Intelinet 48‐Port Gigabit Ethernet PoE+ Layer2+ Managed Switch User Manual | 230 ...
Page 231: Monitor ‐ Dhcp
Chapter 3: Web Management DHCP ‐ Server ‐ Statistics 3.2.4. Monitor ‐ DHCP 3.2.4.1. DHCP ‐ Server 3.2.4.1.1. DHCP ‐ Server ‐ Statistics This page displays the database counters and the number of DHCP messages sent and received by DHCP server. Database Counters Display counters of various databases. Pool Number of pools. Excluded IP Address Number of excluded IP address ranges. Declined IP Address Number of seclined IP addresses. Binding Counters Display counters of various databases. Automatic Binding Number of bindings with network‐type pools. Manual Binding Number of bindings that administrator assigns an IP address to a client. That is, the pool is of host type. Expired Binding Number of bindings that their lease time expired or they are cleared from Automatic/Manual type bindings. Intelinet 48‐Port Gigabit Ethernet PoE+ Layer2+ Managed Switch User Manual | 231 ...
Page 232: Dhcp ‐ Server
Chapter 3: Web Management DHCP ‐ Server ‐ Statistics DHCP Message Received Counters Display counters of DHCP messages received by DHCP server. DISCOVER Number of DHCP DISCOVER messages received. REQUEST Number of DHCP REQUEST messages received. DECLINE Number of DHCP DECLINE messages received. RELEASE Number of DHCP RELEASE messages received. INFORM Number of DHCP INFORM messages received. DHCP Message Sent Counters Display counters of DHCP messages sent by DHCP server. OFFER Number of DHCP OFFER messages sent. ACK Number of DHCP ACK messages sent. NAK Number of DHCP NAK messages sent. Buttons  Auto‐refresh: Check this box to refresh the page automatically. Automatic refresh occurs every 3 seconds.  Refresh: Click to refresh the page immediately.  Clear: Click to Clears DHCP Message Received Counters and DHCP Message Sent Counters. Intelinet 48‐Port Gigabit Ethernet PoE+ Layer2+ Managed Switch User Manual | 232 ...
Page 233: Dhcp ‐ Server ‐ Binding
Chapter 3: Web Management DHCP ‐ Server ‐ Binding 3.2.4.1.2. DHCP ‐ Server ‐ Binding This page displays bindings generated for DHCP clients. Binding IP Address Display all bindings. IP IP address allocated to DHCP client. Type Type of binding. Possible types are Automatic, Manual, Expired. State State of binding. Possible states are Committed, Allocated, Expired. Pool Name The pool that generates the binding. Server ID Server IP address to service the binding. Buttons  Refresh: Click to refresh the page immediately.  Auto‐refresh: Check this box to refresh the page automatically. Automatic refresh occurs every 3 seconds.  Clear Selected: Click to clear selected bindings. If the selected binding is Automatic or Manual, then it is changed to be Expired. If the selected binding is Expired, then it is freed.  Clear Automatic: Click to clear all Automatic bindings and Change them to Expired bindings.  Clear Manual: Click to clear all Manual bindings and Change them to Expired bindings.  Clear Expired: Click to clear all Expired bindings and free them. Intelinet 48‐Port Gigabit Ethernet PoE+ Layer2+ Managed Switch User Manual | 233 ...
Page 234: Dhcp ‐ Server ‐ Declined Ip
Chapter 3: Web Management DHCP ‐ Server ‐ Declined IP 3.2.4.1.3. DHCP ‐ Server ‐ Declined IP This page displays declined IP addresses. Declined IP Addresses Display IP addresses declined by DHCP clients. Declined IP List of IP addresses declined. Buttons  Auto‐refresh: Check this box to refresh the page automatically. Automatic refresh occurs every 3 seconds.  Refresh: Click to refresh the page immediately. Intelinet 48‐Port Gigabit Ethernet PoE+ Layer2+ Managed Switch User Manual | 234 ...
Page 235 Chapter 3: Web Management DHCP ‐ Snooping Table 3.2.4.2. DHCP ‐ Snooping Table This page display the dynamic IP assigned information after DHCP Snooping mode is disabled. All DHCP clients obtained the dynamic IP address from the DHCP server will be listed in this table except for local VLAN interface IP addresses. Entries in the Dynamic DHCP snooping Table are shown on this page. Navigating the DHCP snooping Table Each page shows up to 99 entries from the Dynamic DHCP snooping table, default being 20, selected through the "entries per page" input field. When first visited, the web page will show the first 20 entries from the beginning of the Dynamic DHCP snooping Table. The "MAC address" and "VLAN" input fields allows the user to select the starting point in the Dynamic DHCP snooping Table. Clicking the Refresh button will update the displayed table starting from that or the closest next Dynamic DHCP snooping Table match. In addition, the two input fields will ‐ upon a Refresh button click ‐ assume the value of the first displayed entry, allowing for continuous refresh with the same start address. The >> will use the last entry of the currently displayed table as a basis for the next lookup. When the end is reached the text "No more entries" is shown in the displayed table. Use the |<< button to start over. DHCP snooping Table Columns MAC Address User MAC address of the entry. VLAN ID VLAN‐ID in which the DHCP traffic is permitted. Source Port Switch Port Number for which the entries are displayed. IP Address User IP address of the entry. IP Subnet Mask User IP subnet mask of the entry. DHCP Server Address DHCP Server address of the entry. Intelinet 48‐Port Gigabit Ethernet PoE+ Layer2+ Managed Switch User Manual | 235 ...
Page 236: Dhcp ‐ Snooping Table
Chapter 3: Web Management DHCP ‐ Snooping Table Buttons  Auto‐refresh: Check this box to refresh the page automatically. Automatic refresh occurs every 3 seconds.  Refresh: Refreshes the displayed table starting from the input fields.  Clear: Flushes all dynamic entries.  |<<: Updates the table starting from the first entry in the Dynamic DHCP snooping Table.  >>: Updates the table, starting with the entry after the last entry currently displayed. Intelinet 48‐Port Gigabit Ethernet PoE+ Layer2+ Managed Switch User Manual | 236 ...
Page 237 Chapter 3: Web Management DHCP ‐ Relay Statistics 3.2.4.3. DHCP ‐ Relay Statistics This page provides statistics for DHCP relay. Server Statistics Transmit to Server The number of packets that are relayed from client to server. Transmit Error The number of packets that resulted in errors while being sent to clients. Receive from Server The number of packets received from server. Receive Missing Agent Option The number of packets received without agent information options. Receive Missing Circuit ID The number of packets received with the Circuit ID option missing. Receive Missing Remote ID The number of packets received with the Remote ID option missing. Receive Bad Circuit ID The number of packets whose Circuit ID option did not match known circuit ID. Receive Bad Remote ID The number of packets whose Remote ID option did not match known Remote ID. Client Statistics Transmit to Client The number of relayed packets from server to client. Transmit Error The number of packets that resulted in error while being sent to servers. Receive from Client The number of received packets from server. Intelinet 48‐Port Gigabit Ethernet PoE+ Layer2+ Managed Switch User Manual | 237 ...
Page 238: Dhcp ‐ Relay Statistics
Chapter 3: Web Management DHCP ‐ Relay Statistics Receive Agent Option The number of received packets with relay agent information option. Replace Agent Option The number of packets which were replaced with relay agent information option. Keep Agent Option The number of packets whose relay agent information was retained. Drop Agent Option The number of packets that were dropped which were received with relay agent information. Buttons  Auto‐refresh: Check this box to refresh the page automatically. Automatic refresh occurs every 3 seconds.  Refresh: Click to refresh the page immediately.  Clear: Clear all statistics. Intelinet 48‐Port Gigabit Ethernet PoE+ Layer2+ Managed Switch User Manual | 238 ...
Page 239 Chapter 3: Web Management DHCP ‐ Detailed Statistics 3.2.4.4. DHCP ‐ Detailed Statistics This page provides statistics for DHCP snooping. Notice that the normal forward per‐port TX statistics isn't increased if the incoming DHCP packet is done by L3 forwarding mechanism. And clear the statistics on specific port may not take effect on global statistics since it gathers the different layer overview. Receive and Transmit Packets Rx and Tx Discover The number of discover (option 53 with value 1) packets received and transmitted. Rx and Tx Offer The number of offer (option 53 with value 2) packets received and transmitted. Rx and Tx Request The number of request (option 53 with value 3) packets received and transmitted. Rx and Tx Decline The number of decline (option 53 with value 4) packets received and transmitted. Rx and Tx ACK The number of ACK (option 53 with value 5) packets received and transmitted. Rx and Tx NAK The number of NAK (option 53 with value 6) packets received and transmitted. Rx and Tx Release The number of release (option 53 with value 7) packets received and transmitted. Rx and Tx Inform The number of inform (option 53 with value 8) packets received and transmitted. Rx and Tx Lease Query The number of lease query (option 53 with value 10) packets received and transmitted. Rx and Tx Lease Unassigned Intelinet 48‐Port Gigabit Ethernet PoE+ Layer2+ Managed Switch User Manual | 239 ...
Page 240: Dhcp ‐ Detailed Statistics
Chapter 3: Web Management DHCP ‐ Detailed Statistics The number of lease unassigned (option 53 with value 11) packets received and transmitted. Intelinet 48‐Port Gigabit Ethernet PoE+ Layer2+ Managed Switch User Manual | 240 ...
Page 241 Chapter 3: Web Management DHCP ‐ Detailed Statistics Rx and Tx Lease Unknown The number of lease unknown (option 53 with value 12) packets received and transmitted. Rx and Tx Lease Active The number of lease active (option 53 with value 13) packets received and transmitted. Rx Discarded checksum error The number of discard packet that IP/UDP checksum is error. Rx Discarded from Untrusted The number of discarded packet that are coming from untrusted port. Buttons  Auto‐refresh: Check this box to refresh the page automatically. Automatic refresh occurs every 3 seconds.  Refresh: Click to refresh the page immediately.  Clear: Clears the counters for the selected port. Intelinet 48‐Port Gigabit Ethernet PoE+ Layer2+ Managed Switch User Manual | 241 ...
Page 242: Monitor ‐ Security
Chapter 3: Web Management Security ‐ Access Management Statistics 3.2.5. Monitor ‐ Security 3.2.5.1. Security ‐ Access Management Statistics This page provides statistics for access management. Interface The interface type through which the remote host can access the switch. Received Packets Number of received packets from the interface when access management mode is enabled. Allowed Packets Number of allowed packets from the interface when access management mode is enabled. Discarded Packets Number of discarded packets from the interface when access management mode is enabled. Buttons  Auto‐refresh: Check this box to refresh the page automatically. Automatic refresh occurs every 3 seconds.  Refresh: Click to refresh the page immediately.  Clear: Clear all statistics. Intelinet 48‐Port Gigabit Ethernet PoE+ Layer2+ Managed Switch User Manual | 242 ...
Page 243 Chapter 3: Web Management Security ‐ Network ‐ Port Security ‐ Switch 3.2.5.2. Security ‐ Network 3.2.5.2.1. Security ‐ Network ‐ Port Security ‐ Switch This page shows the Port Security status. Port Security is a module with no direct configuration. Configuration comes indirectly from other modules ‐ the user modules. When a user module has enabled port security on a port, the port is set‐up for software‐based learning. In this mode, frames from unknown MAC addresses are passed on to the port security module, which in turn asks all user modules whether to allow this new MAC address to forward or block it. For a MAC address to be set in the forwarding state, all enabled user modules must unanimously agree on allowing the MAC address to forward. If only one chooses to block it, it will be blocked until that user module decides otherwise. The status page is divided into two sections ‐ one with a legend of user modules and one with the actual port status. User Module Legend The legend shows all user modules that may request Port Security services. User Module Name The full name of a module that may request Port Security services. Intelinet 48‐Port Gigabit Ethernet PoE+ Layer2+ Managed Switch User Manual | 243 ...
Page 244: Security ‐ Network
Chapter 3: Web Management Security ‐ Network ‐ Port Security ‐ Switch Abbr A one‐letter abbreviation of the user module. This is used in the Users column in the port status table. Port Status The table has one row for each port on the selected switch in the stack and a number of columns. Port The port number for which the status applies. Click the port number to see the status for this particular port. Users Each of the user modules has a column that shows whether that module has enabled Port Security or not. A '‐' means that the corresponding user module is not enabled, whereas a letter indicates that the user module abbreviated by that letter (see Abbr) has enabled port security. State Shows the current state of the port. It can take one of four values:  Disabled: No user modules are currently using the Port Security service.  Ready: The Port Security service is in use by at least one user module, and is awaiting frames from unknown MAC addresses to arrive.  Limit Reached: The Port Security service is enabled by at least the Limit Control user module, and that module has indicated that the limit is reached and no more MAC addresses should be taken in.  Shutdown: The Port Security service is enabled by at least the Limit Control user module, and that module has indicated that the limit is exceeded. No MAC addresses can be learned on the port until it is administratively re‐opened on the Limit Control configuration Web‐page. MAC Count (Current, Limit) The two columns indicate the number of currently learned MAC addresses (forwarding as well as blocked) and the maximum number of MAC addresses that can be learned on the port, respectively. If no user modules are enabled on the port, the Current column will show a dash (‐). If the Limit Control user module is not enabled on the port, the Limit column will show a dash (‐). Intelinet ...
Page 245 Chapter 3: Web Management Security ‐ Network ‐ Port Security ‐ Switch Buttons  Auto‐refresh: Check this box to refresh the page automatically. Automatic refresh occurs every 3 seconds.  Refresh: Click to refresh the page immediately. Intelinet 48‐Port Gigabit Ethernet PoE+ Layer2+ Managed Switch User Manual | 245 ...
Page 246: Security ‐ Network ‐ Port Security ‐ Port
Chapter 3: Web Management Security ‐ Network ‐ Port Security ‐ Port 3.2.5.2.2. Security ‐ Network ‐ Port Security ‐ Port This page shows the MAC addresses secured by the Port Security module. Port Security is a module with no direct configuration. Configuration comes indirectly from other modules ‐ the user modules. When a user module has enabled port security on a port, the port is set‐up for software‐based learning. In this mode, frames from unknown MAC addresses are passed on to the port security module, which in turn asks all user modules whether to allow this new MAC address to forward or block it. For a MAC address to be set in the forwarding state, all enabled user modules must unanimously agree on allowing the MAC address to forward. If only one chooses to block it, it will be blocked until that user module decides otherwise. MAC Address & VLAN ID The MAC address and VLAN ID that is seen on this port. If no MAC addresses are learned, a single row stating "No MAC addresses attached" is displayed. State Indicates whether the corresponding MAC address is blocked or forwarding. In the blocked state, it will not be allowed to transmit or receive traffic. Time of Addition Shows the date and time when this MAC address was first seen on the port. Age/Hold If at least one user module has decided to block this MAC address, it will stay in the blocked state until the hold time (measured in seconds) expires. If all user modules have decided to allow this MAC address to forward, and aging is enabled, the Port Security module will periodically check that this MAC address still forwards traffic. If the age period (measured in seconds) expires and no frames have been seen, the MAC address will be removed from the MAC table. Otherwise a new age period will begin. If aging is disabled or a user module has decided to hold the MAC address indefinitely, a dash (‐) will be shown. Buttons  Auto‐refresh: Check this box to refresh the page automatically. Automatic refresh occurs every 3 seconds.  Refresh: Click to refresh the page immediately. Intelinet 48‐Port Gigabit Ethernet PoE+ Layer2+ Managed Switch User Manual | 246 ...
Page 247 Chapter 3: Web Management Security ‐ Network ‐ NAS ‐ Switch 3.2.5.2.3. Security ‐ Network ‐ NAS ‐ Switch This page provides an overview of the current NAS port states for the selected switch. Port The switch port number. Click to navigate to detailed NAS statistics for this port. Admin State The port's current administrative state. Refer to NAS Admin State for a description of possible values. Port State The current state of the port. Refer to NAS Port State for a description of the individual states. Last Source The source MAC address carried in the most recently received EAPOL frame for EAPOL‐based authentication, and the most recently received frame from a new client for MAC‐based authentication. Last ID The user name (supplicant identity) carried in the most recently received Response Identity EAPOL frame for EAPOL‐based authentication, and the source MAC address from the most recently received frame from a new client for MAC‐based authentication. Intelinet 48‐Port Gigabit Ethernet PoE+ Layer2+ Managed Switch User Manual | 247 ...
Page 248: Security ‐ Network ‐ Nas ‐ Switch
Chapter 3: Web Management Security ‐ Network ‐ NAS ‐ Switch QoS Class QoS Class assigned to the port by the RADIUS server if enabled. Port VLAN ID The VLAN ID that NAS has put the port in. The field is blank, if the Port VLAN ID is not overridden by NAS. If the VLAN ID is assigned by the RADIUS server, "(RADIUS‐assigned)" is appended to the VLAN ID. Read more about RADIUS‐assigned VLANs here. If the port is moved to the Guest VLAN, "(Guest)" is appended to the VLAN ID. Read more about Guest VLANs here. Buttons  Auto‐refresh: Check this box to refresh the page automatically. Automatic refresh occurs every 3 seconds.  Refresh: Click to refresh the page immediately. Intelinet 48‐Port Gigabit Ethernet PoE+ Layer2+ Managed Switch User Manual | 248 ...
Page 249 Chapter 3: Web Management Security ‐ Network ‐ NAS ‐ Port 3.2.5.2.4. Security ‐ Network ‐ NAS ‐ Port This page provides detailed NAS statistics for a specific switch port running EAPOL‐based IEEE 802.1X authentication. For MAC‐based ports, it shows selected backend server (RADIUS Authentication Server) statistics only. Use the port select box to select which port details to be displayed. The selected port belongs to the currently selected stack unit as reflected by the table header. Port State Admin State The port's current administrative state. Refer to NAS Admin State for a description of possible values. Port State The current state of the port. Refer to NAS Port State for a description of the individual states. QoS Class The QoS class assigned by the RADIUS server. The field is blank if no QoS class is assigned. Port VLAN ID The VLAN ID that NAS has put the port in. The field is blank, if the Port VLAN ID is not overridden by NAS. If the VLAN ID is assigned by the RADIUS server, "(RADIUS‐assigned)" is appended to the VLAN ID. Read more about RADIUS‐assigned VLANs here. If the port is moved to the Guest VLAN, "(Guest)" is appended to the VLAN ID. Read more about Guest VLANs here. Intelinet 48‐Port Gigabit Ethernet PoE+ Layer2+ Managed Switch User Manual | 249 ...
Page 250: Security ‐ Network ‐ Nas ‐ Port
Chapter 3: Web Management Security ‐ Network ‐ NAS ‐ Port Port Counters EAPOL Counters These supplicant frame counters are available for the following administrative states:  Force Authorized  Force Unauthorized  Port‐based 802.1X  Single 802.1X  Multi 802.1X Intelinet 48‐Port Gigabit Ethernet PoE+ Layer2+ Managed Switch User Manual | 250 ...
Page 251 Chapter 3: Web Management Security ‐ Network ‐ NAS ‐ Port Backend Server Counters These backend (RADIUS) frame counters are available for the following administrative states:  Port‐based 802.1X  Single 802.1X  Multi 802.1X  MAC‐based Auth. Intelinet 48‐Port Gigabit Ethernet PoE+ Layer2+ Managed Switch User Manual | 251 ...
Page 252 Chapter 3: Web Management Security ‐ Network ‐ NAS ‐ Port Last Supplicant/Client Info Information about the last supplicant/client that attempted to authenticate. This information is available for the following administrative states:  Port‐based 802.1X  Single 802.1X  Multi 802.1X  MAC‐based Auth. Selected Counters Selected Counters The Selected Counters table is visible when the port is in one of the following administrative states:  Multi 802.1X  MAC‐based Auth. The table is identical to and is placed next to the Port Counters table, and will be empty if no MAC address is currently selected. To populate the table, select one of the attached MAC Addresses from the table below. Attached MAC Addresses Identity Shows the identity of the supplicant, as received in the Response Identity EAPOL frame. Clicking the link causes the supplicant's EAPOL and Backend Server counters to be shown in the Selected Counters table. If no supplicants are attached, it shows No supplicants attached. This column is not available for MAC‐based Auth. Intelinet 48‐Port Gigabit Ethernet PoE+ Layer2+ Managed Switch User Manual | 252 ...
Page 253 Chapter 3: Web Management Security ‐ Network ‐ NAS ‐ Port MAC Address For Multi 802.1X, this column holds the MAC address of the attached supplicant. For MAC‐based Auth., this column holds the MAC address of the attached client. Clicking the link causes the client's Backend Server counters to be shown in the Selected Counters table. If no clients are attached, it shows No clients attached. VLAN ID This column holds the VLAN ID that the corresponding client is currently secured through the Port Security module. State The client can either be authenticated or unauthenticated. In the authenticated state, it is allowed to forward frames on the port, and in the unauthenticated state, it is blocked. As long as the backend server hasn't successfully authenticated the client, it is unauthenticated. If an authentication fails for one or the other reason, the client will remain in the unauthenticated state for Hold Time seconds. Last Authentication Shows the date and time of the last authentication of the client (successful as well as unsuccessful). Buttons  Auto‐refresh: Check this box to refresh the page automatically. Automatic refresh occurs every 3 seconds.  Refresh: Click to refresh the page immediately.  Clear: This button is available in the following modes:  Force Authorized  Force Unauthorized  Port‐based 802.1X  Single 802.1X  Clear: Click to clear the counters for the selected port. ...
Page 254 Chapter 3: Web Management Security ‐ Network ‐ ACL Status 3.2.5.2.5. Security ‐ Network ‐ ACL Status This page shows the ACL status by different ACL users. Each row describes the ACE that is defined. It is a conflict if a specific ACE is not applied to the hardware due to hardware limitations. The maximum number of ACEs is 512 on each switch. User Indicates the ACL user. Ingress Port Indicates the ingress port of the ACE. Possible values are:  All: The ACE will match all ingress port.  Port: The ACE will match a specific ingress port. Frame Type Indicates the frame type of the ACE. Possible values are:  Any: The ACE will match any frame type.  EType: The ACE will match Ethernet Type frames. Note that an Ethernet Type based ACE will not get matched by IP and ARP frames.  ARP: The ACE will match ARP/RARP frames.  IPv4: The ACE will match all IPv4 frames.  IPv4/ICMP: The ACE will match IPv4 frames with ICMP protocol.  IPv4/UDP: The ACE will match IPv4 frames with UDP protocol. ...
Page 255: Security ‐ Network ‐ Acl Status
Chapter 3: Web Management Security ‐ Network ‐ ACL Status CPU Forward packet that matched the specific ACE to CPU. CPU Once Forward first packet that matched the specific ACE to CPU. Counter The counter indicates the number of times the ACE was hit by a frame. Conflict Indicates the hardware status of the specific ACE. The specific ACE is not applied to the hardware due to hardware limitations. Buttons The select box determines which ACL user is affected by clicking the buttons.  Auto‐refresh: Check this box to refresh the page automatically. Automatic refresh occurs every 3 seconds.  Refresh: Click to refresh the page. Intelinet 48‐Port Gigabit Ethernet PoE+ Layer2+ Managed Switch User Manual | 255 ...
Page 256 Chapter 3: Web Management Security ‐ Network ‐ ARP Inspection 3.2.5.2.6. Security ‐ Network ‐ ARP Inspection Entries in the Dynamic ARP Inspection Table are shown on this page. The Dynamic ARP Inspection Table contains up to 1024 entries, and is sorted first by port, then by VLAN ID, then by MAC address, and then by IP address. Navigating the ARP Inspection Table Each page shows up to 99 entries from the Dynamic ARP Inspection table, default being 20, selected through the "entries per page" input field. When first visited, the web page will show the first 20 entries from the beginning of the Dynamic ARP Inspection Table. The "Start from port address", "VLAN", "MAC address" and "IP address" input fields allow the user to select the starting point in the Dynamic ARP Inspection Table. Clicking the Refresh button will update the displayed table starting from that or the closest next Dynamic ARP Inspection Table match. In addition, the two input fields will ‐ upon a Refresh button click ‐ assume the value of the first displayed entry, allowing for continuous refresh with the same start address. The “<<” button will use the last entry of the currently displayed table as a basis for the next lookup. When the end is reached the text "No more entries" is shown in the displayed table. Use the “>>|” button to start over. ARP Inspection Table Columns Port Switch Port Number for which the entries are displayed. VLAN ID VLAN‐ID in which the ARP traffic is permitted. MAC Address User MAC address of the entry. IP Address User IP address of the entry. Intelinet 48‐Port Gigabit Ethernet PoE+ Layer2+ Managed Switch User Manual | 256 ...
Page 257: Security ‐ Network ‐ Arp Inspection
Chapter 3: Web Management Security ‐ Network ‐ ARP Inspection Buttons  Auto‐refresh: Check this box to refresh the page automatically. Automatic refresh occurs every 3 seconds.  Refresh: Refreshes the displayed table starting from the input fields.  Clear: Flushes all dynamic entries.  |<<: Updates the table starting from the first entry in the Dynamic ARP Inspection Table.  >>: Updates the table, starting with the entry after the last entry currently displayed. Intelinet 48‐Port Gigabit Ethernet PoE+ Layer2+ Managed Switch User Manual | 257 ...
Page 258: Security ‐ Network
Chapter 3: Web Management Security ‐ Network ‐ IP Source Guard 3.2.5.2.7. Security ‐ Network ‐ IP Source Guard Entries in the Dynamic IP Source Guard Table are shown on this page. The Dynamic IP Source Guard Table is sorted first by port, then by VLAN ID, then by IP address, and then by MAC address. Navigating the IP Source Guard Table Each page shows up to 99 entries from the Dynamic IP Source Guard table, default being 20, selected through the "entries per page" input field. When first visited, the web page will show the first 20 entries from the beginning of the Dynamic IP Source Guard Table. The "Start from port address", "VLAN" and "IP address" input fields allow the user to select the starting point in the Dynamic IP Source Guard Table. Clicking the Refresh button will update the displayed table starting from that or the closest next Dynamic IP Source Guard Table match. In addition, the two input fields will ‐ upon a Refresh button click ‐ assume the value of the first displayed entry, allowing for continuous refresh with the same start address. The >> will use the last entry of the currently displayed table as a basis for the next lookup. When the end is reached the text "No more entries" is shown in the displayed table. Use the |<< button to start over. IP Source Guard Table Columns Port Switch Port Number for which the entries are displayed. VLAN ID VLAN‐ID in which the IP traffic is permitted. IP Address User IP address of the entry. MAC Address Source MAC address. Buttons  Auto‐refresh: Check this box to refresh the page automatically. Automatic refresh occurs every 3 seconds.  Refresh: Refreshes the displayed table starting from the input fields.  Clear: Flushes all dynamic entries. Intelinet 48‐Port Gigabit Ethernet PoE+ Layer2+ Managed Switch User Manual | 258 ...
Page 259 Chapter 3: Web Management Security ‐ Network ‐ IP Source Guard  |<<: Updates the table starting from the first entry in the Dynamic IP Source Guard Table.  >>: Updates the table, starting with the entry after the last entry currently displayed. Intelinet 48‐Port Gigabit Ethernet PoE+ Layer2+ Managed Switch User Manual | 259 ...
Page 260 Chapter 3: Web Management Security ‐ AAA ‐ RADIUS Overview 3.2.5.3. Security ‐ Network 3.2.5.3.1. Security ‐ AAA ‐ RADIUS Overview This page provides an overview of the status of the RADIUS servers configurable on the Authentication configuration page. RADIUS Authentication Servers # The RADIUS server number. Click to navigate to detailed statistics for this server. IP Address The IP address and UDP port number (in <IP Address>:<UDP Port> notation) of this server. Status The current status of the server. This field takes one of the following values:  Disabled: The server is disabled.  Not Ready: The server is enabled, but IP communication is not yet up and running.  Ready: The server is enabled, IP communication is up and running, and the RADIUS module is ready to accept access attempts.  Dead (X seconds left): Access attempts were made to this server, but it did not reply within the configured timeout. The server has temporarily been disabled, but will get re‐enabled when the dead‐time expires. The number of seconds left before this occurs is displayed in parentheses. This state is only reachable when more than one server is enabled. RADIUS Accounting Servers # The RADIUS server number. Click to navigate to detailed statistics for this server. Intelinet 48‐Port Gigabit Ethernet PoE+ Layer2+ Managed Switch User Manual | 260 ...
Page 261: Security ‐ Aaa ‐ Radius Overview
Chapter 3: Web Management Security ‐ AAA ‐ RADIUS Overview IP Address The IP address and UDP port number (in <IP Address>:<UDP Port> notation) of this server. Status The current status of the server. This field takes one of the following values:  Disabled: The server is disabled.  Not Ready: The server is enabled, but IP communication is not yet up and running.  Ready: The server is enabled, IP communication is up and running, and the RADIUS module is ready to accept accounting attempts.  Dead (X seconds left): Accounting attempts were made to this server, but it did not reply within the configured timeout. The server has temporarily been disabled, but will get re‐enabled when the dead‐time expires. The number of seconds left before this occurs is displayed in parentheses. This state is only reachable when more than one server is enabled. Buttons  Auto‐refresh: Check this box to refresh the page automatically. Automatic refresh occurs every 3 seconds.  Refresh: Click to refresh the page immediately. Intelinet 48‐Port Gigabit Ethernet PoE+ Layer2+ Managed Switch User Manual | 261 ...
Page 262 Chapter 3: Web Management Security ‐ AAA ‐ RADIUS Details 3.2.5.3.2. Security ‐ AAA ‐ RADIUS Details This page provides detailed statistics for a particular RADIUS server. RADIUS Authentication Statistics The statistics map closely to those specified in RFC4668 ‐ RADIUS Authentication Client MIB. Use the server select box to switch between the backend servers to show details for. Packet Counters RADIUS authentication server packet counter. There are seven receive and four transmit counters. Intelinet 48‐Port Gigabit Ethernet PoE+ Layer2+ Managed Switch User Manual | 262 ...
Page 263: Security ‐ Aaa ‐ Radius Details
Chapter 3: Web Management Security ‐ AAA ‐ RADIUS Details Intelinet 48‐Port Gigabit Ethernet PoE+ Layer2+ Managed Switch User Manual | 263 ...
Page 264 Chapter 3: Web Management Security ‐ AAA ‐ RADIUS Details Other Info This section contains information about the state of the server and the latest round‐trip time. RADIUS Accounting Statistics The statistics map closely to those specified in RFC4670 ‐ RADIUS Accounting Client MIB. Use the server select box to switch between the backend servers to show details for. Packet Counters RADIUS accounting server packet counter. There are five receive and four transmit counters. Intelinet 48‐Port Gigabit Ethernet PoE+ Layer2+ Managed Switch User Manual | 264 ...
Page 265 Chapter 3: Web Management Security ‐ AAA ‐ RADIUS Details Other Info This section contains information about the state of the server and the latest round‐trip time. Buttons The server select box determines which server is affected by clicking the buttons.  Auto‐refresh: Check this box to refresh the page automatically. Automatic refresh occurs every 3 seconds.  Refresh: Click to refresh the page immediately.  Clear: Clears the counters for the selected server. The "Pending Requests" counter will not be cleared by this operation. Intelinet 48‐Port Gigabit Ethernet PoE+ Layer2+ Managed Switch User Manual | 265 ...
Page 266 Chapter 3: Web Management Security ‐ Switch ‐ RMON ‐ Statistics 3.2.5.4. Security ‐ Switch ‐ RMON 3.2.5.4.1. Security ‐ Switch ‐ RMON ‐ Statistics This page provides an overview of RMON Statistics entries. Each page shows up to 99 entries from the Statistics table, default being 20, selected through the "entries per page" input field. When first visited, the web page will show the first 20 entries from the beginning of the Statistics table. The first displayed will be the one with the lowest ID found in the Statistics table. The "Start from Control Index" allows the user to select the starting point in the Statistics table. Clicking the Refresh button will update the displayed table starting from that or the next closest Statistics table match. The >> button will use the last entry of the currently displayed entry as a basis for the next lookup. When the end is reached the text "No more entries" is shown in the displayed table. Use the |<< button to start over. ID Indicates the index of Statistics entry. Data Source(ifIndex) The port ID which wants to be monitored. Drop The total number of events in which packets were dropped by the probe due to lack of resources. Octets The total number of octets of data (including those in bad packets) received on the network. Pkts The total number of packets (including bad packets, broadcast packets, and multicast packets) received. Broad‐cast The total number of good packets received that were directed to the broadcast address. Multi‐cast The total number of good packets received that were directed to a multicast address. Intelinet 48‐Port Gigabit Ethernet PoE+ Layer2+ Managed Switch User Manual | 266 ...
Page 267: Security ‐ Switch ‐ Rmon
Chapter 3: Web Management Security ‐ Switch ‐ RMON ‐ Statistics CRC Errors The total number of packets received that had a length (excluding framing bits, but including FCS octets) of between 64 and 1518 octets, inclusive, but had either a bad Frame Check Sequence (FCS) with an integral number of octets (FCS Error) or a bad FCS with a non‐integral number of octets (Alignment Error). Under‐size The total number of packets received that were less than 64 octets. Over‐size The total number of packets received that were longer than 1518 octets. Frag. The number of frames which size is less than 64 octets received with invalid CRC. Jabb. The number of frames which size is larger than 64 octets received with invalid CRC. Coll. The best estimate of the total number of collisions on this Ethernet segment. 64 The total number of packets (including bad packets) received that were 64 octets in length. 65~127 The total number of packets (including bad packets) received that were between 65 to 127 octets in length. 128~255 The total number of packets (including bad packets) received that were between 128 to 255 octets in length. 256~511 The total number of packets (including bad packets) received that were between 256 to 511 octets in length. 512~1023 The total number of packets (including bad packets) received that were between 512 to 1023 octets in length. 1024~1588 The total number of packets (including bad packets) received that were between 1024 to 1588 octets in length. Intelinet 48‐Port Gigabit Ethernet PoE+ Layer2+ Managed Switch User Manual | 267 ...
Page 268 Chapter 3: Web Management Security ‐ Switch ‐ RMON ‐ Statistics Buttons  Auto‐refresh: Check this box to refresh the page automatically. Automatic refresh occurs every 3 seconds.  Refresh: Click to refresh the page immediately.  |<<: Updates the table starting from the first entry in the Statistics table, i.e. the entry with the lowest ID.  >>: Updates the table, starting with the entry after the last entry currently displayed. Intelinet 48‐Port Gigabit Ethernet PoE+ Layer2+ Managed Switch User Manual | 268 ...
Page 269 Chapter 3: Web Management Security ‐ Switch ‐ RMON ‐ History 3.2.5.4.2. Security ‐ Switch ‐ RMON ‐ History This page provides an overview of RMON History entries. Each page shows up to 99 entries from the History table, default being 20, selected through the "entries per page" input field. When first visited, the web page will show the first 20 entries from the beginning of the History table. The first displayed will be the one with the lowest History Index and Sample Index found in the History table. The "Start from History Index and Sample Index" allows the user to select the starting point in the History table. Clicking the Refresh button will update the displayed table starting from that or the next closest History table match. The “>>” will use the last entry of the currently displayed entry as a basis for the next lookup. When the end is reached the text "No more entries" is shown in the displayed table. Use the “|<<” button to start over. History Index Indicates the index of History control entry. Sample Index Indicates the index of the data entry associated with the control entry. Sample Start The value of sysUpTime at the start of the interval over which this sample was measured. Drop The total number of events in which packets were dropped by the probe due to lack of resources. Octets The total number of octets of data (including those in bad packets) received on the network. Pkts The total number of packets (including bad packets, broadcast packets, and multicast packets) received. Broadcast The total number of good packets received that were directed to the broadcast address. Multicast The total number of good packets received that were directed to a multicast address. Intelinet 48‐Port Gigabit Ethernet PoE+ Layer2+ Managed Switch User Manual | 269 ...
Page 270: Security ‐ Switch ‐ Rmon ‐ History
Chapter 3: Web Management Security ‐ Switch ‐ RMON ‐ History CRCErrors The total number of packets received that had a length (excluding framing bits, but including FCS octets) of between 64 and 1518 octets, inclusive, but had either a bad Frame Check Sequence (FCS) with an integral number of octets (FCS Error) or a bad FCS with a non‐integral number of octets (Alignment Error). Undersize The total number of packets received that were less than 64 octets. Oversize The total number of packets received that were longer than 1518 octets. Frag. The number of frames which size is less than 64 octets received with invalid CRC. Jabb. The number of frames which size is larger than 64 octets received with invalid CRC. Coll. The best estimate of the total number of collisions on this Ethernet segment. Utilization The best estimate of the mean physical layer network utilization on this interface during this sampling interval, in hundredths of a percent. Buttons  Auto‐refresh: Check this box to refresh the page automatically. Automatic refresh occurs every 3 seconds.  Refresh: Click to refresh the page immediately.  |<<: Updates the table starting from the first entry in the History table, i.e., the entry with the lowest History Index and Sample Index  >>: Updates the table, starting with the entry after the last entry currently displayed. Intelinet 48‐Port Gigabit Ethernet PoE+ Layer2+ Managed Switch User Manual | 270 ...
Page 271 Chapter 3: Web Management Security ‐ Switch ‐ RMON ‐ Alarm 3.2.5.4.3. Security ‐ Switch ‐ RMON ‐ Alarm This page provides an overview of RMON Alarm entries. Each page shows up to 99 entries from the Alarm table, default being 20, selected through the "entries per page" input field. When first visited, the web page will show the first 20 entries from the beginning of the Alarm table. The first displayed will be the one with the lowest ID found in the Alarm table. The "Start from Control Index" allows the user to select the starting point in the Alarm table. Clicking the Refresh button will update the displayed table starting from that or the next closest Alarm table match. The “>>” will use the last entry of the currently displayed entry as a basis for the next lookup. When the end is reached the text "No more entries" is shown in the displayed table. Use the “|<<” button to start over. ID Indicates the index of Alarm control entry. Interval Indicates the interval in seconds for sampling and comparing the rising and falling threshold. Variable Indicates the particular variable to be sampled Sample Type The method of sampling the selected variable and calculating the value to be compared against the thresholds. Value The value of the statistic during the last sampling period. Startup Alarm The alarm that may be sent when this entry is first set to valid. Rising Threshold Rising threshold value. Rising Index Rising event index. Intelinet 48‐Port Gigabit Ethernet PoE+ Layer2+ Managed Switch User Manual | 271 ...
Page 272: Security ‐ Switch ‐ Rmon ‐ Alarm
Chapter 3: Web Management Security ‐ Switch ‐ RMON ‐ Alarm Falling Threshold Falling threshold value. Falling Index Falling event index. Buttons  Auto‐refresh: Check this box to refresh the page automatically. Automatic refresh occurs every 3 seconds.  Refresh: Click to refresh the page immediately.  |<<: Updates the table starting from the first entry in the Alarm Table, i.e. the entry with the lowest ID.  >>: Updates the table, starting with the entry after the last entry currently displayed. Intelinet 48‐Port Gigabit Ethernet PoE+ Layer2+ Managed Switch User Manual | 272 ...
Page 273 Chapter 3: Web Management Security ‐ Switch ‐ RMON ‐ Events 3.2.5.4.4. Security ‐ Switch ‐ RMON ‐ Events This page provides an overview of RMON Event table entries.Each page shows up to 99 entries from the Event table, default being 20, selected through the "entries per page" input field. When first visited, the web page will show the first 20 entries from the beginning of the Event table. The first displayed will be the one with the lowest Event Index and Log Index found in the Event table table. The "Start from Event Index and Log Index" allows the user to select the starting point in the Event table. Clicking the Refresh button will update the displayed table starting from that or the next closest Event table match. The “>>” will use the last entry of the currently displayed entry as a basis for the next lookup. When the end is reached the text "No more entries" is shown in the displayed table. Use the “|<<” button to start over. Event Index Indicates the index of the event entry. Log Index Indicates the index of the log entry. LogTIme Indicates Event log time LogDescription Indicates the Event description. Buttons  Auto‐refresh: Check this box to refresh the page automatically. Automatic refresh occurs every 3 seconds.  Refresh: Click to refresh the page immediately.  |<<: Updates the table starting from the first entry in the Event Table, i.e. the entry with the lowest Event Index and Log Index.  >>: Updates the table, starting with the entry after the last entry currently displayed. Intelinet 48‐Port Gigabit Ethernet PoE+ Layer2+ Managed Switch User Manual | 273 ...
Page 274: Security ‐ Switch ‐ Rmon ‐ Events
Chapter 3: Web Management Security ‐ Switch ‐ RMON ‐ Events Intelinet 48‐Port Gigabit Ethernet PoE+ Layer2+ Managed Switch User Manual | 274 ...
Page 275: Monitor ‐ Lacp
Chapter 3: Web Management LACP ‐ System Status 3.2.6. Monitor ‐ LACP 3.2.6.1. LACP ‐ System Status This page provides a status overview for all LACP instances. Aggr ID The Aggregation ID associated with this aggregation instance. For LLAG the id is shown as 'isid:aggr‐id' and for GLAGs as 'aggr‐id' Partner System ID The system ID (MAC address) of the aggregation partner. Partner Key The Key that the partner has assigned to this aggregation ID. Last changed The time since this aggregation changed. Local Ports Shows which ports are a part of this aggregation for this switch/stack. The format is: "Switch ID:Port". Buttons  Auto‐refresh: Check this box to refresh the page automatically. Automatic refresh occurs every 3 seconds.  Refresh: Click to refresh the page. Intelinet 48‐Port Gigabit Ethernet PoE+ Layer2+ Managed Switch User Manual | 275 ...
Page 276 Chapter 3: Web Management LACP ‐ Port Status 3.2.6.2. LACP ‐ Port Status This page provides a status overview for LACP status for all ports. Port The switch port number. LACP 'Yes' means that LACP is enabled and the port link is up. 'No' means that LACP is not enabled or that the port link is down. 'Backup' means that the port could not join the aggregation group but will join if other port leaves. Meanwhile it's LACP status is disabled. Key The key assigned to this port. Only ports with the same key can aggregate together. Aggr ID The Aggregation ID assigned to this aggregation group. IDs 1 and 2 are GLAGs while IDs 3‐14 are LLAGs. Partner System ID The partner's System ID (MAC address). Partner Port The partner's port number connected to this port. Partner Prio The partner's port priority. Buttons  Auto‐refresh: Check this box to refresh the page automatically. Automatic refresh occurs every 3 seconds. Intelinet 48‐Port Gigabit Ethernet PoE+ Layer2+ Managed Switch User Manual | 276 ...
Page 277: Lacp ‐ Port Status
Chapter 3: Web Management LACP ‐ Port Status  Refresh: Click to refresh the page. Intelinet 48‐Port Gigabit Ethernet PoE+ Layer2+ Managed Switch User Manual | 277 ...
Page 278: Lacp ‐ Port Statistics
Chapter 3: Web Management LACP ‐ Port Statistics 3.2.6.3. LACP ‐ Port Statistics This page provides an overview for LACP statistics for all ports. Port The switch port number. LACP Received Shows how many LACP frames have been received at each port. LACP Transmitted Shows how many LACP frames have been sent from each port. Discarded Shows how many unknown or illegal LACP frames have been discarded at each port. Buttons  Auto‐refresh: Automatic refresh occurs every 3 seconds.  Refresh: Click to refresh the page immediately.  Clear: Clears the counters for all ports. Intelinet 48‐Port Gigabit Ethernet PoE+ Layer2+ Managed Switch User Manual | 278 ...
Page 279: Monitor ‐ Loop Protection
Chapter 3: Web Management Monitor ‐ Loop Protection 3.2.7. Monitor ‐ Loop Protection This page displays the loop protection port status the ports of the currently selected switch. Port The switch port number of the logical port. Action The currently configured port action. Transmit The currently configured port transmit mode. Loops The number of loops detected on this port. Status The current loop protection status of the port. Loop Whether a loop is currently detected on the port. Time of Last Loop The time of the last loop event detected. Buttons  Refresh: Click to refresh the page immediately.  Auto‐refresh: Check this box to enable an automatic refresh of the page at regular intervals. Intelinet 48‐Port Gigabit Ethernet PoE+ Layer2+ Managed Switch User Manual | 279 ...
Page 280: Monitor ‐ Spanning Tree
Chapter 3: Web Management Spanning Tree ‐ Bridge Status 3.2.8. Monitor ‐ Spanning Tree 3.2.8.1. Spanning Tree ‐ Bridge Status This page provides a status overview of all STP bridge instances. The displayed table contains a row for each STP bridge instance, where the column displays the following information: MSTI The Bridge Instance. This is also a link to the STP Detailed Bridge Status. Bridge ID The Bridge ID of this Bridge instance. Root ID The Bridge ID of the currently elected root bridge. Root Port The switch port currently assigned the root port role. Root Cost Root Path Cost. For the Root Bridge it is zero. For all other Bridges, it is the sum of the Port Path Costs on the least cost path to the Root Bridge. Topology Flag The current state of the Topology Change Flag of this Bridge instance. Topology Change Last The time since last Topology Change occurred. Buttons  Refresh: Click to refresh the page immediately.  Auto‐refresh: Check this box to enable an automatic refresh of the page at regular intervals. Intelinet 48‐Port Gigabit Ethernet PoE+ Layer2+ Managed Switch User Manual | 280 ...
Page 281: Spanning Tree ‐ Port Status
Chapter 3: Web Management Spanning Tree ‐ Port Status 3.2.8.2. Spanning Tree ‐ Port Status This page displays the STP port statistics counters of bridge ports in the currently selected switch. Port The switch port number of the logical STP port. MSTP The number of MSTP BPDU's received/transmitted on the port. RSTP The number of RSTP BPDU's received/transmitted on the port. STP The number of legacy STP Configuration BPDU's received/transmitted on the port. TCN The number of (legacy) Topology Change Notification BPDU's received/transmitted on the port. Discarded Unknown The number of unknown Spanning Tree BPDU's received (and discarded) on the port. Discarded Illegal The number of illegal Spanning Tree BPDU's received (and discarded) on the port. Buttons  Refresh: Click to refresh the page immediately.  Clear: Click to reset the counters.  Auto‐refresh: Check this box to enable an automatic refresh of the page at regular intervals. Intelinet 48‐Port Gigabit Ethernet PoE+ Layer2+ Managed Switch User Manual | 281 ...
Page 282: Spanning Tree ‐ Port Statistics
Chapter 3: Web Management Spanning Tree ‐ Port Statistics 3.2.8.3. Spanning Tree ‐ Port Statistics This page displays the STP port statistics counters of bridge ports in the currently selected switch. Port The switch port number of the logical STP port. MSTP The number of MSTP BPDU's received/transmitted on the port. RSTP The number of RSTP BPDU's received/transmitted on the port. STP The number of legacy STP Configuration BPDU's received/transmitted on the port. TCN The number of (legacy) Topology Change Notification BPDU's received/transmitted on the port. Discarded Unknown The number of unknown Spanning Tree BPDU's received (and discarded) on the port. Discarded Illegal The number of illegal Spanning Tree BPDU's received (and discarded) on the port. Buttons  Refresh: Click to refresh the page immediately.  Clear: Click to reset the counters.  Auto‐refresh: Check this box to enable an automatic refresh of the page at regular intervals. Intelinet 48‐Port Gigabit Ethernet PoE+ Layer2+ Managed Switch User Manual | 282 ...
Page 283: Monitor ‐ Mvr
Chapter 3: Web Management MVR ‐ Statistics 3.2.9. Monitor ‐ MVR 3.2.9.1. MVR ‐ Statistics This page provides MVR Statistics information. The statistics is related to the currently selecting stack unit, as reflected by the page header. VLAN ID The Multicast VLAN ID. IGMP/MLD Queries Received The number of Received Queries for IGMP and MLD, respectively. IGMP/MLD Queries Transmitted The number of Transmitted Queries for IGMP and MLD, respectively. IGMPv1 Joins Received The number of Received IGMPv1 Join's. IGMPv2/MLDv1 Report's Received The number of Received IGMPv2 Join's and MLDv1 Report's, respectively. IGMPv3/MLDv2 Report's Received The number of Received IGMPv1 Join's and MLDv2 Report's, respectively. IGMPv2/MLDv1 Leave's Received The number of Received IGMPv2 Leave's and MLDv1 Done's, respectively. Buttons  Auto‐refresh: Check this box to enable an automatic refresh of the page at regular intervals.  Refresh: Click to refresh the page immediately.  Clear: Clears all Statistics counters. Intelinet 48‐Port Gigabit Ethernet PoE+ Layer2+ Managed Switch User Manual | 283 ...
Page 284 Chapter 3: Web Management MVR ‐ MVR Channel Groups 3.2.9.2. MVR ‐ MVR Channel Groups Entries in the MVR Channels (Groups) Information Table are shown on this page. The MVR Channels (Groups) Information Table is sorted first by VLAN ID, and then by group. Navigating the MVR Channels (Groups) Information Table Each page shows up to 99 entries from the MVR Group table, default being 20, selected through the "entries per page" input field. When first visited, the web page will show the first 20 entries from the beginning of the MVR Channels (Groups) Information Table. The "Start from VLAN", and "Group Address" input fields allow the user to select the starting point in the MVR Channels (Groups) Information Table. Clicking the Refresh button will update the displayed table starting from that or the closest next MVR Channels (Groups) Information Table match. In addition, the two input fields will ‐ upon a Refresh button click ‐ assume the value of the first displayed entry, allowing for continuous refresh with the same start address. The “>>” will use the last entry of the currently displayed table as a basis for the next lookup. When the end is reached the text "No more entries" is shown in the displayed table. Use the “|<<” button to start over. MVR Channels (Groups) Information Table Columns VLAN ID VLAN ID of the group. Groups Group ID of the group displayed. Port Members Ports under this group. Buttons  Auto‐refresh: Automatic refresh occurs every 3 seconds.  Refresh: Refreshes the displayed table starting from the input fields.  |<<: Updates the table starting from the first entry in the MVR Channels (Groups) Information Table. Intelinet 48‐Port Gigabit Ethernet PoE+ Layer2+ Managed Switch User Manual | 284 ...
Page 285: Mvr ‐ Mvr Channel Groups
Chapter 3: Web Management MVR ‐ MVR Channel Groups  >>: Updates the table, starting with the entry after the last entry currently displayed. Intelinet 48‐Port Gigabit Ethernet PoE+ Layer2+ Managed Switch User Manual | 285 ...
Page 286 Chapter 3: Web Management MVR ‐ MVR SFM Information 3.2.9.3. MVR ‐ MVR SFM Information Entries in the MVR SFM Information Table are shown on this page. The MVR SFM (Source‐Filtered Multicast) Information Table also contains the SSM (Source‐Specific Multicast) information. This table is sorted first by VLAN ID, then by group, and then by Port. Different source addresses belong to the same group are treated as single entry. Navigating the MVR SFM Information Table Each page shows up to 99 entries from the MVR SFM Information Table, default being 20, selected through the "entries per page" input field. When first visited, the web page will show the first 20 entries from the beginning of the MVR SFM Information Table. The "Start from VLAN", and "Group Address" input fields allow the user to select the starting point in the MVR SFM Information Table. Clicking the Refresh button will update the displayed table starting from that or the closest next MVR SFM Information Table match. In addition, the two input fields will ‐ upon a Refresh button click ‐ assume the value of the first displayed entry, allowing for continuous refresh with the same start address. The “>>” will use the last entry of the currently displayed table as a basis for the next lookup. When the end is reached the text "No more entries" is shown in the displayed table. Use the “|<<” button to start over. MVR SFM Information Table Columns VLAN ID VLAN ID of the group. Group Group address of the group displayed. Port Switch port number. Mode Indicates the filtering mode maintained per (VLAN ID, port number, Group Address) basis. It can be either Include or Exclude. Source Address Intelinet 48‐Port Gigabit Ethernet PoE+ Layer2+ Managed Switch User Manual | 286 ...
Page 287: Mvr ‐ Mvr Sfm Information
Chapter 3: Web Management MVR ‐ MVR SFM Information IP Address of the source. Currently, system limits the total number of IP source addresses for filtering to be 128. When there is no any source filtering address, the text "None" is shown in the Source Address field. Type Indicates the Type. It can be either Allow or Deny. Hardware Filter/Switch Indicates whether data plane destined to the specific group address from the source IPv4/IPv6 address could be handled by chip or not. Buttons  Auto‐refresh: Automatic refresh occurs every 3 seconds.  Refresh: Refreshes the displayed table starting from the input fields.  |<<: Updates the table starting from the first entry in the MVR SFM Information Table.  >>: Updates the table, starting with the entry after the last entry currently displayed Intelinet 48‐Port Gigabit Ethernet PoE+ Layer2+ Managed Switch User Manual | 287 ...
Page 288: Monitor ‐ Ipmc
Chapter 3: Web Management IPMC ‐ IGMP Snooping ‐ Status 3.2.10. Monitor ‐ IPMC 3.2.10.1. IPMC ‐ IGMP Snooping 3.2.10.1.1. IPMC ‐ IGMP Snooping ‐ Status This page provides IGMP Snooping status. The status related to the currently selected stack unit, as reflected by the page header. VLAN ID The VLAN ID of the entry. Querier Version Working Querier Version currently. Host Version Working Host Version currently. Querier Status Shows the Querier status is "ACTIVE" or "IDLE". "DISABLE" denotes the specific interface is administratively disabled. Queries Transmitted The number of Transmitted Queries. Queries Received The number of Received Queries. V1 Reports Received The number of Received V1 Reports. V2 Reports Received The number of Received V2 Reports. V3 Reports Received The number of Received V3 Reports. V2 Leaves Received The number of Received V2 Leaves. Intelinet 48‐Port Gigabit Ethernet PoE+ Layer2+ Managed Switch User Manual | 288 ...
Page 289: Ipmc ‐ Igmp Snooping
Chapter 3: Web Management IPMC ‐ IGMP Snooping ‐ Status Router Port Display which ports act as router ports. A router port is a port on the Ethernet switch that leads towards the Layer 3 multicast device or IGMP querier. Static denotes the specific port is configured to be a router port. Dynamic denotes the specific port is learnt to be a router port. Both denote the specific port is configured or learnt to be a router port. Port Switch port number. Status Indicate whether specific port is a router port or not. Buttons  Auto‐refresh: Automatic refresh occurs every 3 seconds.  Refresh: Click to refresh the page immediately.  Clear: Clears all Statistics counters. Intelinet 48‐Port Gigabit Ethernet PoE+ Layer2+ Managed Switch User Manual | 289 ...
Page 290 Chapter 3: Web Management IPMC ‐ IGMP Snooping ‐ Groups Information 3.2.10.1.2. IPMC ‐ IGMP Snooping ‐ Groups Information Entries in the IGMP Group Table are shown on this page. The IGMP Group Table is sorted first by VLAN ID, and then by group. Navigating the IGMP Group Table Each page shows up to 99 entries from the IGMP Group table, default being 20, selected through the "entries per page" input field. When first visited, the web page will show the first 20 entries from the beginning of the IGMP Group Table. The "Start from VLAN", and "group" input fields allow the user to select the starting point in the IGMP Group Table. Clicking the Refresh button will update the displayed table starting from that or the closest next IGMP Group Table match. In addition, the two input fields will ‐ upon a Refresh button click ‐ assume the value of the first displayed entry, allowing for continuous refresh with the same start address. The >> will use the last entry of the currently displayed table as a basis for the next lookup. When the end is reached the text "No more entries" is shown in the displayed table. Use the |<< button to start over. IGMP Group Table Columns VLAN ID VLAN ID of the group. Groups Group address of the group displayed. Port Members Ports under this group. Buttons  Auto‐refresh: Automatic refresh occurs every 3 seconds.  Refresh: Refreshes the displayed table starting from the input fields.  |<<: Updates the table, starting with the first entry in the IGMP Group Table.  >>: Updates the table, starting with the entry after the last entry currently displayed. Intelinet 48‐Port Gigabit Ethernet PoE+ Layer2+ Managed Switch User Manual | 290 ...
Page 291: Ipmc ‐ Igmp Snooping ‐ Groups Information
Chapter 3: Web Management IPMC ‐ IGMP Snooping ‐ Groups Information Intelinet 48‐Port Gigabit Ethernet PoE+ Layer2+ Managed Switch User Manual | 291 ...
Page 292 Chapter 3: Web Management IPMC ‐ IGMP Snooping ‐ IPv4 SFM Information 3.2.10.1.3. IPMC ‐ IGMP Snooping ‐ IPv4 SFM Information Entries in the IGMP SFM Information Table are shown on this page. The IGMP SFM (Source‐Filtered Multicast) Information Table also contains the SSM (Source‐Specific Multicast) information. This table is sorted first by VLAN ID, then by group, and then by Port. Different source addresses belong to the same group are treated as single entry. Navigating the IGMP SFM Information Table Each page shows up to 99 entries from the IGMP SFM Information table, default being 20, selected through the "entries per page" input field. When first visited, the web page will show the first 20 entries from the beginning of the IGMP SFM Information Table. The "Start from VLAN", and "group" input fields allow the user to select the starting point in the IGMP SFM Information Table. Clicking the Refresh button will update the displayed table starting from that or the closest next IGMP SFM Information Table match. In addition, the two input fields will ‐ upon a Refresh button click ‐ assume the value of the first displayed entry, allowing for continuous refresh with the same start address. The “>>” will use the last entry of the currently displayed table as a basis for the next lookup. When the end is reached the text "No more entries" is shown in the displayed table. Use the “|<<” button to start over. IGMP SFM Information Table Columns VLAN ID VLAN ID of the group. Group Group address of the group displayed. Port Switch port number. Mode Indicates the filtering mode maintained per (VLAN ID, port number, Group Address) basis. It can be either Include or Exclude. Source Address IP Address of the source. Currently, system limits the total number of IP source addresses for Intelinet 48‐Port Gigabit Ethernet PoE+ Layer2+ Managed Switch User Manual | 292 ...
Page 293: Ipmc ‐ Igmp Snooping ‐ Ipv4 Sfm Information
Chapter 3: Web Management IPMC ‐ IGMP Snooping ‐ IPv4 SFM Information filtering to be 128. Type Indicates the Type. It can be either Allow or Deny. Hardware Filter/Switch Indicates whether data plane destined to the specific group address from the source IPv4 address could be handled by chip or not. Buttons  Auto‐refresh: Automatic refresh occurs every 3 seconds.  Refresh: Refreshes the displayed table starting from the input fields.  |<<: Updates the table starting from the first entry in the IGMP SFM Information Table  >>: Updates the table, starting with the entry after the last entry currently displayed. Intelinet 48‐Port Gigabit Ethernet PoE+ Layer2+ Managed Switch User Manual | 293 ...
Page 294 Chapter 3: Web Management IPMC ‐ MLD Snooping ‐ Status 3.2.10.2. IPMC ‐ MLD Snooping 3.2.10.2.1. IPMC ‐ MLD Snooping ‐ Status This page provides MLD Snooping status. The status related to the currently selected stack unit, as reflected by the page header. VLAN ID The VLAN ID of the entry. Querier Version Working Querier Version currently. Host Version Working Host Version currently. Querier Status Shows the Querier status is "ACTIVE" or "IDLE". "DISABLE" denotes the specific interface is administratively disabled. Queries Transmitted The number of Transmitted Queries. Queries Received The number of Received Queries. V1 Reports Received The number of Received V1 Reports. V2 Reports Received The number of Received V2 Reports. V1 Leaves Received The number of Received V1 Leaves. Router Port Display which ports act as router ports. A router port is a port on the Ethernet switch that leads towards the Layer 3 multicast device or IGMP querier. Intelinet 48‐Port Gigabit Ethernet PoE+ Layer2+ Managed Switch User Manual | 294 ...
Page 295: Ipmc ‐ Mld Snooping
Chapter 3: Web Management IPMC ‐ MLD Snooping ‐ Status Static denotes the specific port is configured to be a router port. Dynamic denotes the specific port is learnt to be a router port. Both denote the specific port is configured or learnt to be a router port. Port Switch port number. Status Indicate whether specific port is a router port or not. Buttons  Auto‐refresh: Automatic refresh occurs every 3 seconds.  Refresh: Click to refresh the page immediately.  Clear: Clears all Statistics counters. Intelinet 48‐Port Gigabit Ethernet PoE+ Layer2+ Managed Switch User Manual | 295 ...
Page 296: Ipmc ‐ Mld Snooping ‐ Groups Information
Chapter 3: Web Management IPMC ‐ MLD Snooping ‐ Groups Information 3.2.10.2.2. IPMC ‐ MLD Snooping ‐ Groups Information Entries in the MLD Group Table are shown on this page. The MLD Group Table is sorted first by VLAN ID, and then by group. Navigating the MLD Group Table Each page shows up to 99 entries from the MLD Group table, default being 20, selected through the "entries per page" input field. When first visited, the web page will show the first 20 entries from the beginning of the MLD Group Table. The "Start from VLAN", and "group" input fields allow the user to select the starting point in the MLD Group Table. Clicking the Refresh button will update the displayed table starting from that or the closest next MLD Group Table match. In addition, the two input fields will ‐ upon a Refresh button click ‐ assume the value of the first displayed entry, allowing for continuous refresh with the same start address. The “>>” will use the last entry of the currently displayed table as a basis for the next lookup. When the end is reached the text "No more entries" is shown in the displayed table. Use the “|<<” button to start over. MLD Group Table Columns VLAN ID VLAN ID of the group. Groups Group address of the group displayed. Port Members Ports under this group. Buttons  Auto‐refresh: Automatic refresh occurs every 3 seconds.  Refresh: Refreshes the displayed table starting from the input fields.  |<<: Updates the table, starting with the first entry in the MLD Group Table.  >>: Updates the table, starting with the entry after the last entry currently displayed. Intelinet 48‐Port Gigabit Ethernet PoE+ Layer2+ Managed Switch User Manual | 296 ...
Page 297 Chapter 3: Web Management IPMC ‐ MLD Snooping ‐ IPv6 Group Information 3.2.10.2.3. IPMC ‐ MLD Snooping ‐ IPv6 Group Information Entries in the MLD SFM Information Table are shown on this page. The MLD SFM (Source‐Filtered Multicast) Information Table also contains the SSM (Source‐Specific Multicast) information. This table is sorted first by VLAN ID, then by group, and then by Port. Different source addresses belong to the same group are treated as single entry. Navigating the MLD SFM Information Table Each page shows up to 99 entries from the MLD SFM Information table, default being 20, selected through the "entries per page" input field. When first visited, the web page will show the first 20 entries from the beginning of the MLD SFM Information Table. The "Start from VLAN", and "group" input fields allow the user to select the starting point in the MLD SFM Information Table. Clicking the Refresh button will update the displayed table starting from that or the closest next MLD SFM Information Table match. In addition, the two input fields will ‐ upon a Refresh button click ‐ assume the value of the first displayed entry, allowing for continuous refresh with the same start address. The “<<” will use the last entry of the currently displayed table as a basis for the next lookup. When the end is reached the text "No more entries" is shown in the displayed table. Use the “|<<” button to start over. MLD SFM Information Table Columns VLAN ID VLAN ID of the group. Group Group address of the group displayed. Port Switch port number. Mode Indicates the filtering mode maintained per (VLAN ID, port number, Group Address) basis. It can be either Include or Exclude. Intelinet 48‐Port Gigabit Ethernet PoE+ Layer2+ Managed Switch User Manual | 297 ...
Page 298: Ipmc ‐ Mld Snooping ‐ Ipv6 Group Information
Chapter 3: Web Management IPMC ‐ MLD Snooping ‐ IPv6 Group Information Source Address IP Address of the source. Currently, system limits the total number of IP source addresses for filtering to be 128. Type Indicates the Type. It can be either Allow or Deny. Hardware Filter/Switch Indicates whether data plane destined to the specific group address from the source IPv6 address could be handled by chip or not. Buttons  Auto‐refresh: Automatic refresh occurs every 3 seconds.  Refresh: Refreshes the displayed table starting from the input fields.  |<<: Updates the table starting from the first entry in the MLD SFM Information Table.  >>: Updates the table, starting with the entry after the last entry currently displayed. Intelinet 48‐Port Gigabit Ethernet PoE+ Layer2+ Managed Switch User Manual | 298 ...
Page 299: Monitor ‐ Lldp
Chapter 3: Web Management LLDP ‐ Neighbours 3.2.11. Monitor ‐ LLDP 3.2.11.1. LLDP ‐ Neighbours This page provides a status overview for all LLDP neighbours. The displayed table contains a row for each port on which an LLDP neighbour is detected. The columns hold the following information: Local Port The port on which the LLDP frame was received. Chassis ID The Chassis ID is the identification of the neighbour's LLDP frames. Port ID The Port ID is the identification of the neighbour port. Port Description Port Description is the port description advertised by the neighbour unit. System Name System Name is the name advertised by the neighbour unit. System Capabilities System Capabilities describes the neighbour unit's capabilities. The possible capabilities are: 1. Other 2. Repeater 3. Bridge 4. WLAN Access Point 5. Router 6. Telephone 7. DOCSIS cable device 8. Station only 9. Reserved When a capability is enabled, the capability is followed by (+). If the capability is disabled, the ...
Page 300: Lldp ‐ Neighbours
Chapter 3: Web Management LLDP ‐ Neighbours Management Address Management Address is the neighbour unit's address that is used for higher layer entities to assist discovery by the network management. This could for instance hold the neighbour's IP address. Buttons  Auto‐refresh: Check this box to refresh the page automatically. Automatic refresh occurs every 3 seconds.  Refresh: Click to refresh the page. Intelinet 48‐Port Gigabit Ethernet PoE+ Layer2+ Managed Switch User Manual | 300 ...
Page 301 Chapter 3: Web Management LLDP ‐ LLDP‐MED Neighbours 3.2.11.2. LLDP ‐ LLDP‐MED Neighbours This page provides a status overview of all LLDP‐MED neighbours. The displayed table contains a row for each port on which an LLDP neighbour is detected. This function applies to VoIP devices which support LLDP‐MED. The columns hold the following information: Port The port on which the LLDP frame was received. Device Type LLDP‐MED Devices are comprised of two primary Device Types: Network Connectivity Devices and Endpoint Devices. LLDP‐MED Network Connectivity Device Definition LLDP‐MED Network Connectivity Devices, as defined in TIA‐1057, provide access to the IEEE 802 based LAN infrastructure for LLDP‐MED Endpoint Devices. An LLDP‐MED Network Connectivity Device is a LAN access device based on any of the following technologies: 1. LAN Switch/Router 2. IEEE 802.1 Bridge 3. IEEE 802.3 Repeater (included for historical reasons) 4. IEEE 802.11 Wireless Access Point 5. Any device that supports the IEEE 802.1AB and MED extensions defined by TIA‐1057 and can relay IEEE 802 frames via any method. LLDP‐MED Endpoint Device Definition LLDP‐MED Endpoint Devices, as defined in TIA‐1057, are located at the IEEE 802 LAN network edge, and participate in IP communication service using the LLDP‐MED framework. Within the LLDP‐MED Endpoint Device category, the LLDP‐MED scheme is broken into further Endpoint Device Classes, as defined in the following. Each LLDP‐MED Endpoint Device Class is defined to build upon the capabilities defined for the previous Endpoint Device Class. For‐example will any LLDP‐MED Endpoint Device claiming compliance as a Media Endpoint (Class II) also support all aspects of TIA‐1057 applicable to Generic Endpoints (Class I), and any LLDP‐MED Endpoint Device claiming compliance as a Communication Device (Class III) will also support all aspects of TIA‐1057 applicable to both Media Endpoints (Class II) and Generic Endpoints (Class I). ...
Page 302: Lldp ‐ Lldp‐Med Neighbours
Chapter 3: Web Management LLDP ‐ LLDP‐MED Neighbours LLDP‐MED Generic Endpoint (Class I) The LLDP‐MED Generic Endpoint (Class I) definition is applicable to all endpoint products that require the base LLDP discovery services defined in TIA‐1057, however do not support IP media or act as an end‐user communication appliance. Such devices may include (but are not limited to) IP Communication Controllers, other communication related servers, or any device requiring basic services as defined in TIA‐1057. Discovery services defined in this class include LAN configuration, device location, network policy, power management, and inventory management. LLDP‐MED Media Endpoint (Class II) The LLDP‐MED Media Endpoint (Class II) definition is applicable to all endpoint products that have IP media capabilities however may or may not be associated with a particular end user. Capabilities include all of the capabilities defined for the previous Generic Endpoint Class (Class I), and are extended to include aspects related to media streaming. Example product categories expected to adhere to this class include (but are not limited to) Voice / Media Gateways, Conference Bridges, Media Servers, and similar. Discovery services defined in this class include media‐type‐specific network layer policy discovery. LLDP‐MED Communication Endpoint (Class III) The LLDP‐MED Communication Endpoint (Class III) definition is applicable to all endpoint products that act as end user communication appliances supporting IP media. Capabilities include all of the capabilities defined for the previous Generic Endpoint (Class I) and Media Endpoint (Class II) classes, and are extended to include aspects related to end user devices. Example product categories expected to adhere to this class include (but are not limited to) end user communication appliances, such as IP Phones, PC‐based softphones, or other communication appliances that directly support the end user. Discovery services defined in this class include provision of location identifier (including ECS / E911 information), embedded L2 switch support, inventory management. LLDP‐MED Capabilities LLDP‐MED Capabilities describes the neighbour unit's LLDP‐MED capabilities. The possible capabilities are: 1. LLDP‐MED capabilities 2. Network Policy 3. Location Identification 4.
Page 303 Chapter 3: Web Management LLDP ‐ LLDP‐MED Neighbours 5. Extended Power via MDI ‐ PD 6. Inventory 7. Reserved Application Type Application Type indicating the primary function of the application(s) defined for this network policy, advertised by an Endpoint or Network Connectivity Device. The possible application types are shown below. 1. Voice ‐ for use by dedicated IP Telephony handsets and other similar appliances supporting interactive voice services. These devices are typically deployed on a separate VLAN for ease of deployment and enhanced security by isolation from data applications. 2. Voice Signaling ‐ for use in network topologies that require a different policy for the voice Signaling than for the voice media. 3. Guest Voice ‐ to support a separate limited feature‐set voice service for guest users and visitors with their own IP Telephony handsets and other similar appliances supporting interactive voice services. 4. Guest Voice Signaling ‐ for use in network topologies that require a different policy for the guest voice Signaling than for the guest voice media. 5. Softphone Voice ‐ for use by softphone applications on typical data centric devices, such as PCs or laptops. 6. Video Conferencing ‐ for use by dedicated Video Conferencing equipment and other similar appliances supporting real‐time interactive video/audio services. 7. Streaming Video ‐ for use by broadcast or multicast based video content distribution and other similar applications supporting streaming video services that require specific network policy treatment. Video applications relying on TCP with buffering would not be an intended use of this application type. 8.
Page 304 Chapter 3: Web Management LLDP ‐ LLDP‐MED Neighbours TAG TAG is indicative of whether the specified application type is using a tagged or an untagged VLAN. Can be Tagged or Untagged.  Untagged: The device is using an untagged frame format and as such does not include a tag header as defined by IEEE 802.1Q‐2003.  Tagged: The device is using the IEEE 802.1Q tagged frame format. VLAN ID VLAN ID is the VLAN identifier (VID) for the port as defined in IEEE 802.1Q‐2003. A value of 1 through 4094 is used to define a valid VLAN ID. A value of 0 (Priority Tagged) is used if the device is using priority tagged frames as defined by IEEE 802.1Q‐2003, meaning that only the IEEE 802.1D priority level is significant and the default PVID of the ingress port is used instead. Priority Priority is the Layer 2 priority to be used for the specified application type. One of the eight priority levels (0 through 7). DSCP DSCP is the DSCP value to be used to provide Diffserv node behavior for the specified application type as defined in IETF RFC 2474. Contain one of 64 code point values (0 through 63). Auto‐negotiation Auto‐negotiation identifies if MAC/PHY auto‐negotiation is supported by the link partner. Auto‐negotiation status Auto‐negotiation status identifies if auto‐negotiation is currently enabled at the link partner. If Auto‐negotiation is supported and Auto‐negotiation status is disabled, the 802.3 PMD operating mode will be determined the operational MAU type field value rather than by auto‐negotiation. Auto‐negotiation Capabilities Auto‐negotiation Capabilities shows the link partners MAC/PHY capabilities. Buttons  Auto‐refresh: Check this box to refresh the page automatically. Automatic refresh occurs every 3 seconds.  Refresh: Click to refresh the page. ...
Page 305 Chapter 3: Web Management LLDP ‐ PoE 3.2.11.3. LLDP ‐ PoE This page provides a status overview for all LLDP PoE neighbours. The displayed table contains a row for each port on which an LLDP PoE neighbour is detected. The columns hold the following information: Local Port The port for this switch on which the LLDP frame was received. Power Type The Power Type represents whether the device is a Power Sourcing Entity (PSE) or Power Device (PD). If the Power Type is unknown it is represented as "Reserved". Power Source The Power Source represents the power source being utilized by a PSE or PD device. If the device is a PSE device it can either run on its Primary Power Source or its Backup Power Source. If it is unknown whether the PSE device is using its Primary Power Source or its Backup Power Source it is indicated as "Unknown" If the device is a PD device it can either run on its local power supply or it can use the PSE as power source. It can also use both its local power supply and the PSE. If it is unknown what power supply the PD device is using it is indicated as "Unknown" Power Priority Power Priority represents the priority of the PD device, or the power priority associated with the PSE type device's port that is sourcing the power. There are three levels of power priority. The three levels are: Critical, High and Low. If the power priority is unknown it is indicated as "Unknown" Maximum Power The Maximum Power Value contains a numerical value that indicates the maximum power in watts required by a PD device from a PSE device, or the minimum power a PSE device is capable of sourcing over a maximum length cable based on its current configuration. Intelinet 48‐Port Gigabit Ethernet PoE+ Layer2+ Managed Switch User Manual | 305 ...
Page 306: Lldp ‐ Poe
Chapter 3: Web Management LLDP ‐ PoE The maximum allowed value is 102.3 W. If the device indicates value higher than 102.3 W, it is represented as "reserved" Buttons  Auto‐refresh: Check this box to refresh the page automatically. Automatic refresh occurs every 3 seconds.  Refresh: Click to refresh the page. Intelinet 48‐Port Gigabit Ethernet PoE+ Layer2+ Managed Switch User Manual | 306 ...
Page 307 Chapter 3: Web Management LLDP ‐ EEE 3.2.11.4. LLDP ‐ EEE By using EEE power savings can be achieved at the expense of traffic latency. This latency occurs due to that the circuits EEE turn off to save power, need time to boot up before sending traffic over the link. This time is called "wakeup time". To achieve minimal latency, devices can use LLDP to exchange information about their respective tx and rx "wakeup time ", as a way to agree upon the minimum wakeup time they need. This page provides an overview of EEE information exchanged by LLDP. LLDP Neighbors EEE Information The displayed table contains a row for each port. The columns hold the following information: Local Port The port on which LLDP frames are received or transmitted. Tx Tw The link partner's maximum time that transmit path can hold‐off sending data after deassertion of LPI. Rx Tw The link partner's time that receiver would like the transmitter to hold‐off to allow time for the receiver to wake from sleep. Fallback Receive Tw The link partner's fallback receive Tw. A receiving link partner may inform the transmitter of an alternate desired Tw_sys_tx. Since a receiving link partner is likely to have discrete levels for savings, this provides the transmitter with additional information that it may use for a more efficient allocation. Systems that do not implement this option default the value to be the same as that of the Receive Tw_sys_tx. Echo Tx Tw The link partner's Echo Tx Tw value. The respective echo values shall be defined as the local link partners reflection (echo) of the remote link partners respective values. When a local link partner receives its echoed values from the remote link partner it can determine whether or not the remote link partner has received, registered and processed its most recent values. For example, if the local link partner receives echoed parameters that do not match the values in its local MIB, then the local link partner infers that the remote link partners request was based on stale information. Intelinet 48‐Port Gigabit Ethernet PoE+ Layer2+ Managed Switch User Manual | 307 ...
Page 308: Lldp ‐ Eee
Chapter 3: Web Management LLDP ‐ EEE Echo Rx Tw The link partner's Echo Rx Tw value. Resolved Tx Tw The resolved Tx Tw for this link. Note : NOT the link partner The resolved value that is the actual "tx wakeup time " used for this link (based on EEE information exchanged via LLDP). Resolved Rx Tw The resolved Rx Tw for this link. Note : NOT the link partner The resolved value that is the actual "tx wakeup time " used for this link (based on EEE information exchanged via LLDP). EEE in Sync Shows whether the switch and the link partner have agreed on wake times.  Red ‐ Switch and link partner have not agreed on wakeup times.  Green ‐ Switch and link partner have agreed on wakeup times. Buttons  Auto‐refresh: Check this box to refresh the page automatically. Automatic refresh occurs every 3 seconds.  Refresh: Click to refresh the page. Intelinet 48‐Port Gigabit Ethernet PoE+ Layer2+ Managed Switch User Manual | 308 ...
Page 309 Chapter 3: Web Management LLDP ‐ Port Statistic 3.2.11.5. LLDP ‐ Port Statistics This page provides an overview of all LLDP traffic. Two types of counters are shown. Global counters are counters that refer to the whole stack, while local counters refer to per port counters for the currently selected switch. Global Counters Neighbour entries were last changed Shows the time when the last entry was last deleted or added. It also shows the time elapsed since the last change was detected. Total Neighbours Entries Added Shows the number of new entries added since switch reboot. Total Neighbours Entries Deleted Shows the number of new entries deleted since switch reboot. Total Neighbours Entries Dropped Shows the number of LLDP frames dropped due to the entry table being full. Total Neighbours Entries Aged Out Shows the number of entries deleted due to Time‐To‐Live expiring. Local Counters The displayed table contains a row for each port. The columns hold the following information: Local Port The port on which LLDP frames are received or transmitted. Tx Frames The number of LLDP frames transmitted on the port. Rx Frames The number of LLDP frames received on the port. Intelinet 48‐Port Gigabit Ethernet PoE+ Layer2+ Managed Switch User Manual | 309 ...
Page 310: Lldp ‐ Port Statistics
Chapter 3: Web Management LLDP ‐ Port Statistic Rx Errors The number of received LLDP frames containing some kind of error. Frames Discarded If an LLDP frame is received on a port, and the switch's internal table has run full, the LLDP frame is counted and discarded. This situation is known as "Too Many Neighbours" in the LLDP standard. LLDP frames require a new entry in the table when the Chassis ID or Remote Port ID is not already contained within the table. Entries are removed from the table when a given port's link is down, an LLDP shutdown frame is received, or when the entry ages out. TLVs Discarded Each LLDP frame can contain multiple pieces of information, known as TLVs (TLV is short for "Type Length Value"). If a TLV is malformed, it is counted and discarded. TLVs Unrecognized The number of well‐formed TLVs, but with an unknown type value. Org. Discarded The number of organizationally received TLVs. Age‐Outs Each LLDP frame contains information about how long time the LLDP information is valid (age‐out time). If no new LLDP frame is received within the age out time, the LLDP information is removed, and the Age‐Out counter is incremented. Buttons  Auto‐refresh: Check this box to refresh the page automatically. Automatic refresh occurs every 3 seconds.  Refresh: Click to refresh the page.  Clear: Clears the local counters. All counters (including global counters) are cleared upon reboot. Intelinet 48‐Port Gigabit Ethernet PoE+ Layer2+ Managed Switch User Manual | 310 ...
Page 311 Chapter 3: Web Management Monitor ‐ PoE 3.2.12. Monitor ‐ PoE This page allows the user to inspect the current status for all PoE ports. Local Port This is the logical port number for this row. PD Class Each PD is classified according to a class that defines the maximum power the PD will use. The PD Class shows the PDs class. Five Classes are defined:  Class 0: Max. power 15.4 W  Class 1: Max. power 4.0 W  Class 2: Max. power 7.0 W  Class 3: Max. power 15.4 W  Class 4: Max. power 30.0 W Power Requested The Power Requested shows the requested amount of power the PD wants to be reserved. Power Allocated The Power Allocated shows the amount of power the switch has allocated for the PD. Power Used The Power Used shows how much power the PD currently is using. Intelinet 48‐Port Gigabit Ethernet PoE+ Layer2+ Managed Switch User Manual | 311 ...
Page 312: Monitor ‐ Poe
Chapter 3: Web Management Monitor ‐ PoE Current Used The Power Used shows how much current the PD currently is using. Intelinet 48‐Port Gigabit Ethernet PoE+ Layer2+ Managed Switch User Manual | 312 ...
Page 313 Chapter 3: Web Management Monitor ‐ PoE Priority The Priority shows the port's priority configured by the user. Port Status The Port Status shows the port's status. The status can be one of the following values:  PoE not available ‐ No PoE chip found ‐ PoE not supported for the port.  PoE turned OFF ‐ PoE disabled : PoE is disabled by user.  PoE turned OFF ‐ Power budget exceeded ‐ The total requested or used power by the PDs exceeds the maximum power the Power Supply can deliver, and port(s) with the lowest priority is/are powered down.  No PD detected ‐ No PD detected for the port.  PoE turned OFF ‐ PD overload ‐ The PD has requested or used more power than the port can deliver, and is powered down.  PoE turned OFF ‐ PD is off.  Invalid PD ‐ PD detected, but is not working correctly. Buttons  Auto‐refresh: Check this box to refresh the page automatically. Automatic refresh occurs every 3 seconds.  Refresh: Click to refresh the page. Intelinet 48‐Port Gigabit Ethernet PoE+ Layer2+ Managed Switch User Manual | 313 ...
Page 314 Chapter 3: Web Management Monitor ‐ MAC Table 3.2.13. Monitor ‐ MAC Table Entries in the MAC Table are shown on this page. The MAC Table contains up to 8192 entries, and is sorted first by VLAN ID, then by MAC address. Navigating the MAC Table Each page shows up to 999 entries from the MAC table, default being 20, selected through the "entries per page" input field. When first visited, the web page will show the first 20 entries from the beginning of the MAC Table. The first displayed will be the one with the lowest VLAN ID and the lowest MAC address found in the MAC Table. The "Start from MAC address" and "VLAN" input fields allow the user to select the starting point in the MAC Table. Clicking the Refresh button will update the displayed table starting from that or the closest next MAC Table match. In addition, the two input fields will ‐ upon a Refresh button click ‐ assume the value of the first displayed entry, allowing for continuous refresh with the same start address. The >> will use the last entry of the currently displayed VLAN/MAC address pairs as a basis for the next lookup. When the end is reached the text "No more entries" is shown in the displayed table. Use the |<< button to start over. MAC Table Columns Switch (stack only) The stack unit where the entry is learned. Type Indicates whether the entry is a static or a dynamic entry. MAC address The MAC address of the entry. VLAN Intelinet 48‐Port Gigabit Ethernet PoE+ Layer2+ Managed Switch User Manual | 314 ...
Page 315: Monitor ‐ Mac Table
Chapter 3: Web Management Monitor ‐ MAC Table The VLAN ID of the entry. Intelinet 48‐Port Gigabit Ethernet PoE+ Layer2+ Managed Switch User Manual | 315 ...
Page 316 Chapter 3: Web Management Monitor ‐ MAC Table Port Members The ports that are members of the entry. Buttons  Auto‐refresh: Automatic refresh occurs every 3 seconds.  Refresh: Refreshes the displayed table starting from the "Start from MAC address" and "VLAN" input fields.  Clear: Flushes all dynamic entries.  |<<: Updates the table starting from the first entry in the MAC Table, i.e. the entry with the lowest VLAN ID and MAC address.  >>: Updates the table, starting with the entry after the last entry currently displayed. Intelinet 48‐Port Gigabit Ethernet PoE+ Layer2+ Managed Switch User Manual | 316 ...
Page 317: Monitor ‐ Vlans
Chapter 3: Web Management VLANs ‐ VLAN Membership 3.2.14. Monitor ‐ VLANs 3.2.14.1. VLANs ‐ VLAN Membership This page provides an overview of membership status of VLAN users. VLAN User Various internal software modules may use VLAN services to configure VLAN memberships on the fly. The drop‐down list on the right allows for selecting between showing VLAN memberships as configured by an administrator (Admin) or as configured by one of these internal software modules. The "Combined" entry will show a combination of the administrator and internal software modules configuration, and basically reflects what is actually configured in hardware. VLAN ID VLAN ID for which the Port members are displayed. Port Members A row of check boxes for each port is displayed for each VLAN ID.  If a port is included in a VLAN, the following image will be displayed:  If a port is in the forbidden port list, the following image will be displayed:  If a port is in the forbidden port list and at the same time attempted included in the VLAN, the following image will be displayed . The port will not be a member of the VLAN in this case. Navigating the VLAN Membership Status page Each page shows up to 99 entries from the VLAN table (default being 20), selected through the "entries per page" input field. When first visited, the web page will show the first 20 entries from the beginning of the VLAN Table. The first displayed will be the one with the lowest VLAN ID found in the VLAN Table. The "VLAN" input field allows the user to select the starting point in the VLAN Table. Clicking the “Refresh” button will update the displayed table starting from that or the closest next VLAN Table match. The “>>” button will use the last entry of the currently displayed VLAN entry as a basis for the next lookup. When the end is reached, the text "No data exists for the selected user" is shown in the table. Use the “|<<” button to start over. ...
Page 318: Vlans ‐ Vlan Membership
Chapter 3: Web Management VLANs ‐ VLAN Membership Buttons  : Select VLAN Users from this drop down list.  Auto‐refresh: Check this box to refresh the page automatically. Automatic refresh occurs every 3 seconds.  Refresh: Click to refresh the page immediately. Intelinet 48‐Port Gigabit Ethernet PoE+ Layer2+ Managed Switch User Manual | 318 ...
Page 319: Vlans ‐ Vlan Ports
Chapter 3: Web Management VCL ‐ MAC‐based VLAN 3.2.14.2. VLANs ‐ VLAN Ports This page provides VLAN Port Status. The ports belong to the currently selected stack unit, as reflected by the page header. VLAN USER VLAN User module uses services of the VLAN management functionality to configure VLAN memberships and VLAN port configuration such as PVID, UVID. Currently we support following VLAN User types:  CLI/Web/SNMP: These are referred to as static.  NAS: NAS provides port‐based authentication, which involves communications between a Supplicant, Authenticator, and an Authentication Server.  Voice VLAN: Voice VLAN is a VLAN configured specially for voice traffic typically originating from IP phones.  MVR: MVR is used to eliminate the need to duplicate multicast traffic for subscribers in each VLAN. Multicast traffic for all channels is sent only on a single (multicast) VLAN.  MSTP: The 802.1s Multiple Spanning Tree protocol (MSTP) uses VLANs to create multiple spanning trees in a network, which significantly improves network resource utilization while maintaining a loop‐free environment. Port The logical port for the settings contained in the same row. Intelinet 48‐Port Gigabit Ethernet PoE+ Layer2+ Managed Switch User Manual | 319 ...
Page 320 Chapter 3: Web Management VCL ‐ MAC‐based VLAN PVID Shows the VLAN identifier for that port. The allowed values are 1 through 4095. The default value is 1. Port Type Shows the Port Type. Port type can be any of Unaware, C‐port, S‐port, Custom S‐port. If Port Type is Unaware, all frames are classified to the Port VLAN ID and tags are not removed. C‐port is Customer Port. S‐port is Service port. Custom S‐port is S‐port with Custom TPID. Ingress Filtering Shows the ingress filtering on a port. This parameter affects VLAN ingress processing. If ingress filtering is enabled and the ingress port is not a member of the classified VLAN, the frame is discarded. Frame Type Shows whether the port accepts all frames or only tagged frames. This parameter affects VLAN ingress processing. If the port only accepts tagged frames, untagged frames received on that port are discarded. Tx Tag Shows egress filtering frame status whether tagged or untagged. UVID Shows UVID (untagged VLAN ID). Port's UVID determines the packet's behaviour at the egress side. Conflicts Shows status of Conflicts whether exists or not. When a Volatile VLAN User requests to set VLAN membership or VLAN port configuration, the following conflicts can occur:  Functional Conflicts between features.  Conflicts due to hardware limitation.  Direct conflict between user modules. Buttons  : Select VLAN Users from this drop down list.  Auto‐refresh: Check this box to refresh the page automatically. Automatic refresh occurs every 3 seconds.  Refresh: Click to refresh the page immediately. ...
Page 321 Chapter 3: Web Management Monitor ‐ sFlow 3.2.15. Monitor ‐ sFlow This page shows receiver and per‐port sFlow statistics. Receiver Statistics Owner This field shows the current owner of the sFlow configuration. It assumes one of three values as follows:  If sFlow is currently unconfigured/unclaimed, Owner contains <none>.  If sFlow is currently configured through Web or CLI, Owner contains <Configured through local management>.  If sFlow is currently configured through SNMP, Owner contains a string identifying the sFlow receiver. IP Address/Hostname The IP address or hostname of the sFlow receiver. Timeout The number of seconds remaining before sampling stops and the current sFlow owner is released. Tx Successes The number of UDP datagrams successfully sent to the sFlow receiver. Tx Errors The number of UDP datagrams that has failed transmission. The most common source of errors is invalid sFlow receiver IP/hostname configuration. To diagnose, paste the receiver's IP address/hostname into the Ping Web page (Diagnostics → Ping/Ping6). Intelinet 48‐Port Gigabit Ethernet PoE+ Layer2+ Managed Switch User Manual | 321 ...
Page 322: Monitor ‐ Sflow
Chapter 3: Web Management Monitor ‐ sFlow Flow Samples The total number of flow samples sent to the sFlow receiver. Counter Samples The total number of counter samples sent to the sFlow receiver. Port Statistics Port The port number for which the following statistics applies. Rx and Tx Flow Samples The number of flow samples sent to the sFlow receiver originating from this port. Here, flow samples are divided into Rx and Tx flow samples, where Rx flow samples contains the number of packets that were sampled upon reception (ingress) on the port and Tx flow samples contains the number of packets that were sampled upon transmission (egress) on the port. Counter Samples The total number of counter samples sent to the sFlow receiver originating from this port. Buttons  Auto‐refresh: Check this box to refresh the page automatically. Automatic refresh occurs every 3 seconds (only present if stacking is enabled).  Refresh: Click to refresh the page.  Clear Receiver: Clears the sFlow receiver counters.  Clear Port: Clears the per‐port counters. Intelinet 48‐Port Gigabit Ethernet PoE+ Layer2+ Managed Switch User Manual | 322 ...
Page 323 Chapter 3: Web Management Diagnostics ‐ Ping 3.3. Web Management ‐ Diagnostics This section of the management web page provides you tools for diagnosing your network. 3.3.1. Diagnostics ‐ Ping This page allows you to issue ICMP PING packets to troubleshoot IP connectivity issues. After you press the “Start” button, ICMP packets are transmitted, and the sequence number and round trip time are displayed upon reception of a reply. The amount of data received inside of an IP packet of type ICMP ECHO_REPLY will always be 8 bytes more than the requested data space(the ICMP header). The page refreshes automatically until responses to all packets are received, or until a timeout occurs. PING server 10.10.132.20, 56 bytes of data. 64 bytes from 10.10.132.20: icmp_seq=0, time=0ms 64 bytes from 10.10.132.20: icmp_seq=1, time=0ms 64 bytes from 10.10.132.20: icmp_seq=2, time=0ms 64 bytes from 10.10.132.20: icmp_seq=3, time=0ms 64 bytes from 10.10.132.20: icmp_seq=4, time=0ms Sent 5 packets, received 5 OK, 0 bad You can configure the following properties of the issued ICMP packets: IP Address The destination IP Address. Ping Length The payload size of the ICMP packet. Values range from 2 bytes to 1452 bytes. Ping Count The count of the ICMP packet. Values range from 1 time to 60 times. Ping Interval The interval of the ICMP packet. Values range from 0 second to 30 seconds. Intelinet 48‐Port Gigabit Ethernet PoE+ Layer2+ Managed Switch User Manual | 323 ...
Page 324: Web Management ‐ Diagnostics
Chapter 3: Web Management Diagnostics ‐ Ping Buttons  Start: Click to start transmitting ICMP packets.  New Ping: Click to re‐start diagnostics with PING. Intelinet 48‐Port Gigabit Ethernet PoE+ Layer2+ Managed Switch User Manual | 324 ...
Page 325 Chapter 3: Web Management Diagnostics ‐ Ping6 3.3.2. Diagnostics ‐ Ping6 This page allows you to issue ICMPv6 PING packets to troubleshoot IPv6 connectivity issues. After you press the “Start” button, ICMPv6 packets are transmitted, and the sequence number and round trip time are displayed upon reception of a reply. The page refreshes automatically until responses to all packets are received, or until a timeout occurs. PING6 server ::10.10.132.20, 56 bytes of data. 64 bytes from ::10.10.132.20: icmp_seq=0, time=0ms 64 bytes from ::10.10.132.20: icmp_seq=1, time=0ms 64 bytes from ::10.10.132.20: icmp_seq=2, time=0ms 64 bytes from ::10.10.132.20: icmp_seq=3, time=0ms 64 bytes from ::10.10.132.20: icmp_seq=4, time=0ms Sent 5 packets, received 5 OK, 0 bad You can configure the following properties of the issued ICMP packets: IP Address The destination IP Address. Ping Length The payload size of the ICMP packet. Values range from 2 bytes to 1452 bytes. Ping Count The count of the ICMP packet. Values range from 1 time to 60 times. Ping Interval The interval of the ICMP packet. Values range from 0 second to 30 seconds. Buttons  Start: Click to start transmitting ICMP packets.  New Ping: Click to re‐start diagnostics with PING. Intelinet 48‐Port Gigabit Ethernet PoE+ Layer2+ Managed Switch User Manual | 325 ...
Page 326 Chapter 3: Web Management Diagnostics ‐ VeriPHY 3.3.3. Diagnostics ‐ VeriPHY This page is used for running the VeriPHY Cable Diagnostics for 10/100 and 1G copper ports. Press the “Start” button to run the diagnostics. This will take approximately 5 seconds. If all ports are selected, this can take approximately 15 seconds. When completed, the page refreshes automatically, and you can view the cable diagnostics results in the cable status table. Note that VeriPHY is only accurate for cables of length 7 ‐ 140 meters. 10 and 100 Mbps ports will be linked down while running VeriPHY. Therefore, running VeriPHY on a 10 or 100 Mbps management port will cause the switch to stop responding until VeriPHY is complete. The ports belong to the currently selected stack unit, as reflected by the page header. Port The port where you are requesting VeriPHY Cable Diagnostics. Cable Status Port:  Port number Pair: The status of the cable pair.  OK ‐ Correctly terminated pair  Open ‐ Open pair  Short ‐ Shorted pair  Short A ‐ Cross‐pair short to pair A  Short B ‐ Cross‐pair short to pair B  Short C ‐ Cross‐pair short to pair C  Short D ‐ Cross‐pair short to pair D  Cross A ‐ Abnormal cross‐pair coupling with pair A  Cross B ‐ Abnormal cross‐pair coupling with pair B ...
Page 327: Diagnostics ‐ Veriphy
Chapter 3: Web Management Diagnostics ‐ VeriPHY  Cross D ‐ Abnormal cross‐pair coupling with pair D Length:  The length (in meters) of the cable pair. The resolution is 3 meters Intelinet 48‐Port Gigabit Ethernet PoE+ Layer2+ Managed Switch User Manual | 327 ...
Page 328 Chapter 3: Web Management Maintenance ‐ Restart Device 3.4. Web Management ‐ Maintenance Here you can make system maintenance such rebooting the PoE switch, reset all settings (except Switch’s IP address) back to default value, updating switch firmware, or upload/download all system settings. 3.4.1. Maintenance ‐ Restart Device You can restart the stack on this page. After restart, the stack will boot normally. Buttons  Yes: Click to restart device.  No: Click to return to the Port State page without restarting. Intelinet 48‐Port Gigabit Ethernet PoE+ Layer2+ Managed Switch User Manual | 328 ...
Page 329: Web Management ‐ Maintenance
Chapter 3: Web Management Maintenance ‐ Factory Defaults 3.4.2. Maintenance ‐ Factory Defaults You can reset the configuration of the stack on this page. Only the IP configuration is retained. The new configuration is available immediately, which means that no restart is necessary. Buttons  Yes: Click to reset the configuration to Factory Defaults.  No: Click to return to the Port State page without resetting the configuration. Note: Restoring factory default can also be performed by making a physical loopback between port 1 and port 2 within the first minute from switch reboot. In the first minute after boot, 'loopback' packets will be transmitted at port 1. If a 'loopback' packet is received at port 2 the switch will do a restore to default Intelinet 48‐Port Gigabit Ethernet PoE+ Layer2+ Managed Switch User Manual | 329 ...
Page 330: Maintenance ‐ Software Upload
Chapter 3: Web Management Maintenance ‐ Software Upload 3.4.3. Maintenance ‐ Software Upload You can update the switch’s firmware here. Buttons  Choose File: Click this button to choose the firmware file.  Update: Click this button to start upload the firmware. The system will inform you when the new firmware is uploaded to the switch. After updating the firmware, the switch will reboot. Warning: The management web page will stop functioning during the firmware updating process. Do not restart or power off the device at this time or the switch may malfunction. Intelinet 48‐Port Gigabit Ethernet PoE+ Layer2+ Managed Switch User Manual | 330 ...
Page 331: Maintenance ‐ Configuration
Chapter 3: Web Management Configuration ‐ Save 3.4.3. Maintenance ‐ Configuration 3.4.3.1. Configuration ‐ Save You can save all the current setting values as a file in XML format. Buttons  Save Configuration: Click to save the configuration file. Intelinet 48‐Port Gigabit Ethernet PoE+ Layer2+ Managed Switch User Manual | 331 ...
Page 332: Configuration ‐ Load
Chapter 3: Web Management Configuration ‐ Load 3.4.3.2. Configuration ‐ Load Buttons  Choose File: Click this button to choose the configuration file that you’ve saved. .  Upload: Click to upload the configuration file. Intelinet 48‐Port Gigabit Ethernet PoE+ Layer2+ Managed Switch User Manual | 332 ...
Page 333: Appendix A: Product Safety
Appendix A: Product Safety Appendix A: Product Safety This appendix describes safety issues regarding to this product. To use this product safely, it is highly recommended to read this appendix before installing and using this product. Failure to follow these precautions and warnings might cause product malfunction, electrical shock, or even fire. If this product is working abnormally (e.g. generating smoke), please stop using this product and contact your distributor or retailer immediately. DO NOT install this product under conditions listed below:  DO NOT install this product in an environment with conditions exceeding its specified operating environment. ...
Page 334 Appendix B: IP Configuration for Your PC Appendix B: IP Configuration for Your PC This appendix describes how to set the IP address of your PC so you can connect to product configuration webpage. The configuration webpage allows you to set system variables or monitor system status. The following section will guide you to set the IP address properly in a Microsoft Windows 8 environment. ...
Page 335: Appendix B: Ip Configuration For Your Pc
Appendix B: IP Configuration for Your PC An Ethernet Status window will pop up. Please click on the Properties button as shown in the figure down below. An Ethernet Properties window will pop up. Please double click on the Internet Protocol Version 4 (TCP/IPv4). Intelinet 48‐Port Gigabit Ethernet PoE+ Layer2+ Managed Switch User Manual | 335 ...
Page 336 Appendix B: IP Configuration for Your PC An Internet Protocol Version 4 (TCP/IPv4) Properties window will pop up. Please set your PC’s IP address and subnet mask as shown in the figure down below. By default, your product’s IP address should be 192.168.2.1.You can set any IP address as long as it’s not the same with your product’s IP address and is in the same network segment with your product’s IP address. Press OK to apply the TCP/IPv4 settings you just made. Now you can connect to your product using a web browser (i.e. Internet Explorer, Chrome, or Firefox). ...
Page 337 Appendix B: IP Configuration for Your PC Intelinet 48‐Port Gigabit Ethernet PoE+ Layer2+ Managed Switch User Manual | 337 ...
Page 338 Appendix C: Glossary Appendix C: Glossary This appendix contains the terms and glossaries that are used in this user manual. ACE is an acronym for Access Control Entry. It describes access permission associated with a particular ACE ID. There are three ACE frame types (Ethernet Type, ARP, and IPv4) and two ACE actions (permit and deny). The ACE also contains many detailed, different parameter options that are available for individual application. ACL is an acronym for Access Control List. It is the list table of ACEs, containing access control entries that specify individual users or groups permitted or denied to specific traffic objects, such as a process or a program. Each accessible traffic object contains an identifier to its ACL. The privileges determine whether there are specific traffic object access rights. ACL implementations can be quite complex, for example, when the ACEs are prioritized for the various situation. In networking, the ACL refers to a list of service ports or network services that are available on a host or server, each with a list of hosts or servers permitted or denied to use the service. ACL can generally be configured to control inbound traffic, and in this context, they are similar to firewalls. There are 3 web‐pages associated with the manual ACL configuration: ACL|Access Control List: The web page shows the ACEs in a prioritized way, highest (top) to lowest (bottom). Default the table is empty. An ingress frame will only get a hit on one ACE even though there are more matching ACEs. The first matching ACE will take action (permit/deny) on that frame and a counter associated with that ACE is incremented. An ACE can be associated with a Policy, 1 ingress port, or any ingress port (the whole switch). If an ACE Policy is created then that Policy can be associated with a group of ports under the "Ports" web‐page. There are number of parameters that can be configured with an ACE. Read the Web page help text to get further information for each of them. The maximum number of ACEs is 64. ...
Page 339: Appendix C: Glossary
Appendix C: Glossary ACL|Ports: The ACL Ports configuration is used to assign a Policy ID to an ingress port. This is useful to group ports to obey the same traffic rules. Traffic Policy is created under the "Access Control List" ‐ page. You can you also set up specific traffic properties (Action / Rate Limiter / Port copy, etc) for each ingress port. They will though only apply if the frame gets past the ACE matching without getting matched. In that case a counter associated with that port is incremented. See the Web page help text for each specific port property. ACL|Rate Limiters: Under this page you can configure the rate limiters. There can be 15 different rate limiters, each ranging from 1‐1024K packets per seconds. Under "Ports" and "Access Control List" web‐pages you can assign a Rate Limiter ID to the ACE(s) or ingress port(s). Aggregation Using multiple ports in parallel to increase the link speed beyond the limits of a port and to increase the redundancy for higher availability. ARP is an acronym for Address Resolution Protocol. It is a protocol that used to convert an IP address into a physical address, such as an Ethernet address. ARP allows a host to communicate with other hosts when only the Internet address of its neighbors is known. Before using IP, the host sends a broadcast ARP request containing the Internet address of the desired destination system. ARP Inspection ARP Inspection is a secure feature. Several types of attacks can be launched against a host or devices connected to Layer 2 networks by "poisoning" the ARP caches. This feature is used to block such attacks. Only valid ARP requests and responses can go through the switch device. Auto‐Negotiation Auto‐negotiation is the process where two different devices establish the mode of operation and the speed settings that can be shared by those devices for a link. CDP is an acronym for Cisco Discovery Protocol. Intelinet 48‐Port Gigabit Ethernet PoE+ Layer2+ Managed Switch User Manual | 339 ...
Page 340 Appendix C: Glossary DEI is an acronym for Drop Eligible Indicator. It is a 1‐bit field in the VLAN tag. DES is an acronym for Data Encryption Standard. It provides a complete description of a mathematical algorithm for encrypting (enciphering) and decrypting (deciphering) binary coded information. Encrypting data converts it to an unintelligible form called cipher. Decrypting cipher converts the data back to its original form called plaintext. The algorithm described in this standard specifies both enciphering and deciphering operations which are based on a binary number called a key. DHCP DHCP is an acronym for Dynamic Host Configuration Protocol. It is a protocol used for assigning dynamic IP addresses to devices on a network. DHCP used by networked computers (clients) to obtain IP addresses and other parameters such as the default gateway, subnet mask, and IP addresses of DNS servers from a DHCP server. The DHCP server ensures that all IP addresses are unique, for example, no IP address is assigned to a second client while the first client's assignment is valid (its lease has not expired). Therefore, IP address pool management is done by the server and not by a human network administrator. Dynamic addressing simplifies network administration because the software keeps track of IP addresses rather than requiring an administrator to manage the task. This means that a new computer can be added to a network without the hassle of manually assigning it a unique IP address. DHCP Relay DHCP Relay is used to forward and to transfer DHCP messages between the clients and the server when they are not on the same subnet domain. The DHCP option 82 enables a DHCP relay agent to insert specific information into a DHCP request packets when forwarding client DHCP packets to a DHCP server and remove the specific information from a DHCP reply packets when forwarding server DHCP packets to a DHCP client. The DHCP server can use this information to implement IP address or other assignment policies. Specifically the option works by setting two sub‐options: Circuit ID (option 1) and Remote ID (option2). The Circuit ID sub‐option is supposed to include information specific to which circuit the request came in on. The Remote ID sub‐option was designed to carry information relating to the remote host end of the circuit. Intelinet ...
Page 341 Appendix C: Glossary The definition of Circuit ID in the switch is 4 bytes in length and the format is "vlan_id" "module_id" "port_no". The parameter of "vlan_id" is the first two bytes represent the VLAN ID. The parameter of "module_id" is the third byte for the module ID (in standalone switch it always equal 0, in stackable switch it means switch ID). The parameter of "port_no" is the fourth byte and it means the port number. The Remote ID is 6 bytes in length, and the value is equal the DHCP relay agents MAC address. DHCP Snooping DHCP Snooping is used to block intruder on the untrusted ports of the switch device when it tries to intervene by injecting a bogus DHCP reply packet to a legitimate conversation between the DHCP client and server. DNS is an acronym for Domain Name System. It stores and associates many types of information with domain names. Most importantly, DNS translates human‐friendly domain names and computer hostnames into computer‐friendly IP addresses. For example, the domain name www.example.com might translate to 192.168.0.1. Dotted Decimal Notation Dotted Decimal Notation refers to a method of writing IP addresses using decimal numbers and dots as separators between octets. An IPv4 dotted decimal address has the form x.y.z.w, where x, y, z, and w are decimal numbers between 0 and 255. Drop Precedence Level Every incoming frame is classified to a Drop Precedence Level (DP level), which is used throughout the device for providing congestion control guarantees to the frame according to what was configured for that specific DP level. A DP level of 0 (zero) corresponds to 'Committed' (Green) frames and a DP level of 1 or higher corresponds to 'Discard Eligible' (Yellow) frames. DSCP DSCP is an acronym for Differentiated Services Code Point. It is a field in the header of IP packets for packet classification purposes. Intelinet 48‐Port Gigabit Ethernet PoE+ Layer2+ Managed Switch User Manual | 341 ...
Page 342 Appendix C: Glossary EEE is an abbreviation for Energy Efficient Ethernet defined in IEEE 802.3az. EPS is an abbreviation for Ethernet Protection Switching defined in ITU/T G.8031. Ethernet Type Ethernet Type, or EtherType, is a field in the Ethernet MAC header, defined by the Ethernet networking standard. It is used to indicate which protocol is being transported in an Ethernet frame. Fast Leave Multicast snooping Fast Leave processing allows the switch to remove an interface from the forwarding‐table entry without first sending out group specific queries to the interface. The VLAN interface is pruned from the multicast tree for the multicast group specified in the original leave message. Fast‐leave processing ensures optimal bandwidth management for all hosts on a switched network, even when multiple multicast groups are in use simultaneously. This processing applies to IGMP and MLD. HTTP HTTP is an acronym for Hypertext Transfer Protocol. It is a protocol that used to transfer or convey information on the World Wide Web (WWW). HTTP defines how messages are formatted and transmitted, and what actions Web servers and browsers should take in response to various commands. For example, when you enter a URL in your browser, this actually sends an HTTP command to the Web server directing it to fetch and transmit the requested Web page. The other main standard that controls how the World Wide Web works is HTML, which covers how Web pages are formatted and displayed. Any Web server machine contains, in addition to the Web page files it can serve, an HTTP daemon, a program that is designed to wait for HTTP requests and handle them when they arrive. The Web browser is an HTTP client, sending requests to server machines. An HTTP client initiates a request by establishing a Transmission Control Protocol (TCP) connection to a particular port on a remote host (port 80 by default). An HTTP server listening on that port waits for the client to send a request message. Intelinet 48‐Port Gigabit Ethernet PoE+ Layer2+ Managed Switch User Manual | 342 ...
Page 343 Appendix C: Glossary HTTPS HTTPS is an acronym for Hypertext Transfer Protocol over Secure Socket Layer. It is used to indicate a secure HTTP connection. HTTPS provide authentication and encrypted communication and is widely used on the World Wide Web for security‐sensitive communication such as payment transactions and corporate logons. HTTPS is really just the use of Netscape's Secure Socket Layer (SSL) as a sublayer under its regular HTTP application layering. (HTTPS uses port 443 instead of HTTP port 80 in its interactions with the lower layer, TCP/IP.) SSL uses a 40‐bit key size for the RC4 stream encryption algorithm, which is considered an adequate degree of encryption for commercial exchange. ICMP ICMP is an acronym for Internet Control Message Protocol. It is a protocol that generated the error response, diagnostic or routing purposes. ICMP messages generally contain information about routing difficulties or simple exchanges such as time‐stamp or echo transactions. For example, the PING command uses ICMP to test an Internet connection. IEEE 802.1X IEEE 802.1X is an IEEE standard for port‐based Network Access Control. It provides authentication to devices attached to a LAN port, establishing a point‐to‐point connection or preventing access from that port if authentication fails. With 802.1X, access to all switch ports can be centrally controlled from a server, which means that authorized users can use the same credentials for authentication from any point within the network. IGMP IGMP is an acronym for Internet Group Management Protocol. It is a communications protocol used to manage the membership of Internet Protocol multicast groups. IGMP is used by IP hosts and adjacent multicast routers to establish multicast group memberships. It is an integral part of the IP multicast specification, like ICMP for unicast connections. IGMP can be used for online video and gaming, and allows more efficient use of resources when supporting these uses. IGMP Querier A router sends IGMP Query messages onto a particular link. This router is called the Querier. Intelinet 48‐Port Gigabit Ethernet PoE+ Layer2+ Managed Switch User Manual | 343 ...
Page 344 Appendix C: Glossary IMAP IMAP is an acronym for Internet Message Access Protocol. It is a protocol for email clients to retrieve email messages from a mail server. IMAP is the protocol that IMAP clients use to communicate with the servers, and SMTP is the protocol used to transport mail to an IMAP server. The current version of the Internet Message Access Protocol is IMAP4. It is similar to Post Office Protocol version 3 (POP3), but offers additional and more complex features. For example, the IMAP4 protocol leaves your email messages on the server rather than downloading them to your computer. If you wish to remove your messages from the server, you must use your mail client to generate local folders, copy messages to your local hard drive, and then delete and expunge the messages from the server. IP is an acronym for Internet Protocol. It is a protocol used for communicating data across an internet network. IP is a "best effort" system, which means that no packet of information sent over is assured to reach its destination in the same condition it was sent. Each device connected to a Local Area Network (LAN) or Wide Area Network (WAN) is given an Internet Protocol address, and this IP address is used to identify the device uniquely among all other devices connected to the extended network. The current version of the Internet protocol is IPv4, which has 32‐bits Internet Protocol addresses allowing for in excess of four billion unique addresses. This number is reduced drastically by the practice of webmasters taking addresses in large blocks, the bulk of which remain unused. There is a rather substantial movement to adopt a new version of the Internet Protocol, IPv6, which would have 128‐bits Internet Protocol addresses. This number can be represented roughly by a three with thirty‐nine zeroes after it. However, IPv4 is still the protocol of choice for most of the Internet. IPMC IPMC is an acronym for IP MultiCast. IPMC supports IPv4 and IPv6 multicasting. IPMCv4 denotes multicast for IPv4. IPMCv6 denotes multicast for IPv6. Intelinet 48‐Port Gigabit Ethernet PoE+ Layer2+ Managed Switch User Manual | 344 ...
Page 345 Appendix C: Glossary IP Source Guard IP Source Guard is a secure feature used to restrict IP traffic on DHCP snooping untrusted ports by filtering traffic based on the DHCP Snooping Table or manually configured IP Source Bindings. It helps prevent IP spoofing attacks when a host tries to spoof and use the IP address of another host. LACP LACP is an IEEE 802.3ad standard protocol. The Link Aggregation Control Protocol, allows bundling several physical ports together to form a single logical port. The IEEE 802.2 Logical Link Control (LLC) protocol provides a link mechanism for upper layer protocols. It is the upper sub‐layer of the Data Link Layer and provides multiplexing mechanisms that make it possible for several network protocols (IP, IPX) to coexist within a multipoint network. LLC header consists of 1 byte DSAP (Destination Service Access Point), 1 byte SSAP (Source Service Access Point), 1 or 2 bytes Control field followed by LLC information. LLDP LLDP is an IEEE 802.1ab standard protocol. The Link Layer Discovery Protocol (LLDP) specified in this standard allows stations attached to an IEEE 802 LAN to advertise, to other stations attached to the same IEEE 802 LAN, the major capabilities provided by the system incorporating that station, the management address or addresses of the entity or entities that provide management of those capabilities, and the identification of the stations point of attachment to the IEEE 802 LAN required by those management entity or entities. The information distributed via this protocol is stored by its recipients in a standard Management Information Base (MIB), making it possible for the information to be accessed by a Network Management System (NMS) using a management protocol such as the Simple Network Management Protocol (SNMP). LLDP‐MED LLDP‐MED is an extension of IEEE 802.1ab and is defined by the telecommunication industry association (TIA‐1057). LLQI LLQI (Last Listener Query Interval) is the maximum response time used to calculate the Maximum Response Code inserted into Specific Queries. It is used to detect the departure of the last listener for a multicast address or source. In IGMP, this term is called LMQI (Last Member Query Interval). ...
Page 346 Appendix C: Glossary LOC is an acronym for Loss Of Connectivity and is detected by a MEP and is indicating lost connectivity in the network. Can be used as a switch criteria by EPS MAC Table Switching of frames is based upon the DMAC address contained in the frame. The switch builds up a table that maps MAC addresses to switch ports for knowing which ports the frames should go to (based upon the DMAC address in the frame). This table contains both static and dynamic entries. The static entries are configured by the network administrator if the administrator wants to do a fixed mapping between the DMAC address and switch ports. The frames also contain a MAC address (SMAC address), which shows the MAC address of the equipment sending the frame. The SMAC address is used by the switch to automatically update the MAC table with these dynamic MAC addresses. Dynamic entries are removed from the MAC table if no frame with the corresponding SMAC address has been seen after a configurable age time. Mirroring For debugging network problems or monitoring network traffic, the switch system can be configured to mirror frames from multiple ports to a mirror port. (In this context, mirroring a frame is the same as copying the frame.) Both incoming (source) and outgoing (destination) frames can be mirrored to the mirror port. MLD is an acronym for Multicast Listener Discovery for IPv6. MLD is used by IPv6 routers to discover multicast listeners on a directly attached link, much as IGMP is used in IPv4. The protocol is embedded in ICMPv6 instead of using a separate protocol. MSTP In 2002, the IEEE introduced an evolution of RSTP: the Multiple Spanning Tree Protocol. The MSTP protocol provides for multiple spanning tree instances, while ensuring RSTP and STP compatibility. The standard was originally defined by IEEE 802.1s, but was later incorporated in IEEE 802.1D‐2005. Intelinet 48‐Port Gigabit Ethernet PoE+ Layer2+ Managed Switch User Manual | 346 ...
Page 347 Appendix C: Glossary Multicast VLAN Registration (MVR) is a protocol for Layer 2 (IP)‐networks that enables multicast‐traffic from a source VLAN to be shared with subscriber‐VLANs. The main reason for using MVR is to save bandwidth by preventing duplicate multicast streams being sent in the core network, instead the stream(s) are received on the MVR‐VLAN and forwarded to the VLANs where hosts have requested it/them (Wikipedia). NTP is an acronym for Network Time Protocol, a network protocol for synchronizing the clocks of computer systems. NTP uses UDP (datagrams) as transport layer. O Optional TLVs. A LLDP frame contains multiple TLVs For some TLVs it is configurable if the switch shall include the TLV in the LLDP frame. These TLVs are known as optional TLVs. If an optional TLVs is disabled the corresponding information is not included in the LLDP frame. OUI is the organizationally unique identifier. An OUI address is a globally unique identifier assigned to a vendor by IEEE. You can determine which vendor a device belongs to according to the OUI address which forms the first 24 bits of a MAC address. PCP PCP is an acronym for Priority Code Point. It is a 3‐bit field storing the priority level for the 802.1Q frame. It is also known as User Priority. PD PD is an acronym for Powered Device. In a PoE system the power is delivered from a PSE (power sourcing equipment) to a remote device. The remote device is called a PD. PHY PHY is an abbreviation for Physical Interface Transceiver and is the device that implement the Ethernet physical layer (IEEE‐802.3). Intelinet 48‐Port Gigabit Ethernet PoE+ Layer2+ Managed Switch User Manual | 347 ...
Page 348 Appendix C: Glossary PING Ping is a program that sends a series of packets over a network or the Internet to a specific computer in order to generate a response from that computer. The other computer responds with an acknowledgment that it received the packets. Ping was created to verify whether a specific computer on a network or the Internet exists and is connected. Ping uses Internet Control Message Protocol (ICMP) packets. The PING Request is the packet from the origin computer, and the PING Reply is the packet response from the target. PoE PoE is an acronym for Power Over Ethernet. Power Over Ethernet is used to transmit electrical power, to remote devices over standard Ethernet cable. It could for example be used for powering IP telephones, wireless LAN access points and other equipment, where it would be difficult or expensive to connect the equipment to main power supply. Policer A policer can limit the bandwidth of received frames. It is located in front of the ingress queue. Private VLAN In a private VLAN, PVLANs provide layer 2 isolation between ports within the same broadcast domain. Isolated ports configured as part of PVLAN cannot communicate with each other. Member ports of a PVLAN can communicate with each other. PTP PTP is an acronym for Precision Time Protocol, a network protocol for synchronizing the clocks of computer systems. QCE QCE is an acronym for QoS Control Entry. It describes QoS class associated with a particular QCE ID. There are six QCE frame types: Ethernet Type, VLAN, UDP/TCP Port, DSCP, TOS, and Tag Priority. Frames can be classified by one of 4 different QoS classes: "Low", "Normal", "Medium", and "High" for individual application. Intelinet 48‐Port Gigabit Ethernet PoE+ Layer2+ Managed Switch User Manual | 348 ...
Page 349 Appendix C: Glossary QCL QCL is an acronym for QoS Control List. It is the list table of QCEs, containing QoS control entries that classify to a specific QoS class on specific traffic objects. Each accessible traffic object contains an identifier to its QCL. The privileges determine specific traffic object to specific QoS class. QL QL In SyncE this is the Quality Level of a given clock source. This is received on a port in a SSM indicating the quality of the clock received in the port. QoS QoS is an acronym for Quality of Service. It is a method to guarantee a bandwidth relationship between individual applications or protocols. A communications network transports a multitude of applications and data, including high‐quality video and delay‐sensitive data such as real‐time voice. Networks must provide secure, predictable, measurable, and sometimes guaranteed services. Achieving the required QoS becomes the secret to a successful end‐to‐end business solution. Therefore, QoS is the set of techniques to manage network resources. QoS class Every incoming frame is classified to a QoS class, which is used throughout the device for providing queuing, scheduling and congestion control guarantees to the frame according to what was configured for that specific QoS class. There is a one to one mapping between QoS class, queue and priority. A QoS class of 0 (zero) has the lowest priority. RARP RARP is an acronym for Reverse Address Resolution Protocol. It is a protocol that is used to obtain an IP address for a given hardware address, such as an Ethernet address. RARP is the complement of ARP. RADIUS RADIUS is an acronym for Remote Authentication Dial In User Service. It is a networking protocol that provides centralized access, authorization and accounting management for people or computers to connect and use a network service. Intelinet 48‐Port Gigabit Ethernet PoE+ Layer2+ Managed Switch User Manual | 349 ...
Page 350 Appendix C: Glossary RSTP In 1998, the IEEE with document 802.1w introduced an evolution of STP: the Rapid Spanning Tree Protocol, which provides for faster spanning tree convergence after a topology change. Standard IEEE 802.1D‐2004 now incorporates RSTP and obsoletes STP, while at the same time being backwards‐compatible with STP. sFlow sFlow is an industry standard technology for monitoring switched networks through random sampling of packets on switch ports and time‐based sampling of port counters. The sampled packets and counters (referred to as flow samples and counter samples, respectively) are sent as sFlow UDP datagrams to a central network traffic monitoring server. This central server is called an sFlow receiver or sFlow collector. Shaper A shaper can limit the bandwidth of transmitted frames. It is located after the ingress queues. SMTP SMTP is an acronym for Simple Mail Transfer Protocol. It is a text‐based protocol that uses the Transmission Control Protocol (TCP) and provides a mail service modeled on the FTP file transfer service. SMTP transfers mail messages between systems and notifications regarding incoming mail. SNAP The Sub Network Access Protocol (SNAP) is a mechanism for multiplexing, on networks using IEEE 802.2 LLC, more protocols than can be distinguished by the 8‐bit 802.2 Service Access Point (SAP) fields. SNAP supports identifying protocols by Ethernet type field values; it also supports vendor‐private protocol identifier. SNMP SNMP is an acronym for Simple Network Management Protocol. It is part of the Transmission Control Protocol/Internet Protocol (TCP/IP) protocol for network management. SNMP allow diverse network objects to participate in a network management architecture. It enables network management systems to learn network problems by receiving traps or change notices from network devices implementing SNMP. SNTP SNTP is an acronym for Simple Network Time Protocol, a network protocol for synchronizing the clocks of computer systems. SNTP uses UDP (datagrams) as transport layer. Intelinet 48‐Port Gigabit Ethernet PoE+ Layer2+ Managed Switch User Manual | 350 ...
Page 351 Appendix C: Glossary SSH SSH is an acronym for Secure SHell. It is a network protocol that allows data to be exchanged using a secure channel between two networked devices. The encryption used by SSH provides confidentiality and integrity of data over an insecure network. The goal of SSH was to replace the earlier rlogin, TELNET and rsh protocols, which did not provide strong authentication or guarantee confidentiality. SSM SSM In SyncE this is an abbreviation for Synchronization Status Message and is containing a QL indication. STP Spanning Tree Protocol is an OSI layer‐2 protocol which ensures a loop free topology for any bridged LAN. The original STP protocol is now obsolete by RSTP. SyncE SyncE Is an abbreviation for Synchronous Ethernet. This functionality is used to make a network 'clock frequency' synchronized. Not to be confused with real time clock synchronized (IEEE 1588). TACACS+ TACACS+ is an acronym for Terminal Acess Controller Access Control System Plus. It is a networking protocol which provides access control for routers, network access servers and other networked computing devices via one or more centralized servers. TACACS+ provides separate authentication, authorization and accounting services. Tag Priority Tag Priority is a 3‐bit field storing the priority level for the 802.1Q frame. TCP TCP is an acronym for Transmission Control Protocol. It is a communications protocol that uses the Internet Protocol (IP) to exchange the messages between computers. The TCP protocol guarantees reliable and in‐order delivery of data from sender to receiver and distinguishes data for multiple connections by concurrent applications (for example, Web server and e‐mail server) running on the same host. The applications on networked hosts can use TCP to create connections to one another. It is known as a connection‐oriented protocol, which means that a connection is established and maintained until such time as the message or messages to be exchanged by the application programs at each end have been exchanged. TCP is responsible for ensuring that a message is divided into the packets Intelinet 48‐Port Gigabit Ethernet PoE+ Layer2+ Managed Switch User Manual | 351 ...
Page 352 Appendix C: Glossary that IP manages and for reassembling the packets back into the complete message at the other end. Common network applications that use TCP include the World Wide Web (WWW), e‐mail, and File Transfer Protocol (FTP). TELNET TELNET is an acronym for TELetype NETwork. It is a terminal emulation protocol that uses the Transmission Control Protocol (TCP) and provides a virtual connection between TELNET server and TELNET client. TELNET enables the client to control the server and communicate with other servers on the network. To start a Telnet session, the client user must log in to a server by entering a valid username and password. Then, the client user can enter commands through the Telnet program just as if they were entering commands directly on the server console. TFTP TFTP is an acronym for Trivial File Transfer Protocol. It is transfer protocol that uses the User Datagram Protocol (UDP) and provides file writing and reading, but it does not provide directory service and security features. ToS ToS is an acronym for Type of Service. It is implemented as the IPv4 ToS priority control. It is fully decoded to determine the priority from the 6‐bit ToS field in the IP header. The most significant 6 bits of the ToS field are fully decoded into 64 possibilities, and the singular code that results is compared against the corresponding bit in the IPv4 ToS priority control bit (0~63). TLV TLV is an acronym for Type Length Value. A LLDP frame can contain multiple pieces of information. Each of these pieces of information is known as TLV. UDP UDP is an acronym for User Datagram Protocol. It is a communications protocol that uses the Internet Protocol (IP) to exchange the messages between computers. UDP is an alternative to the Transmission Control Protocol (TCP) that uses the Internet Protocol (IP). Unlike TCP, UDP does not provide the service of dividing a message into packet datagrams, and UDP doesn't provide reassembling and sequencing of the packets. This means that the application program that uses UDP must be able to make sure that the entire message has arrived and is in the right order. Network applications that want to save processing time because they have very small Intelinet 48‐Port Gigabit Ethernet PoE+ Layer2+ Managed Switch User Manual | 352 ...
Page 353 Appendix C: Glossary data units to exchange may prefer UDP to TCP. UDP provides two services not provided by the IP layer. It provides port numbers to help distinguish different user requests and, optionally, a checksum capability to verify that the data arrived intact. Common network applications that use UDP include the Domain Name System (DNS), streaming media applications such as IPTV, Voice over IP (VoIP), and Trivial File Transfer Protocol (TFTP). UPnP UPnP is an acronym for Universal Plug and Play. The goals of UPnP are to allow devices to connect seamlessly and to simplify the implementation of networks in the home (data sharing, communications, and entertainment) and in corporate environments for simplified installation of computer components User Priority User Priority is a 3‐bit field storing the priority level for the 802.1Q frame. It is also known as PCP. VLAN Virtual LAN. A method to restrict communication between switch ports. VLANs can be used for the following applications: VLAN unaware switching: This is the default configuration. All ports are VLAN unaware with Port VLAN ID 1 and members of VLAN 1. This means that MAC addresses are learned in VLAN 1, and the switch does not remove or insert VLAN tags. VLAN aware switching: This is based on the IEEE 802.1Q standard. All ports are VLAN aware. Ports connected to VLAN aware switches are members of multiple VLANs and transmit tagged frames. Other ports are members of one VLAN, set up with this Port VLAN ID, and transmit untagged frames. Provider switching: This is also known as Q‐in‐Q switching. Ports connected to subscribers are VLAN unaware, members of one VLAN, and set up with this unique Port VLAN ID. Ports connected to the service provider are VLAN aware, members of multiple VLANs, and set up to tag all frames. Untagged frames received on a subscriber port are forwarded to the provider port with a single VLAN tag. Tagged frames received on a subscriber port are forwarded to the provider port with a double VLAN tag. VLAN ID VLAN ID is a 12‐bit field specifying the VLAN to which the frame belongs. Voice VLAN Intelinet 48‐Port Gigabit Ethernet PoE+ Layer2+ Managed Switch User Manual | 353 ...
Page 354 Appendix C: Glossary Voice VLAN is VLAN configured specially for voice traffic. By adding the ports with voice devices attached to voice VLAN, we can perform QoS‐related configuration for voice data, ensuring the transmission priority of voice traffic and voice quality. Intelinet 48‐Port Gigabit Ethernet PoE+ Layer2+ Managed Switch User Manual | 354 ...
