PerTronix Second Strike Installation Instructions page 2

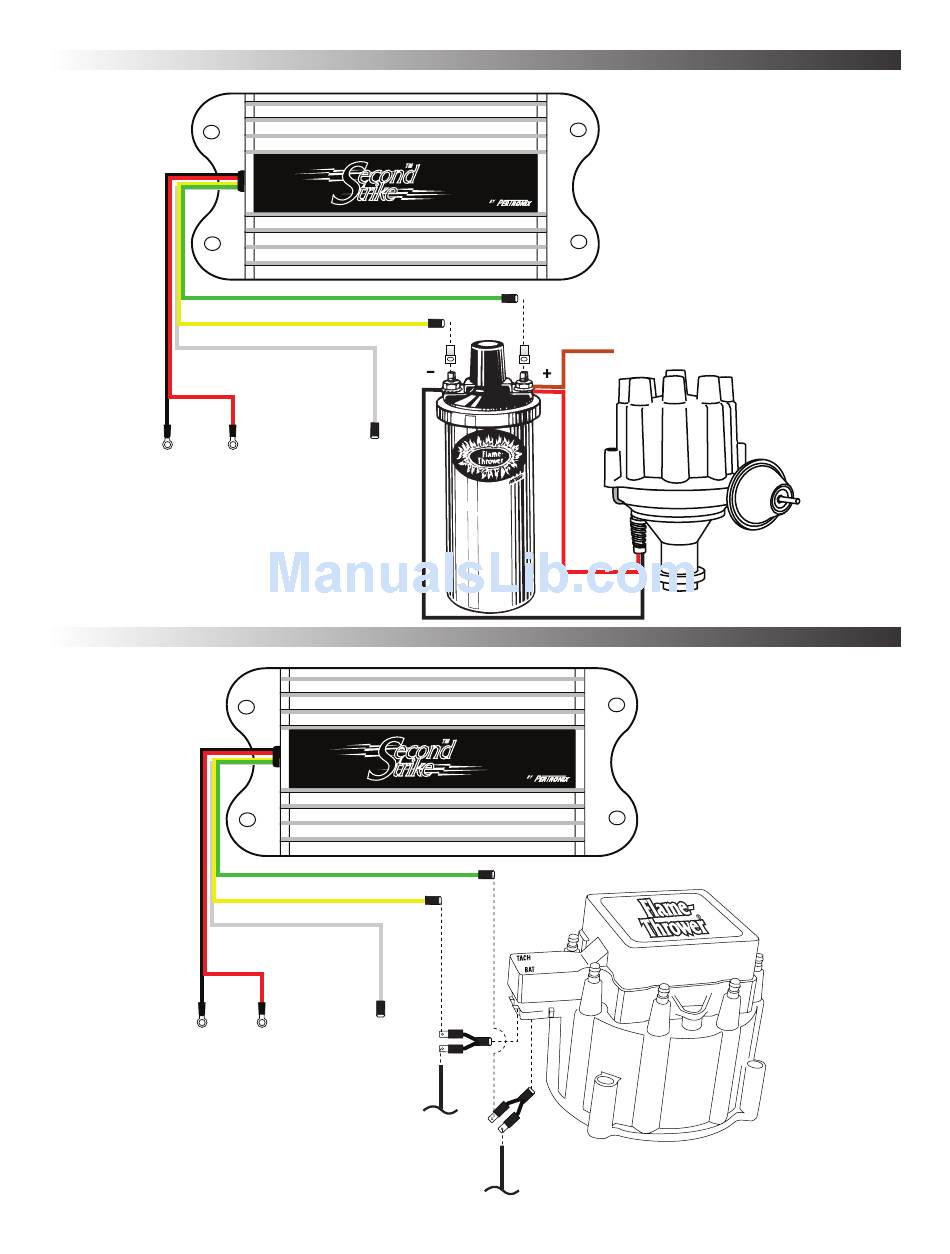

NON-HEI SYSTEMS
(FIGURE 1)
GREEN
Coil (+) or
Ignition Switch
YELLOW
To Ignition
Coil (-)
Switch
BLACK RED WHITE
Battery Battery
Tach Output
(-) (+)
(DO NOT CONNECT TO
NEGATIVE (-) TERMINL OF
THE COIL)
HEI SYSTEMS
(FIGURE 2)
GREEN
Coil (+) or
Ignition Switch
YELLOW
Coil (-)
BLACK RED WHITE
Tach Output
Battery Battery
(DO NOT CONNECT TO
(-) (+)
NEGATIVE (-) TERMINL OF
THE COIL)
Original
Tach Wire
Original Ignition
Switch Wire
Page 2 of 4
