Summary of Contents for Advanced Diagnostics ADC242

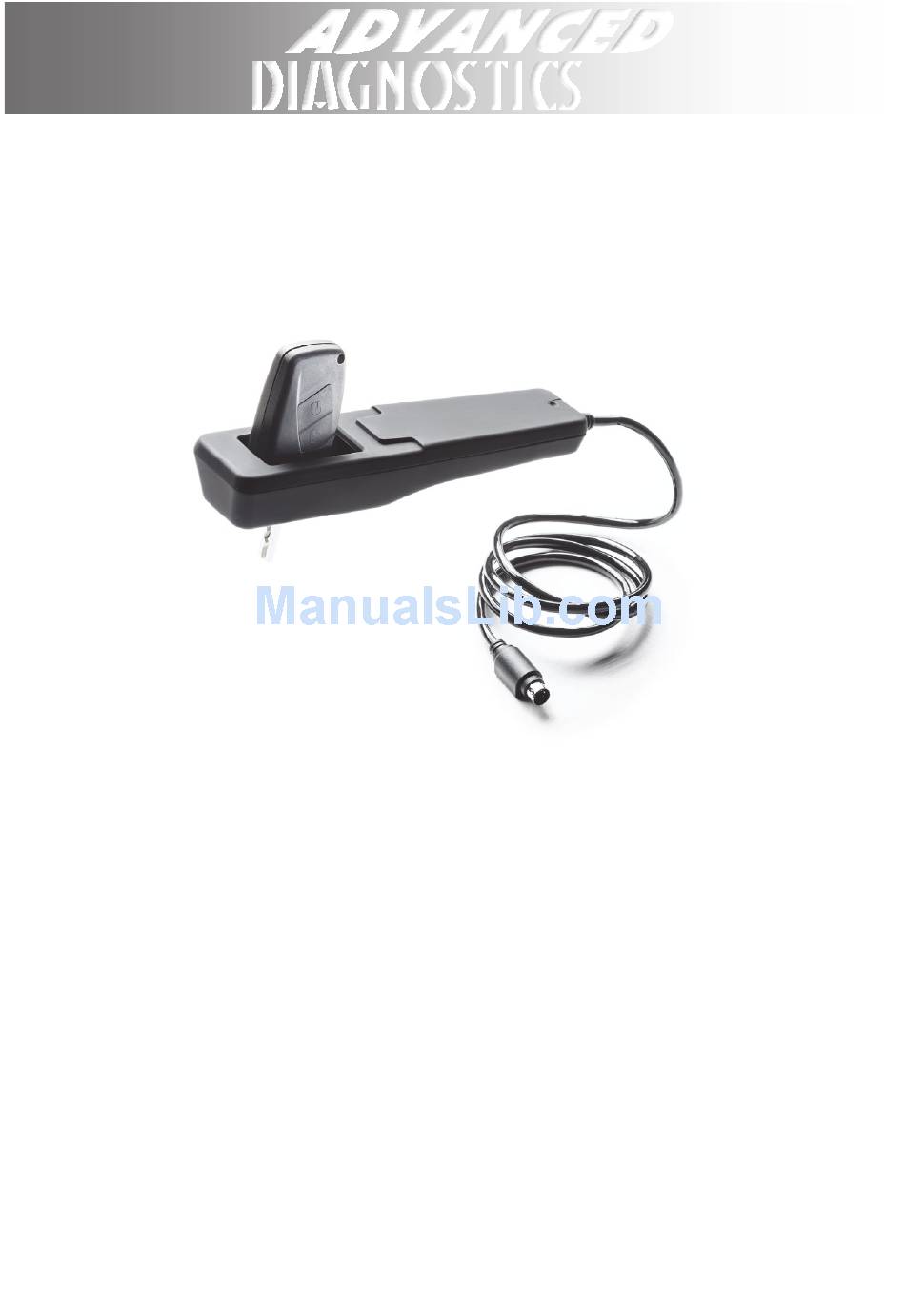

- Page 1 SMART Aerial ADC242...
- Page 2 INTRODUCTION Thank you for your purchase. SMART AERIAL is an antenna that connects to the SMART DONGLE. It is capable of pre-coding transponders for selected manufaturers. No additional cloning devices are required when using Smart Aerial. The transponder type used will depend on the brand and geographic region where you are working, and pre-code data may be unique to each vehicle chassis.
- Page 3 CONNECTING THE SMART AERIAL Smart Aerial connects to the port found on the Smart Dongle. Please plug in securely to ensure a good connection. January 2016—V.1.1...
- Page 4 Updating The Smart Aerial Step 1. Connect the the Smart Dongle to the Pro tester—as per Smart Dongle instructions and then connect to the AD Loader program on your PC. Step 2. Select update - the tester and Smart Dongle will be updated at the same time to the latest software version available.
- Page 5 POSITIONING THE KEY POSITIONING THE TRANSPONDER January 2016—V.1.1...
- Page 6 DECOMMISSIONING INFORMATION TO USERS Under the terms of art. 10 of Direc ve 2002/96/CE dated 27/01/2003 regarding waste from electric and electronic equipment (WEEE), The symbol shown above is also a ached to equipment and indicates that it has been placed on the market and must be separated and disposed of when no longer wanted (including all components, sub-assemblies and consumables that are an integral part of the product).
- Page 7 CE DECLARATION OF CONFORMITY January 2016—V.1.1...
- Page 8 FCC DECLARATION OF CONFORMITY Manufacturer's Name: Advanced Diagnostics Manufacturer's Address: Diagnostics House Eastboro Fields Hemdale Nuneaton Warwickshire CV11 Date: October 2015 Smart Aerial Conforms to: Test Standards: FCC CFR 47 Part 15 Subpart C covering the FCC requirements for Intentional •...
- Page 9 FCC Warning Statement FCC warning statement: This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation.
