Summary of Contents for Aristel NEOS3001-3G01

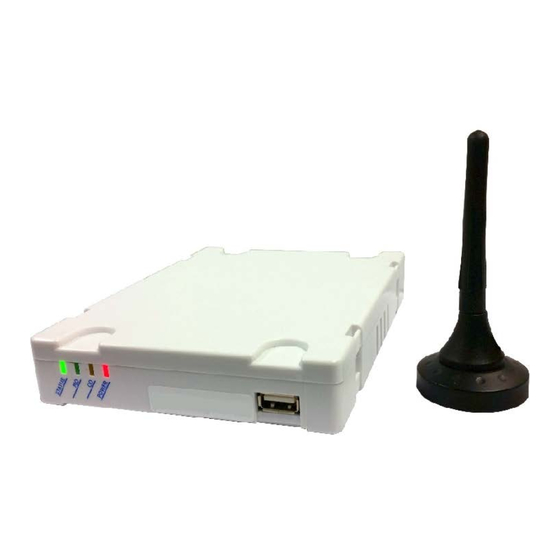

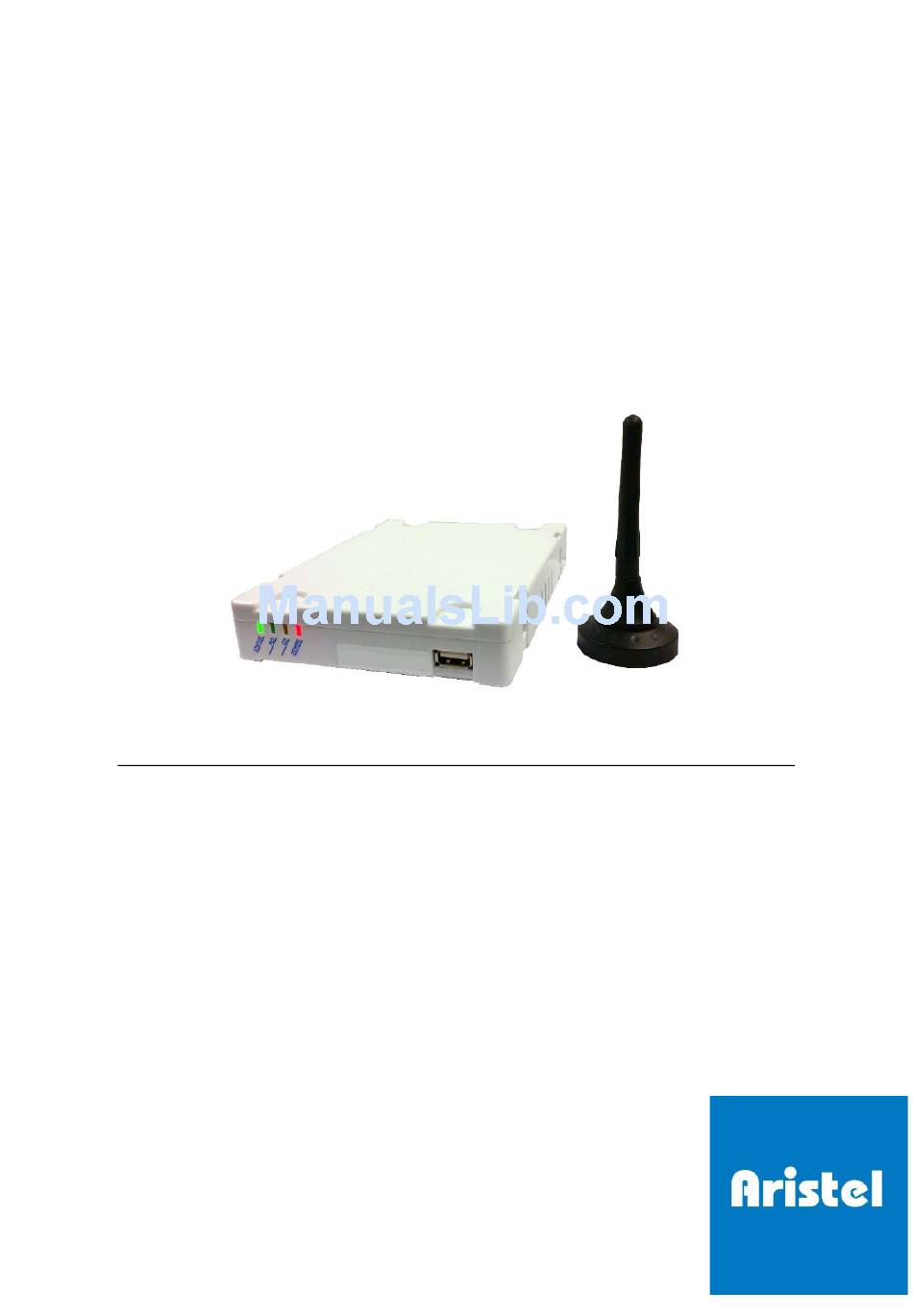

- Page 1 Aristel Networks Pty Ltd NEOS3001-3G01 Operating Manual NEOS 3001-3G01 Supports 3G/UMTS 800/850/900/1900/2100 MHz bands Telstra-Vodafone-Optus supported in all areas. NEOS 3001-3G01 Manual Ver.1.24 Apr. 2017 page 1...
-
Page 2: System Architecture
Aristel Networks Pty Ltd Introduction Thank you for purchasing the NEOS3001-3G01 product from Aristel Networks Australia. The NEOS3001 enables you to take advantage of lower cost call plans. You can reprogram the system at any time that you: Change your mobile contract... - Page 3 Aristel Networks Pty Ltd Warning In the event of a mains power failure, this device may be unable to make or receive phone calls. For 000 emergency calls, the PBX should be programmed to route these calls via the fixed PSTN or ISDN lines connected to the PBX systems.
- Page 4 Aristel Networks Pty Ltd LED status indicators (FIG 3) LED Position LED colour LED Activity Description 1 (POWER) ON OR OFF DC POWER IS ON OR OFF 2 N/A YELLOW Not Used 2 N/A YELLOW Not Used FLASH 2 N/A...
- Page 5 Aristel Networks Pty Ltd Entering programming mode Plug an analogue telephone (SLT) into the “PHONE” socket and lift off the handset. You will hear continuous dial tone. Dial * * * * #. You will hear “Beep, Beep, Beep” repeated continuously. The green and yellow LEDs flash.
- Page 6 Aristel Networks Pty Ltd Enable the polarity reversal for outgoing call. ９６４ Disable the polarity reversal for incoming call. It is the default. ９６７ Enable the polarity reversal for incoming call. ９６８ Set the dial tone as 425X25Hz. ９６０ Set the dial tone as 425Hz.
- Page 7 Aristel Networks Pty Ltd Enable caller line identification (CLI). Shows the number of calling party. It is the default. ９３８ Adjust the volume of receiver. Ｘ is 0 to 4. ５３３ is default. It represents level 3. ５３Ｘ Adjust the volume of transmitter. Ｘ is 0 to 4. ６０２# is default. It represents level 2.
-
Page 8: Frequently Asked Questions
Aristel Networks Pty Ltd FREQUENTLY ASKED QUESTIONS 1. The Power light does not come on after power up. Check the power adapter and power cord/socket for correct operation 2. How do I check the LED status? Check figure 3 on page 4 3.
