i-tec C31MINIDOCK4KPD User Manual

i-tec C31MINIDOCK4KPD User Manual

Usb-c 4k mini docking station 1x 4k hdmi, 1x giga lan, 2x usb-a 3.0, 1x usb-c, 1x usb-c power delivery/data
Hide thumbs Also See for C31MINIDOCK4KPD:

Advertisement

Available languages
  • EN

Available languages

  • ENGLISH, page 1

Quick Links

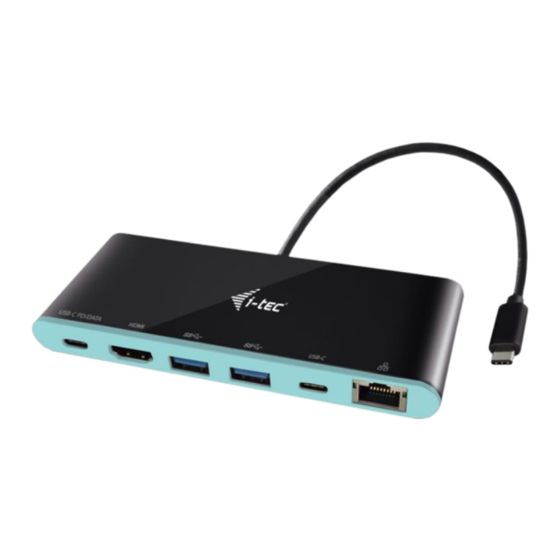

i-tec USB-C 4K Mini Docking Station
1x 4K HDMI, 1x Giga LAN, 2x USB-A 3.0, 1x USB-C, 1x USB-C Power Delivery/Data
(GB) User's manual
(DE) Gebrauchsanweisung
(CZ) Manuál
(PL) Instrukcja
(SK) Manuál
(LT) Vadovas
(FR) Guide d'instructions et mode d'emploi

Advertisement

loading
Need help?

Need help?

Do you have a question about the C31MINIDOCK4KPD and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for i-tec C31MINIDOCK4KPD

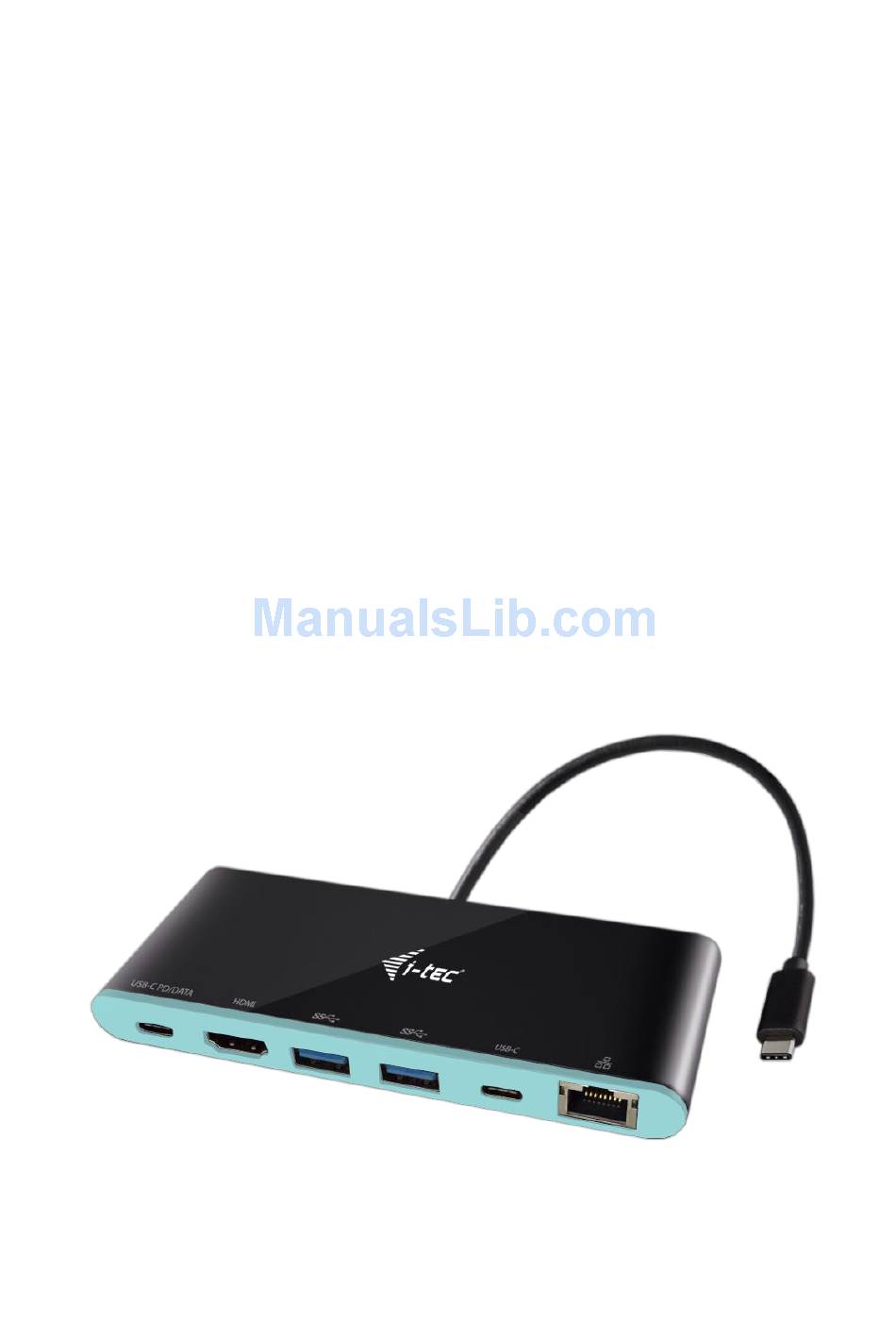

  • Page 1 USB-C 4K Mini Docking Station 1x 4K HDMI, 1x Giga LAN, 2x USB-A 3.0, 1x USB-C, 1x USB-C Power Delivery/Data (GB) User's manual (DE) Gebrauchsanweisung (CZ) Manuál (PL) Instrukcja (SK) Manuál (LT) Vadovas (FR) Guide d’instructions et mode d’emploi...
  • Page 2 ENGLISH INTRODUCTION Thank you for purchasing the i-tec USB-C 4K Mini Docking Station that will allow you to connect your favourite devices via single USB-C connector to a laptop, a tablet, a PC or a smartphone with a USB-C port.
  • Page 3  OS: Requires USB-C interface with "DisplayPort Alternate Mode" and „Power Delivery“ support (not all devices / systems with USB-C interface supports the standard) or Thunderbolt 3 port – Windows 10 32/64bit, Mac OS X, Chrome OS and Android 6 (Google) with Intel Broadwell Processor and R51 and higher ...
  • Page 4 USB-C Power Delivery. Check the compatibility with this technology in the device documentation or contact the device manufacturer. Lenovo Yoga 900 is not compatible with the i-tec USB-C Travel Docking Station. No phones and tablets with the Android OS currently support Alt Mode video output.
  • Page 5 USING IN WINDOWS OS Advanced configuration for the graphics – after connecting the monitor and after clicking on the settings for “Image Resolution” in Windows you can select the monitor you want to use. Note: By clicking on the second monitor and moving it you can position this monitor as required relative to the original monitor of your laptop / tablet / PC.
  • Page 6 Audio settings – this will allow audio settings in the Control Panels → Audio. Notes on using: The Standby / Hibernate mode and the Video port – after the activation of the laptop / tablet / PC from the Standby / Hibernate mode the primary (original) monitor is displayed, for this reason we recommend using the monitor that is integrated with the laptop / tablet / PC as the primary monitor so that you can log on to the system again.
  • Page 7 USING IN MAC OS X CAUTION! Before installation make sure that your Mac has installed the latest OS for your device. Installation of the drivers in Mac OS X is automatic. After connecting the monitor the screen on your Mac will glimmer, which is a standard condition, and after stabilization it is possible to perform standard setting of the monitor here: System Preferences-Displays.
  • Page 8 In the Expanded desktop mode you can choose the Main monitor by dragging the Menu Bar. Mirror mode: This mode can only be used if supported by the Mac.
  • Page 9 Click on Gather Windows: using this option you can choose the settings of the corresponding monitor – Scaled (offers available resolutions), Rotation (Standard, 90°, 180° and 270°) and Refresh rate (if offered). Notes for using the docking station with monitors: Working on the connected monitor when the Mac monitor is closed is possible with the power supply from the grid (there are some limitations when using a HDMI monitor on older versions of Mac).
  • Page 10 Answer: Graphic chipsets are secondary (additional) graphic cards in the PC. For their function they need to have an installed primary graphic card. Windows 10 and later: In these operating system the graphic controller works only in connection with the primary graphic cards: Intel, NVidia, ATI/AMD, VIA. It cannot work with the SiS or Matrox graphic cards.
  • Page 11 DEUTSCH EINLEITUNG Wir bedanken uns für den Kauf von i-tec USB-C 4K Mini Docking Station, die es Ihnen ermöglicht, Ihre Lieblingsgeräte an Notebook, Tablet-PC, PC, Smartphone mit USB-C Port mit Hilfe von USB-C Anschluss anzuschließen. Vorhandene Anschlüsse: 1x HDMI 4K Port, 2x USB-A 3.0 Port, 1x Ethernet GLAN RJ-45 Port, 1x USB-C Port und 1x USB-C Power Delivery / Data Port.
  • Page 12  1x Ethernet GLAN RJ-45 Port für Hochgeschwindigkeitszugang zum Netzwerk und Internet über Gigabit Ethernet, unterstützt die Geschwindigkeiten 10 / 100 / 1000 Mbps  1x USB-C 3.1 Kabel, zum Anschluss an Notebook, Tablet, PC oder Smartphone  Die Stromversorgung findet über den USB statt (kein Stromadapter notwendig) oder über USB-C PD / Data Port ...
  • Page 13 USB-C Power Delivery nicht. Überprüfen Sie die Möglichkeiten von diesen Technologien in der Gerätedokumentation oder wenden Sie sich auf den Gerätehersteller. Lenovo Yoga 900 ist mit i-tec USB-C Travel Docking Station nicht kompatibel. Keine Mobiltelefone und Tablet-PCs mit Android BS unterstützen zurzeit den Alt Mode Video Ausgang.
  • Page 14 AUDIO Toneinstellungen, für Hören über HDMI, ist einzustellen / zu überprüfen unter: Systemeinstellungen-Ton- Ausgang – wählen Sie HDMI Audio Device. Toneinstellungen für Kopfhörer und Bildschirm können unter Öffnen-Applikationen-Utilities-Einstellung von Audio MIDI.app gewählt werden – klicken Sie auf „+“ links unten – Gerät mit mehreren Ausgängen herstellen und wählen Sie unter Gerät mit mehreren Ausgängen die benötigten Ausgänge aus der Liste aus.
  • Page 15 Toneinstellung – ermöglicht Toneinstellung unter Gerätemanager → Ton. Bemerkungen zur Verwendung: Standby / Hibernate Betrieb und Video Port – nach der Aktivierung des Notebooks / Tablet-PCs / Computers aus dem Standby / Hibernate Betrieb wird das bestehende Display (Primärdisplay) angezeigt, deswegen empfehlen wir, den Notebook- / Tablet-PC- / Computermonitor als Primärdisplay zu verwenden, um sich wieder im System anmelden zu können.
  • Page 16 Mit Hilfe der Tastenkombination „Windows“ + P ist es auch möglich, beide Displays einfach zu bedienen – zur Verwendung von Display unter Win 10 können Sie Folgendes wählen: Nur PC-Bildschirm, Duplizieren, Erweitern, Nur zweiter Bildschirm. VERWENDUNG UNTER MAC OS X HINWEIS! Vergewissern Sie sich vor der Installation, dass Sie im System die neuesten BS für Ihr Gerät installiert haben.
  • Page 17 Modus „Erweitern“: Der Pfeil zeigt die mögliche Position des angeschlossenen Bildschirms zu Mac Bildschirm an. Unter Modus „Erweitern“ können Sie den Hauptbildschirm durch Bewegen der Leiste Menu Bar wählen. Modus „Spiegeln“: Kann verwendet werden, wenn er von Mac angeboten wird. Klicken Sie auf „Fenster sammeln“: durch diese Wahl können Sie die Einstellung des entsprechenden Bildschirms wählen –...
  • Page 18 Reklamieren Sie das Gerät, wenn es nicht so funktioniert, wie im Benutzerhandbuch beschrieben. OFT GESTELLTE FRAGEN Frage: Welche Anforderungen müssen primäre Grafikkarten für die Verwendung mit Chipsätzen in i-tec grafischen Adaptern und Docking Stationen erfüllen? Antwort: Grafische Chipsätze sind sekundäre (weitere) Karten im PC. Für ihre Funktion brauchen sie eine...
  • Page 19 der grafische Treiber nur in der Abhängigkeit von primären grafischen Karten: Intel, NVidia, ATI/AMD, VIA. Er funktioniert mit SiS oder Matrox grafischen Karten nicht. Frage: Kann ich nähere Informationen über die Probleme mit USB-C Docking Station bekommen? Antwort: Natürlich, können sich unsere technische...
  • Page 20 FRANÇAIS L’INTRODUCTION EN MATIÈRE Nous nous permettons de vous remercier pour votre achat de la station d’accueil i-tec USB-C 4K Mini Docking station, qui vous rend possible un branchement facile et très vite de vos périphériques favoris avec un seul connecteur USB-C sur votre ordinateur portable, tablette tactile, ordinateur de bureau (PC) ou téléphone intelligent qui disposent du port USB-C.
  • Page 21 secteur universel AC avec connecteur USB-C, ce qui permet de travailler avec votre ordinateur portable, tablette ou smartphone et simultanément en assurer la recharge constante. Ce port permet aussi la transmission de données et vous pouvez ainsi connecter vos périphériques de données modernes possédant un connecteur USB-C (par exemple.
  • Page 22 plaît, que vous avez les pilotes informatiques concernant votre dispositif les plus actuels, installés dans votre système, ainsi que votre BIOS vient de recevoir les mises à jour les plus actuelles. BRANCHEMENT DE L’ÉCRAN HDMI La station d’accueil est munie de 1x port HDMI 4K Ultra HD pour assurer le branchement d’un écran d’affichage externe ou d’un appareil de projection par l’intermédiaire de l’interface HDMI.
  • Page 23 C’est que le Lenovo Yoga 900 n’est pas compatible avec la station d’accueil i-tec USB-C Travel Docking Station. À l’époque actuelle, il n’y a pas de téléphones et tablettes tactiles ayant Android OS qui supportent la sortie vidéo Alt Mode. Les contrôleurs (séquenceurs - les unités de contrôle) ASMedia USB 3.1 ne supportent non plus la sortie vidéo Alt Mode.
  • Page 24 Remarque: En cliquant sur le deuxième moniteur et en le déplaçant, vous pouvez positionner ce moniteur selon vos besoins en lieu et place du moniteur d'origine de votre ordinateur portable / tablette / PC. Maintenant, vous pouvez définir les mode extension et Miroir: a) pour le mode miroir: sur le moniteur, sélectionnez le 2e moniteur sur le moniteur principal, sélectionnez "plusieurs moniteurs "→...
  • Page 25 Paramètres audio - permet d'effectuer les réglages audio dans le panneau de commande → Audio. Remarques sur l'utilisation: Le mode veille / veille prolongée et le port vidéo – après activation du notebook / tablette / PC en mode veille / veille prolongée, s’affiche le moniteur principal (original), c'est pourquoi nous vous recommandons d'utiliser le moniteur intégré...
  • Page 26 En appuyant sur les touches "Windows" + P, vous pouvez également facilement contrôler les moniteurs - pour utiliser un moniteur dans Win 10, vous pouvez sélectionner: écran d'ordinateur uniquement, miroir, étendre, deuxième écran seulement UTILISATION DANS MAC OS X AVIS IMPORTANT! L‘Installation des pilotes est automatique sous Mac OS X. Après avoir connecté...
  • Page 27 Mode bureau étendu: La flèche indique la position possible du moniteur connecté par rapport au moniteur Mac. Dans le mode Bureau étendu, vous pouvez choisir le moniteur principal en faisant glisser la barre de menus. Mode miroir: Ce mode ne peut être utilisé que s'il est pris en charge par votre Mac.
  • Page 28 Cliquez sur Rassembler les fenêtres: en utilisant cette option, vous pouvez choisir les paramètres du moniteur correspondant - Échelle (offre les résolutions disponibles), Rotation (Standard, 90°, 180° et 270°) et Taux de rafraîchissement (selon versions). Remarques sur l'utilisation de l'adaptateur avec moniteurs: Il est possible de travailler sur le moniteur connecté...
  • Page 29 Question: Quelles sont les exigences de la carte primaire graphique pour une utilisation avec des chipsets graphiques dans les adaptateurs graphiques et stations d’accueil i-tec ? Réponse: les chipsets graphiques sont des cartes graphiques secondaires (autres) dans le PC. Pour son usage il est indispensable d’avoir une carte graphique primaire installé...
  • Page 30 ČESKY ÚVOD Děkujeme za zakoupení i-tec USB-C 4K Mini Docking station, která Vám umožní snadno a rychle připojit k notebooku, tabletu, PC, smartphonu s USB-C portem Vaše oblíbená zařízení jediným USB-C konektorem. Nabízí 1x HDMI 4K port, 2x USB-A 3.0 port, 1x Ethernet GLAN RJ-45 port, 1x USB-C port a 1x USB-C Power Delivery / Data port.
  • Page 31  Chipset: VL101 & VL813 & PS176 & RTL8153  OS: Vyžaduje USB-C rozhraní s podporou "DisplayPort Alternate Mode" a „Power Delivery“ (ne všechna zařízení/systémy s rozhraním USB-C mají tento standard) nebo Thunderbolt 3 port – nyní Windows 10 32/64bit, Mac OS X, Chrome OS a Android 6 (Google) s Intel Broadwell Processors a R51 a vyšší...
  • Page 32 USB-C Power Delivery. Ověřte si vhodnost s těmito technologiemi v dokumentaci k zařízení nebo se obraťte na výrobce zařízení. Lenovo Yoga 900 není kompatibilní s i-tec USB-C Travel Docking Station. Žádné telefony a tablety s Android OS v současné době nepodporují Alt Mode video výstup.
  • Page 33 Poznámka: Převážnou část problémů s dokovací stanicí a připojenými perifériemi lze vyřešit odpojením USB- C kabelu dokovací stanice od USB-C portu PC / Macu / smartphonu / tabletu a jeho opětovným připojením asi po 10s. POUŽITÍ V OS WINDOWS Pokročilá konfigurace pro grafický výstup – po připojení monitoru a po kliknutí na nastavení pro „Rozlišení zobrazení“...
  • Page 34 Nastavení zvuku – umožní nastavení zvuku v Ovládací panely → Zvuk. Poznámky pro použití: Standby / Hibernate režim a Video port – po aktivaci notebooku / tabletu / PC ze Standby / Hibernate režimu se zobrazuje primární (původní) monitor, proto doporučujeme používat jako primární ten, který je integrován s notebookem / tabletem / PC, abyste se mohli opětovně...
  • Page 35 POUŽITÍ V MAC OS X UPOZORNĚNÍ! Před samotnou instalací se ujistěte, že máte v Macu nainstalován nejnovější OS pro vaše zařízení. Instalace ovladačů v Mac OS X je automatická. Po připojení monitoru bude obrazovka na Vašem Macu problikávat, což je standardní stav, a po ustálení lze provádět jeho standardní...
  • Page 36 V režimu Rozšířit si můžete volit Hlavní monitor přetažením lišty Menu Bar. Režim zrcadlit: Lze použít jen v případě, že je nabízen Macem. Klikněte na Shromáždit okna: touto volbou si můžete zvolit nastavení odpovídajícího monitoru – Přizpůsobené rozlišení (nabízí využitelná rozlišení), Otočení (Standardní, 90°, 180° a 270°) a Obnovovací frekvence (jestli je nabízena).
  • Page 37 Reklamujte zařízení nefungující dle manuálu. ČASTO KLADENÉ OTÁZKY Otázka: Jaké jsou požadavky na primární grafické karty pro použití s grafickými chipsety v i-tec grafických adaptérech a dokovacích stanicích? Odpověď: Grafické chipsety jsou sekundární (další) grafické karty v PC. Pro svou činnost potřebují mít nainstalovanou primární...
  • Page 38 Otázka: Mohu získat podrobnější informace o problémech s USB-C dokovací stanicí? Odpověď: Jistě, lze se obrátit na naši technickou podporu: support@itecproduct.com Otázka: Zařízení nenabíjí Apple / Samsung tablet. Odpověď: V případě, že se zařízení nenabíjí nebo nepracuje, pak připojte originální / externí USB-C napájecí adaptér do napájecího konektoru mateřského notebooku / Macu / smartphonu / tabletu nebo USB-C portu dokovací...
  • Page 39 POLSKI WPROWADZENIE Dziękujemy za zakup stacji dokującej i-tec USB-C 4K Mini Docking Station. Stacja dokująca pozwala na szybkie i łatwe połączenie ulubionych urządzeń za pomocą jednego kabla USB-C do notebooka, tabletu, PC, smartfona. Adapter posiada porty 1x HDMI, 2x USB-A 3.0, 1x Ethernet GLAN RJ-45, 1x USB-C i 1x USB- C Power Delivery / Data.
  • Page 40  OS: Wymagane złącze USB-C z obsługą "DisplayPort Alternate Mode" i „Power Delivery“ (nie wszystkie urządzenia / systemy ze standardowym wsparciem interfejsu USB-C) lub Thunderbolt 3 - 10 32/64bit, Mac OS X, Chrome OS i Android 6 (Google) z procesorem Intel Broadwell oraz R51 i wyższe ...
  • Page 41 USB-C Power Delivery. Sprawdź kompatybilność z powyższymi technologiami w dokumentacji urządzenia lub skontaktuj się z producentem. i-tec USB-C Travel Docking Station nie jest kompatybilna z Lenovo Yoga 900. Obecnie żaden telefon oraz tablet z Android OS nie obsługują wyjścia video Alt Mode.
  • Page 42 Zaawansowana konfiguracja grafiki – po podłączeniu monitora i po kliknięciu w ustawieniach "Rozdzielczość obrazu" w systemie Windows można wybrać monitor, którego chcesz użyć. Uwaga: Klikając na drugim monitorze, a przesuwając go można umieścić monitor zgodnie z wymaganiami w stosunku do pierwotnego monitora Twojego notebooka / tableta / PC. Teraz można ustawić...
  • Page 43 Ustawienia dźwięku – ustawienia audio można zmieniać w Panelu sterowania → Audio. Uwagi dotyczące użytkowania: Tryb czuwania / hibernacji (Standby / Hibernate) – po włączeniu laptopa / tableta / PC z trybu gotowości / hibernacji wyświetla się podstawowy monitor, więc zaleca się stosować monitor, który jest zintegrowany z laptopem / tabletem / PC jako podstawowy.
  • Page 44 KORZYSTANIE W SYSTEMIE MAC OS X UWAGA! Przed rozpoczęciem instalacji upewnij się, że Twój Mac ma zainstalowane najnowsze OS dla urządzeń. Instalacja sterowników w Max OS X następuję automatycznie. Po podłączeniu monitora ekran może zacząć migotać, co jest normalnym zjawiskiem, po kilku chwilach, gdy obraz się...
  • Page 45 W trybie rozszerzonym można wybrać który z ekranów ma być ekranem głównym, przeciągając pasek menu. Mirror mode – tryb lustrzany: Tryb ten można wybrać tylko gdy jest obsługiwany przez Mac.
  • Page 46 Sprawdzić funkcjonalność po upadku do wody lub na twarda powierzchnię  Sprawdzić funkcjonalność gdy obudowa uległa uszkodzeniu  Odesłać urządzenie gdy nie pracuje zgodnie z instrukcją. CZĘSTO ZADAWANE PYTANIA Pytanie: Jakie są wymagania dotyczące podstawowych kart graficznych niezbędnych do używania kart graficznych i-tec i stacji dokujących z chpsetami graficznymi?
  • Page 47 Odpowiedź: chipsety graficzne są wtórnymi (dodatkowymi) kartami graficznymi w komputerze. Do ich funkcji muszą mieć zainstalowaną podstawową kartę graficzną. System Windows 10 i nowsze: W tych systemach operacyjnych sterownik graficzny działa tylko w połączeniu z główną kartą graficzną: Intel, nVidia, ATI / AMD, VIA, nie może pracować z kartami graficznymi SiS lub Matrox. Pytanie: Czy mogę...
  • Page 48 SLOVENSKY ÚVOD Ďakujeme za zakúpenie i-tec USB-C 4K Mini Docking station, ktorá Vám umožní ľahko a rýchlo pripojiť k notebooku, tabletu, PC, smartphonu s USB-C portom Vaše obľúbené zariadenie jediným USB-C konektorom. Ponúka 1x HDMI 4K port, 2x USB-A 3.0 port, 1x Ethernet GLAN RJ-45 port, 1x USB-C port a 1x USB-C Power Delivery / Data port.
  • Page 49  1x Pripájací USB-C 3.1 kábel pre pripojenie dokovacej stanice k notebooku, tabletu, PC alebo smartphonu  Napájanie zo zbernice USB (nie je potrebný externý napájací adaptér) alebo cez USB-C PD / Data port  Chipset: VL101 & VL813 & PS176 & RTL8153 ...
  • Page 50 Lenovo Yoga 900 nie je kompatibilné s i-tec USB-C Travel Docking Station. Žiadne telefóny a tablety s Android OS v súčasnej dobe nepodporujú Alt Mode video výstup. V súčasnosti ASMedia USB 3.1 radiče nepodporujú Alt Mode video výstup.
  • Page 51 Poznámka: Prevažnú časť problémov s dokovacou stanicou a pripojenými perifériami môžete vyriešiť odpojením USB-C kábla dokovacej stanice od USB-C portu PC / Macu / smartphonu / tabletu a jeho opätovným pripojením asi po 10 s. POUŽITIE V OS WINDOWS Pokročilá konfigurácia pre grafiku – po pripojení monitoru a po kliknutí na nastavenie pre „Rozlíšenie zobrazenia“...
  • Page 52 Nastavenie zvuku – umožní nastavenie zvuku v Ovládacie panely → Zvuk. Poznámky pre použitie: Standby / Hibernate režim a Video port – po aktivácii notebooku / tabletu / PC zo Standby / Hibernate režimu sa zobrazuje primárny monitor, preto doporučujeme používať ako primárny ten, ktorý je integrovaný...
  • Page 53 POUŽITIE V MAC OS X UPOZORNENIE! Pred samotnou inštaláciou sa uistite, že máte v Macu nainštalované najnovšie OS pre vaše zariadenie. Inštalácia ovládačov v Mac OS X je automatická. Po pripojení monitoru bude obrazovka na Vašom Mac-u preblikávať, čo je štandardný stav, a ustálenie môžete vykonať...
  • Page 54 V režime Rozšíriť si môžete voliť Hlavný monitor pretiahnutím lišty Menu Bar. Režim zrkadliť: Môžete použiť len v prípade, že je ponúkaný Macom.
  • Page 55 Overte funkčnosť po páde do vody alebo na zem.  Overte funkčnosť pri prasknutí krytu.  Reklamujte zariadenie nefungujúce podľa manuálu. ČASTO KLADENÉ OTÁZKY Otázka: Aké sú požiadavky na primárne grafické karty pre použitie s grafickými chipsetmi v i-tec grafických adaptéroch a dokovacích staniciach?
  • Page 56 Odpoveď: Grafické chipsety sú sekundárne (ďalšie) grafické karty v PC. Pre svoju činnosť potrebujú mať nainštalovanú primárnu grafickou kartu. Windows 10 a neskorší: V týchto operačných systémoch grafický ovládač pracuje len v závislosti na primárnych grafických kartách: Intel, NVidia, ATI/AMD, VIA. Nedokáže pracovať...
  • Page 57 LIETUVOS ĮVADAS Dėkojame, kad įsigij o te i-tec USB-C 4K Mini Docking Station, kuri Jums padės lengvai ir greitai per vieną USB-C jungtį prijungti Jūsų mėgstamus įrenginius prie nešiojamo kompiuterio, planšetės, PC, išmaniojo telefono su USB-C prievadu. Turi 1x HDMI prievadą , 2x USB-A 3.0 prievadą , 1x Ethernet GLAN RJ-45 prievadą , 1x USB-C prievadą...
  • Page 58  Maitinimas iš USB magistralės (nereikia išorinio maitinimo adapterio) arba per USB-C PD / duomenų sąsaja  Chipset: VL101 & VL813 & PS176 & RTL8153  OS: Reikalauja USB-C sąsajos su palaikymu "DisplayPort Alternate Mode" ir „Power Delivery“ (ne visi įrenginiai / sistemos su sąsaja USB-C šį standartą turi) arba Thunderbolt 3 prievadas – dabar Windows 10 32/64bit, Mac OS X, Chrome OS ir Android 6 (Google) su Intel Broadwell procesoriu ir R51, ir aukštesnė...
  • Page 59 USB-C Power Delivery. Patikrinkite šių technologijų tinkamumą pagal įrenginio dokumentaciją arba kreipkitės į įrenginio gamintoją. Lenovo Yoga 900 nėra suderinamas su i-tec USB-C Travel Docking stotele. Jokie telefonai ir planšetės su Android OS dabartiniu metu nepalaiko Alt Mode vaizdo išvesties.
  • Page 60 DOKO STOTELĖ NAUDOJIMAS OS WINDOWS Išplėstinė konfigūracija grafikai – po monitoriaus prijungimo paspaudus mygtuką ties nustatymu „Ekrano raiška“ sistemoje Windows galima pasirinkti monitoriaus naudojimą. Pastaba: Paspauskite ties antruoju ekranu ir jį pertempkite, patalpinkite pagal poreikį Jūsų nešiojamame kompiuteryje / planšetėje / stacionariame kompiuteryje. Galima valdyti režimus Išplėsti (Extend) ir Atspindėti / Veidrodinis vaizdo fiksavimas (Mirror): režimui Atspindėti / Veidrodinis vaizdo fiksavimas (Mirror): ekrane pasirinkite 2.
  • Page 61 Garso nustatymas – leidžia nustatyti garsą režime Valdymo skydai → Garsas. Pastabos dėl naudojimo: Standby / Hibernate režimas ir Vaizdo prievadas – po nešiojamo kompiuterio / planšetės/ stacionaraus kompiuterio aktyvavimo iš Standby / Hibernate režimo rodomas pirminis (pradinis) ekranas, todėl kad galėtumėte vėl prisijungti prie sistemos rekomenduojame naudoti kaip pradinį...
  • Page 62 DOKO STOTELĖ NAUDOJIMAS MAC OS X PASTABA! Prieš instaliavimą įsitikinkite, kad Mace turite instaliavę Jūsų įrenginiui naujausią OS. Valdikliai į Mac OS X instaliuojasi automatiškai. Prijungus monitorių Jūsų Mac ekranas blyksės, tai yra standartinė būklė, nustojus blyksėti galima pradėti standartinius nustatymus čia: Parinktys sistemos-Monitoriai. Paspauskite ties Išdėstymas ir numatytame režime (Išplėsti) paspauskite ties nauju monitoriumi ir pertempkite jį...
  • Page 63 Režime Išplėsti galite pasirinkti Pagrindinį monitorių tempdami meniu Bar juostą. Režimas atspindėti: Galima naudoti tik tuo atveju, jeigu tai siūlo Mac.
  • Page 64 Paspauskite ties Surinkti langus: su šia komanda galite pasirinkti atitinkamo monitoriaus nustatymą – Pritaikyta raiška (siūlo naudotinas raiškas), Pasukimas (Standartinis, 90°, 180° ir 270°) ir Atnaujinimo dažnis (jeigu yra siūloma). Pastabos dėl doko stotelė su monitoriumi naudojimo: Kai Mac monitorius yra uždarytas, su prijungtu monitoriumi galima dirbti maitinant iš tinklo (daliniai apribojimai yra naudojant HDMI monitorių...
  • Page 65 Klausimas: Kokie yra reikalavimai pagrindiniai grafinei kortai dėl naudojimo su grafiniais chipset grafiniuose i-tec adapteriuose ir doko stotelėse? Atsakymas: Grafiniai chipset yra antrinės (kitos) grafinės kortos PC. Kad veiktų turi būti instaliuota pirminė grafinė kortą. Windows 10 ir vėlesni: Šiose operacinėse sistemose vaizdo valdiklis veikia tik esant pirminėms grafinėms kortoms: Intel, NVidia, ATI/AMD, VIA.
