Installation & Operation Instructions

To avoid the risk of accidents or

damage to this product, it is essential

to read these instructions thoroughly

before this product is installed and used.

Deluxe LED Spot Light

405626-3

SDG Edition

June 2017

Table of Contents

Need help?

Do you have a question about the 405626-3 and is the answer not in the manual?

Questions and answers

Summary of Contents for SeaDog 405626-3

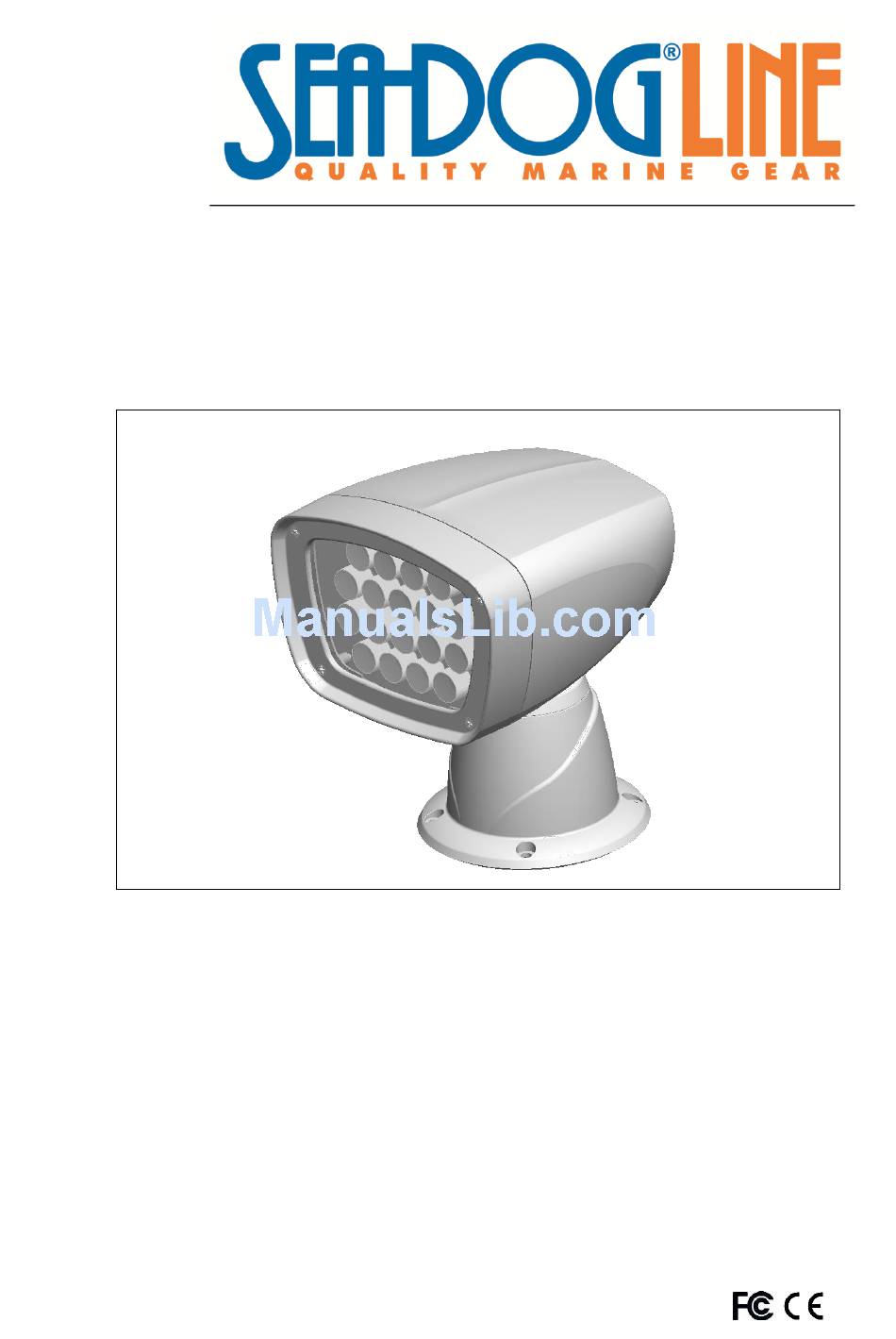

Page 1 Installation & Operation Instructions Deluxe LED Spot Light 405626-3 To avoid the risk of accidents or damage to this product, it is essential to read these instructions thoroughly SDG Edition before this product is installed and used. June 2017...
Page 2 Contents Product Features ...................... 2 Specifications ......................2 Installation ......................... 2 Spot Light Installation ..................3 Electrical Wiring…………………………………………………………………………4 Mounted Remote Control Installation ..............5 Operation ........................6 Remote Control ....................6 Caution ........................7 Maintenance ......................7 Replacing or Adding Remote Controls…………………………………………..…..…7 Troubleshooting .......................
Page 3: Product Features
Product Features  Certified in compliance with IEC 60598-2-5:1998 (safety), EN 55015 + EN 61547 (CE), EN 301 489-1/-3 + EN 300 440-2 (RF), FCC Part 15B/15C (FCC), EN 60945 (marine), IP67  Powered by latest LED technology  Brighter than a 100 Watt halogen bulb, power usage as low as 54 Watts ...
Page 4: Spot Light Installation
User Supplied Items  Four (4) ¼” (6mm) screws or four (4) ¼” bolts with nuts  10A fuse and fuse holder  Two (2) #8 self-tapping screws  Four (2) 18 – 20 gauge butt connectors Spot Light Installation 1.
Page 5: Electrical Wiring
Electrical Wiring 1. Provide DC 12 Volt input power for the spotlight. 2. Protect input power positive (+) terminal with 10 A fuse or circuit breaker. 3. Use 12-gauge power cable for wiring distance not more than 30 ft. (9 m), and use 10-gauge power cable for longer wiring distance.
Page 6: Mounted Remote Control Installation
Mounted Remote Control Installation 1. The mounted remote control should be installed on flat surface in a dry or protected location. 2. Drill the wiring access hole 1/2” or 12.7mm in diameter. 3. Remove the front bezel then route the power wires through wiring access hole. 4.
Page 7: Operation
Remote Control Bracket Installation (wireless remote sold separately) 1. Take off mounting plate from the back of bracket. Secure mounting plate on selected location with the two (2) self-tapping screws that come with the product. 2. Fit bracket to mounting plate as shown in below. ！...
Page 8: Caution
Caution ！ The 405626-3 LED spotlight has over-heating protection when left running for too long. Upon the activation of the over-heating protection system, the product will turn off 6, 12, or all 18 LED bulbs. The product will typically resume normal operation after 30 to 60 minutes. Continuous operation for more than two (2) hours should be avoided.
Page 9 How to replace or add remote controls … Locate serial number in one of the following locations: 1. In case of a missing or lost remote control, user can remove the four (4) screws and take off glass front cover to obtain serial number shown on the label placed inside housing, see picture below. Note the last digit of the serial number L2XXXXXXXX (X=0~9) and then contact Sea-Dog.
Page 10: Troubleshooting
Troubleshooting Installation work and repairs to electrical components of this product must only be carried out by a suitably qualified and competent person in accordance with current local and national safety regulations. Repairs and other work by unqualified persons could be dangerous. The manufacturer cannot be held liable for unauthorized work.
Page 11: Limited Warranty
Limited Warranty For one (5) years from the date of original purchase, Sea-Dog will, at its discretion, repair or replace for the original consumer, free of charge, any parts found defective in material or workmanship. All transportation charges under this warranty must be borne by the consumer. Proof of purchase is required: A computerized register receipt is required.
