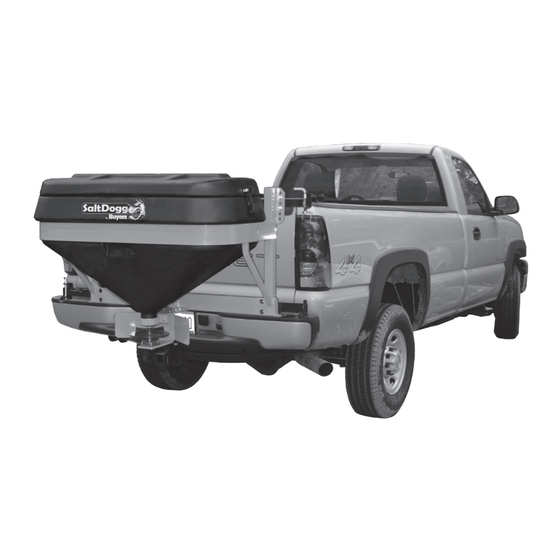

TGS05B
SAFETY PRECAUTIONS
WARNING
Observe the following Safety Precautions before,
during and after operating this spreader. By following
these precautions and common sense, possible injury
to persons and potential damage to this machine may
be avoided.
1. Read this entire Owners Manual before operating
this spreader.
2. Read all safety decals on the spreader before
operating.
3. Verify that all personnel are clear of the spreader
spray area before starting or operating this spreader.
4. Do not adjust, clean, lubricate or unclog material
jambs without first turning off the spreader.
5. Make sure the spreader is securely fastened to the
vehicle in accordance with this manual.
6. Do not operate a spreader that is in need of mainte-
nance or repairs.
7. Always disconnect the battery before removing or
replacing electrical components.
SPREADER ASSEMBLY
Check contents of box against parts list to make
sure all components are included. When ordering
replacement or spare parts refer to parts list for part
numbers.
INSTALLATION
1. Locate and mark center of tailgate.
2. Assemble Angles (18, 19) and Braces (20) as
shown in Fig.1 Use 3/8" carriage bolts, flat washers
and nuts. Do not tighten fasteners at this moment.
3. Center assembly on top of tailgate. Lower angle
must be flush with top and inside surfaces of tailgate.
4. Position braces (20) on top of side rails. Using
holes in braces as guides mark and drill holes for 3/8"
screws.
5. Attach braces to side rails using 3/8" screws, flat
washers and nuts.
Installation Instructions
Phone (440) 974-8888 • Fax (440) 974-0165
Toll-Free Fax 800-841-8003 • saltdogg.com

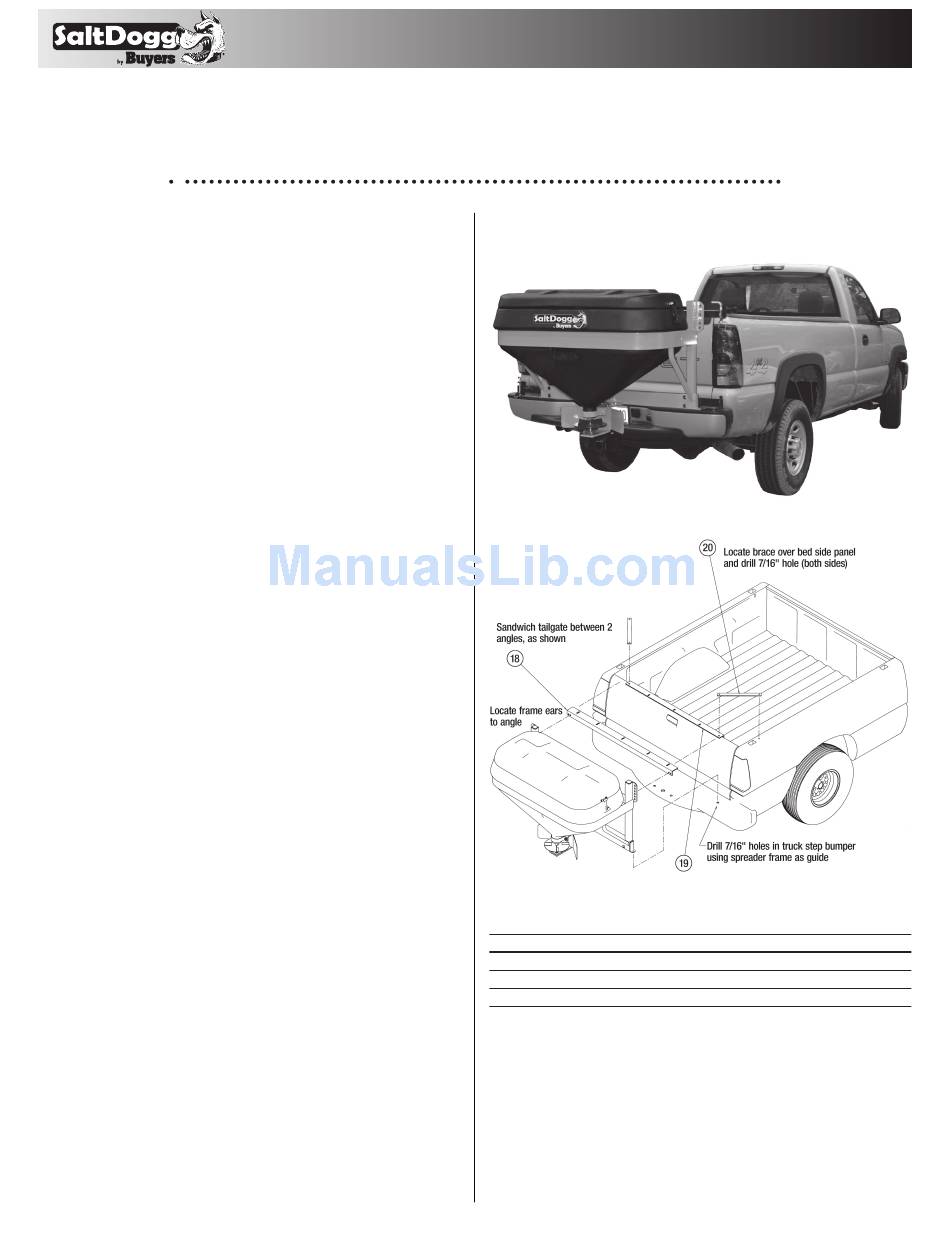

Fig. 1 Mounting
Chart A Torque
BOLT NUT SIZE
1/4-20
5/16-18
3/8-16
6. Center spreader assembly on top of rear bumper
and align with holes in Angle (18).
7. Using holes in spreader frame as guides, mark and
drill holes for 3/8" screws in rear bumper.
8. Assemble spreader to Angle (18) and rear bumper.
Adjust position of Angles (18, 19) to bring spreader
into vertical position. Tighten all screws at this
moment.
1
9049 Tyler Blvd. • Mentor, Ohio 44060
TORQUE (FT-LBS)
6.0
11.0
20.0
—continued inside
Advertisement
Table of Contents
Summary of Contents for SaltDogg TGS05B
-
Page 1: Installation Instructions
9049 Tyler Blvd. • Mentor, Ohio 44060 Phone (440) 974-8888 • Fax (440) 974-0165 Toll-Free Fax 800-841-8003 • saltdogg.com Installation Instructions TGS05B SAFETY PRECAUTIONS WARNING Observe the following Safety Precautions before, during and after operating this spreader. By following these precautions and common sense, possible injury to persons and potential damage to this machine may be avoided. - Page 2 ELECTRICAL INSTALLATION Observe spinner direction of rotation. The correct direction is counter clock wise when looking WARNING! inside hopper from the top. If direction is clock Do not drill holes into fuel tanks, fuel lines, wise reverse wires between Motor and Wire through electrical wiring, etc that may be Harness.
- Page 3 Bill of Materials ITEM PART NO. QTY. DESCRIPTION 3006702 Assembly, Frame Weldment TGS05B 3013285 Assembly, Hopper with Insert 3006707T Bracket, Motor Mounting TGS05B 3003035 Shaft Assembly, TGS05 Auger Washer, Flat 3/8 USS SST Screw, HHC 3/8-16 x 2-1/2 Gr 5 Zp...
-
Page 4: Wiring Diagram
9049 Tyler Blvd. • Mentor, Ohio 44060 Phone (440) 974-8888 • Fax (440) 974-0165 Toll-Free Fax 800-841-8003 • saltdogg.com 3001379 Wiring Diagram BATTERY POSITIVE CB50PB BATTERY NEGATIVE 3035934 3008620 3011864 Fig. 4 Bill of Materials WARRANTY ITEM PART NO. QTY.
