Summary of Contents for Sidamo TM 200 B

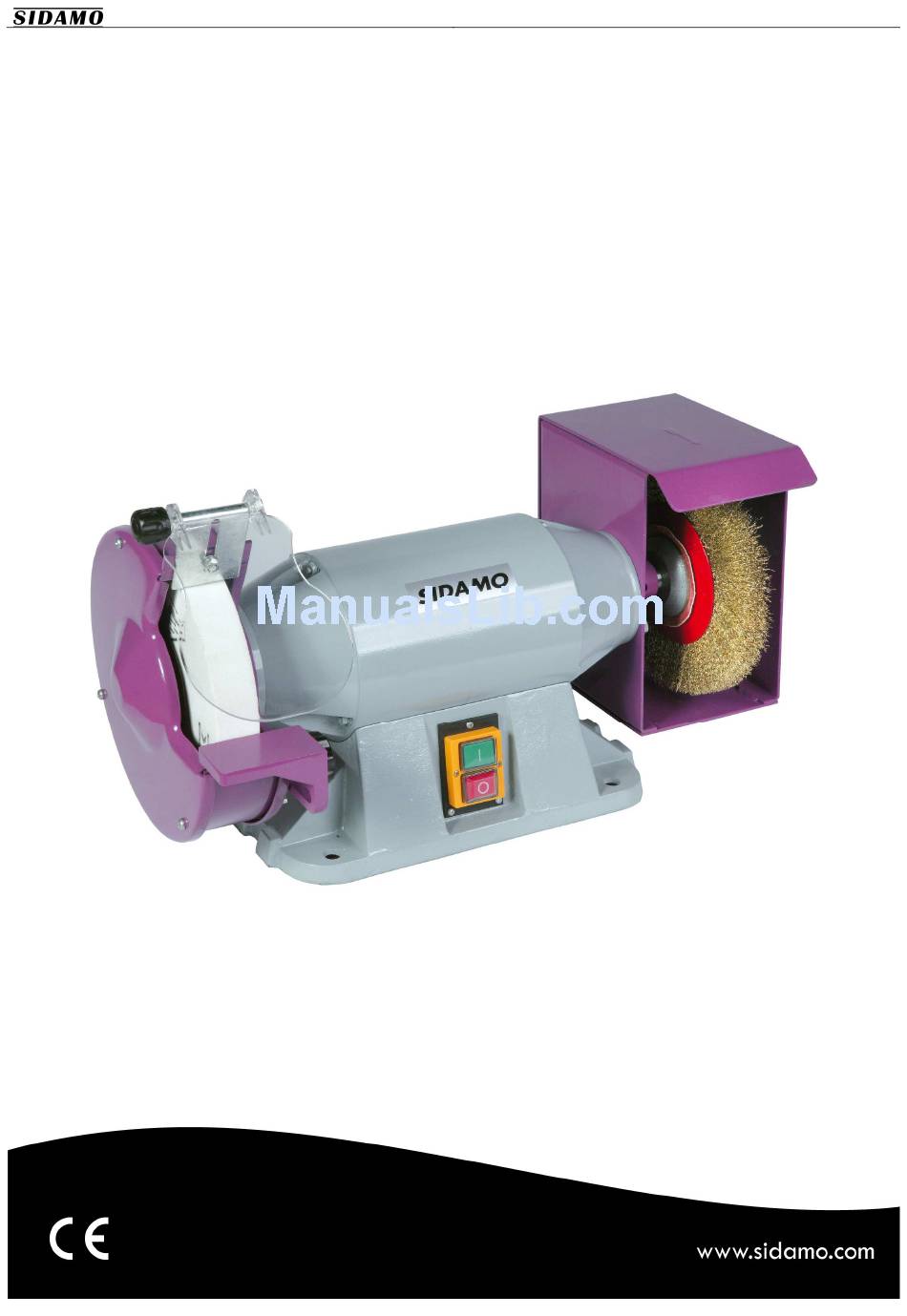

- Page 1 User’s manual TM200B ORIGINAL USER’S MANUAL TM 200 B BENCH GRINDER-WIRE WHEEL...
- Page 2 User’s manual TM200B CONTENTS INTRODUCTION ..........................................3 WARNING SIGNS ........................................3 2.1. WARNING SIGNS RELATED TO THE SAFETY OF THE MACHINE ......................3 2.2. WARNING SIGNS USED IN THIS MANUAL............................... 3 SAFETY INSTRUCTIONS ......................................4 3.1. GENERAL SAFETY INSTRUCTIONS..................................4 3.2.
-
Page 3: Introduction
This manual is an important part of your equipment. It Always use genuine SIDAMO parts and components. provides rules and guidance to help you safely operating this Replacing SIDAMO parts and components by improper machine. -
Page 4: Safety Instructions
Use the right tool and do not use tools for a job they were Never try to modify or retrofit the machine. not designed for. SIDAMO accepts no responsibility for any damage caused to persons, animals or objects, and resulting from the non- observance of the safety instructions described in this Never damage electric cables. -
Page 5: Particular Safety Instruction
Always use only wheels and wire wheel s recommended by Always hold the part to grind, using both hands. SIDAMO. The speed indicated on the wheels must be higher Never hit the wheel or the wire wheel with the part to grind. -
Page 6: Description And Operating
(mm) (mm) grain (kW) (kg) brush wire (tr/mn) (mm) Brassed TM 200 B 200 x 30 x 32 200 x 25 x 32 AA 60 M 1-phase 230 V 2800 27,5 570 x 330 x 265 iron 4.3. MACHINE OVERVIEW 1. -
Page 7: Installation
User’s manual TM200B 5. INSTALLATION 5.1. PACKING The packing may include a desiccant bag. Discard it and keep out of reach of children. The bench grinder comes packed into a cardboard packing. Keep the manual for further reference. When unpacking, take each part of the grinder out and In case the product is not in perfect condition or if some check its condition prior to assemblying. -
Page 8: Electrical Connection
User’s manual TM200B 5.4. ELECTRICAL CONNECTION Only low voltage trained and authorized technicians should be allowed to perform interventions on the electric circuit. POWER Make sure the voltage of the motor matches the voltage of This protection should always be selected according to the the main power. -
Page 9: Operating The Grinder
User’s manual TM200B 6. OPERATING THE GRINDER Always follow safety instructions related to bench grinders. Prior to starting the grinder, make sure you are familiar with control devices. Make sure the tightening torque applied to the fixing nuts of wheels is correct. Check the condition of the wheels before using them (See section 7.5 «... -
Page 10: Grinding/Brushing Procedure
User’s manual TM200B 6.2. GRINDING/BRUSHING PROCEDURE Always keep your hands away from the grinding area when the grinder is operated. During the grinding, there is a risk of projection of sparks and debris. Use extreme care when performing a manual grinding/brushing : risk of contact with the wheel and the wire wheel (risk of entanglement, burn, pinching, abrasion or crushing). -
Page 11: Maintenance
User’s manual TM200B 7. MAINTENANCE Disconnect the machine, prior to performing any maintenance or servicing operation. Always wear gloves and protective goggles and always use a brush and a clean and dry cloth to perform cleaning. Never use solvent or aggressive detergents. Never used compressed air to remove chips. -
Page 12: Replacing The Wheel
Never use a worn out or a damaged wheel. Use only wheels recommended by SIDAMO with a speed higher or equal to the speed indicated on the tool plate. Regularly control the condition of your grinder, particularly the distance between the tool-holder and the wheel, the conditions of the wheels and the condition of the main power. -
Page 13: Replacing The Wire Wheel
Never use a worn out or a damaged wire wheel. Use only wire wheels recommended by SIDAMO with a speed higher or equal to the speed indicated on the tool plate. Regularly control the condition of your grinder, particularly the conditions of the wheels and the condition of the main power. -
Page 14: Accessories And Consumable Parts
User’s manual TM200B 8. ACCESSORIES AND CONSUMABLE PARTS 8.1. BASE S2 The bench grinder is designed to be fitted on a base S2 (optional). Height x Width x Depth Weight Suction Reference (mm) (kg) 845 x 360 x 360 20198075 included 8.2. -
Page 15: Wheels And Wire Wheels
User’s manual TM200B 8.4. WHEELS AND WIRE WHEELS Genuine wheel/wire wheel : Wheel AA 60 M : Ø 200 x 30 x 32 mm (Reference : 10505063) Brassed iron wire wheel : Ø 200 x 30 x 32 mm (Reference : 10306012) Available range of wheels/wire wheels : Quality Description... -
Page 16: Spare Parts
User’s manual TM200B 9. SPARE PARTS EXPLODED VIEW Figure 2... - Page 17 User’s manual TM200B PART LIST N° Description Quantity Note Left outer wheel guard N° 1 + 6 Wheel fixing nut Flange Washer Wheel AA 60 M (Ø 200 x 30 x 32) Left inner wheel guard Protective shield N° 7 + 8 + 9 Spark screen/Shield-holder Screws/Shield fixation Tool-holder...
-
Page 18: Electrical Circuit
User’s manual TM200B 10. ELECTRICAL CIRCUIT ELECTRICAL DIAGRAM... -
Page 19: Noise Level
The Guarantee will not cover any damage caused by the to protect the operator. user or a repairer non-authorized by the company SIDAMO. The Guarantee of your machine is excluded in case on the The Guarantee will not cover any consequential or non-observance of above instructions. -
Page 20: Declaration Of Conformity
Z.I. DES GAILLETROUS – 41260 LA CHAUSSÉE-SAINT-VICTOR Tel : 33 2 54 74 02 16 Tel : 33 2 54 90 28 28 – Fax : 33 897 656 510 – Mail : sidamo@sidamo.com – www.sidamo.com Certified company ISO 9001 – ISO 14001 It is SIDAMO’s policy to continuously develop and improve our products, and therefore we reserve the right to modify or...
