Fixed Installation Kit (WINSTKT1601)
I n s t a l l a t i o n G u i d e
Prior to installing or using Iridium GO!, read and understand this Installation Guide, the Wall
Mounting Instruction Guide and the Iridium GO! User Manual including the safety warnings and
information. Failure to do so could result in serious injury or death.
Advertisement
Table of Contents
Summary of Contents for Iridium GO! WINSTKT1601

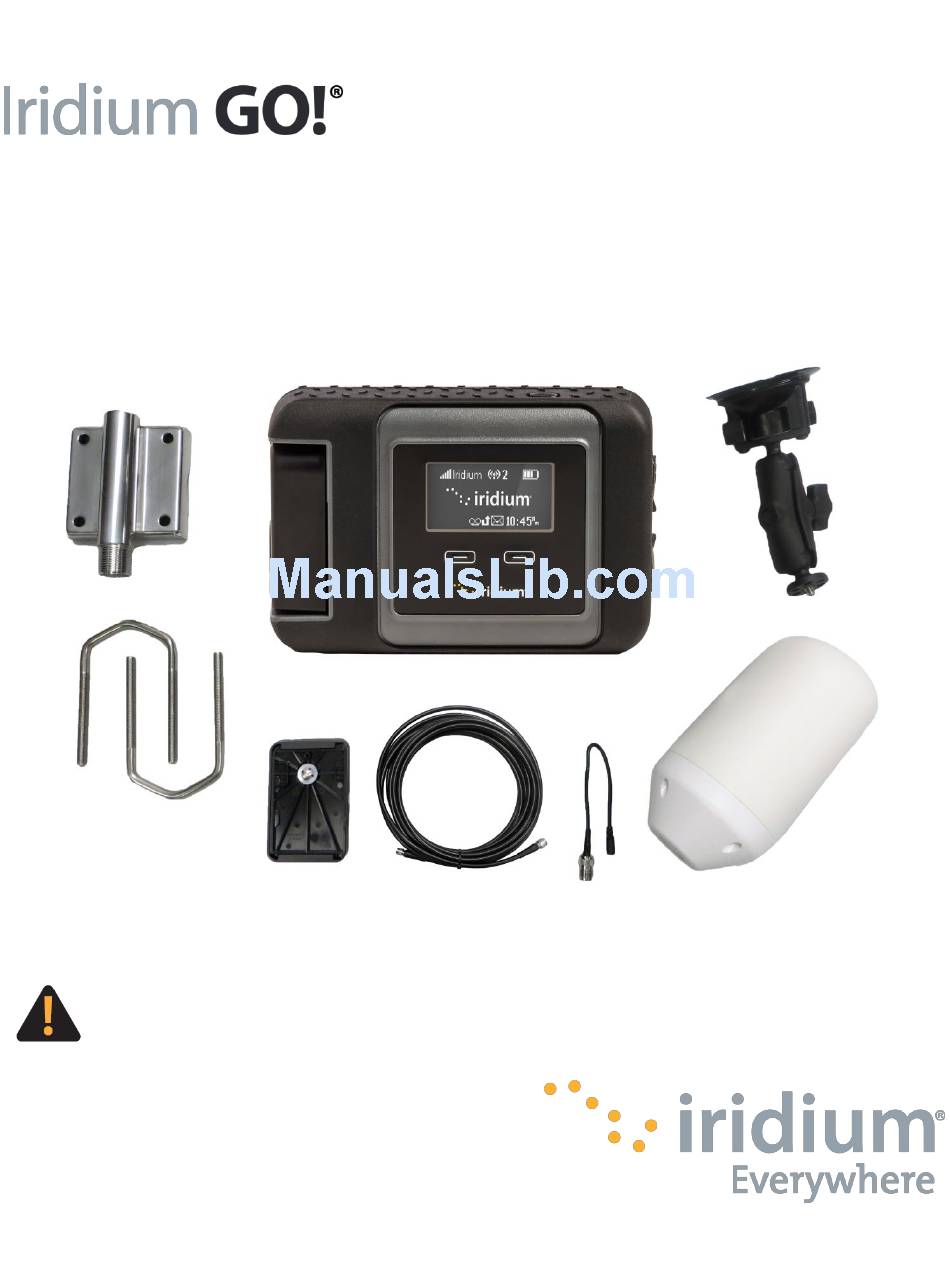

- Page 1 Fixed Installation Kit (WINSTKT1601) I n s t a l l a t i o n G u i d e Prior to installing or using Iridium GO!, read and understand this Installation Guide, the Wall Mounting Instruction Guide and the Iridium GO! User Manual including the safety warnings and...
- Page 2 Legal Notices This Installation Guide provides installation information and is provided “as is.” Iridium and its affiliated companies, directors, officers, employees, agents, trustees or consultants (“Iridium”) assume no responsibility for any typographical, technical, content or other inaccuracies in this Installation Guide. Iridium reserves the right to revise this Installation Guide or withdraw it at any time without prior notice.
- Page 3 Iridium GO! Fixed Installation Kit Table of Contents 1 Kit contents ..........................4 Items included in kit: ............................4 2 Antenna and Cable Installation ....................5 3 Wall Mount Bracket Installation ....................8 ® 4 RAM Mount Installation ......................8 5 Specifications ..........................
-
Page 4: Kit Contents

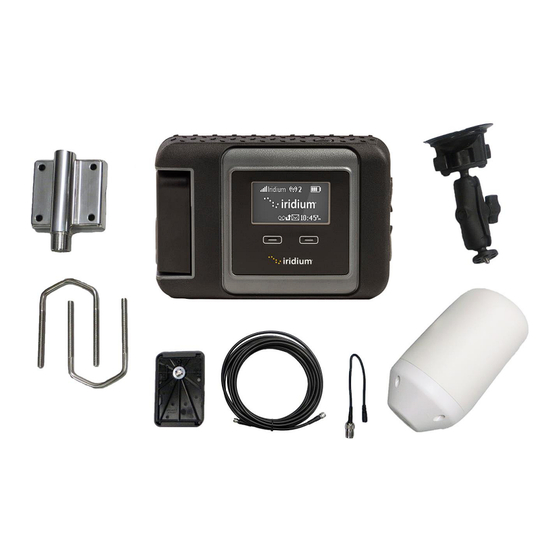

Iridium GO! Fixed Installation Kit 1 Kit contents Items included in kit: (A) 1 x Iridium Passive (B) 1 x 12m/39ft Passive Antenna (C) 1 x Stainless Steel Mast/Rail Omnidirectional Antenna Kit Cable Mounting Bracket Kit (PN: BMGKANT) (PN: BMGKCBL12) (PN: BMGKANTBRKT) (D) 1 x RAM®... -
Page 5: Antenna And Cable Installation
Iridium GO! Fixed Installation Kit 2 Antenna and Cable Installation Note: It is recommended that prior to installation, pre-test the complete set up. This can be done on a bench or on the deck of the boat. Connect all components to test if everything works fine. Doing so will familiarize the user how the parts go together and guarantees it works fine prior to installation. - Page 6 Iridium GO! Fixed Installation Kit Step 5) Step 6) Connect the antenna cable and hand- Screw the antenna base to the antenna tight the connector to the antenna. housing using screws and Allen key provided. Note: Use of an external antenna will provide connectivity for the Iridium network only, but will not provide GPS reception. In order to obtain GPS reception, the Iridium GO! device itself is required to have a direct line of sight of the sky with a 7 degree view above the horizon.
- Page 7 Iridium GO! Fixed Installation Kit Note: Do not put stress on the cable. Ensure that the bend radius of the cable doesn’t go below 25mm slack (see 5.4 Passive Antenna Cable Physical Specifications). When installing the antenna cable, follow these guidelines: route and restrain cables to prevent them from vibrating or moving under normal conditions which could result in damage to the antenna or the coaxial cable connections.
-
Page 8: Wall Mount Bracket Installation
Iridium GO! Fixed Installation Kit 3 Wall Mount Bracket Installation Note: Please refer to the Instruction Manual provided enclosed in the Wall Mount Kit. (B) View of the cables (Antenna and USB) from the front, (A) Complete installation set up of Wall Bracket at the using the Wall Bracket when mounted on a flat back of Iridium GO! Device surface. -
Page 9: Specifications
Iridium GO! Fixed Installation Kit Step 3) Step 4) Screw the 1” ball, round plate with camera thread (D) to Mount to any flat surface (vertical or horizontal), on a glass device tightly. Place in open socket and tighten knob on surface, wall or on a table as required. -
Page 10: Mast/Rail Mount 1"-14Nf
Iridium GO! Fixed Installation Kit Mechanical Specifications: Color White (non-glossy) Height 150 mm (191.5 mm mounting base included) Diameter Ø 95 mm Supplied Mounting or any US-style Mounting Bracket with 1"-14NF thread. Mounting Mounting place On marine vessel or land based vehicle Materials ASA, copper, PCB, stainless steel and brass Operating temperature... -
Page 11: M/39Ft Passive Antenna Cable
Iridium GO! Fixed Installation Kit 12m/39ft Passive Antenna Cable Electrical Specifications: 50 Ω Impedance Capacitance 77.1 pF/M (23.5 pF/ft) Velocity of Propagation Volttage Withstand 2500 VDC Max Operating Frequency 11.0 GHz Physical Specifications: 25mm (1.0”) Bending Radius Static Bending Radus Repeated 103mm (4.0”) Weight 1.2kg... - Page 12 ©Copyright 2016 Iridium Satellite LLC and its affiliates. All rights reserved. Iridium®, Iridium GO!® and the Iridium Logo are registered trademarks of Iridium Satellite LLC and its affiliates (“Iridium”). All other trademarks, service marks and logos are the property of their respective holders, which have not been endorsed, sponsored or otherwise affiliated with Iridium or Iridium GO!.
