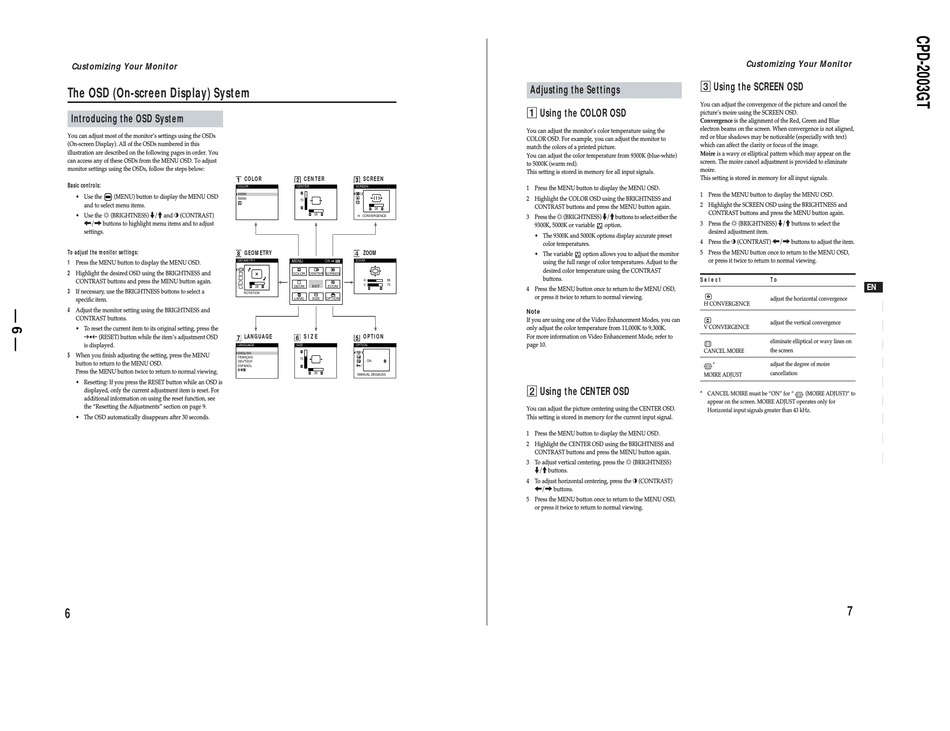

Sony CPD-2003GT Service Manual page 6

Customizing Your Monitor
The OSD (On-screen Display) System
Introducing the OSD System
You can adjust most of the monitor's settings using the OSDs
(On-screen Display). All of the OSDs numbered in this
illustration are described on the following pages in order. You
can access any of these OSDs from the MENU OSD. To adjust
monitor settings using the OSDs, follow the steps below:
Basic controls:
COLOR
9300K
• Use the (MENU) button to display the MENU OSD
5000K
and to select menu items.
• Use the ¨ (BRIGHTNESS) ./> and > (CONTRAST)
?// buttons to highlight menu items and to adjust
settings.
To adjust the monitor settings:
GEOMETRY
1 Press the MENU button to display the MENU OSD.
2 Highlight the desired OSD using the BRIGHTNESS and
CONTRAST buttons and press the MENU button again.
3 If necessary, use the BRIGHTNESS buttons to select a
specific item.
4 Adjust the monitor setting using the BRIGHTNESS and
CONTRAST buttons.
• To reset the current item to its original setting, press the
(RESET) button while the item's adjustment OSD
is displayed.
LANGUAGE
ENGLISH
5 When you finish adjusting the setting, press the MENU
FRANÇAIS
DEUTSCH
button to return to the MENU OSD.
ESPAÑOL
Press the MENU button twice to return to normal viewing.
• Resetting: If you press the RESET button while an OSD is
displayed, only the current adjustment item is reset. For
additional information on using the reset function, see
the "Resetting the Adjustments" section on page 9.
• The OSD automatically disappears after 30 seconds.
6
COLOR CENTER SCREEN
CENTER SCREEN
73
26
26
H CONVERGENCE
GEOMETRY ZOOM
ZOOM
MENU OK MENU
COLOR CENTER SCREEN
H 66
V 73
GEOM EXIT ZOOM
26
ROTATION
LANG SIZE OPTION
LANGUAGE S I Z E OPTION
SIZE OPTION
73
ON
26
MANUAL DEGAUSS
3 Using the SCREEN OSD
Adjusting the Settings
You can adjust the convergence of the picture and cancel the
1 Using the COLOR OSD
picture's moire using the SCREEN OSD.
Convergence is the alignment of the Red, Green and Blue
electron beams on the screen. When convergence is not aligned,
You can adjust the monitor's color temperature using the
red or blue shadows may be noticeable (especially with text)
COLOR OSD. For example, you can adjust the monitor to
which can affect the clarity or focus of the image.
match the colors of a printed picture.
Moire is a wavy or elliptical pattern which may appear on the
You can adjust the color temperature from 9300K (blue-white)
screen. The moire cancel adjustment is provided to eliminate
to 5000K (warm red).
moire.
This setting is stored in memory for all input signals.
This setting is stored in memory for all input signals.
1 Press the MENU button to display the MENU OSD.
1 Press the MENU button to display the MENU OSD.
2 Highlight the COLOR OSD using the BRIGHTNESS and
2 Highlight the SCREEN OSD using the BRIGHTNESS and
CONTRAST buttons and press the MENU button again.
3 Press the ¨ (BRIGHTNESS) ./> buttons to select either the
3 Press the ¨ (BRIGHTNESS) ./> buttons to select the
9300K, 5000K or variable option.
• The 9300K and 5000K options display accurate preset
4 Press the > (CONTRAST) ?// buttons to adjust the item.
color temperatures.
5 Press the MENU button once to return to the MENU OSD,
• The variable option allows you to adjust the monitor
using the full range of color temperatures. Adjust to the
desired color temperature using the CONTRAST
buttons. S e l e c t
4 Press the MENU button once to return to the MENU OSD,
or press it twice to return to normal viewing.
H CONVERGENCE
Note
If you are using one of the Video Enhancement Modes, you can
V CONVERGENCE
only adjust the color temperature from 11,000K to 9,300K.
For more information on Video Enhancement Mode, refer to
page 10.
CANCEL MOIRE
MOIRE ADJUST
2 Using the CENTER OSD
* CANCEL MOIRE must be "ON" for "
You can adjust the picture centering using the CENTER OSD.
This setting is stored in memory for the current input signal.
1 Press the MENU button to display the MENU OSD.
2 Highlight the CENTER OSD using the BRIGHTNESS and
CONTRAST buttons and press the MENU button again.
3 To adjust vertical centering, press the ¨ (BRIGHTNESS)
./> buttons.
4 To adjust horizontal centering, press the > (CONTRAST)
?// buttons.
5 Press the MENU button once to return to the MENU OSD,
or press it twice to return to normal viewing.
Getting Started Customizing Your Monitor
CONTRAST buttons and press the MENU button again.
desired adjustment item.
or press it twice to return to normal viewing.
T o
EN
adjust the horizontal convergence
F
adjust the vertical convergence
D
eliminate elliptical or wavy lines on
ES
the screen
I
* adjust the degree of moire
cancellation
RF
(MOIRE ADJUST)" to
PL
appear on the screen. MOIRE ADJUST operates only for
Horizontal input signals greater than 43 kHz.
SI
H
CZ
7
