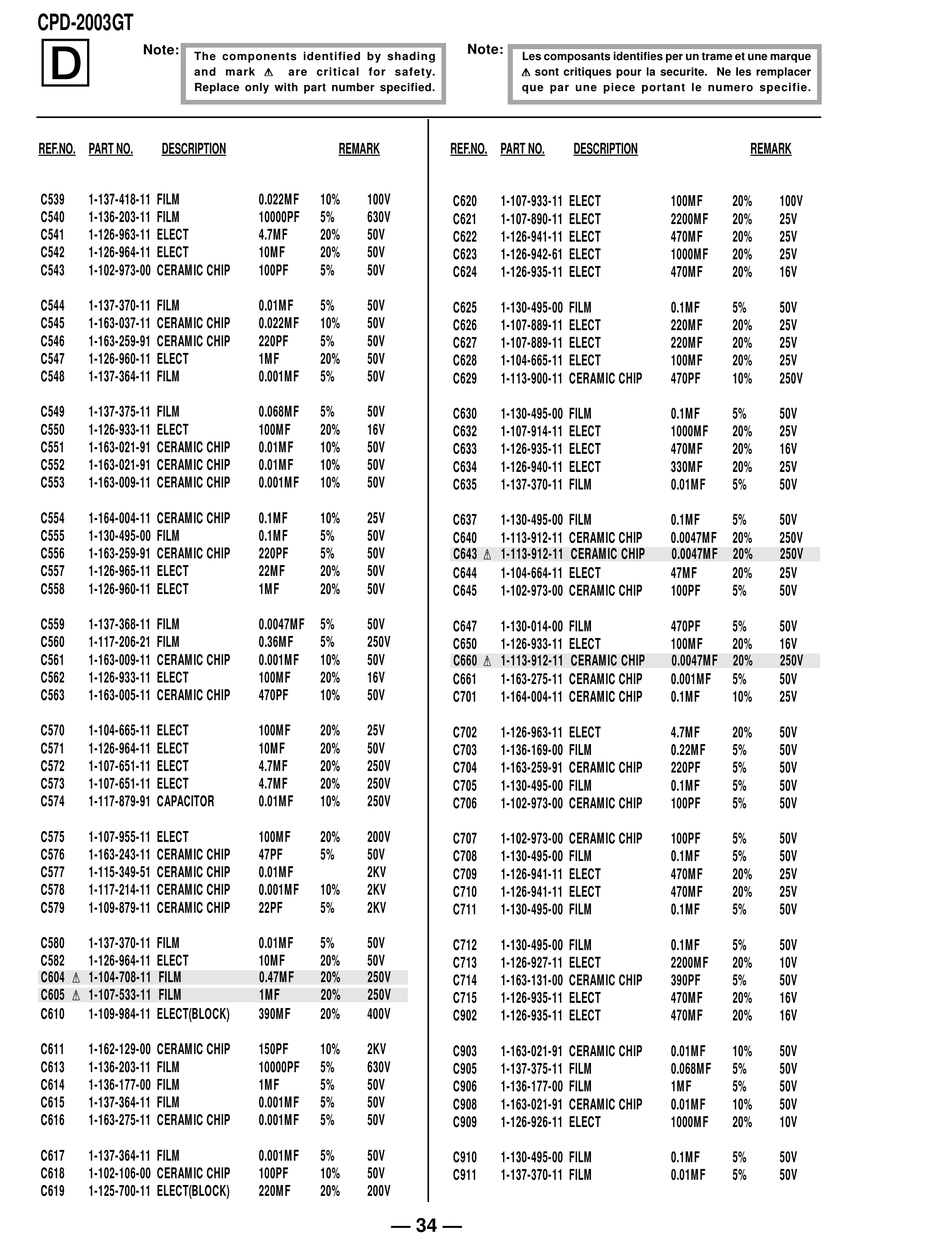

Sony CPD-2003GT Service Manual page 28

CPD-2003GT
D
Note:
The components identified by shading
and mark ¡ ¡ ¡ ¡ ¡
Replace only with part number specified.
REF.NO. PART NO. DESCRIPTION
C539 1-137-418-11 FILM
C540 1-136-203-11 FILM
C541 1-126-963-11 ELECT
C542 1-126-964-11 ELECT
C543 1-102-973-00 CERAMIC CHIP
C544 1-137-370-11 FILM
C545 1-163-037-11 CERAMIC CHIP
C546 1-163-259-91 CERAMIC CHIP
C547 1-126-960-11 ELECT
C548 1-137-364-11 FILM
C549 1-137-375-11 FILM
C550 1-126-933-11 ELECT
C551 1-163-021-91 CERAMIC CHIP
C552 1-163-021-91 CERAMIC CHIP
C553 1-163-009-11 CERAMIC CHIP
C554 1-164-004-11 CERAMIC CHIP
C555 1-130-495-00 FILM
C556 1-163-259-91 CERAMIC CHIP
C557 1-126-965-11 ELECT
C558 1-126-960-11 ELECT
C559 1-137-368-11 FILM
C560 1-117-206-21 FILM
C561 1-163-009-11 CERAMIC CHIP
C562 1-126-933-11 ELECT
C563 1-163-005-11 CERAMIC CHIP
C570 1-104-665-11 ELECT
C571 1-126-964-11 ELECT
C572 1-107-651-11 ELECT
C573 1-107-651-11 ELECT
C574 1-117-879-91 CAPACITOR
C575 1-107-955-11 ELECT
C576 1-163-243-11 CERAMIC CHIP
C577 1-115-349-51 CERAMIC CHIP
C578 1-117-214-11 CERAMIC CHIP
C579 1-109-879-11 CERAMIC CHIP
C580 1-137-370-11 FILM
C582 1-126-964-11 ELECT
C604 ¡ 1-104-708-11 FILM
C605 ¡ 1-107-533-11 FILM
C610 1-109-984-11 ELECT(BLOCK)
C611 1-162-129-00 CERAMIC CHIP
C613 1-136-203-11 FILM
C614 1-136-177-00 FILM
C615 1-137-364-11 FILM
C616 1-163-275-11 CERAMIC CHIP
C617 1-137-364-11 FILM
C618 1-102-106-00 CERAMIC CHIP
C619 1-125-700-11 ELECT(BLOCK)
are critical for safety.
REMARK
0.022MF 10% 100V
10000PF 5% 630V
4.7MF 20% 50V
10MF 20% 50V
100PF 5% 50V
0.01MF 5% 50V
0.022MF 10% 50V
220PF 5% 50V
1MF 20% 50V
0.001MF 5% 50V
0.068MF 5% 50V
100MF 20% 16V
0.01MF 10% 50V
0.01MF 10% 50V
0.001MF 10% 50V
0.1MF 10% 25V
0.1MF 5% 50V
220PF 5% 50V
22MF 20% 50V
1MF 20% 50V
0.0047MF 5% 50V
0.36MF 5% 250V
0.001MF 10% 50V
100MF 20% 16V
470PF 10% 50V
100MF 20% 25V
10MF 20% 50V
4.7MF 20% 250V
4.7MF 20% 250V
0.01MF 10% 250V
100MF 20% 200V
47PF 5% 50V
0.01MF 2KV
0.001MF 10% 2KV
22PF 5% 2KV
0.01MF 5% 50V
10MF 20% 50V
0.47MF 20% 250V
1MF 20% 250V
390MF 20% 400V
150PF 10% 2KV
10000PF 5% 630V
1MF 5% 50V
0.001MF 5% 50V
0.001MF 5% 50V
0.001MF 5% 50V
100PF 10% 50V
220MF 20% 200V
— 34 —
Note:
Les composants identifies per un trame et une marque
¡ ¡ ¡ ¡ ¡ sont critiques pour la securite. Ne les remplacer
que par une piece portant le numero specifie.
REF.NO. PART NO. DESCRIPTION
C620 1-107-933-11 ELECT
C621 1-107-890-11 ELECT
C622 1-126-941-11 ELECT
C623 1-126-942-61 ELECT
C624 1-126-935-11 ELECT
C625 1-130-495-00 FILM
C626 1-107-889-11 ELECT
C627 1-107-889-11 ELECT
C628 1-104-665-11 ELECT
C629 1-113-900-11 CERAMIC CHIP
C630 1-130-495-00 FILM
C632 1-107-914-11 ELECT
C633 1-126-935-11 ELECT
C634 1-126-940-11 ELECT
C635 1-137-370-11 FILM
C637 1-130-495-00 FILM
C640 1-113-912-11 CERAMIC CHIP
C643 ¡ 1-113-912-11 CERAMIC CHIP
C644 1-104-664-11 ELECT
C645 1-102-973-00 CERAMIC CHIP
C647 1-130-014-00 FILM
C650 1-126-933-11 ELECT
C660 ¡ 1-113-912-11 CERAMIC CHIP
C661 1-163-275-11 CERAMIC CHIP
C701 1-164-004-11 CERAMIC CHIP
C702 1-126-963-11 ELECT
C703 1-136-169-00 FILM
C704 1-163-259-91 CERAMIC CHIP
C705 1-130-495-00 FILM
C706 1-102-973-00 CERAMIC CHIP
C707 1-102-973-00 CERAMIC CHIP
C708 1-130-495-00 FILM
C709 1-126-941-11 ELECT
C710 1-126-941-11 ELECT
C711 1-130-495-00 FILM
C712 1-130-495-00 FILM
C713 1-126-927-11 ELECT
C714 1-163-131-00 CERAMIC CHIP
C715 1-126-935-11 ELECT
C902 1-126-935-11 ELECT
C903 1-163-021-91 CERAMIC CHIP
C905 1-137-375-11 FILM
C906 1-136-177-00 FILM
C908 1-163-021-91 CERAMIC CHIP
C909 1-126-926-11 ELECT
C910 1-130-495-00 FILM
C911 1-137-370-11 FILM
REMARK
100MF 20% 100V
2200MF 20% 25V
470MF 20% 25V
1000MF 20% 25V
470MF 20% 16V
0.1MF 5% 50V
220MF 20% 25V
220MF 20% 25V
100MF 20% 25V
470PF 10% 250V
0.1MF 5% 50V
1000MF 20% 25V
470MF 20% 16V
330MF 20% 25V
0.01MF 5% 50V
0.1MF 5% 50V
0.0047MF 20% 250V
0.0047MF 20% 250V
47MF 20% 25V
100PF 5% 50V
470PF 5% 50V
100MF 20% 16V
0.0047MF 20% 250V
0.001MF 5% 50V
0.1MF 10% 25V
4.7MF 20% 50V
0.22MF 5% 50V
220PF 5% 50V
0.1MF 5% 50V
100PF 5% 50V
100PF 5% 50V
0.1MF 5% 50V
470MF 20% 25V
470MF 20% 25V
0.1MF 5% 50V
0.1MF 5% 50V
2200MF 20% 10V
390PF 5% 50V
470MF 20% 16V
470MF 20% 16V
0.01MF 10% 50V
0.068MF 5% 50V
1MF 5% 50V
0.01MF 10% 50V
1000MF 20% 10V
0.1MF 5% 50V
0.01MF 5% 50V
