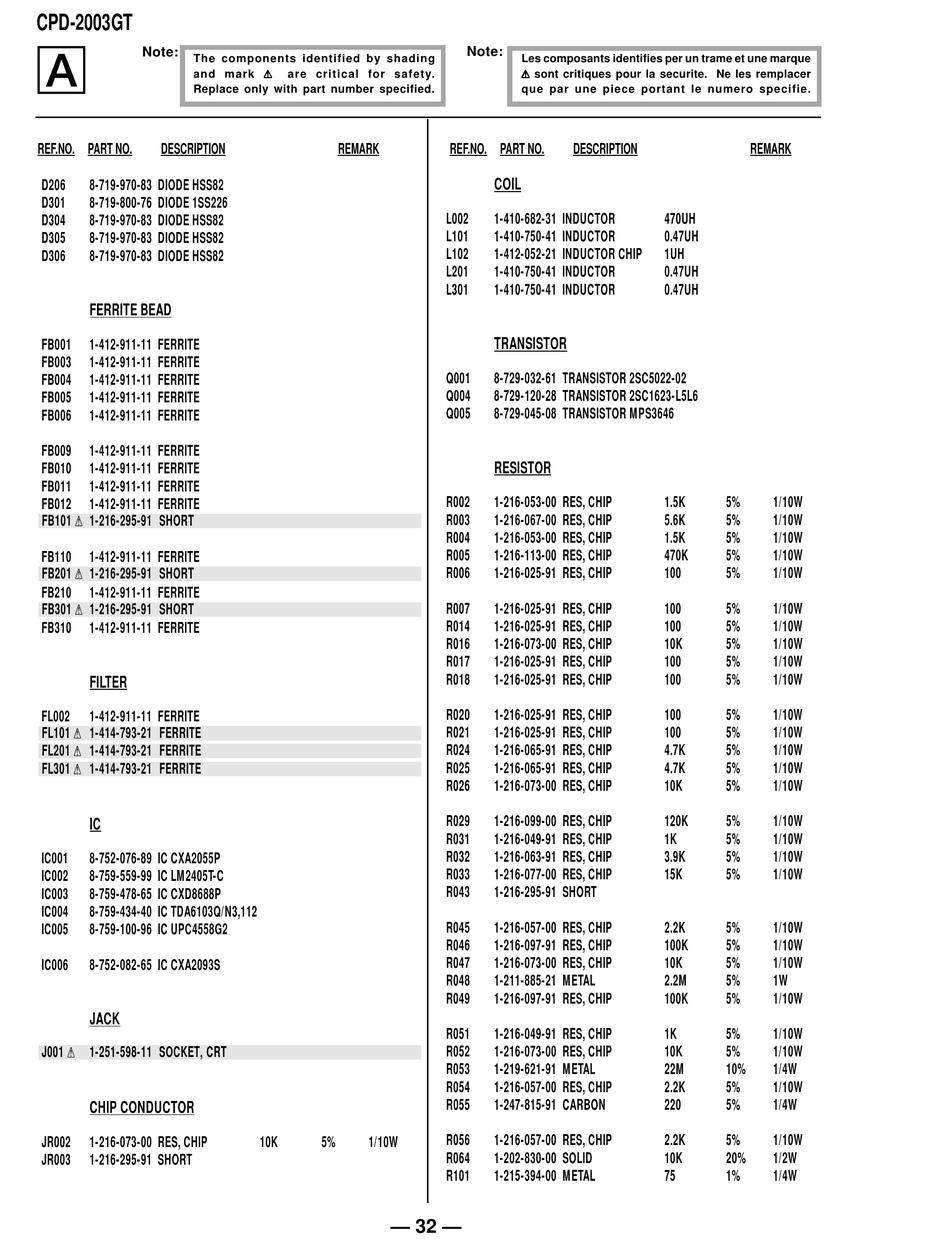

Sony CPD-2003GT Service Manual page 26

CPD-2003GT
A Note:
The components identified by shading
and mark ¡ ¡ ¡ ¡ ¡
Replace only with part number specified.
REF.NO. PART NO. DESCRIPTION
D206 8-719-970-83 DIODE HSS82
D301 8-719-800-76 DIODE 1SS226
D304 8-719-970-83 DIODE HSS82
D305 8-719-970-83 DIODE HSS82
D306 8-719-970-83 DIODE HSS82
FERRITE BEAD
FB001 1-412-911-11 FERRITE
FB003 1-412-911-11 FERRITE
FB004 1-412-911-11 FERRITE
FB005 1-412-911-11 FERRITE
FB006 1-412-911-11 FERRITE
FB009 1-412-911-11 FERRITE
FB010 1-412-911-11 FERRITE
FB011 1-412-911-11 FERRITE
FB012 1-412-911-11 FERRITE
FB101 ¡ 1-216-295-91 SHORT
FB110 1-412-911-11 FERRITE
FB201 ¡ 1-216-295-91 SHORT
FB210 1-412-911-11 FERRITE
FB301 ¡ 1-216-295-91 SHORT
FB310 1-412-911-11 FERRITE
FILTER
FL002 1-412-911-11 FERRITE
FL101 ¡ 1-414-793-21 FERRITE
FL201 ¡ 1-414-793-21 FERRITE
FL301 ¡ 1-414-793-21 FERRITE
IC
IC001 8-752-076-89 IC CXA2055P
IC002 8-759-559-99 IC LM2405T-C
IC003 8-759-478-65 IC CXD8688P
IC004 8-759-434-40 IC TDA6103Q/N3,112
IC005 8-759-100-96 IC UPC4558G2
IC006 8-752-082-65 IC CXA2093S
JACK
J001 ¡ 1-251-598-11 SOCKET, CRT
CHIP CONDUCTOR
JR002 1-216-073-00 RES, CHIP
JR003 1-216-295-91 SHORT
are critical for safety.
REMARK
10K 5% 1/10W
— 32 —
Note:
Les composants identifies per un trame et une marque
¡ ¡ ¡ ¡ ¡ sont critiques pour la securite. Ne les remplacer
que par une piece portant le numero specifie.
REF.NO. PART NO. DESCRIPTION
COIL
L002 1-410-682-31 INDUCTOR
L101 1-410-750-41 INDUCTOR
L102 1-412-052-21 INDUCTOR CHIP
L201 1-410-750-41 INDUCTOR
L301 1-410-750-41 INDUCTOR
TRANSISTOR
Q001 8-729-032-61 TRANSISTOR 2SC5022-02
Q004 8-729-120-28 TRANSISTOR 2SC1623-L5L6
Q005 8-729-045-08 TRANSISTOR MPS3646
RESISTOR
R002 1-216-053-00 RES, CHIP
R003 1-216-067-00 RES, CHIP
R004 1-216-053-00 RES, CHIP
R005 1-216-113-00 RES, CHIP
R006 1-216-025-91 RES, CHIP
R007 1-216-025-91 RES, CHIP
R014 1-216-025-91 RES, CHIP
R016 1-216-073-00 RES, CHIP
R017 1-216-025-91 RES, CHIP
R018 1-216-025-91 RES, CHIP
R020 1-216-025-91 RES, CHIP
R021 1-216-025-91 RES, CHIP
R024 1-216-065-91 RES, CHIP
R025 1-216-065-91 RES, CHIP
R026 1-216-073-00 RES, CHIP
R029 1-216-099-00 RES, CHIP
R031 1-216-049-91 RES, CHIP
R032 1-216-063-91 RES, CHIP
R033 1-216-077-00 RES, CHIP
R043 1-216-295-91 SHORT
R045 1-216-057-00 RES, CHIP
R046 1-216-097-91 RES, CHIP
R047 1-216-073-00 RES, CHIP
R048 1-211-885-21 METAL
R049 1-216-097-91 RES, CHIP
R051 1-216-049-91 RES, CHIP
R052 1-216-073-00 RES, CHIP
R053 1-219-621-91 METAL
R054 1-216-057-00 RES, CHIP
R055 1-247-815-91 CARBON
R056 1-216-057-00 RES, CHIP
R064 1-202-830-00 SOLID
R101 1-215-394-00 METAL
REMARK
470UH
0.47UH
1UH
0.47UH
0.47UH
1.5K 5% 1/10W
5.6K 5% 1/10W
1.5K 5% 1/10W
470K 5% 1/10W
100 5% 1/10W
100 5% 1/10W
100 5% 1/10W
10K 5% 1/10W
100 5% 1/10W
100 5% 1/10W
100 5% 1/10W
100 5% 1/10W
4.7K 5% 1/10W
4.7K 5% 1/10W
10K 5% 1/10W
120K 5% 1/10W
1K 5% 1/10W
3.9K 5% 1/10W
15K 5% 1/10W
2.2K 5% 1/10W
100K 5% 1/10W
10K 5% 1/10W
2.2M 5% 1W
100K 5% 1/10W
1K 5% 1/10W
10K 5% 1/10W
22M 10% 1/4W
2.2K 5% 1/10W
220 5% 1/4W
2.2K 5% 1/10W
10K 20% 1/2W
75 1% 1/4W
