Chassis - Sony CPD-2003GT Service Manual

•
Items with no part number and no descrip-
tion are not stocked because they are sel-
dom required for routine service.
REF.NO. PART NO. DESCRIPTION
•
The component parts of an assembly are
indicated by the reference numbers in the
remarks column.

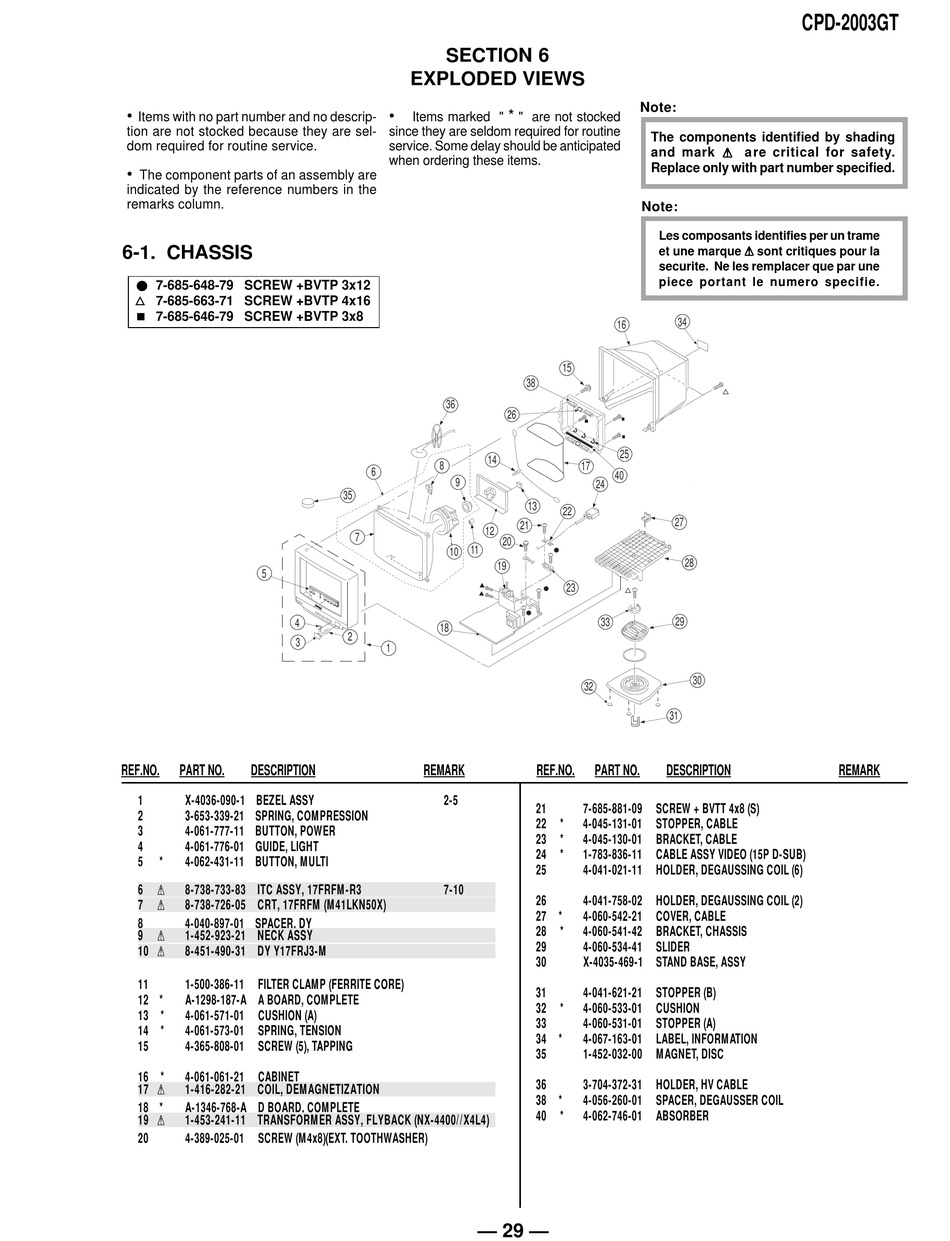

6-1. CHASSIS

7-685-648-79 SCREW +BVTP 3x12
r
¢ 7-685-663-71 SCREW +BVTP 4x16
7-685-646-79 SCREW +BVTP 3x8
5
4
3
REF.NO. PART NO. DESCRIPTION
1 X-4036-090-1 BEZEL ASSY
2 3-653-339-21 SPRING, COMPRESSION
3 4-061-777-11 BUTTON, POWER
4 4-061-776-01 GUIDE, LIGHT
5 * 4-062-431-11 BUTTON, MULTI
6 ¡
8-738-733-83 ITC ASSY, 17FRFM-R3
7 ¡
8-738-726-05 CRT, 17FRFM (M41LKN50X)
8 4-040-897-01 SPACER, DY
9 ¡
1-452-923-21 NECK ASSY
10 ¡
8-451-490-31 DY Y17FRJ3-M
11 1-500-386-11 FILTER CLAMP (FERRITE CORE)
12 * A-1298-187-A A BOARD, COMPLETE
13 * 4-061-571-01 CUSHION (A)
14 * 4-061-573-01 SPRING, TENSION
15 4-365-808-01 SCREW (5), TAPPING
16 * 4-061-061-21 CABINET
17 ¡
1-416-282-21 COIL, DEMAGNETIZATION
18 * A-1346-768-A D BOARD, COMPLETE
19 ¡
1-453-241-11 TRANSFORMER ASSY, FLYBACK (NX-4400//X4L4)
20 4-389-025-01 SCREW (M4x8)(EXT. TOOTHWASHER)
SECTION 6
EXPLODED VIEWS
• *
Items marked " " are not stocked
since they are seldom required for routine
service. Some delay should be anticipated
REMARK
when ordering these items.
36
26
14
8
6
9
35
21
12
7
.
20
11
10
19
18
2
1
REMARK
2-5
7-10
— 29 —
Note:
The components identified by shading
REF.NO. PART NO. and mark ¡ ¡ ¡ ¡ ¡ a re critical for safety. DESCRIPTION
Replace only with part number specified.
Note:
Les composants identifies per un trame
et une marque ¡ ¡ ¡ ¡ ¡ sont critiques pour la
securite. Ne les remplacer que par une
piece portant le numero specifie.
34
16
15
38
25
17
40
24
13
22
27
28
23
33 29
30
32
31
REF.NO. PART NO. DESCRIPTION
21 7-685-881-09 SCREW + BVTT 4x8 (S)
22 * 4-045-131-01 STOPPER, CABLE
23 * 4-045-130-01 BRACKET, CABLE
24 * 1-783-836-11 CABLE ASSY VIDEO (15P D-SUB)
25 4-041-021-11 HOLDER, DEGAUSSING COIL (6)
26 4-041-758-02 HOLDER, DEGAUSSING COIL (2)
27 * 4-060-542-21 COVER, CABLE
28 * 4-060-541-42 BRACKET, CHASSIS
29 4-060-534-41 SLIDER
30 X-4035-469-1 STAND BASE, ASSY
31 4-041-621-21 STOPPER (B)
32 * 4-060-533-01 CUSHION
33 4-060-531-01 STOPPER (A)
34 * 4-067-163-01 LABEL, INFORMATION
35 1-452-032-00 MAGNET, DISC
36 3-704-372-31 HOLDER, HV CABLE
38 * 4-056-260-01 SPACER, DEGAUSSER COIL
40 * 4-062-746-01 ABSORBER
CPD-2003GT
