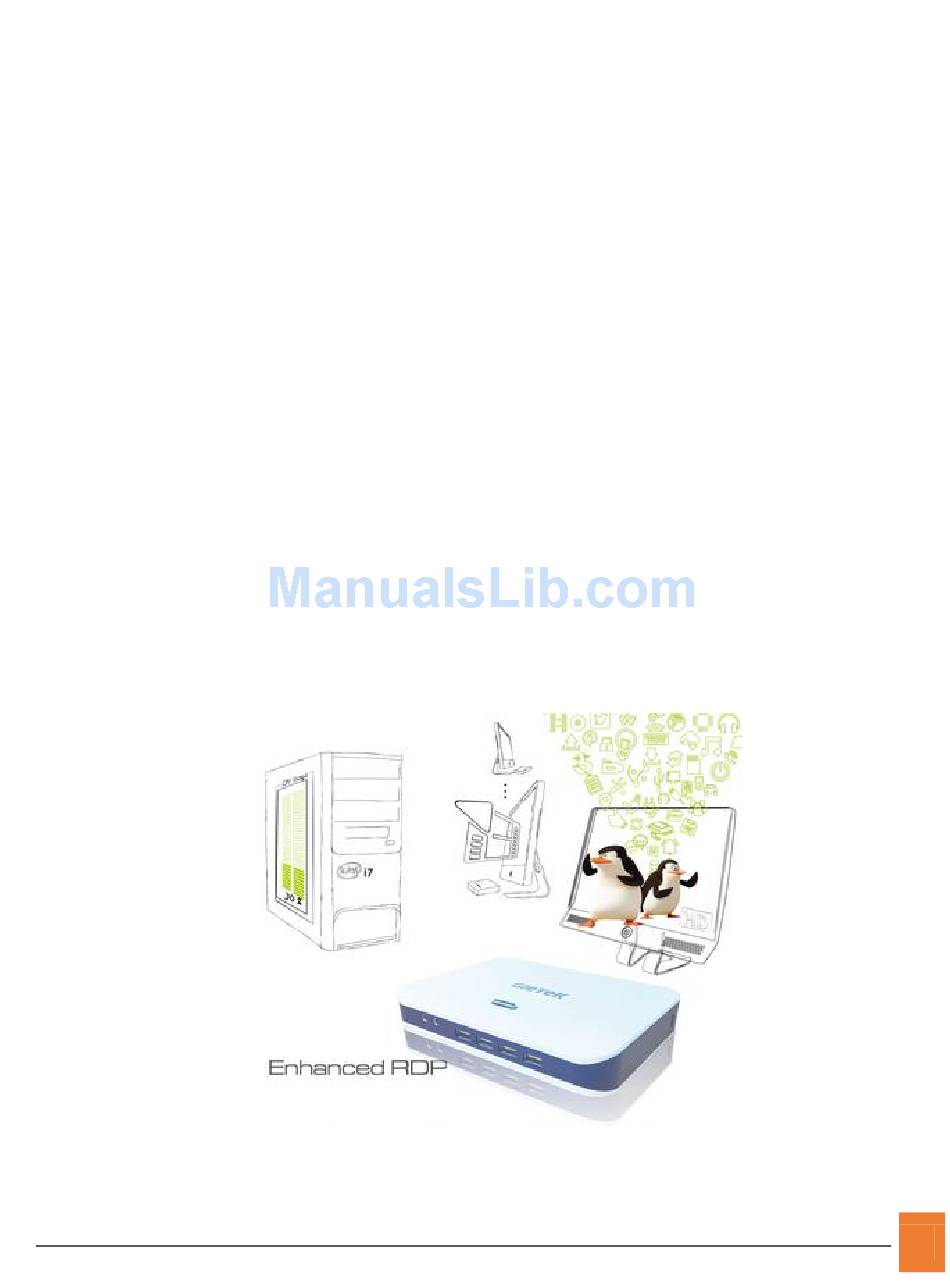

Page 1 GIETEK GS220 USER MANUAL USER MANUAL FOR GIETEK GS220...
Page 2 4.3 Send Message ..........................29 4.4 User Accounts ..........................30 4.5 One-Key Broadcasting ........................33 5. GS220 Connecting to Windows or Linux Without NetPoint2.2 ............34 5.1 How to Mount USB flash drive in Linux ..................35 USER MANUAL FOR GIETEK GS220...
Page 3: Introduction
Based on RDP, GS220 has its unique Speed-Up technology which enables it to deliver smooth HD movie playback on end user’s desktop.
Page 4: Components
Additional Ethernet cables will be required in this case. 1.2 Recommended Server Configuration You can find a detailed Server Configuration chart in GS220 datasheet. Remember, the size chart is reference only. Since the workload may vary greatly in different environments, a test running is suggested if you need a more accurate server configuration data.
Page 5 1. Connect your Keyboard/Mouse/Monitor/Speaker or Headphone as shown in the picture: 2. Connect the Terminal to Host PC/Switch/Router using the Ethernet cable with RJ45 pins as shown below. CAUTION USE ONLY THE ORIGINAL POWER SUPPLY ADAPTER 3. Connect the power adapter. USER MANUAL FOR GIETEK GS220...
Page 6: Software Installing
NetPoint2.2. Find the location where you put “NetPoint Installation Package2”. In the example picture, it is put on the desktop of the host OS. Double click on it to run the installation. USER MANUAL FOR GIETEK GS220...
Page 7 If below message pops up, choose “Yes” to continue: Click on “Next” to continue: Choose “I accept the terms of the license agreement”: USER MANUAL FOR GIETEK GS220...
Page 8 Choose the installation location. Use the default destination folder. Click on “Next” to continue: USER MANUAL FOR GIETEK GS220...
Page 9 Keep the default. Then “Next”: Now the software is installing: When this warning shows up, choose “Install this driver software anyway”: USER MANUAL FOR GIETEK GS220...
Page 10 Installing virtual audio device: Installation is complete. Click “Finish” to restart the system: USER MANUAL FOR GIETEK GS220...
Page 11: Enabling Remote Desktop
2.2 Enabling Remote Desktop We need to set the system to allow Remote Desktop so that GIETEK terminal can log on the system remotely. Take Windows 7 as the example: USER MANUAL FOR GIETEK GS220...
Page 12 Go to “Computer”, then “System properties”. In the new window, click on Remote, then choose “Allow connections from computers running any version of Remote Desktop”. Click on “OK” to save. 2.3 Uninstall NetPoint2.2 Software Click on the “NetPoint Installation Package2”: USER MANUAL FOR GIETEK GS220...
Page 13 Choose “Remove” and then click on “Next” to continue: When this pop up, choose “OK” to confirm uninstall: USER MANUAL FOR GIETEK GS220...
Page 14 When uninstall process is finished, click on “Finish” to restart the system: USER MANUAL FOR GIETEK GS220...
Page 15: Setting Up Gs220
3. Setting up GS220 There are two kinds of IP addresses need to be set. One is terminal’s Local IP, the other one is Server’s IP. 3.1 Setting GS220 IP Address IP A DHCP S YNAMIC DDRESS FROM ERVER "Dynamic Host Configuration Protocol” (DHCP) is an IP standard designed to reduce the complexity of administering IP address configurations.
Page 16 1. IP Address: Give GS220 an IP address of its own here. The easy way to do is to give it an IP address after adding 1 to the last number of IP address you gave to the Host PC. Then you can continue adding 2, 3...
Page 17 3. Gateway: Most often, this is the IP address of your Router. USER MANUAL FOR GIETEK GS220...
Page 18: Setting Server Ip Address
If the server is in the same subnet with the terminal, the terminal can search the network and find the server itself by set the server IP as “Search servers in LAN”. After save the settings, GS220 will go back to “Host List” page, and then display all available servers (with NetPoint2.2) installed in the LAN.
Page 19 You can setup the server using static IP address so that the terminal can logon the server directly after power on. For those Host servers that are not in the same subnet as GS220, you have to setup the IP address for the server in this way.
Page 20: Setting Screen Resolution
After save, the terminal will go to Host List page. After 5s counting down, GS220 will try to connect to the designated Host server. 3.3 Setting Screen Resolution GS220 supports 13 monitor resolutions. Please choose the correct resolution which matches best with the monitor.
Page 21 On this “Monitor” tab, you can also set the monitor to “Turn off after 15 minutes” or “Keep monitor always on”: USER MANUAL FOR GIETEK GS220...
Page 22: Auto Logon
3.4 Auto Logon GS220 can be set to log on the host directly when power on. That means you do not need to type in user name and password each time. To set up GS220 working in this way, the first step is to set GS220 Server IP address as shown in the picture below.
Page 23 (Domain) environment, type in the Domain Name. Otherwise, just leave it open. Save the settings, and the GS220 will go back to Host List page, start counting down and then log on the Host automatically using the specified username and password.
Page 24: Advanced Settings
3.5 Advanced Settings To access “Advanced Settings” of GS220, click “Setup”, select “Advanced” tab. Here we can set up for GS220 “Password Protection”, “Firmware Update”, “USB ports”, “Sound Ports” and “Language”. USB Ports Here you can choose to enable or disable USB ports for USB devices like USB flash drive, USB printer, etc.
Page 25 The final part of "Advanced" setting page shown the firmware information of GS220. Here you can also update firmware of GS220. There are two ways to apply the update: by TFTP server or by USB flash drive. We have a manual on how to update firmware for GIETEK terminals by TFTP server, please refer to this manual if you want to update firmware by TFTP server.
Page 26: Terminal Information
In the NetPoint 2.2 Console, click on “Terminal”, and the console will list all GS220 terminals. When click to select one GS220 terminal, the desktop of this GS220 will be shown in the middle. Down to the bottom, two options are available. “Information” displays GS220 serial No., IP address, status, server IP and user account name.
Page 27: Monitoring
4.2 Monitoring In the terminal page, a mini window of the corresponding GS220 user is shown in the middle. On the right, 3 options “Monitor”, “Message” and “Logout” are available. Use “Monitor” option to have a full screen of monitoring user’s desktop, “Message” to send message to user’s desktop, and “Logout” to log out the user from the Host.
Page 28: Send Message
“Administrator” and have logged in remotely. 4.3 Send Message In the terminal page, click on “Dialog” and you can see the txt space for typing in message. Type in your message, and then click “Send”. USER MANUAL FOR GIETEK GS220...
Page 29: User Accounts
4.4 Account We can use the “Account” function of NetPont Console to set up user accounts for GS220 users. Creating New Accounts: Creating one Creating multiple USER MANUAL FOR GIETEK GS220...
Page 30 When finished: There two types of accounts can be created: Remote User (RDP) and Administrator. Now, we can go to the “Local Users and Groups” to check if the creation of Windows user accounts is successful. USER MANUAL FOR GIETEK GS220...
Page 31 List of Accounts: We can also make amendments to accounts or delete accounts: 4.5 One-Key Broadcasting Function: USER MANUAL FOR GIETEK GS220...
Page 32: One-Key Broadcasting
5. GS220 Connecting to Windows or Linux without NetPoint2.2 GS220 can also work alone without NetPoint2.2 being installed in the Host. In this way, GS220 works as same as GIETEK another model H4, which means that the connection between GS220 and the host is purely RDP, with no HD video acceleration.
Page 33: How To Mount Usb Flash Drive In Linux
RDP session desktop, but with no sound and no support of other USB devices except USB flash drive. 5.1 How to Mount USB Flash Drive in Linux When GS220 is connected to a Linux host, its user can plug in USB flash drive to the GS220 and use it in the Linux system by typing some commands.
Page 34 The below screen shot is an example as in Ubuntu host. “192.168.1.139” is IP address of the GS220. “7000415” is the serial number of the GS220 (remember to and one “0” before the serial number. The serial number of GS220 can be found on its product label).
