  • Page 1 2014 & UP HARLEY-DAVIDSON ® SPEAKERS TMS65 Serial Number: Date of Purchase: Installation & Operation...
  • Page 2 Rockford Fosgate technician. • Before installation, disconnect the battery negative (-) terminal to prevent damage to the unit, fire and/or possible injury. ©2016 Rockford Corporation. All Rights Reserved. ROCKFORD FOSGATE and associated logos where applicable are registered trademarks of Rockford ® ®...
  • Page 3: Specifications

    To adorn the ‘Verified with Klippel’ mark, the qualifying company’s loudspeaker engineering personnel must be trained and certified by Klippel prior to using the three separate Klippel systems to design, develop and test. Rockford Fosgate has made the investment in Klippel to...
  • Page 4 Specifications TMS65 90° 45° 6.2” Dia. (157mm) 2.6” 2.3” (67mm) (59mm) 5.6” Dia. (142mm) 2014 & Up Street Guide ® Grilles Included 2015 & Up Road Glide ® Grilles Included 2014 & Up Tour Pak Grilles Included illus.-1.1...

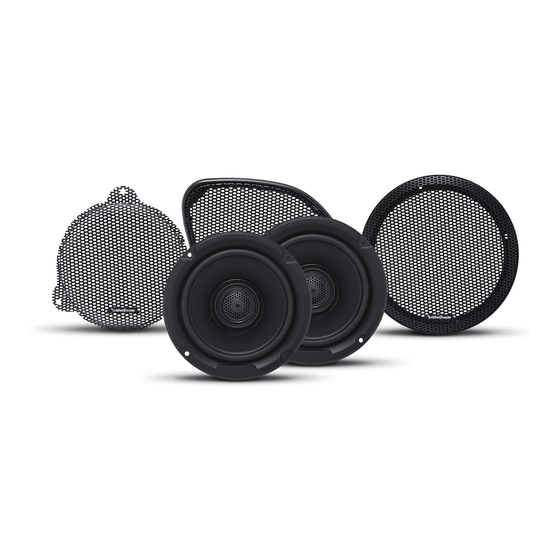

  • Page 5 Installation Contents Installation Considerations • (1) Pair of 2-Way Speakers • (1) Pair of 2014 & Up Tour-Pak This section focuses on some considerations for installing your motorcycle Grilles replacement speakers. This manual will illustrate the installation of two • (1) Pair of 2015 & Up Road different fairing styles and Tour-Pak offered by Harley-Davidson ®...
  • Page 6 Installation ® ® Front Speakers for Ultra Classic , Electra Glide ® ® Street Glide and Tri Glide models. You will need to disconnect the harness from the headlight to completely take the fairing off of the motorcycle. Step 1 - Fairing Removal To begin with, remove the top screws below the windshield to remove the windshield.
  • Page 7 Installation Remove the top two bolts with a allen head screwdriver or ratchet. Unplug the module and set it aside. After the top two bolts are removed, remove the three bolts that are Next, remove the last three screws that hold the pod to the fairing. under the radio area.
  • Page 8 Installation Using a screwdriver, remove the speaker grille that is attached to Step 3 - Speaker Installation the fairing. Prior to installing the speaker to the pod, there are alignment pins on the pod that the speaker needs to line up to ensure proper fit. With the pod on a bench, unscrew the mounting screws to remove the factory speaker from the factory pod.
  • Page 9 Installation ® Attach the new Rockford grille to the inside of the fairing. Front Speakers for Road Glide and Road Glide ® Ultra models. NOTE: The speaker grilles are side specific and have a notch in one of the mounting holes as an indicator. The notch is faced towards Step 1 - Speaker &...
  • Page 10 Installation Unplug the terminals to disconnect the speaker. Secure the speaker to the pod using the factory hardware. Step 2 - Speaker & Grille Installation NOTE: Do not overtighten screws. Doing so can strip the threads on the plastic pod. Take the new Rockford speaker and slide the wire connectors over the terminals.
  • Page 11 Installation Rear Speakers for Tour-Pak models. Connect the speakers by sliding the speaker wire connector over the speaker terminals Step 1 - Rear Speaker Removal NOTE: The smaller terminal is the positive (+) and the larger Unscrew the speaker grilles from the rear pods and remove factory terminal is the negative (-).
  • Page 12 What is Covered This warranty applies only to Rockford Fosgate products sold to consumers by Authorized Rockford Fosgate Dealers in the United States of America or its possessions. Product purchased by consumers from an Authorized Rockford Fosgate Dealer in another country are covered only by that country’s Distributor and not by Rockford Corporation.
  • Page 13 Installation assistance availible at: www.rockfordfosgate.com/rftech 600 South Rockford Drive • Tempe, Arizona 85281 United States Direct: (480) 967-3565 • Toll Free: (800) 669-9899 R O C K F O R D F O S G A T E . C O M...
