ioi FWBU2SATA35DMR Installation Manual

Mirror drive

Advertisement

Quick Links

Mirror Drive
FWBU2SATA35DMR/UF2SATA35DMR/UFISATA35DMR/U2SATA35DMR

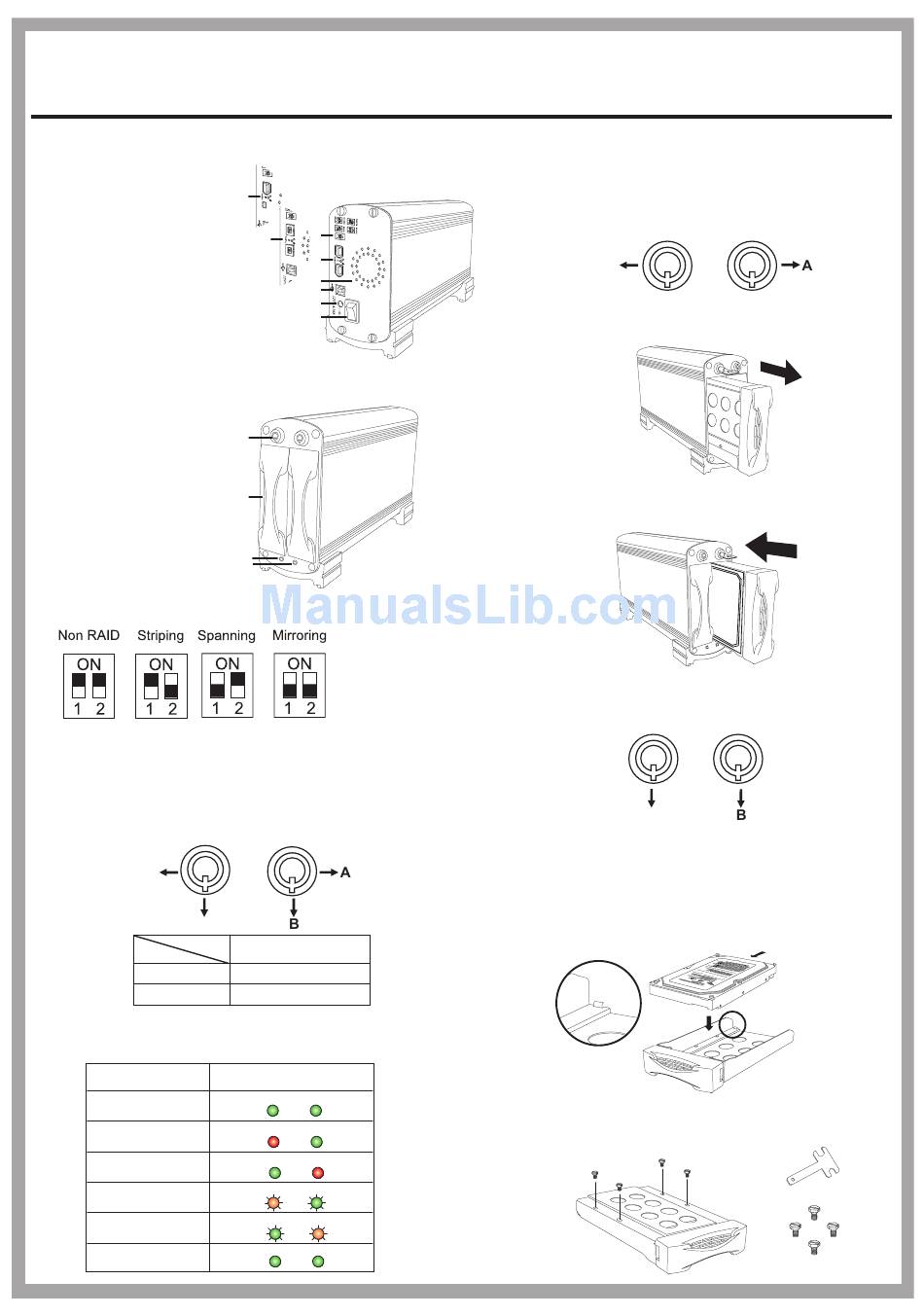

Panel Introduction

1. RAID Setting Switch
2. FireWire Connector
FireWire-6pin (only for UF2SATA35DMR)
FireWire-6pin + iLink-4pin (only for UFISATA35DMR)
Bilingual-9pin (only for FWBU2SATA35DMR)
3. USB B Connector
4. DC Power Jack (12V/4.16A)
5. Power Switch
6. Cooling Fan
7. Key lock
8. SATA HDD Mobile Tray
9. HDD 1 Status LED
(Green & Red)
10. HDD 2 Status LED
(Green & Red)
Jumper
- Non-RAID: for one or two disks
- RAID 0 (Striping): for two disks with same capacity.
- Disk Spanning: for two disks with different capacity.
- RAID 1 (Mirroring): for two disks with same capacity.
Key lock
HDD1
A
B
Status
Segment
B
A
Power Indicator and HDD Access Indicator
According different statuses, the indicator displays are as followed:
Status
Normal State
HDD 1 Failed
HDD 2 Failed
HDD 1 under Rebuilding
HDD 2 under Rebuilding
HDD Duplicating
is completed
2
1
2
2
6
3
4
5
7
8
9
10
HDD2
Security status
Locked (Non-removable)
Unlocked (Removable)
Display
Green
Green
Red
Green
Green
Red
Red/Orange Green
Blinking
Blinking
Green Red/Orange
Blinking
Blinking
Green
Green

Installation Guide

1

How to Remove and Insert the Mobile Tray

1-1
To unlock the tray, insert the key and push to turn
the lock to Position A.
Note: The key cannot be removed when the lock is in Position A.
A
To remove the tray, grab the mobile tray firmly
1-2
and pull the tray from the housing gently.
1-3
To insert the tray, grab the mobile tray firmly and push
the mobile tray back into the housing.
1-4
To lock the tray in place, turn the lock back to
Position B.
Note: The key can be removed while the lock is in Position B.
2

How to Install the SATA HDD

2-1
To install the SATA HDD, simply place the HDD
inside the tray as illustrated below. (A stopper in
the rear of the tray is provided to avoid careless
handling.)
2-2
After placing the HDD inside the tray, adjust and
secure the HDD with the provided screwdriver
and four hex-head #6-32 UNC screws.
1
B
SATA connector
T-shape screw driver
Hex-head #6-32 UNC
