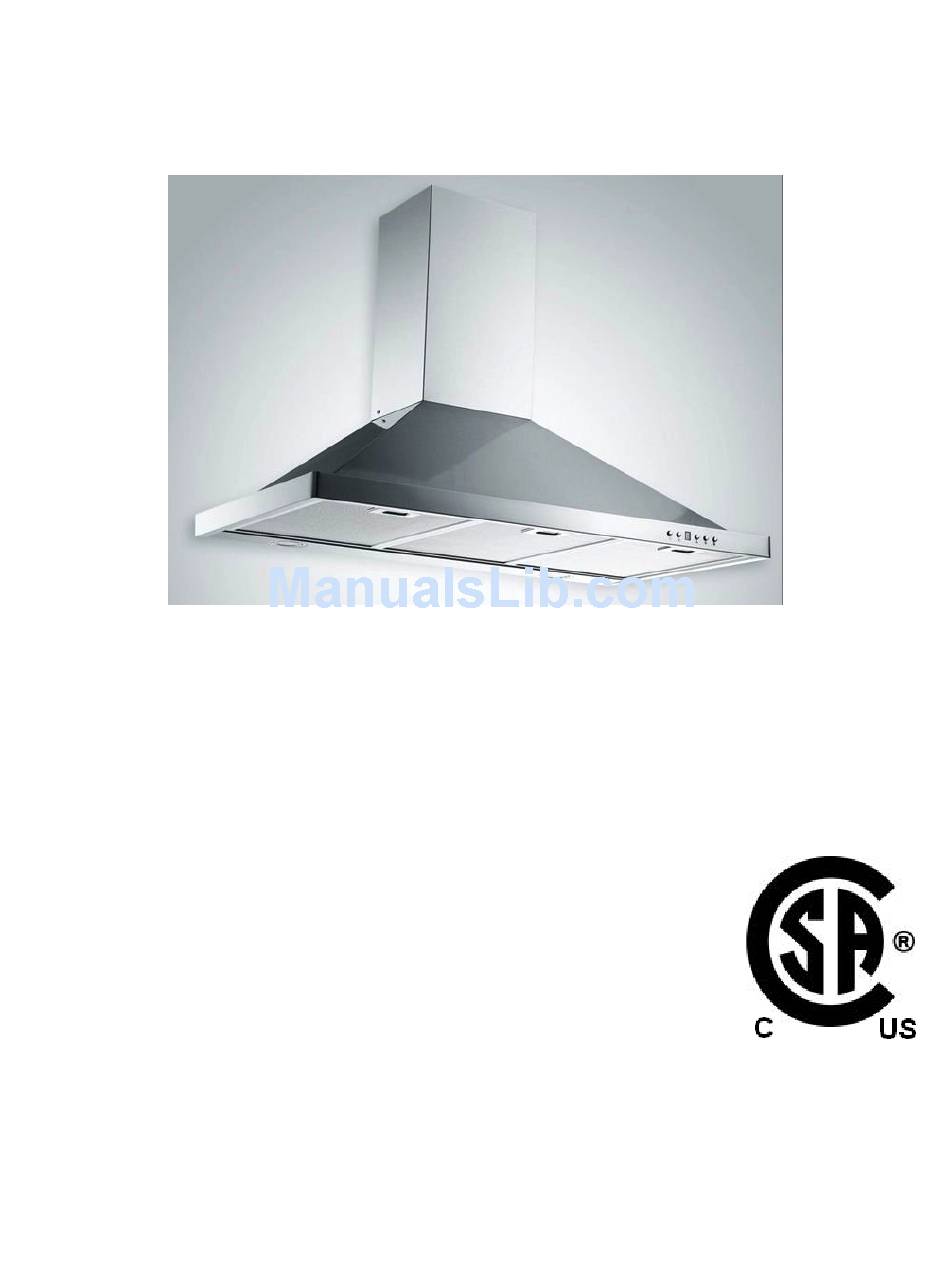

- Page 1 High Power Range Hood Pictured Model: CW500 Installation and Operating Instructions Please read all instructions before installing and operating. All wiring and installation must be in accordance with CEC, NEC and local electrical codes.
- Page 2 CONTENTS Page PREPARATION FOR INSTALLATION Safety Instructions Technical Specifications Tools and Materials Ducting Mount Heights & Clearance CANOPY RANGE HOOD INSTALLATION INSTRUCTIONS Installation Instructions Electrical Grounding ISLAND RANGE HOOD INSTALLATION INSTRUCTIONS Installation instructions Electrical grounding instructions Mounting the Island Range Hood MAINTENANCE AND UPKEEP Surface Maintenance Replacing Light Bulbs...
-
Page 3: Safety Instructions
PREPARATION FOR INSTALLATION SAFETY INSTRUCTIONS To reduce the risk of fire, electric shock, or injury to persons, observe the following: 1. This range hood is for general ventilating use only. Do not use it to exhaust hazardous or explosive materials or vapours. 2. -
Page 4: Technical Specifications
550 CFM Electrical Connections 120V, 60Hz Power Consumption 200W Fan Speed 1550 RPM Colours Stainless Steel Venting Ductwork through wall: CW500, Ductwork through ceiling: CI520, CW501, CW502, CW503, CW510 CI521, CI522, CI523, CI530, CI531 Dimensions CW500 CW501/ CW502/ CW503 CW510... -
Page 5: Ducting
DUCTING Always use rigid type metal ducts. Flexible ducts can restrict airflow by more than 50%. 6” round ductwork must be used to maintain maximum air flow efficiency with the 550 CFM motor. Units with 300 CFM motors may use 4" round ductwork, however 6" ductwork is recommended. Reduce the number of transitions and turns as much as possible. -
Page 6: Mount Heights & Clearance
MOUNT HEIGHTS AND CLEARANCE Minimum mount height between range top and the hood bottom should be no less than 28” and no more than 36”. The hood must be installed at the correct mounting height. Hoods mounted too low could result in heat damage. Hoods mounted too high, will be less effective and performance will suffer. -
Page 7: Installation Instructions
CANOPY RANGE HOOD INSTALLATION INSTRUCTIONS WARNING All electrical work must be done by a qualified electrician or person with technical background and understanding. Before beginning installation switch electric power off at central service panel and lock service panel door so as to prevent power from being switched on accidentally. When the power disconnecting means cannot be locked, securely fasten a prominent warning device to the power service panel. -
Page 8: Electrical Grounding
ELECTRICAL GROUNDING INSTRUCTIONS This appliance is fitted with an electrical junction box with 3 wires, one of which (green/yellow) serves to ground the appliance. To protect you against electric shock the green-yellow wire must be connected to the grounding wire in your home electrical system and it must not be cut or removed under any circumstances. -
Page 9: Installation Instructions
ISLAND RANGE HOOD INSTALLATION INSTRUCTIONS WARNING All electrical work must be done by a qualified electrician or person with technical background and understanding. Before beginning installation switch electric power off at central service panel and lock service panel door so as to prevent power from being switched on accidentally. When the power disconnecting means cannot be locked, securely fasten a prominent warning device to the power service panel. - Page 10 6. Check lights and blower operation.
-
Page 13: Surface Maintenance
MAINTENANCE AND UPKEEP SURFACE MAINTENANCE Always switch off power and unplug before cleaning and maintenance. Clean with warm soapy water and clean cloth. Do not use corrosive or abrasive detergent or steel wool pads that can scratch the surface of the machine. Use non-abrasive stainless steel polish to buff out the lustre and grain. -
Page 14: Control Panel And Features
CONTROL PANEL AND FEATURES Time Delay Lights Power levels LED Screen Time-Delay Functions 1. Turn the machine on at any speed 2. Press and hold time delay button 3. Using the power level one button scroll through and select the number of minutes you would like the machine to wait before automatically shutting off.
