Summary of Contents for Raptor R8

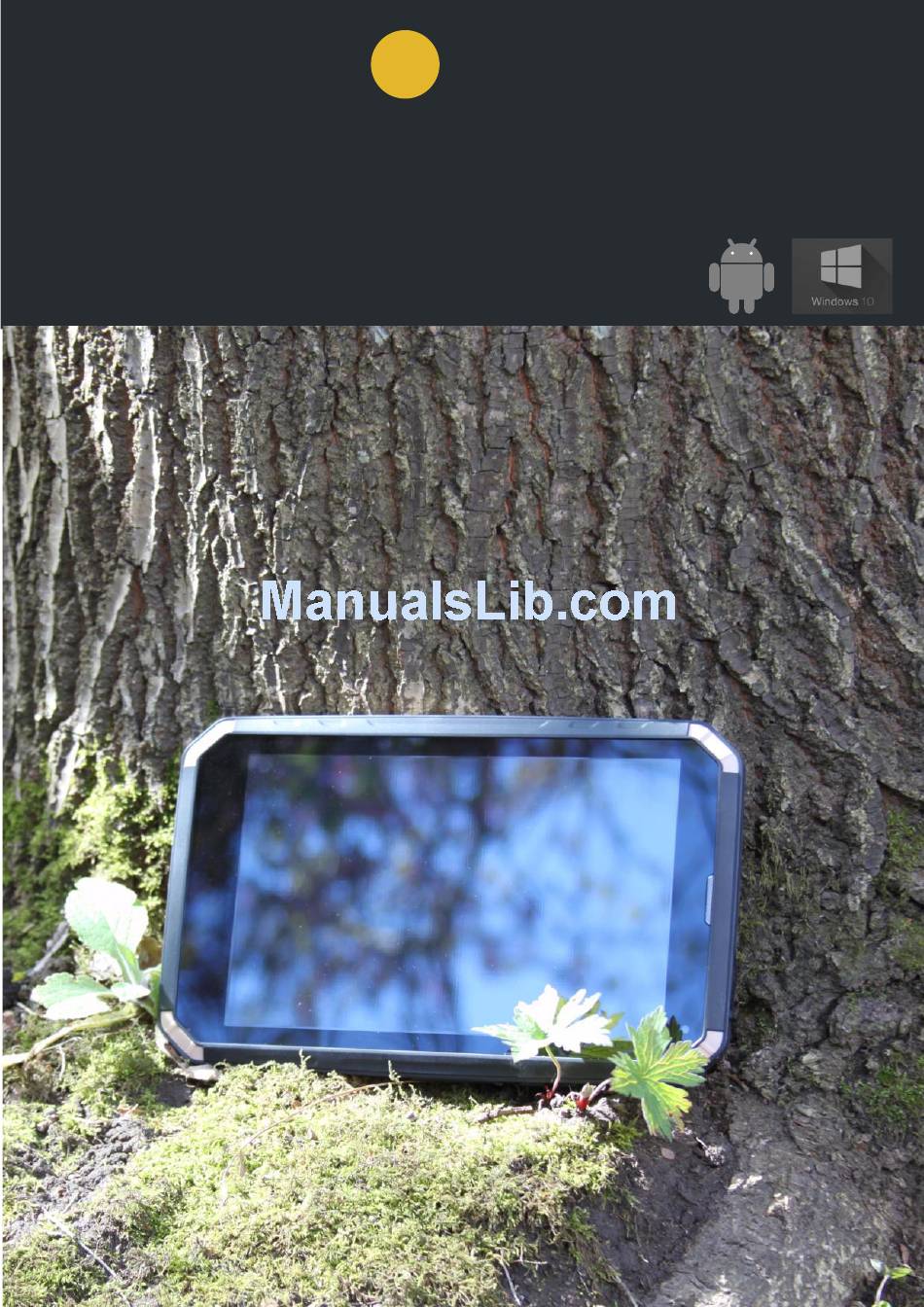

- Page 1 APTOR RAPTOR R8- Quick Start...
- Page 2 OVERVIEW USB Connector Ear phone External headset Front camera Power Volume + Volume - SIM Card SD Card FRONT Main screen Menu softkey Back softkey Home Rear camera Hand strap mount point Logo Space Back case screws BACK Loud speaker...
- Page 3 ACCESSORIES The following accessories are included with every Raptor R8: Screen protector - Pre-fitted, giving protection for your device screen against scratches. Power supply - Country specific power supply used for charging. Vehicle Charger - 12/24v USB charger to charge device whilst in vehicle.
- Page 4 BUTTONS Bellow there’s a list of the buttons of the Raptor R8 and their respective descriptions. Power Volume + Volume - Menu softkey Back softkey Home Volume +: Increase volume of speaker and earpiece while in call. Volume -: Decrease volume of speaker and earpiece while in call.
- Page 5 Attaching the screen protector following these instructions: Step 1: Check if there isn’t already a screen protector on the device. Most Raptor devices have one pre-attached in the box. Step 2: Remove the old screen protector if necessary by simply peeling it of.
- Page 6 STATUS BAR ICONS The Android OS of the Raptor R8 device is constantly monitoring for new notifications and status’ of the device. Apps can create there own icons but below are some of the more common ones with their meanings.
- Page 7 Plug the other side of the cable into either the USB-A socket of the Domestic or vehicle charger. Please note: only the supplied power units and cables must be used. Third party accessories have not been tested with Raptor devices and could cause electrical and physical harm to the connectors and the device.
- Page 8 SYNCING & CONNECTING ACCESSORIES The Micro USB connector can also be used to connect and sync your device with other accessories or devices. USB Connector How to connect your device with a PC: Step 1: Pull open the rubber cover at the bottom of the device marked with the USB symbol. Step 2: Insert the micro USB end of the provided USB cable carefully into the Micro-USB connector in the device, ensuring you are careful when doing this as Micro-USB connectors can be easily...
- Page 9 CONNECTORS The connectors allow external peripherals to be connected to the device. Bellow there is an explaination of the connectors and their location. USB Connector External headset All connectors have rubber covers which are required to maintain the IP rating of the device.
- Page 10 REPLACING THE BATTERY AND CARDS The battery in the Raptor R8 is sealed and cannot be removed or replaced by the user. If you require the battery to be changed then please contact our support centre who will be happy to help.
- Page 11 MAINTAINING RUGGEDNESS Your Raptor device is fully rugged, however you must be careful to use the device correctly to ensure it remains rugged at all times. USB Connector External headset Case screws SIM Card MicroSD Card Connector rubber covers: Must be kept securely fitted at all times to ensure maximum IP rating of the device.
