Summary of Contents for Stamps Ledgetop Counter

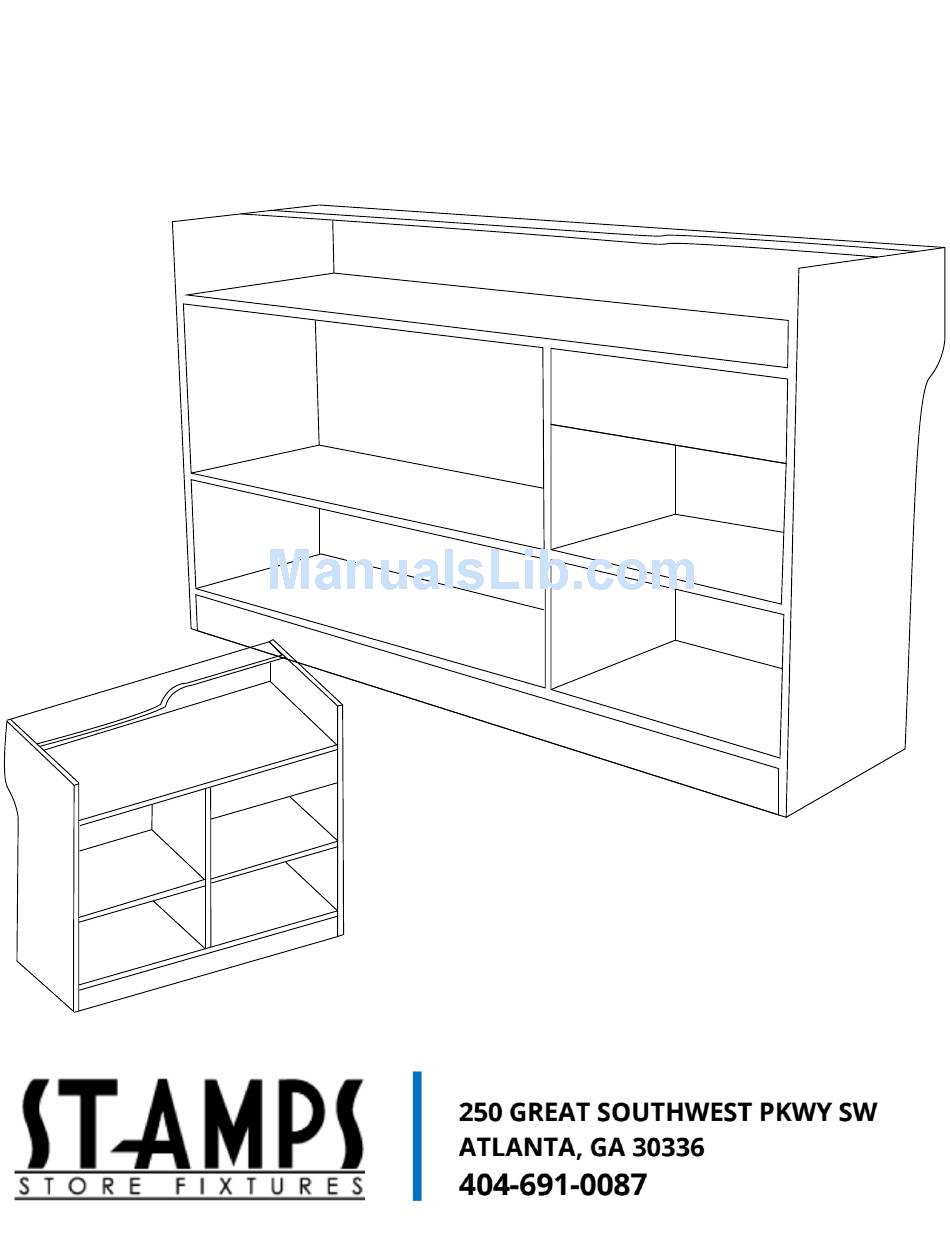

- Page 1 Assembly Instruction Manual Ledgetop Counter...
- Page 2 Assembly Instruction Manual ledgetop counter Recommended Tools for Assembly Phillips Screw Driver Mallet Parts Included: 1.25in Screws (5) Cam Lock Screws (63) Round Stickers (19) Camlock Nut (pre-installed already (63)) Shelf Clip (9) White Round Stickers (13) Page 1 of 11...
- Page 3 Assembly Instruction Manual Ledgetop Counter Parts Included: Ledgetop Front Upper Ledgetop Panel Recess Countertop Front Lower Panel Left Panel Right Panel Middle Divider Bottom Base Bottom Base Sides Drawer Parts Included: Right Panel Back Panel Shelves (2) Drawer Key for Lock...
- Page 4 Ledgetop Counter Assembly Instruction Manual Step 1 Screw cam lock pins in small holes of bottom base. Set bottom base sides on top of bottom base camlock pins. Make sure arrows on cam lock nuts are facing to the right. Then tighten with screw driver.
- Page 5 Ledgetop Counter Assembly Instruction Manual Step 2 Screw cam lock pins in small holes of the front lower panel. Place middle divider on top of camlock pin holes. Make sure arrows on cam lock nuts are facing to the right. Then tighten with screw driver.
- Page 6 Ledgetop Counter Assembly Instruction Manual Step 3 Line up front lower panel and middle divider on top of the bottom base camlock pins. Make sure arrows on cam lock nuts are facing to the right. Then tighten with screw driver. (See Diagram 3A)
- Page 7 Ledgetop Counter Assembly Instruction Manual Step 4 Place camlock pins into the the recessed countertop. Then place recessed countertop on top of the rest of the unit. Then tighten with screw driver. (See Diagram 4A) Diagram 4A Page 6 of 11...
- Page 8 Ledgetop Counter Assembly Instruction Manual Step 5 Place camlock pins on other side of the recessed countertop. Set front upper ledgetop panel on top of recessed countertop camlock pins. Then tighten with screw driver. (See Diagram 5A) Diagram 5A Page 7 of 11...
- Page 9 Ledgetop Counter Assembly Instruction Manual Step 6 Place cam lock pins on ledgetop. Then setl ledgetop on top of the recessed countertop. Then tighten with screw driver. (See Diagrams) Diagram 6A Diagram 6B Page 8 of 11...
- Page 10 Ledgetop Counter Assembly Instruction Manual Step 7 Place camlock pins on right and left panels. Attach panels to the rest of the unit. Then tighten with screw driver. (See Diagrams) Diagram 7A Diagram 7B Page 9 of 11...
